Implement Automatic Gain Control for RF Receiver

This example shows how to use a protected RF Blockset™ circuit envelope model as a referenced model within a system that implements baseband signal processing, communications algorithms, and adaptive architectures around an RF network. To illustrate these concepts, this example designs and implements an automatic gain control (AGC) algorithm for an RF direct-conversion receiver (DCR) in a context similar to that of the ZigBee®-like application explored in Top-Down Design of RF Receiver.

In addition, this example demonstrates how to use model references, modeling hierarchies, and variants for modular development, protected model usage, accelerated simulation, and overall rapid design iteration. For more information about these concepts, see Model Reference Basics.

ZigBee-Like System Containing RF DCR and Subject to Strong Interference

The top-level system consists of the following components:

  • Baseband transmitter used to generate a ZigBee-like waveform spectrally representative of signals that conform to the IEEE® 802.15.4 standard

  • Wideband interferer used to generate a WCDMA-like, in-band but out-of-channel blocker spectrally representative of interfering signals noncompliant with the standard

  • Circuit envelope model of an RF DCR

  • AGC algorithm implemented via a MATLAB Function block to supply the variable gain and variable attenuation control signals to the RF DCR

  • Peak detector used by the AGC feedback loop to regulate the fast response, which decreases gain and increases attenuation when the peak power exceeds a prespecified threshold

  • Average power meter used by the AGC feedback loop to regulate the slow response, which adjusts gain and attenuation to steadily bring the average power and signal-to-noise ratio (SNR) to the target levels

  • Analog-to-digital converter (ADC) used to convert the baseband analog signal output by the RF receiver into baseband digital signals consumed by downstream communications and digital signal processing

  • Baseband receiver that receives and processes the 802.15.4 waveform and computes the chip error rate (ChER) system-level performance metric.

To begin, specify the baseband and RF parameters that are required for simulation. Note that vgaIIP2 and vgaIIP3 are tunable parameters of the protected model for the RF DCR. The remaining parameters are associated with various baseband components in the top-level system.

% Baseband parameters
bitRate = 250e3;
spf = 4;  % samples per frame
bps = 4;  % bits per ZigBee symbol
sps = 16; % samples per OQPSK symbol
cps = 32; % chips per ZigBee symbol
chipRate = bitRate*cps/bps;

% RF parameters
oversampling = 4; % no out-of-band signal
vgaIIP2 = 50;     % IIP2 of RF receiver's VGA
vgaIIP3 = 30;     % IIP3 of RF receiver's VGA

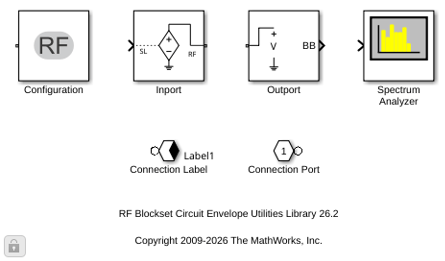

To use a protected model containing Circuit Envelope blocks, you first need to ensure that the necessary RF Blockset libraries and dependencies are loaded in MATLAB®. Note that you only need to do this once per MATLAB session, but you must do this before the first time you use a protected model containing Circuit Envelope blocks in that MATLAB session. Execute the following command to preload the Circuit Envelope Utilities library and to configure the RF Blockset environment.

open_system simrfV2util1

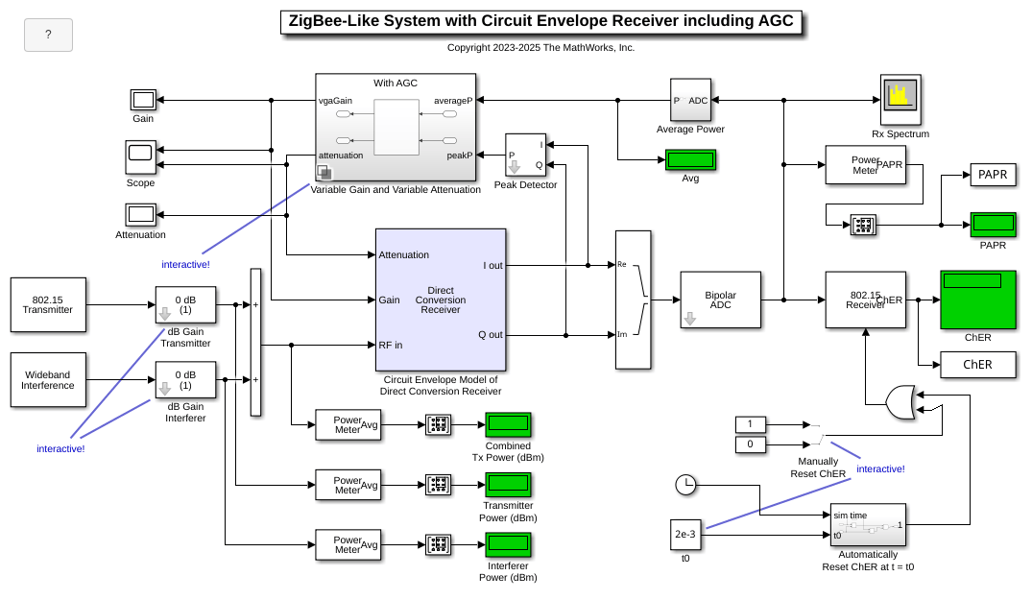

Open the top-level model. Note that the model contains interactive controls, which you can use to quickly modify it.

model = 'RFDCRWithAGC';
open_system(model)

Reference Protected Model of RF DCR

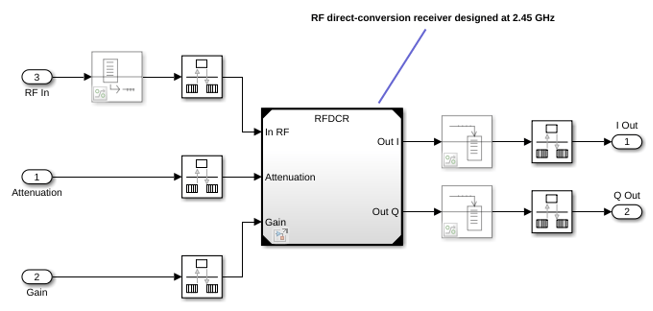

Open the subsystem containing the referenced model of the RF DCR. Although the SLXP file is platform-specific, the model's PostLoadFcn callback is set up to automatically choose the correct version of the SLXP file for your specific platform.

subsystemDCR = ...
    [model,'/Circuit Envelope Model of Direct Conversion Receiver'];
blockModelReference = [subsystemDCR,'/Model'];

if ismac || isunix || ispc
    open_system( ...
        [model,'/Circuit Envelope Model of Direct Conversion Receiver'])
else
    disp("Protected model in this example not supported for " + computer)
end

Note that the Model block references a protected model, as indicated by the shield badge on the bottom-left corner of the block. Also note that the protected model has predefined sample rates as well as fixed input and output signal dimensions. To review the protected model's interface specifications, you can right-click on the shield badge and select Display Report or see Protect Circuit Envelope Model.

This protected model is designed to work with framed signals of size 256 and period 8e-6 seconds at its input and output ports. Consequently, to implement baseband system designs with different frame sizes and frame rates, you might need to use Unbuffer, Buffer, and Rate Transition blocks to correctly interface with the referenced model for the RF system. While a full treatment of this is out of scope for this example, the model already includes these blocks, although some of them are commented out.

Use Variants to Switch Between AGC and Fixed Mode Implementations

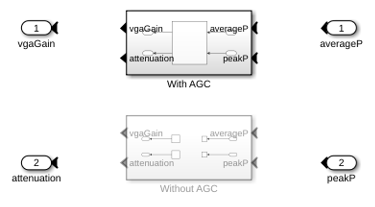

The top-level model also makes use of Simulink® variants. In general, you can use variant subsystems and Simulink variant capabilities to create flexible models with built-in variabilities to efficiently manage and compare various designs. In this example model, you can quickly enable or disable the AGC algorithm as per the following steps. First, right-click on the variant badge on the bottom-left corner of the Variant Subsystem block. Then, set Label Mode Active Choice as desired.

subsystemAGC = [model,'/Variable Gain and Variable Attenuation'];
open_system(subsystemAGC)

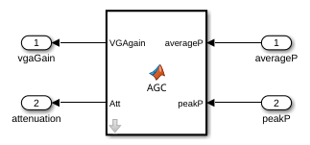

The AGC dynamically adjusts the gain and attenuation of the DCR to maximize the SNR. It amplifies the output power from the RF network to stay within the dynamic range of the ADC, and it attenuates the incoming power to the RF network to prevent saturation and overload of the RF front-end. In contrast, without the AGC the gain and attenuation are fixed and require manual retuning to maximize the SNR. In this example, the AGC maintains the variable gain between –10 dB to 40 dB. It also maintains the variable attenuation between 0 dB to 60 dB. You can enable the AGC by setting the active variant in the variant subsystem.

set_param(subsystemAGC,'LabelModeActiveChoice','With AGC')
activeVariant = get_param(subsystemAGC,'CompiledActiveChoiceBlock');
open_system(activeVariant)

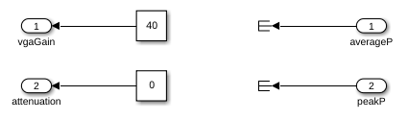

When the AGC is disabled, the fixed value set for the variable gain is 40 dB, and the fixed value set for the variable attenuation is 0 dB. You can disable the AGC by setting the active variant in the variant subsystem.

set_param(subsystemAGC,'LabelModeActiveChoice','Without AGC')
activeVariant = get_param(subsystemAGC,'CompiledActiveChoiceBlock');
open_system(activeVariant)

Store Block Paths to Tune Signal and Interferer Levels and View Scopes

Store the paths to the blocks used to adjust the power levels of the transmitter and interferer. Each of these blocks applies a dB gain to its input, as specified by its dB parameter. At 0 dB gain, the nominal power levels for both the transmitter and the interferer are –100 dBm. You can interactively tune the dB gains from within the Simulink Editor, or you can programmatically set them.

blockGainTransmitter = [model,'/dB Gain Transmitter'];
blockGainInterferer = [model,'/dB Gain Interferer'];

Store the block paths of the scopes in the model so that you can open and examine the scopes later in this example.

blockScope = [model,'/Scope'];
blockRxSpectrum = [model,'/Rx Spectrum'];

Simulate Model with AGC for Sensitivity Level Input and Weak Interferer

As per the design of the DCR in Design RF Direct-Conversion Receiver, the minimum signal power required to operate the receiver is around –100 dBm. In the top-level system, the baseband transmitter starts at –100 dBm, which is the sensitivity level of the DCR. The interferer is also set to –100 dBm and is thus a weak interferer. As a result, the ChER is essentially determined by the noise floor. Given the low input power levels, the AGC maximizes the variable gain to 40 dB and minimizes the variable attenuation to 0 dB.

set_param(subsystemAGC,'LabelModeActiveChoice','With AGC')
set_param(blockGainTransmitter,'dB','0')
set_param(blockGainInterferer,'dB','0')

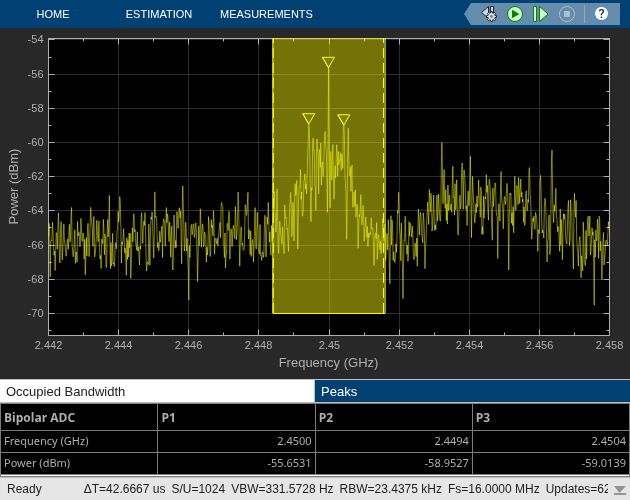

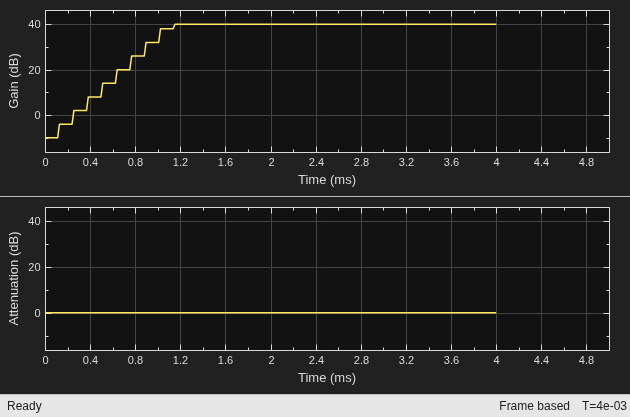

Simulate the model and examine the performance metrics, the spectrum of the received signal after the ADC, and the evolution of the variable gain and attenuation as regulated by the AGC. For your convenience, the model automatically resets the ChER metrics after 2 ms and recomputes it from 2–4 ms. This provides enough time for the AGC-controlled variable gain to stabilize, and so the final reported ChER is not affected by the startup dynamics of the model. The ChER is around 8%.

if ismac || isunix || ispc
    [~] = sim(model,StopTime='4E-3');
    open_system(blockRxSpectrum)
    open_system(blockScope)
else
    disp("Simulation of this example model not supported for " + computer)
end

Without the AGC, the variable gain stays at 40 dB, and the variable attenuation stays at 0 dB. This matches the respective levels to which the variable gain and attenuation settle in the presence of the AGC, so you can expect similar system performance with vs. without the AGC. Although this example does not explicitly show it, you can rerun this simulation with the AGC disabled to confirm the same.

Increase Input Power Above Noise Floor and Simulate Model with AGC

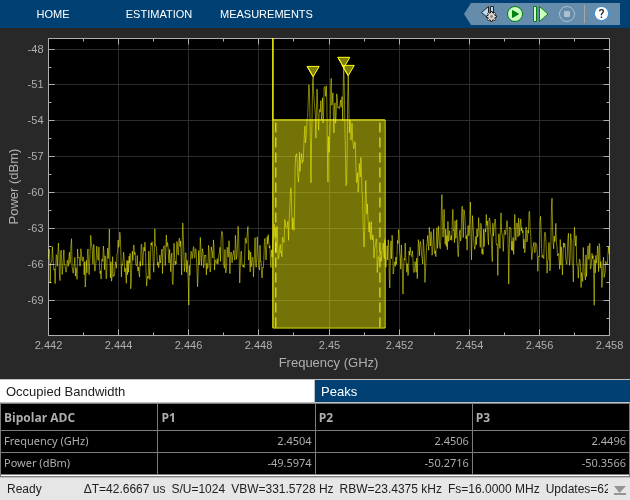

Increase the input power by 10 dB, which is well above the noise floor. Meanwhile, keep the interferer power the same at –100 dBm. The AGC still maximizes the variable gain to 40 dB and minimizes the variable attenuation to 0 dB. The overall input power is still far from the DCR's saturation level. Accordingly, the ChER is close to zero.

set_param(subsystemAGC,'LabelModeActiveChoice','With AGC')
set_param(blockGainTransmitter,'dB','10')
set_param(blockGainInterferer,'dB','0')

if ismac || isunix || ispc
    [~] = sim(model,StopTime='4E-3');
    open_system(blockRxSpectrum)
    open_system(blockScope)
else
    disp("Simulation of this example model not supported for " + computer)
end

Simulate Model with AGC in Presence of Strong Interferer

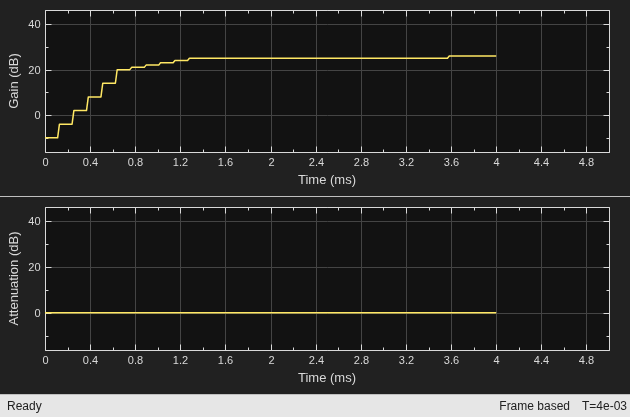

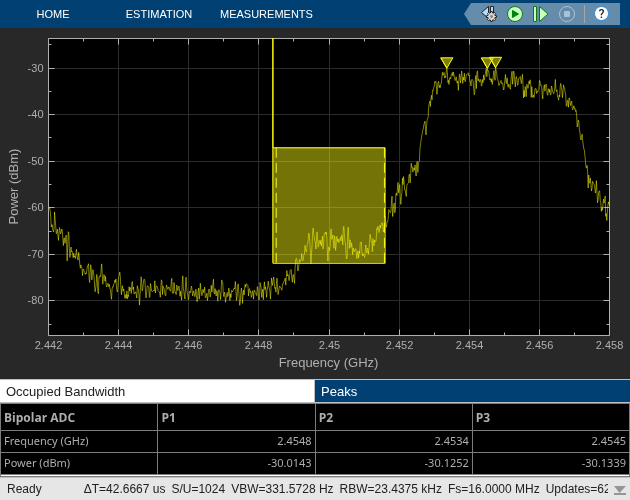

Increase the interferer power by 50 dB, thus creating substantial in-band blocking, capable of driving the DCR into saturation. In response, the AGC reduces the variable gain to 26 dB, lower than the maximum of 40 dB. The ChER worsens to 19%, but the degradation is mitigated due to the AGC.

set_param(subsystemAGC,'LabelModeActiveChoice','With AGC')
set_param(blockGainTransmitter,'dB','10')
set_param(blockGainInterferer,'dB','50')

if ismac || isunix || ispc
    [~] = sim(model,StopTime='4E-3');
    open_system(blockRxSpectrum)
    open_system(blockScope)
else
    disp("Simulation of this example model not supported for " + computer)
end

Disable AGC and Compare System Performance

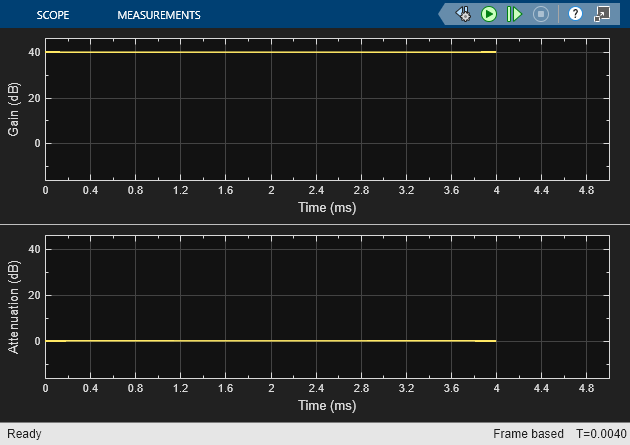

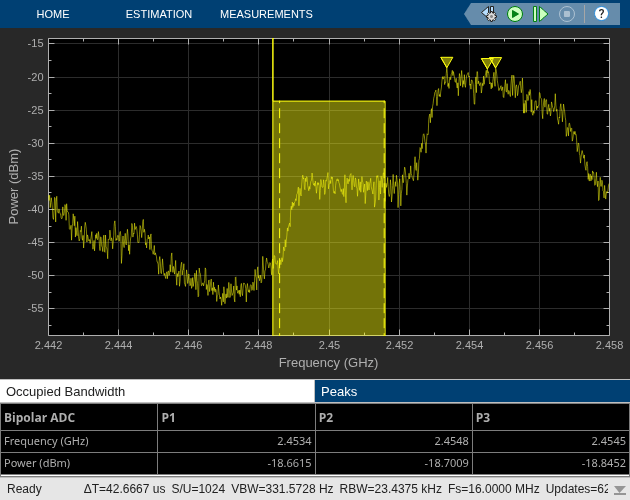

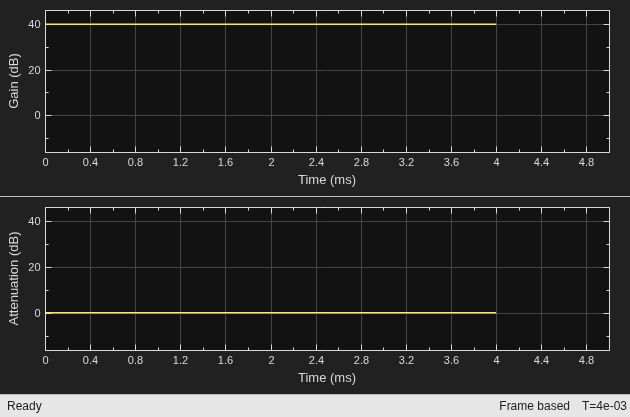

Disable the AGC and rerun the simulation. In absence of the AGC, the strong interferer drives the DCR into saturation, as the system does not have a mechanism to adapt to and avoid this situation. The variable gain remains at 40 dB, and the variable attenuation remains at 0 dB. As a result, the ChER suffers from severe degradation and hovers near 48%.

set_param(subsystemAGC,'LabelModeActiveChoice','Without AGC')
set_param(blockGainTransmitter,'dB','10')
set_param(blockGainInterferer,'dB','50')

if ismac || isunix || ispc
    [~] = sim(model,StopTime='4E-3');
    open_system(blockRxSpectrum)
    open_system(blockScope)
else
    disp("Simulation of this example model not supported for " + computer)
end
