Estimate Maximum Charging and Discharging Power of Battery Module

Since R2025a

This example shows how to estimate the maximum charging and discharging power of a battery module by using the Battery Power Estimator block.

At the start of the simulation, the battery module has a state of charge (SOC) of 40%. A Battery CC-CV block performs a constant-current (CC) charging until it reaches the cell voltage limit of 4.15 V, specified in the Cell voltage threshold (V) parameter. The block then charges the battery with a constant-voltage (CV) profile. Once the module SOC reaches 90%, the Battery CC-CV block starts a CC discharging procedure and discharges the module until the SOC reaches the initial value of 10%. The charge and discharge cycle then restarts.

During the charging and discharging cycles of the Battery CC-CV block, a Battery Power Estimator block estimates the maximum charge and discharge power of the module. The Battery Power Estimator block estimates the power with a prediction window of 10 seconds.

Open Model

Open the powerEstimator model.

modelname = "powerEstimator";
open_system(modelname);

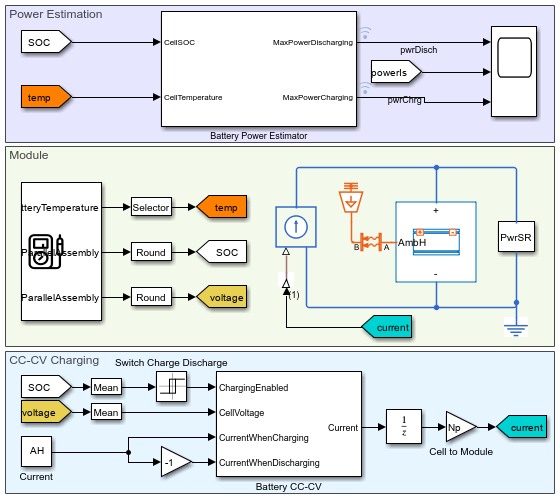

The model comprises a pre-generated Module (Generated Block) block, a Battery CC-CV block, and a Battery Power Estimator block. The Module block represents a battery module with three parallel assemblies with a gap between each parallel assembly of 0.5 mm, a detailed model resolution, and an enabled ambient thermal path. Each parallel assembly comprises four single-stacked pouch cells. Each pouch cell measures 300 mm in length, 100 mm in height, and 10 mm in thickness. For more information on how to generate the Module block, open the powerEstimatorCreateLib.mlx file.

Run the simulation.

ssc_pwrEst = sim(modelname);

View Simulation Results

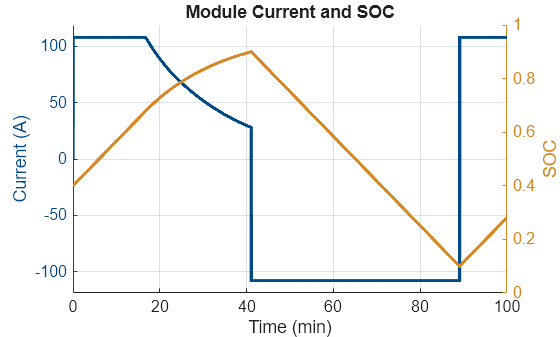

This plot shows the current and SOC of the battery module during the simulation. The Battery CC-CV block charges the battery module from 40% to 90%. Then, the block discharges the battery module back to an SOC of 10% before charging it back again to 90%.

powerEstimatorPlotSOC;

This plot shows the estimated maximum charging and discharging of the battery module during the simulation, as well as the actual power at the module level.

powerEstimatorPlotPwr;
