Check Dynamic Upper Bound

Check that one signal is always greater than another signal

  • Library:
  • Simulink / Model Verification

    HDL Coder / Model Verification

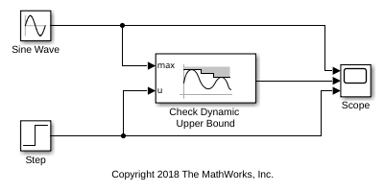

The Check Dynamic Upper Bound block checks that the amplitude of a reference signal, max, is greater than the amplitude of a test signal, u, at the current time step. If the verification condition is true, the block does nothing. If not, the block halts the simulation, by default, and displays an error message.

Use the blocks in the Model Verification library to facilitate creation of self-validating models. For example, you can use model verification blocks to test that signals do not exceed specified limits during simulation. When you are satisfied that a model is correct, you can turn error checking off by disabling the verification blocks. You do not have to remove them from the model. If you need to modify a model, you can temporarily turn the verification blocks back on to ensure that your changes do not break the model.


For information about how Simulink® Coder™ generated code handles Model Verification blocks, see Debug (Simulink Coder).



expand all

Signal specifying the lower bound of the range that the block checks the input signal u amplitude. Signal data type and dimension must be the same as u.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean | fixed point | enumerated

Input signal checked against the lower bound specified by min. Both input signals must be the same data type and dimension.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean | fixed point | enumerated


expand all

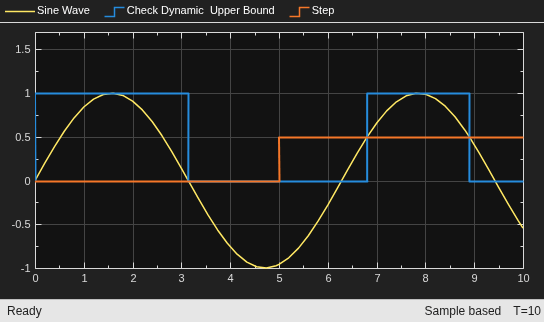

Output signal at each time step that is true (1) if the assertion succeeds, and false (0) if the assertion fails. If, in the Configuration Parameters, you select Implement logic signals as Boolean data, then the output data type is a Boolean. Otherwise the data type of the signal is a double.


To enable this output port, select the Output assertion signal parameter check box.

Data Types: double | Boolean


expand all

Clearing this check box disables the block and causes the model to behave as if the block does not exist. You can set the Model Verification block enabling setting in the Configuration Parameters to enable or disable all model verification blocks in a model regardless of the setting of this option.

Command-Line Information

Parameter: enabled
Type: character vector
Values: 'on' | 'off'
Default: 'on'

Specify a MATLAB® expression to evaluate when the assertion fails. Because the expression is evaluated in the MATLAB workspace, define all variables used in the expression in that workspace.

Command-Line Information

Parameter: callback
Type: character vector
Values: MATLAB expression
Default: ' '

Select this check box to indicate that the block halts simulation when the check fails. Clear to indicate that the software displays a warning and continues the simulation.

Command-Line Information

Parameter: stopWhenAssertionFail
Type: character vector
Values: 'on' | 'off'
Default: 'on'

Selecting this check box causes the block to output a Boolean signal that is true (1) at each time step if the assertion succeeds and false (0) if the assertion fails. The data type of the output signal is Boolean if you have selected the Implement logic signals as Boolean data check box on the Configuration Parameters dialog box. Otherwise the data type of the output signal is double.

Command-Line Information

Parameter: export
Type: character vector
Values: 'on' | 'off'
Default: 'off'

Specify the type of icon used to display this block in a block diagram. The graphic option displays a graphical representation of the assertion condition on the icon. The text option displays a mathematical expression that represents the assertion condition. If the icon is too small to display the expression, the text icon displays an exclamation point. To see the expression, enlarge the block.

Command-Line Information

Parameter: icon
Type: character vector
Values: 'graphic' | 'text'
Default: 'graphic'

Block Characteristics

Data Types

Boolean | double | enumerated | fixed point | integer | single

Direct Feedthrough


Multidimensional Signals


Variable-Size Signals


Zero-Crossing Detection


Extended Capabilities

PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.

Fixed-Point Conversion
Convert floating-point algorithms to fixed point using Fixed-Point Designer™.

Introduced before R2006a
