Simulink.Bus.objectToCell

Create cell array of bus information from Simulink.Bus objects

Syntax

C = Simulink.Bus.objectToCell(objs)

C = Simulink.Bus.objectToCell(objs,scope)

Description

C = Simulink.Bus.objectToCell(objs) creates a cell array of bus information from the Simulink.Bus objects specified by objs. The objects must be in the MATLAB^® base workspace.

C = Simulink.Bus.objectToCell(objs,scope) creates a cell array of bus information from Simulink.Bus objects in the data dictionary specified by scope.

Examples

Create Cell Arrays Containing Bus Object Information

Create cell arrays that define Simulink.Bus objects.

Open the example model named BusConversion.

mdl = "BusConversion";
open_system(mdl)

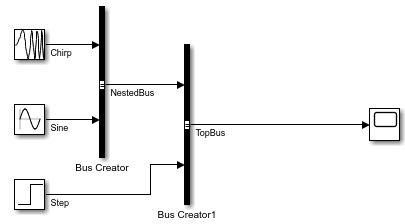

This model creates Simulink.Bus objects named TopBus and Sinusoidal.

Create cell arrays that define each object.

objects = {'TopBus','Sinusoidal'};
cells = Simulink.Bus.objectToCell(objects);
cells{1}

ans=1×7 cell array
    {'TopBus'}    {0×0 char}    {0×0 char}    {'Auto'}    {'-1'}    {'0'}    {2×1 cell}

cells{2}

ans=1×7 cell array
    {'Sinusoidal'}    {0×0 char}    {0×0 char}    {'Auto'}    {'-1'}    {'0'}    {2×1 cell}

Input Arguments

objs — Simulink.Bus objects

cell array of Simulink.Bus object names

Simulink.Bus objects, specified as a cell array of Simulink.Bus object names. Specify the object names as character vectors.

If objs is empty, the function converts all Simulink.Bus objects in the base workspace or data dictionary.

Example: cells = Simulink.Bus.objectToCell({'busObject'})

scope — Data dictionary

Simulink.data.Dictionary object

Data dictionary, specified as a Simulink.data.Dictionary object. Before you use this argument, represent the dictionary with a Simulink.data.Dictionary object by using, for example, the Simulink.data.dictionary.create or Simulink.data.dictionary.open function.

If scope is empty, the function uses the MATLAB base workspace as the source of the Simulink.Bus objects.

Example: cells = Simulink.Bus.objectToCell({'busObject'},dataDictionaryObject)

Output Arguments

C — Simulink.Bus object information

cell array of cell arrays

Simulink.Bus object information, specified as a cell array of cell arrays. Each subordinate cell array contains these Simulink.Bus object properties:

1. Bus name

2. Header file

3. Description

4. Data scope

5. Alignment

6. Preserve element dimensions

7. Elements

The elements field is a cell array that contains this information for each of the Simulink.BusElement objects that the Simulink.Bus object references:

1. Element name

2. Dimensions

3. Data type — When this field specifies a Simulink.Bus object, the specification does not include the Bus: prefix. This prefix is optional when you set the data type of a Simulink.BusElement object to a Simulink.Bus object.

4. Sample time — The cell array contains this field when the sample time is not inherited. A noninherited sample time causes an error during model compilation. For more information, see Simulink.BusElement objects no longer support the SampleTime property.

5. Complexity

6. Sampling mode

7. Dimensions mode

8. Minimum

9. Maximum

10. Units

11. Description

The order of elements in the output cell array corresponds to the order of names in the input cell array.

Tips

The inverse function is Simulink.Bus.cellToObject.

Version History

Introduced in R2007a

R2020b: Simulink.BusElement objects no longer support the SampleTime property

The SampleTime property of Simulink.BusElement objects is no longer supported.

BusElement objects that specify a sample time cause an error during compile. To remove the sample time specification from a BusElement object, set its SampleTime to -1.

Simulink.Bus.cellToObject continues to accept cell arrays that specify sample time for bus elements. Simulink.Bus.objectToCell, Simulink.Bus.save, and Simulink.Bus.createObject continue to return cell arrays or arrays that include the sample time when it is noninherited. When the sample time is inherited (-1), they omit it. Similarly, the Type Editor and Model Explorer omit the sample time when it is inherited.

To specify the sample time for an element of a bus, use the SampleTime block parameter of corresponding blocks. For example, you can use In Bus Element, Out Bus Element, and Signal Specification blocks to specify sample time.

R2016b: Simulink.BusElement objects will no longer support the SamplingMode property

The SamplingMode property of Simulink.BusElement objects has been removed. Scripts that use the SamplingMode property of Simulink.BusElement objects continue to work. The Simulink.Bus.cellToObject function continues to require the SamplingMode field. The Simulink.Bus.objectToCell function continues to include the sampling mode in the output cell arrays. When you save Simulink.Bus object definitions to functions that use cell arrays, the cell arrays continue to include the sampling mode.

In a future release, support for the SamplingMode property will be removed.

To specify whether a signal is sample-based or frame-based, define the sampling mode of input signals at the block level instead of at the signal level.
