Parameterize Instances of a Reusable Referenced Model

When you reference the same model using multiple Model blocks, you can configure a block parameter to use either the same value or a different value for each instance of the model. For example, you can configure the Gain parameter of a Gain block. To use different values, create and use a model argument to set the value of the block parameter. For some applications, you can reuse a referenced model only if you can configure each instance to use a different value for a block parameter (such as the setpoint of a controller or a filter coefficient).

Specify a Different Value for Each Instance of a Reusable Model

For a block parameter in a reusable referenced model, to specify a different value for each instance of the model:

  1. Create a MATLAB® variable or Simulink.Parameter object in the model workspace of the referenced model.

    • Use a MATLAB variable for ease of maintenance.

    • Use a Simulink.Parameter object for greater control over the minimum and maximum value, the data type, and other properties of the model argument.

  2. Set the block parameter value in the model by using the variable or parameter object. Optionally, use the same variable or object to set other block parameter values.

  3. Configure the variable or object as a model argument.

    When you simulate this model directly, the block parameters use the value that the variable or object stores in the model workspace. When this model is simulated as a referenced model, a parameter that is configured as a model argument gets its value from its parent model.

  4. In each Model block that refers to the reusable model, specify an instance-specific value for the block parameter.

  5. In intermediate models, in addition to specifying an instance-specific value for the block parameter, you can specify if the parameter can be overridden at the next level of the hierarchy.

Combine Multiple Arguments into a Structure

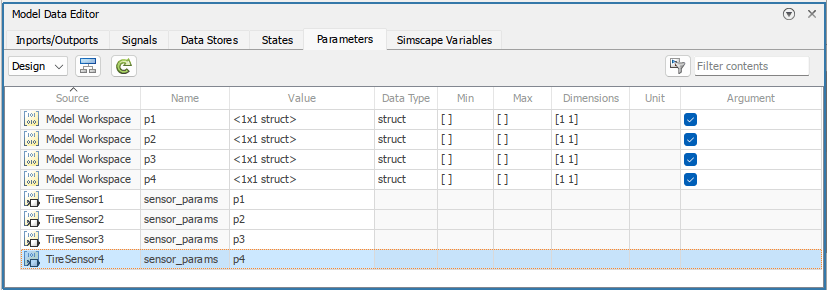

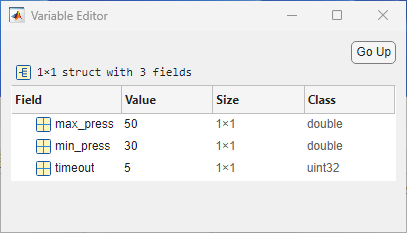

When you configure a model to use multiple model arguments, consider using a structure instead of separate variables in the model workspace. This technique reduces the effort of maintenance when you want to add, rename, or delete arguments. Instead of manually synchronizing the arguments in the model workspace with the argument values in Model blocks, you modify structures by using the Variable Editor or the command prompt.

If you have a Simulink® Coder™ license, this technique can also reduce the ROM consumed by the formal parameters of the referenced model functions, such as the output (step) function.

To create and use structures to set block parameter values, see Organize Related Block Parameter Definitions in Structures.

Parameterize a Referenced Model

This example shows how to configure multiple instances of a referenced model to use different values for the same block parameter interactively. For an example that parameterizes a referenced model using only the command prompt, see Parameterize a Referenced Model Programmatically. For an example that involves code generation, see Specify Instance-Specific Parameter Values for Reusable Referenced Model (Simulink Coder).

Configure Referenced Model to Use Model Arguments

When you simulate a referenced model by itself, the parameter objects in the model workspace use the values that you specify for the Simulink.Parameter objects or MATLAB variables. The block parameters also use these values.

To configure the Gain parameter of a Gain block and the Numerator parameter of a Discrete Filter block as model arguments, follow these steps:

  1. Create a 3-layer hierarchical model by opening a new Simulink model.

  2. Add a Model block to the model and set the Model name to ex_model_arg.

  3. Save the model as ex_model_arg_top.

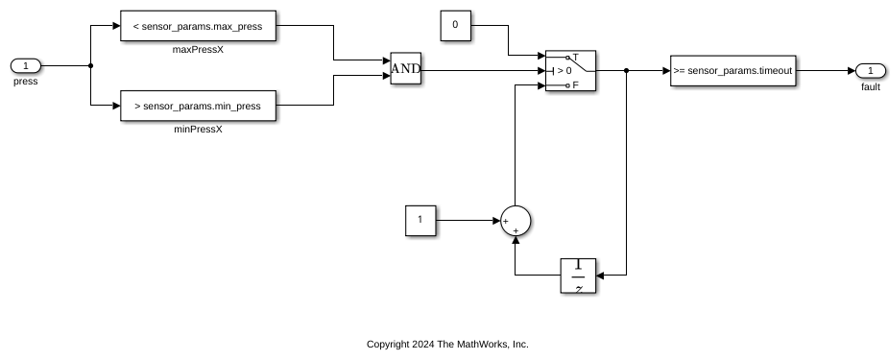

  4. Open ex_model_arg_ref. This model represents a reusable algorithm.

  5. In the model, on the Modeling tab, click Model Data Editor.

  6. In the Model Data Editor, select the Parameters tab.

  7. Use the Value column to set the value of the Gain parameter to a variable, for example, gainArg.

  8. Next to gainArg, click the action button and select Create.

  9. In the Create New Data dialog box, set Value to Simulink.Parameter and Location to Model Workspace. Click Create.

  10. In the Simulink.Parameter property dialog box, set Value to a number, for example, 3.17. Click OK.

  11. Using the Model Data Editor, set the Numerator parameter of the Discrete Filter block.

    • Use a Simulink.Parameter object named coeffArg.

    • Store coeffArg in the model workspace.

    • Assign a value of 1.05 to coeffArg.

  12. In the Model Data Editor, click the Show/refresh additional information button.

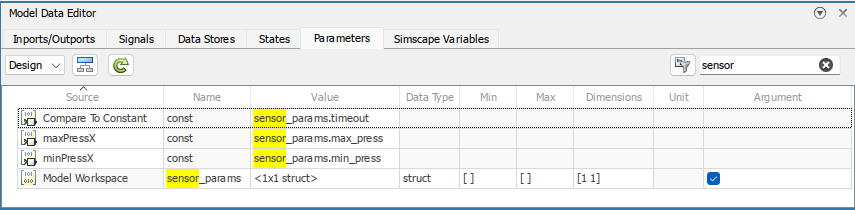

  13. For each object, select the check box in the Argument column.

    For models with many parameters, you can use the Filter contents box to find specific parameters quicker.

  14. Save ex_model_arg_ref.

Set Model Argument Values in Parent Model

When you simulate a parent model, each instance of a reusable referenced model uses the parameter values that you specify in the parent model. This example shows how you can expose a model argument as a tunable parameter on the Model block at each level of the model hierarchy.

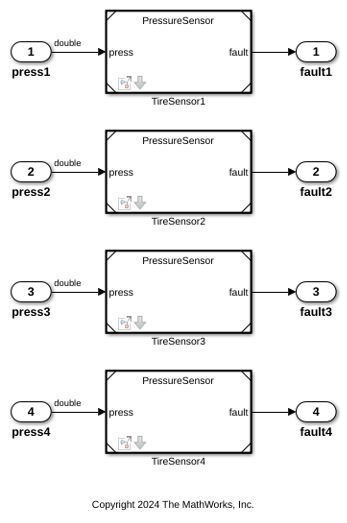

  1. Open ex_model_arg. This model represents a system model that uses multiple instances of the reusable algorithm.

  2. In the model, on the Modeling tab, click Model Data Editor.

  3. In the Model Data Editor, select the Parameters tab. The Model Data Editor shows four rows that correspond to the instance-specific parameters that you can specify for the two Model blocks.

  4. Use the Model Data Editor to set values for the parameters. For example, use the values in this figure.

  5. To override the value of these parameters at the next level of the model hierarchy, select the check box in the Argument column. By default, the check box is not selected.

    You can also configure instance-specific parameters at each Model block. In the block dialog box, select the Instance parameters tab.

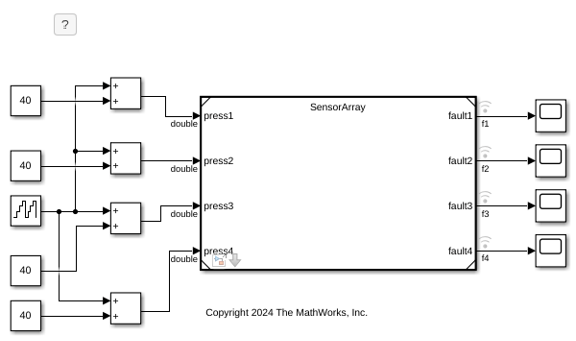

  6. Open ex_model_arg_top. This model contains a Model block that references ex_model_arg.

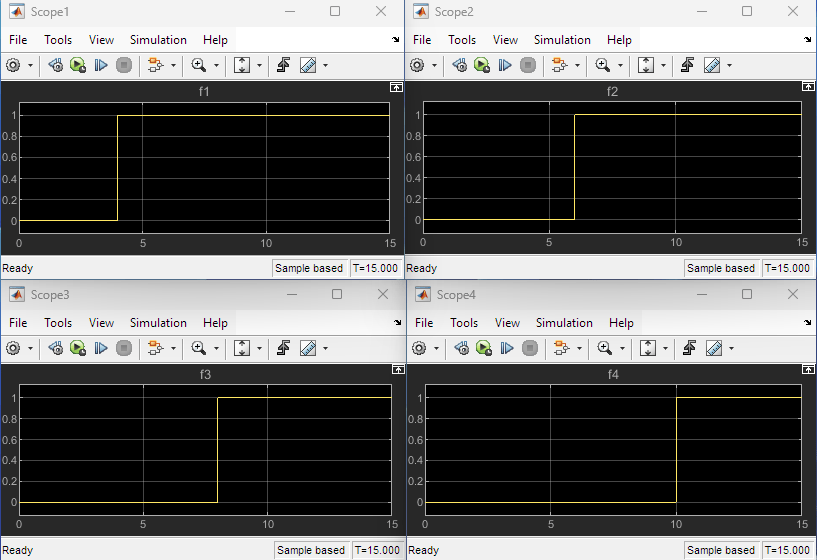

  7. Open the block parameter dialog box for Model and select the Instance parameters tab. In this tab you can see each instance-specific parameter that was exposed as a tunable parameter in the model ex_model_arg. From here you can create a parameter value set for all instances of the coeffArg and gainArg parameters in the model hierarchy.

Group Multiple Model Arguments into Single Structure

You can use structures to reduce the effort of maintenance when you want to add, rename, or delete arguments. With structures, the mathematical functionality of the models is the same.

To replace the parameter values with structures for ex_model_arg_ref and ex_model_arg, follow these steps:

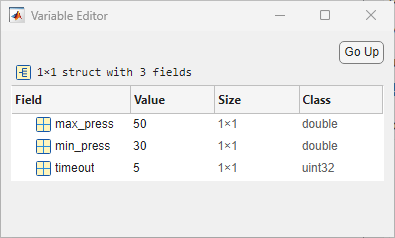

  1. At the command prompt, create a structure. Add one field for each of the parameter objects in the ex_model_arg_ref workspace.

    structForInst1.gain = 3.17;
    structForInst1.coeff = 1.05;

  2. Store the structure in a Simulink.Parameter object.

    structForInst1 = Simulink.Parameter(structForInst1);

  3. Open the Model Explorer. In the referenced model, ex_model_arg_ref, on the Modeling tab, click Model Explorer.

  4. Use the Model Explorer to copy the parameter object from the base workspace into the ex_model_arg_ref model workspace.

  5. In the model workspace, rename structForInst1 as structArg.

  6. In the Contents pane, configure structArg as the only model argument.

  7. In the ex_model_arg_ref model, in the Model Data Editor Parameters tab, set the value of the Gain parameter to structArg.gain and the value of the Numerator parameter to structArg.coeff.

  8. Save the model.

  9. At the command prompt, copy the existing structure in the base workspace as structForInst2.

    structForInst2 = copy(structForInst1);

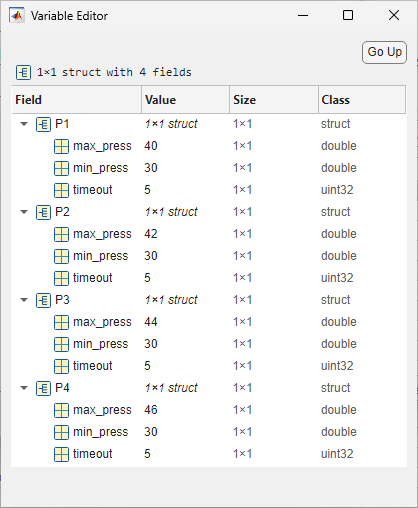

  10. Set the field values in the two structures by using the same numbers that you used to set the model argument values in the Model blocks.

    structForInst1.Value.gain = 2.98;
    structForInst1.Value.coeff = 0.98;

    structForInst2.Value.gain = 3.34;
    structForInst2.Value.coeff = 1.11;

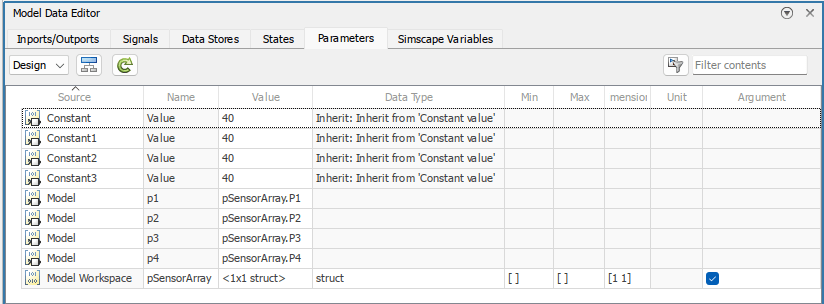

  11. In the top model, ex_model_arg, use the Model Data Editor to set the argument values as shown in this figure.

Use Bus Object as Data Type of Structures

You can use a Simulink.Bus object as the data type of the structures. The object ensures that the characteristics of the instance-specific structures, such as the names and order of fields, match the characteristics of the structure in the model workspace.

  1. At the command prompt, use the function Simulink.Bus.createObject to create a Simulink.Bus object. The hierarchy of elements in the object matches the hierarchy of the structure fields. The default name of the object is slBus1.

    Simulink.Bus.createObject(structForInst1.Value);

  2. Rename the bus object as myParamStructType by copying it.

    myParamStructType = copy(slBus1);

  3. In the Model Data Editor for ex_model_arg, click the Show/refresh additional information button. The Model Data Editor now contains rows that correspond to the parameter objects in the base workspace, structForInst1 and structForInst2.

  4. Use the Data Type column to set the data type of structForInst1 and structForInst2 to Bus: myParamStructType.

  5. In the Model Data Editor for ex_model_arg_ref, use the Model Data Editor to set the data type of structArg to Bus: myParamStructType.

Change Model Argument Name or Value

To rename a model argument in the context of the referenced model:

  • Find all Model blocks that refer to the model and save the instance-specific parameter values that each block specifies. Use the get_param function to query the InstanceParameters parameter of each block, which is a structure array. The structure contains four fields: Name, Value, Path, and Argument.

    You must save the instant-specific parameter values because the renaming operation discards the values in the Model blocks.

  • In the Model Data Editor, right-click the variable or object in the model workspace of the referenced model and select Rename All. The renaming operation changes the name of the variable or object and changes references to it throughout the model. For more information, see Create, Edit, and Manage Workspace Variables.

  • Reapply the argument values to the Model blocks by using the new name of the argument. To programmatically set argument values in a Model block, see Instance parameters.

Customize User Interface for Reusable Components

When you design a reusable referenced model for use by other members of a team, you can apply a mask to the entire referenced model. You can then customize the way that your users interact with Model blocks, including setting instance-specific values.

Using this technique also makes it easier to programmatically specify instance-specific values. If you create and use a mask parameter named gainMask to programmatically set the value to 0.98 for an instance of the model named myModelBlock, your users can use this command at the command prompt:

set_param('myModelBlock','gainMask','0.98')

If you apply a mask to the referenced model, the model mask shows only the instance-specific parameters from the direct child model. It does not show instance-specific parameters promoted up from descendant models.

If you do not mask the model, to set the instance-specific value, use the InstanceParameters parameter of the block. For more information, see Parameterize a Referenced Model Programmatically.

For information about masking models, see Introduction to Model Mask.

Configure Instance-Specific Data for Lookup Tables

When you use Simulink.LookupTable objects to store and configure lookup table data for ASAP2 or AUTOSAR code generation (for example, STD_AXIS or CURVE), you can configure the objects as model arguments. You can then specify unique table data and breakpoint data for each instance of a component.

You cannot use Simulink.Breakpoint objects or Simulink.LookupTable objects that refer to Simulink.Breakpoint objects as model arguments.

For an example that parameterizes a referenced model by using lookup tables and the command prompt, see Configure Instance-Specific Data for Lookup Tables Programmatically.

Configure Model Arguments in a Referenced Model

  1. Open the example model ex_arg_LUT_ref, which represents a reusable algorithm.

    open_system('ex_arg_LUT_ref')


  2. Using the Model Explorer, add a Simulink.LookupTable object in the model workspace. You can use the Add Simulink LookupTable button . Name the object LUTArg.

  3. Set Number of table dimensions to 2. Under Table and Breakpoints, specify values for the table and breakpoint data. For example, use the values in this figure.

    When you simulate or generate code directly from ex_arg_LUT_ref, the model uses these values.

  4. Under Struct Type definition, set Name to LUTArg_Type.

  5. Click Apply.

  6. In the Contents pane, for LUTArg, select the check box in the Argument column.

  7. In the referenced model, in the n-D Lookup Table block, set Data specification to Lookup table object. Set Name to LUTArg.

  8. Save the model.

Create Instance-Specific Argument Values

  1. Open the example model ex_arg_LUT, which uses the reusable algorithm twice.

    open_system('ex_arg_LUT')


  2. At the command prompt, create two Simulink.LookupTable objects in the base workspace. Alternatively, you can create the Simulink.LookupTable objects in a data dictionary.

    LUTForInst1 = Simulink.LookupTable;
    LUTForInst2 = Simulink.LookupTable;

  3. Specify breakpoint and table data for each object.

    LUTForInst1.Table.Value = [8 7; 6 5];
    LUTForInst1.Breakpoints(1).Value = [5 6];
    LUTForInst1.Breakpoints(2).Value = [3 4];

    LUTForInst2.Table.Value = [9 8; 7 7];
    LUTForInst2.Breakpoints(1).Value = [3 4];
    LUTForInst2.Breakpoints(2).Value = [5 6];

  4. Specify a structure type name. Match this name to the name specified by the object in the referenced model workspace.

    LUTForInst1.StructTypeInfo.Name = 'LUTArg_Type';
    LUTForInst2.StructTypeInfo.Name = 'LUTArg_Type';

  5. In the ex_arg_LUT model, in the top Model block, on the Instance parameters tab, set the value of LUTArg to LUTForInst1.

  6. In the bottom Model block, set LUTArg to LUTForInst2.

Each instance of ex_arg_LUT_ref uses the table and breakpoint data stored in one of the Simulink.LookupTable objects in the base workspace.
