Metric Details - Test Case Info

Description

The Metric Details table lists the test cases associated with the test case tag or type that you select. The table contains these columns:

  • Artifact — The individual test cases.

  • Source — The Simulink® Test™ files that define the test cases.

  • Type or Tags — The test case type or the associated tags. The test case type is either a simulation, baseline, or equivalence test.

You can open artifacts by using the hyperlinks. To view detailed artifact information, such as the file type and path, point to the hyperlinks to display the tooltip. Additionally, you can sort or filter the metric details by using the controls in the column header.

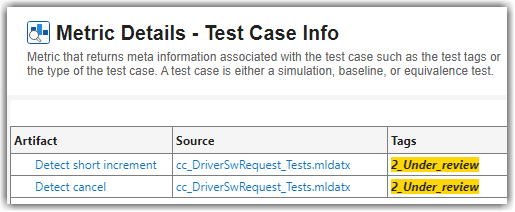

Metric Details table showing test cases with the tag "2_Under_review"

Supported Artifacts

This widget collects metric results by analyzing the test cases in test files in the project folder.

Collecting this metric requires a Simulink Test license.
