Use Parallel Computing for Response Optimization

Configure Your System for Parallel Computing

You can speed up model optimization using parallel computing on multicore processors or multiprocessor networks. Use parallel computing with the Response Optimizer and sdo.optimize to optimize using the fmincon, lsqnonlin, and patternsearch methods. Parallel computing is not supported for the fminsearch (Simplex search) method.

When you optimize model parameters using parallel computing, the software uses the available parallel pool. If none is available, and you select Automatically create a parallel pool in your Parallel Computing Toolbox™ preferences, the software starts a parallel pool using the settings in those preferences. To open a parallel pool that uses a specific cluster profile, use:

parpool(MyProfile);

MyProfile is the name of a cluster profile.

For information regarding creating a cluster profile, see Add and Modify Cluster Profiles (Parallel Computing Toolbox).

Model Dependencies

Model dependencies are any referenced models, data such as model variables, S-functions, and additional files necessary to run the model. Before starting the optimization, verify that the model dependencies are complete. Otherwise, you may get unexpected results.

Making Model Dependencies Accessible to Remote Workers

When you use parallel computing, the Simulink® Design Optimization™ software helps you identify model dependencies. To do so, the software uses the Dependency Analyzer. The dependency analysis may not find all the files required by your model. To learn more, see Dependency Analyzer Scope and Limitations. If your model has dependencies that are undetected or inaccessible by the parallel pool workers, then add them to the list of model dependencies.

The dependencies are made accessible to the parallel pool workers by specifying one of the following:

  • File dependencies: the model dependency files are copied to the parallel pool workers.

  • Path dependencies: the paths to the model dependencies are added to the paths of the parallel pool workers. If you are working in a multi-platform scenario, ensure that the paths are compatible across platforms.

Using file dependencies is recommended, however, in some cases it can be better to choose path dependencies. For example, if parallel computing is set up on a local multi-core computer, using path dependencies is preferred as using file dependencies creates multiple copies of the dependent files on the local computer.

For more information, see:

Optimize Design Using Parallel Computing (GUI)

To optimize a model response using parallel computing in the Response Optimizer:

  1. Ensure that the software can access parallel pool workers that use the appropriate cluster profile.

    For more information, see Configure Your System for Parallel Computing.

  2. Open the Response Optimizer for the Simulink model.

  3. Configure the design variables, design requirements, and, optionally, optimization settings.

    For more information, see Specify Design Variables for Optimization, Specify Time-Domain Design Requirements in the App, Specify Frequency-Domain Design Requirements in the App, and Specify Optimization Options.

  4. On the Response Optimization tab, click Options to open the Response Optimization Options dialog box.

  5. Select the Parallel tab.

    Parallel tab in the Response Optimization options dialog box

  6. Select the Use the parallel pool during optimization check box.

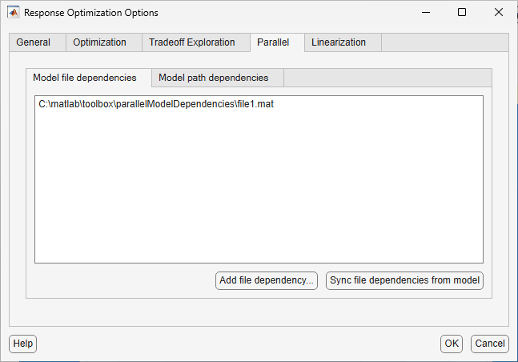

    This option checks for dependencies in your Simulink model. The file dependencies are displayed in the Model file dependencies list box, and corresponding path to the files in Model path dependencies. The files listed in Model file dependencies are copied to the remote workers.

    Note

    The automatic dependencies check may not detect all the dependencies in your model.

    For more information, see Model Dependencies. In this case, add the undetected dependencies manually.

    Use the parallel pool during optimization option is selected

  7. Add any file dependencies that the automatic check does not detect.

    Specify the files in the Model file dependencies list box separated by semicolons or on separate lines.

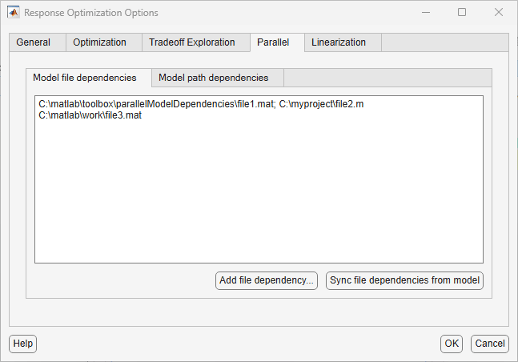

    A file is added under Model file dependencies under the Parallel tab

    Alternatively, click Add file dependency to open a dialog box, and select the file to add.

    Note

    If you do not want to copy the files to the remote workers, delete all entries in the Model file dependencies list box. Populate the Model path dependencies list box by clicking the Sync path dependencies from model, and add any undetected path dependencies. In addition, in the list box, update the paths on local drives to make them accessible to remote workers. For example, change C:\ to \\\\hostname\\C$\\.

  8. If you modify the Simulink model, resync the dependencies to ensure that any new dependencies are detected. Click Sync file dependencies from model in the Parallel tab to rerun the automatic dependency check for your model.

    This action updates the Model file dependencies list box with any new file dependency found in the model.

  9. Click OK.

  10. In the Response Optimizer, click Optimize to optimize the model response using parallel computing.

For information on troubleshooting problems related to optimization using parallel computing, see Troubleshooting.

Optimize Design Using Parallel Computing (Code)

To optimize a model response using parallel computing at the command line:

  1. Ensure that the software can access parallel pool workers that use the appropriate cluster profile.

    For more information, see Configure Your System for Parallel Computing.

  2. Open the model.

  3. Specify design requirements and design variables. For example see, Design Optimization to Meet Step Response Requirements (Code).

  4. Enable parallel computing using an optimization option set, opt.

    opt = sdo.OptimizeOptions;
    opt.UseParallel = true;
  5. Find the model dependencies.

    [dirs,files] = sdo.getModelDependencies(modelname)

    Note

    sdo.getModelDependencies may not detect all the dependencies in your model. For more information, see Model Dependencies. In this case, add the undetected dependencies manually.

  6. Modify files to include any file dependencies that sdo.getModelDependencies does not detect.

    files = vertcat(files,'C:\matlab\work\filename.m')

    Note

    If you do not want to copy the files to the remote workers, use the path dependencies. Add any undetected path dependencies to dirs and update the paths on local drives to make them accessible to remote workers. See sdo.getModelDependencies for more details.

  7. Add the file dependencies for optimization.

    opt.ParallelFileDependencies = files;
  8. Run the optimization.

    [pOpt,opt_info] = sdo.optimize(opt_fcn,param,opt);

For information on troubleshooting problems related to optimization using parallel computing, see Troubleshooting.

Troubleshooting

Why Are the Optimization Results with and Without Using Parallel Computing Different?

  • Different numerical precision on the client and worker machines can produce marginally different simulation results. Thus, the optimization method can take a different solution path and produce a different result.

  • When you use parallel computing with the Pattern search method, the search is more comprehensive and can result in a different solution.

    To learn more, see Parallel Computing with the Pattern Search Method.

Why Don’t I See the Optimization Speed up I Expected Using Parallel Computing?

  • When you optimize a model that does not have a large number of parameters or does not take long to simulate, you might not see a speedup in the optimization time. In such cases, the overhead associated with creating and distributing the parallel tasks outweighs the benefits of running the optimization in parallel.

  • Using the Pattern search method with parallel computing might not speed up the optimization time. Without parallel computing, the method stops the search at each iteration when it finds a solution better than the current solution. The candidate solution search is more comprehensive when you use parallel computing. Although the number of iterations might be larger, the optimization without using parallel computing might be faster.

    To learn more about the expected speedup, see Parallel Computing with the Pattern Search Method.

Why Doesn’t the Optimization Using Parallel Computing Make Any Progress?

To troubleshoot the problem:

  1. Run the optimization for a few iterations without parallel computing to see if the optimization progresses.

  2. Check whether the remote workers have access to all model dependencies. Model dependencies include data variables and files required by the model to run.

    To learn more, see Model Dependencies.

Why Doesn’t the Optimization Using Parallel Computing Stop When I Click the Stop Optimization Button?

When you use parallel computing with the Pattern search method, the software must wait until the current optimization iteration completes before it notifies the workers to stop. The optimization does not terminate immediately when you click Stop, and, instead, appears to continue running.
