Requirements Table

Model formal requirements with input conditions

Since R2022a

•

Libraries:
Requirements Toolbox

Description

The Requirements Table block models formal requirements. The block starts with evaluating conditions listed in the Precondition column. If the conditions are satisfied, you can check if other simulation data meet specified conditions in the Postcondition column, or execute desired actions, such as block outputs or functions, in the Action column. For more information, see Use a Requirements Table Block to Create Formal Requirements.

You can also constrain requirements based on physical limitations of your model by defining assumptions in the Assumptions tab. See Add Assumptions to Requirements.

You can configure this block only if you have Requirements Toolbox™.

Examples

Model Dice Game Rules Using a Requirements Table Block

Use a Requirements Table block to model the rules and the game outcome associated with a dice game.

• Since R2022a
• Open Model

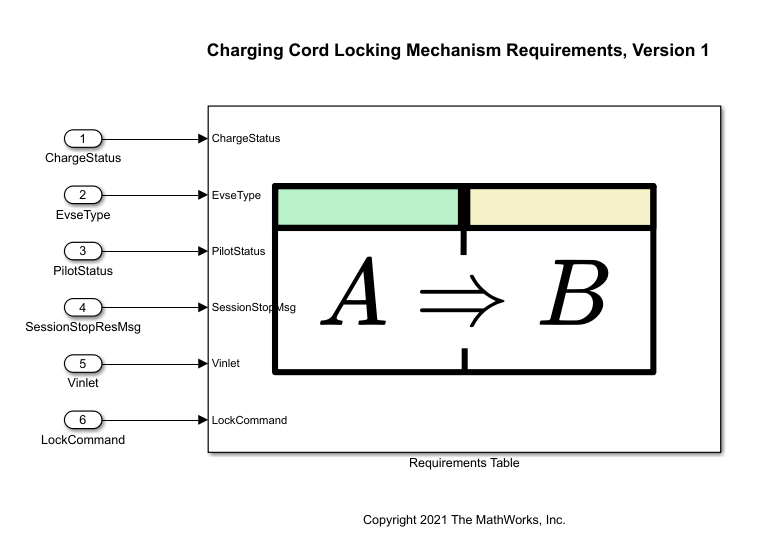

Analyze Formal Requirements of an Electric Vehicle Charger Locking Mechanism

Use a Requirements Table block and Simulink^® Design Verifier™ to construct, analyze, and update formal requirements of an electric vehicle charging station locking mechanism.

• Since R2022a
• Open Live Script

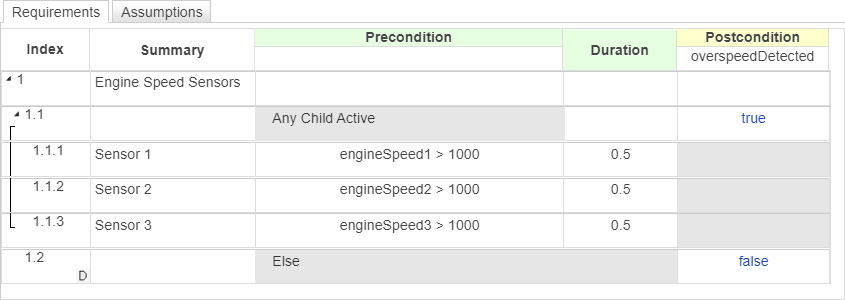

Define Formal Requirements with a Duration

Define formal requirements that use a duration.

• Since R2022a
• Open Live Script

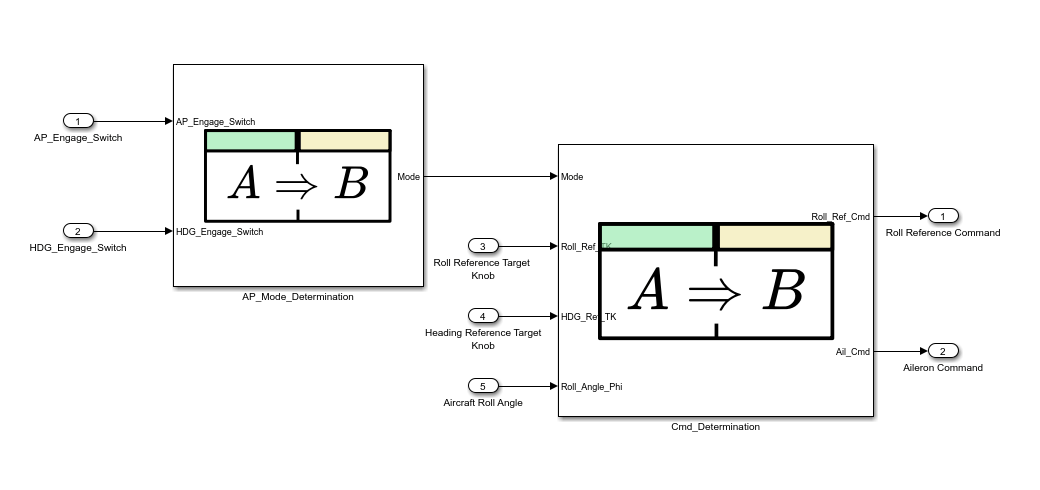

Use Specification Models for Requirements-Based Testing

Follow a systematic approach to verify your design model against requirements.

• Since R2022b
• Open Live Script

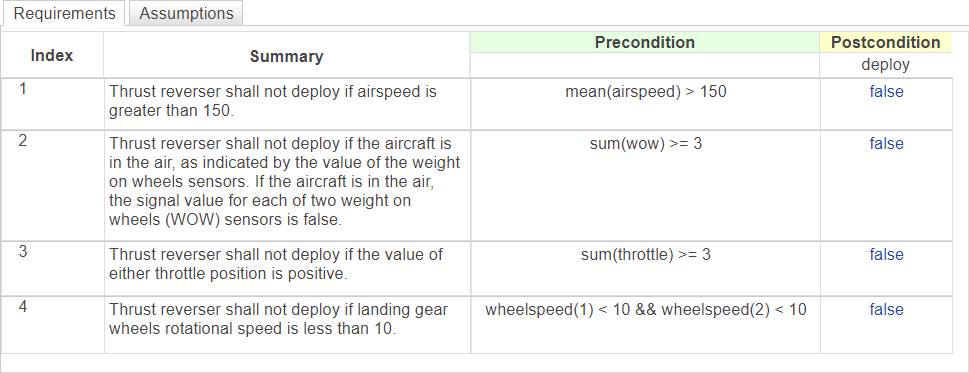

Prove Properties with Requirements Table Blocks

Use a Requirements Table block and Simulink Design Verifier to prove properties of a model.

• Since R2023a
• Open Model

Ports

Input

Port_1 — Input port

scalar | vector | matrix

Input port that corresponds to the input data of the block. The block accepts real-valued scalar, vector, or matrix inputs. Each input data that you define has a corresponding input port.

Dependencies

To create input ports, open the block and create input data in the Symbols pane. See Define Data in Requirements Table Blocks.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | string | fixed point | enumerated | bus

Output

Port_1 — Output port

scalar | vector | matrix

Output port, specified as a scalar, vector, or matrix. The block outputs real-valued scalar, vector, or matrix values. Each output data that you define has a corresponding output port.

Dependencies

To create output ports, open the block and create output data in the Symbols pane. See Define Data in Requirements Table Blocks.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | string | fixed point | enumerated | bus

Parameters

To edit the block parameters interactively:

• Use the Property Inspector. From the Simulink Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

• Use the Table Properties window. Open the block. Then, in the Simulation tab, in the Prepare section, click Table Properties.

Note

Requirements Table blocks also have Subsystem (Simulink) block parameters that you can access by right-clicking the block and clicking Block Parameters (Subsystem). However, updating these block parameters is not recommended.

Update method — Method used for activating block

Inherited (default) | Discrete

Specify the method for activating the Requirements Table block as one of these values:

• Inherited — Input from the Simulink model activates the Requirements Table block.

  If you define input data, the Requirements Table block samples at the rate of the fastest input data. If you do not define input data, the Requirements Table block samples at the rate defined by the execution behavior of the parent subsystem.

• Discrete — Sample the Requirements Table block by using the rate you specify in the Sample time parameter of the Requirements Table block. The Requirements Table block generates an implicit event at regular time intervals that correspond to the specified rate. Other blocks in the model can have different sample times.

Sample time — Time interval at which block activates up during simulation

-1 (default) | scalar | vector

Specify the time interval at which the Requirements Table block activates during simulation. The default value indicates that the block inherits the sample time from Simulink. This property uses the same format that you use in Simulink. For more information on specifying sample time, see Specify Sample Time (Simulink).

Do not use the Sample Time parameter in the Subsystem block parameters. Instead, use the Table Properties window.

Dependencies

To enable this parameter, set the block parameter Update method to Discrete.

Saturate on interger overflow — Whether data saturates on integer overflow

on (default) | off

Specify whether the data in the Requirements Table block saturates on integer overflow as one of these values:

• on — The block saturates an integer by setting it to the maximum positive or negative value allowed by the word size. This setting matches MATLAB^® behavior.

• off — The block wraps the value.

For more information, see Saturation and Wrapping (Fixed-Point Designer).

Support variable-size arrays — Whether block supports variable-size data

on (default) | off

Specify whether the Requirements Table block supports input and output data that varies in dimension during simulation. When this parameter is on, you can define variable-size outputs by enabling the Variable size property on output data. For more information, see Variable size.

Enable outputs in preconditions — Whether block supports output data in preconditions

off (default) | on

Specify whether the block can use data with Scope set to Output in preconditions. If you disable this parameter, the block highlights the cell and displays an alert icon in preconditions that use output data, unless the data is an input argument of getPrevious. However, if getPrevious attempts to return the value of the data at a time step when it is not defined, getPrevious returns undefined behavior.

Tips

• When you use output data in preconditions, you may encounter read-before-write issues in your requirements during simulation. To resolve these issues, specify your requirements in order. For more information, see Detect Read-Before-Write Issues and Leverage Evaluation Order of Formal Requirements.

Fixed-point properties

Requirements Table fimath — Default fimath object properties

Same as MATLAB (default) | Specify Other

Specify the default fimath object properties for the Requirements Table block as one of these values:

• Same as MATLAB — The block uses the same fimath object properties as the current default fimath object. The text box is dimmed and displays the current global fimath object in read-only form.

• Specify other — Specify your own fimath object in the text box one of two ways:

  • Construct the fimath object inside the text box.

  • Construct the fimath object in the MATLAB or model workspace and then enter its variable name in the text box. If you use this option and plan to share your model with others, define the variable in the model workspace.

• For more information on fimath objects, see fimath Object Construction (Fixed-Point Designer).

Tips

• The fimath object of a Requirements Table block behaves as a globalfimath (Fixed-Point Designer) for the contents of the block. The block associates the fimath object properties in this parameter with the fixed-point and integer input signals to the block that you choose to treat as fi objects. Constructing fi objects in the Requirements Table block introduces additional considerations.

  • If no fimath object is associated with a fi object when it is constructed, then the fi constructor uses the default fimath object settings regardless of the properties in Requirements Table fimath. If you perform operations on the fi object after it is constructed, the object adopts the properties in Requirements Table fimath.

  • If you specify a fimath object in the fi constructor, then the fi constructor obeys that fimath object when quantizing the value. fimath settings not specified in the fi constructor use the specified properties in Requirements Table fimath.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

Actual data type or capability support depends on block implementation.

GPU Code Generation

Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Actual data type or capability support depends on block implementation.

HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.

HDL Architecture

This block has one default HDL architecture.

HDL Block Properties

ConstMultiplierOptimization	Canonical signed digit (CSD) or factored CSD optimization. The default is none. See also ConstMultiplierOptimization (HDL Coder).
ConstrainedOutputPipeline	Number of registers to place at the outputs by moving existing delays within your design. Distributed pipelining does not redistribute these registers. The default is 0. For more details, see ConstrainedOutputPipeline (HDL Coder).
DistributedPipelining	Pipeline register distribution, or register retiming. The default is inherit. See also DistributedPipelining (HDL Coder).
GuardIndexVariables	Specify whether to hoist array indices out of conditional statements or not. When you enable certain optimizations such as RAM Mapping, loop streaming, sharing, and so on, expressions are moved out of the array indices. A temporary variable is created for the expression that might result in an index out-of- bounds error during simulation. The default is off. See GuardIndexVariables (HDL Coder).
InputPipeline	Number of input pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see InputPipeline (HDL Coder).
InstantiateFunctions	Generate a VHDL® entity or Verilog® module for each function. The default is off. See also InstantiateFunctions (HDL Coder).
LoopOptimization	Unroll, stream, or do not optimize loops. The default is none. See also LoopOptimization (HDL Coder).
MapPersistentVarsToRAM	Map persistent arrays to RAM. The default is off. See also MapPersistentVarsToRAM (HDL Coder).
OutputPipeline	Number of output pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see OutputPipeline (HDL Coder).
ResetType	Suppress reset logic generation. The default is default, which generates reset logic. See also ResetType (HDL Coder).
SharingFactor	Number of functionally equivalent resources to map to a single shared resource. The default is 0. See also Resource Sharing (HDL Coder).

Optimizations

The block participates in these HDL optimizations to optimize the speed, and area.

Speed and Area Optimization

Optimization	Description
Distributed Pipelining (HDL Coder)	Distributed pipelining, or register retiming, is a speed optimization that moves existing delays in a design to reduce the critical path while preserving functional behavior.
Resource Sharing (HDL Coder)	Resource sharing is an area optimization in which HDL Coder identifies multiple functionally equivalent resources and replaces them with a single resource.
Delay Balancing (HDL Coder)	When optimizations or block implementation options introduce delays along the critical path in a model, Delay Balancing detects introduction of new delays along one path, and then inserts matching delays on the other paths.
Clock-Rate Pipelining (HDL Coder)	Clock-rate pipelining is an optimization framework in HDL Coder that allows other speed and area optimizations to introduce latency at the clock rate.
Adaptive Pipelining (HDL Coder)	Adaptive pipelining optimization creates patterns or combination of blocks with registers that can improve the achievable clock frequency and reduce the area usage on the FPGA boards by inserting pipeline registers to the blocks in your design.
Critical Path Estimation (HDL Coder)	To quickly identify the most likely critical path in your design, use Critical Path Estimation. Critical path estimation speeds up the iterative process of finding the critical path. To know blocks that are characterized in critical path estimation, see Characterized Blocks (HDL Coder).

Restrictions

When you apply optimizations, the block has these limitations:

• HDL optimizations are not supported for the block that has Trigger port.

Fixed-Point Conversion

Design and simulate fixed-point systems using Fixed-Point Designer™.

Actual data type or capability support depends on block implementation.

Version History

Introduced in R2022a

R2022b: String support for Requirements Table blocks

You can now create and manipulate string data in Requirements Table blocks. The string data type is compatible with strings in MATLAB and Simulink.
