Test Sequence

Create simulation testing scenarios, function calls, and assessments

•

Libraries:
Simulink Test

Description

Define a test sequence using a tabular series of steps. Like the Test Assessment block, the Test Sequence block uses MATLAB^® as the action language.

Examples

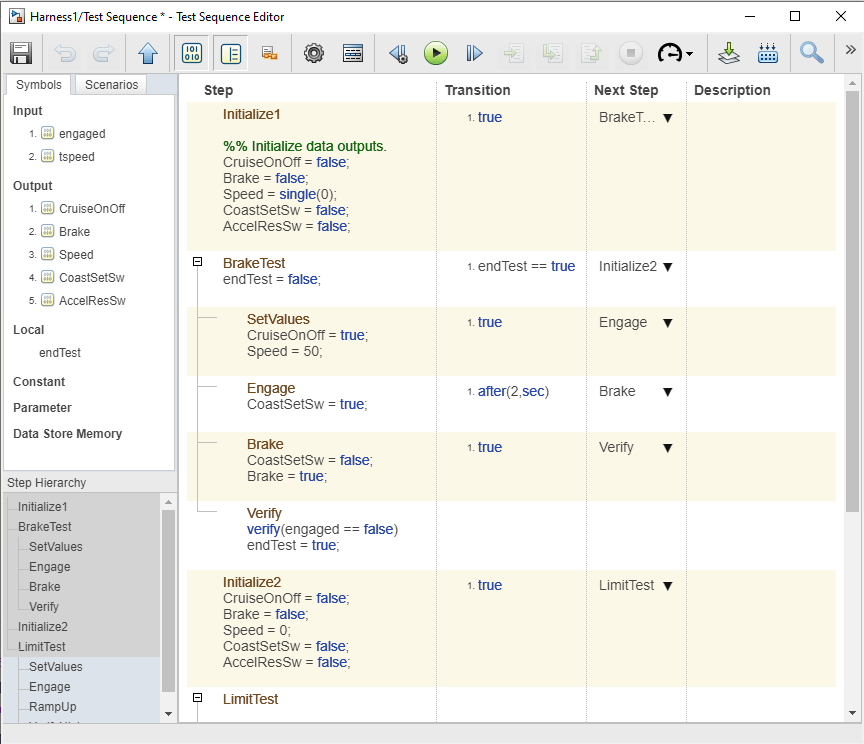

Programmatically Create a Test Sequence

Create a test harness and test sequence using the programmatic interface. You create a test harness and a Test Sequence block, and author a test sequence to verify two functional attributes of a cruise control system.

Open Script

Limitations

• For inactive Test Sequence Scenarios that contain verify statements, the Test Manager and the Simulation Data Inspector show the results as untested.

• Step names must be less than 64 characters. This limitation also applies to enumeration names for monitoring the active step.

• You cannot use the Simulink^® Finder to replace code in Test Sequence blocks. However, you can click Search or use Ctrl+F in the Test Sequence Editor to find and replace code.

Ports

Ports correspond to inputs and outputs defined in the Test Sequence Editor Symbols pane.

Parameters

For a description of block parameters, see Subsystem.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2015a
