plotLocalEffects

Plot local effects of terms in generalized additive model (GAM)

Since R2021a

    Description

    example

    plotLocalEffects(Mdl,queryPoint) creates a bar graph showing the local effects of the terms in the generalized additive model Mdl on the prediction at the specified query point queryPoint.

    plotLocalEffects(Mdl,queryPoint,Name,Value) specifies additional options using one or more name-value arguments. For example, 'IncludeIntercept',true specifies to include an intercept term in the bar graph.

    example

    b = plotLocalEffects(___) returns a bar graph object b using any of the input argument combinations in the previous syntaxes. Use b to query or modify Bar Properties of the bar graph after it is created.

    Examples

    collapse all

    Train a univariate generalized additive classification model, which contains linear terms for predictors. Classify a new observation using a memory-efficient model object. Then, interpret the prediction for a specified data instance by using the plotLocalEffects function.

    Load the ionosphere data set. This data set has 34 predictors and 351 binary responses for radar returns, either bad ('b') or good ('g').

    load ionosphere

    Train a univariate GAM that identifies whether the radar return is bad ('b') or good ('g').

    Mdl = fitcgam(X,Y);

    Mdl is a ClassificationGAM model object.

    Conserve memory by reducing the size of the trained model.

    CMdl = compact(Mdl);

    Classify the first observation of the training data, and plot the local effects of the terms in Mdl on the prediction.

    label = predict(CMdl,X(1,:))
    label = 1x1 cell array
        {'g'}


    plotLocalEffects(CMdl,X(1,:))

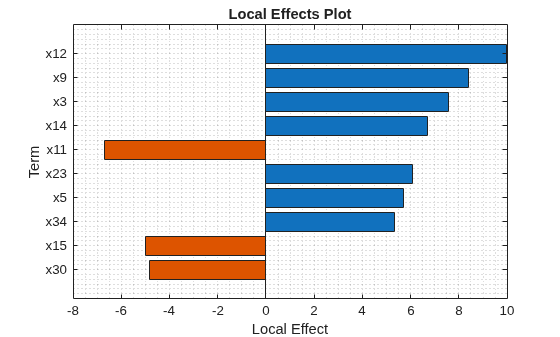

    Figure contains an axes object. The axes object with title Local Effects Plot, xlabel Local Effect, ylabel Term contains an object of type bar.

    The predict function classifies the first observation X(1,:) as 'g'. The plotLocalEffects function creates a horizontal bar graph that shows the local effects of the 10 most important terms on the prediction. Each local effect value shows the contribution of each term to the classification score for 'g', which is the logit of the posterior probability that the classification is 'g' for the observation.

    Train a GAM for binary classification with both linear and interaction terms for predictors. Create local effects plot using both linear and interaction terms in the model, and then create a plot using only linear terms in the model. Specify whether to include interaction terms when creating the local effects plot.

    Load the ionosphere data set. This data set has 34 predictors and 351 binary responses for radar returns, either bad ('b') or good ('g').

    load ionosphere

    Train a GAM using the predictors X and class labels Y. A recommended practice is to specify the class names. Specify to include the 10 most important interaction terms.

    Mdl = fitcgam(X,Y,'ClassNames',{'b','g'},'Interactions',10);

    Mdl is a ClassificationGAM model object.

    Create local effects plots for the 10th observation. Use both the linear and interaction terms in Mdl for the first plot, and use only the linear terms in Mdl for the second plot. To exclude interaction terms, specify 'IncludeInteractions',false.

    t = tiledlayout(2,1);
    title(t,'Local Effects Plots for 10th Observation')
    nexttile
    plotLocalEffects(Mdl,X(10,:))
    title('GAM with linear and interaction terms')
    nexttile
    plotLocalEffects(Mdl,X(10,:),'IncludeInteractions',false)
    title('GAM with only linear terms')

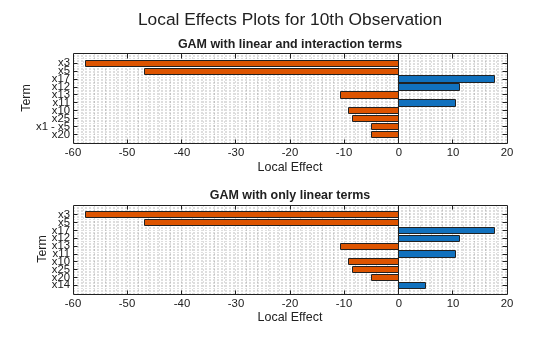

    Figure contains 2 axes objects. Axes object 1 with title GAM with linear and interaction terms, xlabel Local Effect, ylabel Term contains an object of type bar. Axes object 2 with title GAM with only linear terms, xlabel Local Effect, ylabel Term contains an object of type bar.

    The plots display the 10 most important terms. Both plots include nine common terms and one uncommon term. The first plot includes the interaction term for x1 and x5, whereas the second plot includes the linear term for x14.

    Train a univariate GAM for regression, which contains linear terms for predictors. Then, interpret the prediction for a specified data instance by using the plotLocalEffects function.

    Load the data set NYCHousing2015.

    load NYCHousing2015

    The data set includes 10 variables with information on the sales of properties in New York City in 2015. This example uses these variables to analyze the sale prices (SALEPRICE).

    Preprocess the data set. Remove outliers, convert the datetime array (SALEDATE) to the month numbers, and move the response variable (SALEPRICE) to the last column.

    idx = isoutlier(NYCHousing2015.SALEPRICE);
    NYCHousing2015(idx,:) = [];
    NYCHousing2015.SALEDATE = month(NYCHousing2015.SALEDATE);
    NYCHousing2015 = movevars(NYCHousing2015,'SALEPRICE','After','SALEDATE');

    Display the first three rows of the table.

    head(NYCHousing2015,3)
        BOROUGH    NEIGHBORHOOD       BUILDINGCLASSCATEGORY        RESIDENTIALUNITS    COMMERCIALUNITS    LANDSQUAREFEET    GROSSSQUAREFEET    YEARBUILT    SALEDATE    SALEPRICE
        _______    ____________    ____________________________    ________________    _______________    ______________    _______________    _________    ________    _________

           2       {'BATHGATE'}    {'01  ONE FAMILY DWELLINGS'}           1                   0                4750              2619            1899           8           0
           2       {'BATHGATE'}    {'01  ONE FAMILY DWELLINGS'}           1                   0                4750              2619            1899           8           0
           2       {'BATHGATE'}    {'01  ONE FAMILY DWELLINGS'}           1                   1                1287              2528            1899          12           0


    Train a univariate GAM for the sale prices. Specify the variables for BOROUGH, NEIGHBORHOOD, BUILDINGCLASSCATEGORY, and SALEDATE as categorical predictors.

    Mdl = fitrgam(NYCHousing2015,'SALEPRICE','CategoricalPredictors',[1 2 3 9]);

    Mdl is a RegressionGAM model object.

    Display the estimated intercept (constant) term of Mdl.

    Mdl.Intercept
    ans = 3.7518e+05


    The intercept term value is close to the average of the response variable in a regression GAM if the training data does not include NaN values. Compute average of the response variable.

    mean(NYCHousing2015.SALEPRICE)
    ans = 3.7518e+05


    Predict the sale price for the first observation of the training data, and plot the local effects of the terms in Mdl on the prediction. Specify 'IncludeIntercept',true to include the intercept term in the plot.

    yFit = predict(Mdl,NYCHousing2015(1,:))
    yFit = 4.4421e+05

    plotLocalEffects(Mdl,NYCHousing2015(1,:),'IncludeIntercept',true)

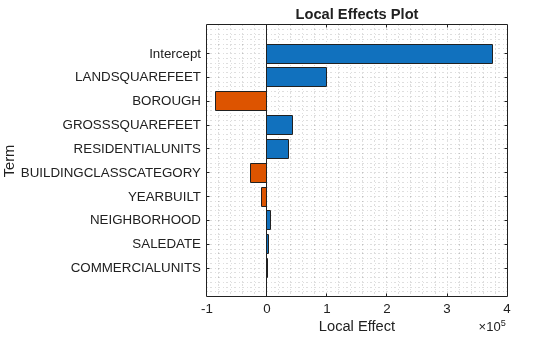

    Figure contains an axes object. The axes object with title Local Effects Plot, xlabel Local Effect, ylabel Term contains an object of type bar.

    The predict function predicts the sale price for the first observation as 4.4421e5. The plotLocalEffects function creates a horizontal bar graph that shows the local effects of the terms in Mdl on the prediction. Each local effect value shows the contribution of each term to the predicted sale price.

    Input Arguments

    collapse all

    Generalized additive model, specified as a ClassificationGAM, CompactClassificationGAM, RegressionGAM, or CompactRegressionGAM model object.

    Query point at which plotLocalEffects plots the local effects, specified as a row vector of numeric values or a single-row table.

    • For a row vector of numeric values:

      • The variables that makes up the columns of queryPoint must have the same order as the predictor variables that trained Mdl.

      • If you trained Mdl using a table (for example, Tbl), then queryPoint can be a numeric matrix if Tbl contains all numeric variables.

    • For a single-row table:

      • If you trained Mdl using a table (for example, Tbl), then all predictor variables in queryPoint must have the same variable names and data types as those in Tbl. However, the column order of queryPoint does not need to correspond to the column order of Tbl.

      • If you trained Mdl using a numeric matrix, then the predictor names in Mdl.PredictorNames and the corresponding predictor variable names in queryPoint must be the same. To specify predictor names during training, use the 'PredictorNames' name-value argument. All predictor variables in queryPoint must be numeric vectors.

      • queryPoint can contain additional variables (response variables, observation weights, and so on), but plotLocalEffects ignores them.

      • plotLocalEffects does not support multicolumn variables or cell arrays other than cell arrays of character vectors.

    Data Types: single | double | table

    Name-Value Arguments

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

    Example: plotLocalEffects(Mdl,queryPoint,'IncludeInteractions',false,'NumTerms',5) specifies to create a bar plot containing the five most important linear terms for predictors in Mdl excluding the interaction terms in Mdl.

    Flag to include interaction terms of the model in the plot, specified as true or false.

    The default 'IncludeInteractions' value is true if Mdl contains interaction terms. The value must be false if the model does not contain interaction terms.

    Example: 'IncludeInteractions',false

    Data Types: logical

    Flag to include an intercept term of the model in the plot, specified as true or false.

    Example: 'IncludeIntercept',true

    Data Types: logical

    Number of terms to plot, specified as a positive integer scalar. plotLocalEffects plots the specified number of terms with the highest absolute local effect values.

    Example: 'NumTerms',5 specifies to plot the five most important terms. plotLocalEffects determines the order of importance by using the absolute local effect values.

    Data Types: single | double
