## Distribution Plots

*Distribution plots* visually assess the distribution of sample data by
comparing the empirical distribution of the data with the theoretical values expected from a
specified distribution. Use distribution plots in addition to more formal hypothesis tests to
determine whether the sample data comes from a specified distribution. To learn about
hypothesis tests, see Hypothesis Testing.

Statistics and Machine Learning Toolbox™ offers several distribution plot options:

Normal Probability Plots — Use

`normplot`

to assess whether sample data comes from a normal distribution. Use`probplot`

to create Probability Plots for distributions other than normal, or to explore the distribution of censored data. Use`plot`

to plot a probability plot for a probability distribution object.Quantile-Quantile Plots — Use

`qqplot`

to assess whether two sets of sample data come from the same distribution family. This plot is robust with respect to differences in location and scale.Cumulative Distribution Plots — Use

`cdfplot`

or`ecdf`

to display the empirical cumulative distribution function (cdf) of the sample data for visual comparison to the theoretical cdf of a specified distribution. Use`plot`

to plot a cumulative distribution function for a probability distribution object.

### Normal Probability Plots

Use normal probability plots to assess whether data comes from a normal distribution. Many statistical procedures make the assumption that an underlying distribution is normal. Normal probability plots can provide some assurance to justify this assumption or provide a warning of problems with the assumption. An analysis of normality typically combines normal probability plots with hypothesis tests for normality.

This example generates a data sample of 25 random numbers from a normal distribution with mean 10 and standard deviation 1, and creates a normal probability plot of the data.

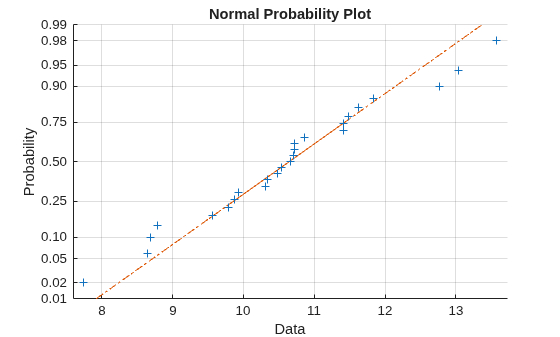

rng('default'); % For reproducibility x = normrnd(10,1,[25,1]); normplot(x)

The plus signs plot the empirical probability versus the data value for each point in the data. A solid line connects the 25th and 75th percentiles in the data, and a dashed line extends it to the ends of the data. The *y*-axis values are probabilities from zero to one, but the scale is not linear. The distance between tick marks on the *y*-axis matches the distance between the quantiles of a normal distribution. The quantiles are close together near the median (50th percentile) and stretch out symmetrically as you move away from the median.

In a normal probability plot, if all the data points fall near the line, an assumption of normality is reasonable. Otherwise, an assumption of normality is not justified. For example, the following generates a data sample of 100 random numbers from an exponential distribution with mean 10, and creates a normal probability plot of the data.

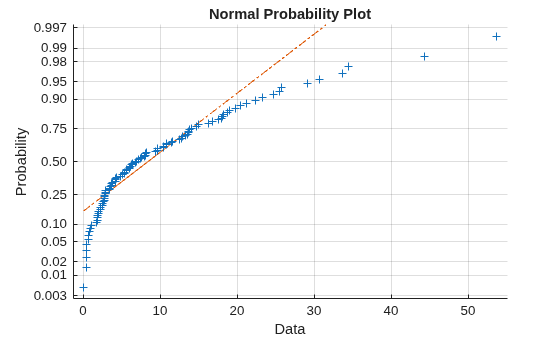

x = exprnd(10,100,1); normplot(x)

The plot is strong evidence that the underlying distribution is not normal.

### Probability Plots

A probability plot, like the normal probability plot, is just an empirical cdf plot
scaled to a particular distribution. The *y*-axis values are
probabilities from zero to one, but the scale is not linear. The distance between tick marks
is the distance between quantiles of the distribution. In the plot, a line is drawn between
the first and third quartiles in the data. If the data falls near the line, it is reasonable
to choose the distribution as a model for the data. A distribution analysis typically
combines probability plots with hypothesis tests for a particular distribution.

#### Create Weibull Probability Plot

Generate sample data and create a probability plot.

Generate sample data. The sample `x1`

contains 500 random numbers from a Weibull distribution with scale parameter `A = 3`

and shape parameter `B = 3`

. The sample `x2`

contains 500 random numbers from a Rayleigh distribution with scale parameter `B = 3`

.

rng('default'); % For reproducibility x1 = wblrnd(3,3,[500,1]); x2 = raylrnd(3,[500,1]);

Create a probability plot to assess whether the data in `x1`

and `x2`

comes from a Weibull distribution.

figure probplot('weibull',[x1 x2]) legend('Weibull Sample','Rayleigh Sample','Location','best')

The probability plot shows that the data in `x1`

comes from a Weibull distribution, while the data in `x2`

does not.

Alternatively, you can use `wblplot`

to create a Weibull probability plot.

#### Create Gamma Probability Plot

Generate random data from a gamma distribution with shape parameter 9 and scale parameter 2.

rng("default") %set the random seed for reproducibility gammadata = gamrnd(9,2,100,1);

Fit gamma and logistic distributions to the data and store the results in `GammaDistribution`

and `LogisticDistribution`

objects.

gammapd = fitdist(gammadata,"Gamma"); logisticpd = fitdist(gammadata,"Logistic");

Compare the distributions fit to the data with probability plots.

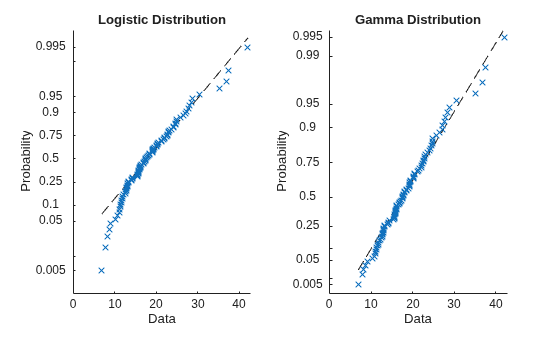

tiledlayout(1,2) nexttile plot(logisticpd,'PlotType',"probability") title("Logistic Distribution") nexttile plot(gammapd,'PlotType',"probability") title("Gamma Distribution")

The probability plots show that the gamma distribution is the better fit to the data.

### Quantile-Quantile Plots

Use quantile-quantile (q-q) plots to determine whether two samples come from the same distribution family. Q-Q plots are scatter plots of quantiles computed from each sample, with a line drawn between the first and third quartiles. If the data falls near the line, it is reasonable to assume that the two samples come from the same distribution. The method is robust with respect to changes in the location and scale of either distribution.

Create a quantile-quantile plot by using the `qqplot`

function.

The following example generates two data samples containing random numbers from Poisson distributions with different parameter values, and creates a quantile-quantile plot. The data in `x`

is from a Poisson distribution with mean 10, and the data in `y`

is from a Poisson distribution with mean 5.

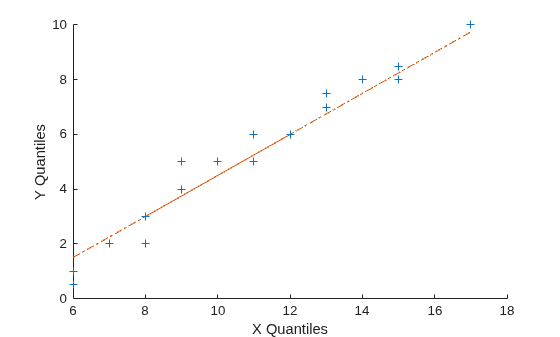

x = poissrnd(10,[50,1]); y = poissrnd(5,[100,1]); qqplot(x,y)

Even though the parameters and sample sizes are different, the approximate linear relationship suggests that the two samples may come from the same distribution family. As with normal probability plots, hypothesis tests can provide additional justification for such an assumption. For statistical procedures that depend on the two samples coming from the same distribution, however, a linear quantile-quantile plot is often sufficient.

The following example shows what happens when the underlying distributions are not the same. Here, `x`

contains 100 random numbers generated from a normal distribution with mean 5 and standard deviation 1, while `y`

contains 100 random numbers generated from a Weibull distribution with a scale parameter of 2 and a shape parameter of 0.5.

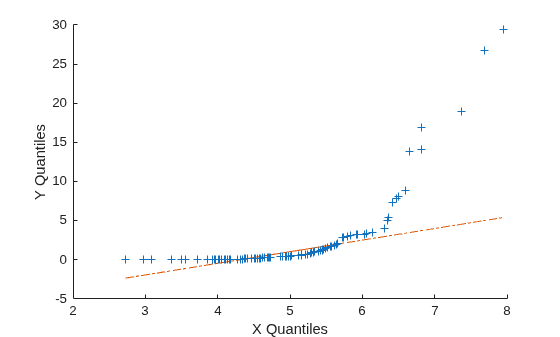

x = normrnd(5,1,[100,1]); y = wblrnd(2,0.5,[100,1]); qqplot(x,y)

The plots indicate that these samples clearly are not from the same distribution family.

### Cumulative Distribution Plots

An empirical cumulative distribution function (cdf) plot shows the proportion of data
less than or equal to each *x* value, as a function of
*x*. The scale on the *y*-axis is linear; in
particular, it is not scaled to any particular distribution. Empirical cdf plots are used to
compare data cdfs to cdfs for particular distributions.

To create an empirical cdf plot, use the `cdfplot`

function or the `ecdf`

function.

#### Compare Empirical cdf to Theoretical cdf

Plot the empirical cdf of a sample data set and compare it to the theoretical cdf of the underlying distribution of the sample data set. In practice, a theoretical cdf can be unknown.

Generate a random sample data set from the extreme value distribution with a location parameter of 0 and a scale parameter of 3.

rng('default') % For reproducibility y = evrnd(0,3,100,1);

Plot the empirical cdf of the sample data set and the theoretical cdf on the same figure.

cdfplot(y) hold on x = linspace(min(y),max(y)); plot(x,evcdf(x,0,3)) legend('Empirical CDF','Theoretical CDF','Location','best') hold off

The plot shows the similarity between the empirical cdf and the theoretical cdf.

Alternatively, you can use the `ecdf`

function. The `ecdf`

function also plots the 95% confidence intervals estimated by using Greenwood's Formula. For details, see Algorithms.

ecdf(y,'Bounds','on') hold on plot(x,evcdf(x,0,3)) grid on title('Empirical CDF') legend('Empirical CDF','Lower Confidence Bound','Upper Confidence Bound','Theoretical CDF','Location','best') hold off

#### Plot Binomial Distribution cdf

Create a binomial distribution with 10 trials and a 0.5 probability of success for each trial.

`binomialpd = makedist("Binomial",10,0.5)`

binomialpd = BinomialDistribution Binomial distribution N = 10 p = 0.5

Plot a cdf for the binomial distribution

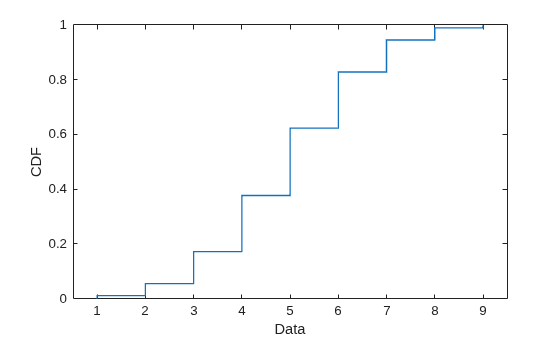

plot(binomialpd,'PlotType',"cdf")
