factoran

Factor analysis

Syntax

lambda = factoran(X,m)

[lambda,psi] = factoran(X,m)

[lambda,psi,T] = factoran(X,m)

[lambda,psi,T,stats] = factoran(X,m)

[lambda,psi,T,stats,F] = factoran(X,m)

___ = factoran(X,m,Name,Value)

Description

factoran computes the maximum likelihood estimate (MLE) of the factor loadings matrix Λ in the factor analysis model

$$x=\mu +\Lambda f+e$$

where x is a vector of observed variables, μ is a constant vector of means, Λ is a constant d-by-m matrix of factor loadings, f is a vector of independent, standardized common factors, and e is a vector of independent specific factors. x, μ, and e each has length d. f has length m.

Alternatively, the factor analysis model can be specified as

$$\mathrm{cov}(x)=\Lambda {\Lambda }^T+\Psi$$

where $$\Psi =\mathrm{cov}(e)$$ is a d-by-d diagonal matrix of specific variances.

For the uses of factoran and its relation to pca, see Perform Factor Analysis on Exam Grades.

lambda = factoran(X,m) returns the factor loadings matrix lambda for the data matrix X with m common factors.

[lambda,psi] = factoran(X,m) also returns maximum likelihood estimates of the specific variances.

[lambda,psi,T] = factoran(X,m) also returns the m-by-m factor loadings rotation matrix T.

[lambda,psi,T,stats] = factoran(X,m) also returns the structure stats containing information relating to the null hypothesis H₀ that the number of common factors is m.

[lambda,psi,T,stats,F] = factoran(X,m) also returns predictions of the common factors (factor scores).

___ = factoran(X,m,Name,Value) modifies the model fit and outputs using one or more name-value pair arguments, for any output arguments in the previous syntaxes. For example, you can specify that the X data is a covariance matrix.

Examples

Factor Analysis of Artificial Data

Create some pseudorandom raw data.

rng default % For reproducibility
n = 100;
X1 = 5 + 3*rand(n,1); % Factor 1
X2 = 20 - 5*rand(n,1); % Factor 2

Create six data vectors from the raw data, and add random noise.

Y1 = 2*X1 + 3*X2 + randn(n,1);
Y2 = 4*X1 + X2 + 2*randn(n,1);
Y3 = X1 - X2 + 3*randn(n,1);
Y4 = -2*X1 + 4*X2 + 4*randn(n,1);
Y5 = 3*(X1 + X2) + 5*randn(n,1);
Y6 = X1 - X2/2 + 6*randn(n,1);

Create a data matrix from the data vectors.

X = [Y1,Y2,Y3,Y4,Y5,Y6];

Extract the two factors from the noisy data matrix X using factoran. Display the outputs.

m = 2;
[lambda,psi,T,stats,F] = factoran(X,m);
disp(lambda)

    0.8666    0.4828
    0.8688   -0.0998
   -0.0131   -0.5412
    0.2150    0.8458
    0.7040    0.2678
   -0.0806   -0.2883

disp(psi)

    0.0159
    0.2352
    0.7070
    0.2385
    0.4327
    0.9104

disp(T)

    0.8728    0.4880
    0.4880   -0.8728

disp(stats)

    loglike: -0.0531
        dfe: 4
      chisq: 5.0335
          p: 0.2839

disp(F(1:10,:))

    1.8845   -0.6568
   -0.1714   -0.8113
   -1.0534    2.0743
    1.0390   -1.1784
    0.4309    0.9907
   -1.1823    0.6570
   -0.2129    1.1898
   -0.0844   -0.7421
    0.5854   -1.1379
    0.8279   -1.9624

View the correlation matrix of the data.

corrX = corr(X)

corrX = 6×6

    1.0000    0.7047   -0.2710    0.5947    0.7391   -0.2126
    0.7047    1.0000    0.0203    0.1032    0.5876    0.0289
   -0.2710    0.0203    1.0000   -0.4793   -0.1495    0.1450
    0.5947    0.1032   -0.4793    1.0000    0.3752   -0.2134
    0.7391    0.5876   -0.1495    0.3752    1.0000   -0.2030
   -0.2126    0.0289    0.1450   -0.2134   -0.2030    1.0000

Compare corrX to its corresponding values returned by factoran, lambda*lambda' + diag(psi).

C0 = lambda*lambda' + diag(psi)

C0 = 6×6

    1.0000    0.7047   -0.2726    0.5946    0.7394   -0.2091
    0.7047    1.0000    0.0426    0.1023    0.5849   -0.0413
   -0.2726    0.0426    1.0000   -0.4605   -0.1542    0.1571
    0.5946    0.1023   -0.4605    1.0000    0.3779   -0.2611
    0.7394    0.5849   -0.1542    0.3779    1.0000   -0.1340
   -0.2091   -0.0413    0.1571   -0.2611   -0.1340    1.0000

factoran obtains lambda and psi that correspond closely to the correlation matrix of the original data.

View the results without using rotation.

[lambda,psi,T,stats,F] = factoran(X,m,'Rotate','none');
disp(lambda)

    0.9920    0.0015
    0.7096    0.5111
   -0.2755    0.4659
    0.6004   -0.6333
    0.7452    0.1098
   -0.2111    0.2123

disp(psi)

    0.0159
    0.2352
    0.7070
    0.2385
    0.4327
    0.9104

disp(T)

     1     0
     0     1

disp(stats)

    loglike: -0.0531
        dfe: 4
      chisq: 5.0335
          p: 0.2839

disp(F(1:10,:))

    1.3243    1.4929
   -0.5456    0.6245
    0.0928   -2.3246
    0.3318    1.5356
    0.8596   -0.6544
   -0.7114   -1.1504
    0.3947   -1.1424
   -0.4358    0.6065
   -0.0444    1.2789
   -0.2350    2.1169

Compute the factors using only the covariance matrix of X.

X2 = cov(X);
[lambda2,psi2,T2,stats2] = factoran(X2,m,'Xtype','covariance','Nobs',n)

lambda2 = 6×2

    0.8666    0.4828
    0.8688   -0.0998
   -0.0131   -0.5412
    0.2150    0.8458
    0.7040    0.2678
   -0.0806   -0.2883

psi2 = 6×1

    0.0159
    0.2352
    0.7070
    0.2385
    0.4327
    0.9104

T2 = 2×2

    0.8728    0.4880
    0.4880   -0.8728

stats2 = struct with fields:
    loglike: -0.0531
        dfe: 4
      chisq: 5.0335
          p: 0.2839

The results are the same as with the raw data, except factoran cannot compute the factor scores matrix F for covariance data.

Estimate and Plot Factor Loadings

Load the sample data.

load carbig

Define the variable matrix and remove observations with missing values.

X = [Acceleration Displacement Horsepower MPG Weight];
X = X(all(~isnan(X),2),:);

Estimate the factor loadings using a minimum mean squared error prediction for a factor analysis with two common factors. Specify to predict factor scores using a ridge regression model.

[Lambda,Psi,T,~,F] = factoran(X,2,Scores="regression")

Lambda = 5×2

   -0.2432   -0.8500
    0.8773    0.3871
    0.7618    0.5930
   -0.7978   -0.2786
    0.9692    0.2129

Psi = 5×1

    0.2184
    0.0804
    0.0680
    0.2859
    0.0152

T = 2×2

    0.9476    0.3195
    0.3195   -0.9476

F = 392×2

    0.4568    0.9158
    0.5897    1.6438
    0.2573    1.6383
    0.3108    1.4154
    0.2700    1.4815
    1.2534    2.0922
    1.1607    2.7986
    1.0866    2.8106
    1.2923    2.6269
    0.5558    2.6860
      ⋮

The factor analysis model assumes that $$cov(X)=\Lambda {\Lambda }^T+\Psi$$, and the elements of $$\Psi$$ are the specific variances.

Calculate the estimated covariance matrix of the factor scores (F).

inv(T'*T)   % Estimated covariance matrix of F

ans = 2×2

    1.0000    0.0000
    0.0000    1.0000

Because the default rotation method for factoran is varimax, T is an orthogonal matrix, and the estimated covariance matrix of F is an identity matrix.

Calculate the estimated covariance matrix of X using the factor analysis model.

Lambda*Lambda' + diag(Psi)   % Estimated covariance matrix of X

ans = 5×5

    1.0000   -0.5424   -0.6893    0.4309   -0.4167
   -0.5424    1.0000    0.8979   -0.8078    0.9328
   -0.6893    0.8979    1.0000   -0.7730    0.8647
    0.4309   -0.8078   -0.7730    1.0000   -0.8326
   -0.4167    0.9328    0.8647   -0.8326    1.0000

Calculate the unrotated factor loadings by multiplying $$\Lambda$$ by the primary axis rotation matrix.

Lambda*inv(T)   % Unrotate the loadings

ans = 5×2

   -0.5020    0.7277
    0.9550   -0.0865
    0.9113   -0.3185
   -0.8450    0.0091
    0.9865    0.1079

Calculate the unrotated factor scores by multiplying F by T'.

F*T'   % Unrotate the factor scores

ans = 392×2

    0.7255   -0.7219
    1.0840   -1.3692
    0.7673   -1.4702
    0.7467   -1.2419
    0.7292   -1.3176
    1.8562   -1.5820
    1.9940   -2.2811
    1.9276   -2.3161
    2.0638   -2.0764
    1.3848   -2.3676
      ⋮

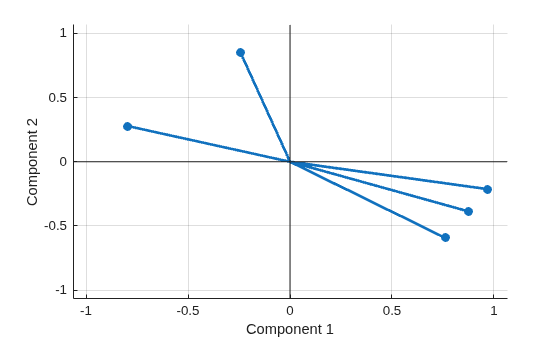

Create a biplot of two factors.

biplot(Lambda,LineWidth=2,MarkerSize=20)

Estimate the factor loadings using the covariance (or correlation) matrix.

[Lambda,Psi,T] = factoran(cov(X),2,Xtype="covariance")

Lambda = 5×2

   -0.2432   -0.8500
    0.8773    0.3871
    0.7618    0.5930
   -0.7978   -0.2786
    0.9692    0.2129

Psi = 5×1

    0.2184
    0.0804
    0.0680
    0.2859
    0.0152

T = 2×2

    0.9476    0.3195
    0.3195   -0.9476

You can also use corrcoef(X) instead of cov(X) to create the data for factoran.

Although the estimates are the same, the use of a covariance matrix rather than raw data prevents you from requesting the scores or significance level.

Rotate the factors and scores using the promax method.

[Lambda,Psi,T,stats,F] = factoran(X,2,Rotate="promax");
inv(T'*T)   % Estimated covariance matrix of F, no longer eye(2)

ans = 2×2

    1.0000   -0.6391
   -0.6391    1.0000

Lambda*inv(T'*T)*Lambda'+diag(Psi)   % Estimated covariance matrix of X

ans = 5×5

    1.0000   -0.5424   -0.6893    0.4309   -0.4167
   -0.5424    1.0000    0.8979   -0.8078    0.9328
   -0.6893    0.8979    1.0000   -0.7730    0.8647
    0.4309   -0.8078   -0.7730    1.0000   -0.8326
   -0.4167    0.9328    0.8647   -0.8326    1.0000

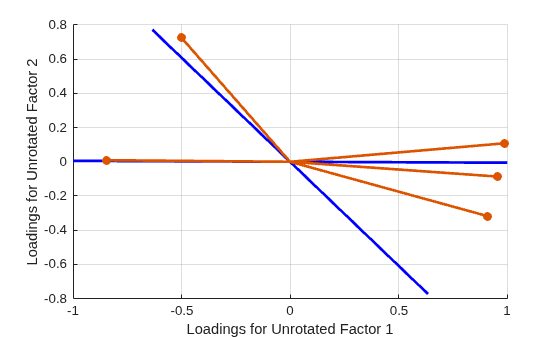

Plot the unrotated variables with oblique axes superimposed.

invT = inv(T);
Lambda0 = Lambda*invT;
figure()
line([-invT(1,1) invT(1,1) NaN -invT(2,1) invT(2,1)], ...
     [-invT(1,2) invT(1,2) NaN -invT(2,2) invT(2,2)], ...
     Color="b",LineWidth=2)
grid on
hold on
biplot(Lambda0,LineWidth=2,MarkerSize=20)
xlabel("Loadings for Unrotated Factor 1")
ylabel("Loadings for Unrotated Factor 2")

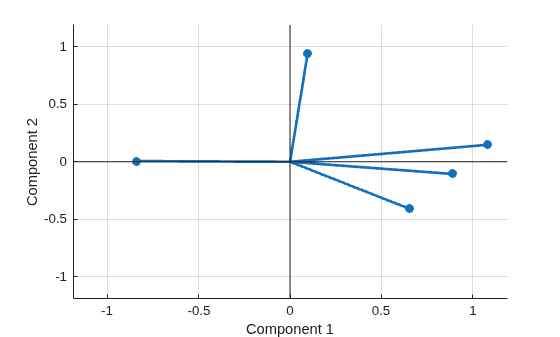

Plot the rotated variables against the oblique axes.

figure()
biplot(Lambda,LineWidth=2,MarkerSize=20)

Input Arguments

X — Data

matrix

Data, specified as an n-by-d matrix, where each row is an observation of d variables.

Data Types: double

m — Number of common factors

positive integer

Number of common factors, specified as a positive integer. The maximum allowable value of m must satisfy the inequality (d – m)² – d – m ≥ 0, where d is the number of variables in X. This condition ensures that the error degrees of freedom value is nonnegative (see stats).

Example: 3

Data Types: double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: lambda = factoran(X,m,'Start',10,'Scores','Thomson') specifies to use a starting point for specific variances of 10 and the Thomson method for predicting factor scores.

Xtype — Input data type

'data' (default) | 'covariance'

Input data type of X, specified as the comma-separated pair consisting of 'Xtype' and one of the following:

• 'data' — X is raw data.

• 'covariance' — X is a positive definite covariance or correlation matrix.

Example: 'Xtype','covariance'

Data Types: char | string

Scores — Method for predicting factor scores

'wls' or the equivalent 'Bartlett' (default) | 'regression' or the equivalent 'Thomson'

Method for predicting factor scores, specified as the comma-separated pair consisting of 'Scores' and one of the following:

• 'wls' or the equivalent 'Bartlett' — Weighted least-squares estimate treating F as fixed

• 'regression' or the equivalent 'Thomson' — Minimum mean squared error prediction that is equivalent to a ridge regression

Example: 'Scores','regression'

Data Types: char | string

Start — Starting point for specific variances psi in maximum likelihood optimization

'Rsquared' (default) | 'random' | positive integer | matrix with d rows

Starting point for the specific variances psi in the maximum likelihood optimization, specified as the comma-separated pair consisting of 'Start' and one of the following:

• 'Rsquared' — Chooses the starting vector as a scale factor times diag(inv(corrcoef(X))) (default). For examples, see Jöreskog [2].

• 'random' — Chooses d uniformly distributed values on the interval [0,1].

• Positive integer — Performs the given number of maximum likelihood fits, each initialized in the same way as 'random'. factoran returns the fit with the highest likelihood.

• Matrix with d rows — Performs one maximum likelihood fit for each column of the specified matrix. factoran initializes the ith optimization with the values from the ith column.

Example: 'Start',5

Data Types: double | char | string

Rotate — Method used to rotate factor loadings and scores

'varimax' (default) | 'none' | 'quartimax' | 'equamax' | 'parsimax' | 'orthomax' | 'promax' | 'procrustes' | 'pattern' | function handle

Method used to rotate factor loadings and scores, specified as the comma-separated pair consisting of 'Rotate' and one of the values in the following table. You can control the rotation by specifying additional name-value pair arguments of the rotatefactors function, as described in the table. For details, see rotatefactors.

Value	Description
'none'	Performs no rotation
'equamax'	Special case of the 'orthomax' rotation. Use the 'normalize', 'reltol', and 'maxit' arguments to control the details of the rotation.
'orthomax'	Orthogonal rotation that maximizes a criterion based on the variance of the loadings. Use the 'coeff', 'normalize', 'reltol', and 'maxit' arguments to control the details of the rotation.
'parsimax'	Special case of the orthomax rotation. Use the 'normalize', 'reltol', and 'maxit' arguments to control the details of the rotation.
'pattern'	Performs either an oblique rotation (the default) or an orthogonal rotation to best match a specified pattern matrix. Use the 'type' argument to choose the type of rotation. Use the 'target' argument to specify the pattern matrix.
'procrustes'	Performs either an oblique rotation (the default) or an orthogonal rotation to best match a specified target matrix in the least-squares sense. Use the 'type' argument to choose the type of rotation. Use the 'target' argument to specify the target matrix.
'promax'	Performs an oblique procrustes rotation to a target matrix determined by factoran as a function of an orthomax solution. Use the 'power' argument to specify the exponent for creating the target matrix. Because 'promax' uses 'orthomax' internally, you can also specify the arguments that apply to 'orthomax'.
'quartimax'	Special case of the 'orthomax' rotation. Use the 'normalize', 'reltol', and 'maxit' arguments to control the details of the rotation.
'varimax'	Special case of the 'orthomax' rotation (default). Use the 'normalize', 'reltol', and 'maxit' arguments to control the details of the rotation.
function handle	Function handle to a rotation function of the form [B,T] = myrotation(A,...) where A is a d-by-m matrix of unrotated factor loadings, B is a d-by-m matrix of rotated loadings, and T is the corresponding m-by-m rotation matrix. Use the factoran argument 'UserArgs' to pass additional arguments to this rotation function. See User-Defined Rotation Function.

Example: [lambda,psi,T] = factoran(X,m,'Rotate','promax','power',5,'maxit',100)

Data Types: char | string | function_handle

Delta — Lower bound for psi during maximum likelihood optimization

0.005 (default) | scalar between 0 and 1

Lower bound for the psi argument during maximum likelihood optimization, specified as the comma-separated pair consisting of 'Delta' and a scalar value between 0 and 1 (0 < Delta < 1).

Example: 0.02

Data Types: double

OptimOpts — Options for maximum likelihood optimization

[] (default) | structure created by statset

Options for the maximum likelihood optimization, specified as the comma-separated pair consisting of 'OptimOpts' and a structure created by statset. You can enter statset('factoran') for the list of options, which are also described in the following table.

Field Name (statset argument)	Meaning	Value {default}
'Display'	Amount of information displayed by the algorithm	{'off'} — Displays no information 'final' — Displays the final output 'iter' — Displays iterative output to the command window for some functions; otherwise displays the final output
MaxFunEvals	Maximum number of objective function evaluations allowed	Positive integer, {400}
MaxIter	Maximum number of iterations allowed	Positive integer, {100}
TolFun	Termination tolerance for the objective function value. The solver stops when successive function values are less than TolFun apart.	Positive scalar, {1e-8}
TolX	Termination tolerance for the parameters. The solver stops when successive parameter values are less than TolX apart.	Positive scalar, {1e-8}

Example: statset('Display','iter')

Data Types: struct

Nobs — Number of observations used to estimate X

positive integer

Number of observations used to estimate X, specified as the comma-separated pair consisting of 'Nobs' and a positive integer. Nobs applies only when Xtype is 'covariance'. Specifying 'Nobs' enables you to obtain the stats output structure fields chisq and p.

Example: 50

Data Types: double

Output Arguments

lambda — Factor loadings

matrix

Factor loadings, returned as a d-by-m matrix. d is the number of columns of the data matrix X, and m is the second input argument of factoran.

The (i,j)th element of lambda is the coefficient, or loading, of the jth factor for the ith variable. By default, factoran calls the function rotatefactors to rotate the estimated factor loadings using the 'varimax' option. For information about rotation, see Rotation of Factor Loadings and Scores.

psi — Specific variances

vector

Specific variances, returned as a d-by-1 vector. d is the number of columns of the data matrix X. The entries of psi are maximum likelihood estimates.

T — Factor loadings rotation

matrix

Factor loadings rotation, returned as an m-by-m matrix. m is the second input argument of factoran. For information about rotation, see Rotation of Factor Loadings and Scores.

stats — Information about common factors

structure

Information about the common factors, returned as a structure. stats contains information relating to the null hypothesis H₀ that the number of common factors is m [3].

stats contains the following fields.

Field	Description
loglike	Maximized loglikelihood value
dfe	Error degrees of freedom = ((d – m)2 – d – m)/2, where d is the number of variables in X
chisq	Approximate chi-squared statistic for the null hypothesis
p	Right-tail significance level for the null hypothesis

factoran does not compute the chisq and p fields unless dfe is positive and all the specific variance estimates in psi are positive (see Heywood Case). If X is a covariance matrix and you want factoran to compute the chisq and p fields, then you must also specify the 'Nobs' name-value pair argument.

F — Factor scores

matrix

Factor scores, also called predictions of the common factors, returned as an n-by-m matrix. n is the number of rows in the data matrix X, and m is the second input argument of factoran.

Note

If X is a covariance matrix (Xtype = 'covariance'), factoran cannot compute F.

factoran rotates F using the same criterion as for lambda. For information about rotation, see Rotation of Factor Loadings and Scores.

More About

Heywood Case

If elements of psi are equal to the value of the Delta parameter (that is, they are essentially zero), the fit is known as a Heywood case, and interpretation of the resulting estimates is problematic. In particular, there can be multiple local maxima of the likelihood, each with different estimates of the loadings and the specific variances. Heywood cases can indicate overfitting (m is too large), but can also be the result of underfitting.

Rotation of Factor Loadings and Scores

Unless you explicitly specify no rotation using the 'Rotate' name-value pair argument, factoran rotates the estimated factor loadings lambda and the factor scores F. The output matrix T is used to rotate the loadings, that is, lambda = lambda0*T, where lambda0 is the initial (unrotated) MLE of the loadings. T is an orthogonal matrix for orthogonal rotations, and the identity matrix for no rotation. The inverse of T is known as the primary axis rotation matrix, whereas T itself is related to the reference axis rotation matrix. For orthogonal rotations, the two are identical.

factoran computes factor scores that have been rotated by inv(T'), that is, F = F0 * inv(T'), where F0 contains the unrotated predictions. The estimated covariance of F is inv(T'*T), which is the identity matrix for orthogonal or no rotation. Rotation of factor loadings and scores is an attempt to create a structure that is easier to interpret in the loadings matrix after maximum likelihood estimation.

User-Defined Rotation Function

The syntax for passing additional arguments to a user-defined rotation function is:

[Lambda,Psi,T] = ...
     factoran(X,2,'Rotate',@myrotation,'UserArgs',1,'two');

References

[1] Harman, Harry Horace. Modern Factor Analysis. 3rd Ed. Chicago: University of Chicago Press, 1976.

[2] Jöreskog, K. G. “Some Contributions to Maximum Likelihood Factor Analysis.” Psychometrika 32, no. 4 (December 1967): 443–82. https://doi.org/10.1007/BF02289658

[3] Krzanowski, W. J. Principles of Multivariate Analysis: A User's Perspective. New York: Oxford University Press, 1988.

[4] Lawley, D. N., and A. E. Maxwell. Factor Analysis as a Statistical Method. 2nd Ed. New York: American Elsevier Publishing Co., 1971.

Extended Capabilities

Tall Arrays

Calculate with arrays that have more rows than fit in memory.

pcacov and factoran do not work directly on tall arrays. Instead, use C = gather(cov(X)) to compute the covariance matrix of a tall array. Then, you can use pcacov or factoran to work on the in-memory covariance matrix. Alternatively, you can use pca directly on a tall array.

For more information, see Tall Arrays for Out-of-Memory Data.

Version History

Introduced before R2006a
