Fit Mixed-Effects Spline Regression

This example shows how to fit a mixed-effects linear spline model.

This is simulated data.

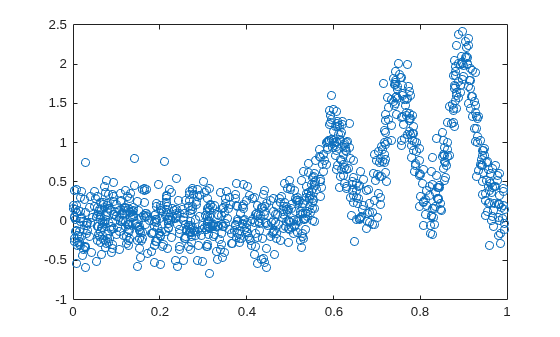

Plot $y$ versus sorted $x$.

[x_sorted,I] = sort(x,'ascend');
plot(x_sorted,y(I),'o') Fit the following mixed-effects linear spline regression model

${y}_{i}={\beta }_{1}+{\beta }_{2}{x}_{i}+\sum _{j=1}^{K}{b}_{j}{\left({x}_{i}-{k}_{j}\right)}_{+}+{ϵ}_{i}$

where ${k}_{j}$ is the $j$ th knot, and $K$ is the total number of knots. Assume that ${b}_{j}\sim N\left(0,{\sigma }_{b}^{2}\right)$ and $ϵ\sim N\left(0,{\sigma }^{2}\right)$.

Define the knots.

k = linspace(0.05,0.95,100);

Define the design matrices.

X = [ones(1000,1),x];
Z = zeros(length(x),length(k));
for j = 1:length(k)
Z(:,j) = max(X(:,2) - k(j),0);
end

Fit the model with an isotropic covariance structure for the random effects.

lme = fitlmematrix(X,y,Z,[],'CovariancePattern','Isotropic');

Fit a fixed-effects only model.

X = [X Z];
lme_fixed = fitlmematrix(X,y,[],[]);

Compare lme_fixed and lme via a simulated likelihood ratio test.

compare(lme,lme_fixed,'NSim',500,'CheckNesting',true)
ans =
Simulated Likelihood Ratio Test: Nsim = 500, Alpha = 0.05

Model        DF     AIC       BIC       LogLik     LRStat    pValue
lme            4    170.62    190.25    -81.309
lme_fixed    103    113.38    618.88     46.309    255.24    0.68064

Lower      Upper

0.63784    0.72129

The $p$-value indicates that the fixed-effects only model is not a better fit than the mixed-effects spline regression model.

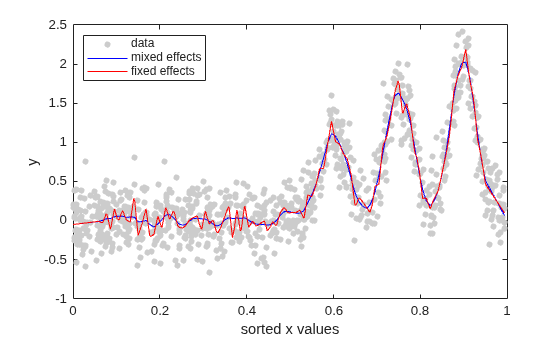

Plot the fitted values from both models on top of the original response data.

R = response(lme);
figure();
plot(x_sorted,R(I),'o', 'MarkerFaceColor',[0.8,0.8,0.8],...
'MarkerEdgeColor',[0.8,0.8,0.8],'MarkerSize',4);
hold on
F = fitted(lme);
F_fixed = fitted(lme_fixed);
plot(x_sorted,F(I),'b');
plot(x_sorted,F_fixed(I),'r');
legend('data','mixed effects','fixed effects','Location','NorthWest')
xlabel('sorted x values');
ylabel('y');
hold off You can also see from the figure that the mixed-effects model provides a better fit to data than the fixed-effects only model.
