Glyph plot

`glyphplot(X)`

glyphplot(X,'glyph','face')

glyphplot(X,'glyph','face','features',f)

glyphplot(X,...,'grid',[rows,cols])

glyphplot(X,...,'grid',[rows,cols],'page',p)

glyphplot(X,...,'centers',C)

glyphplot(X,...,'centers',C,'radius',r)

glyphplot(X,...,'obslabels',labels)

glyphplot(X,...,'standardize',* method*)

glyphplot(X,...,

`prop1`

`val1`

h = glyphplot(X,...)

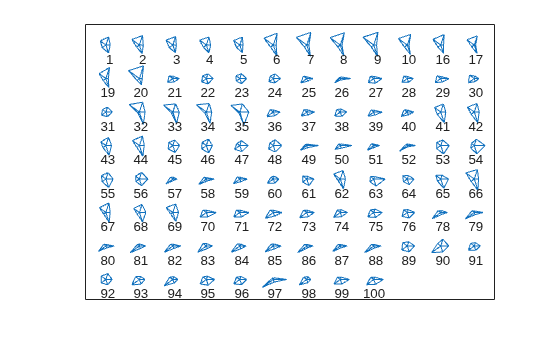

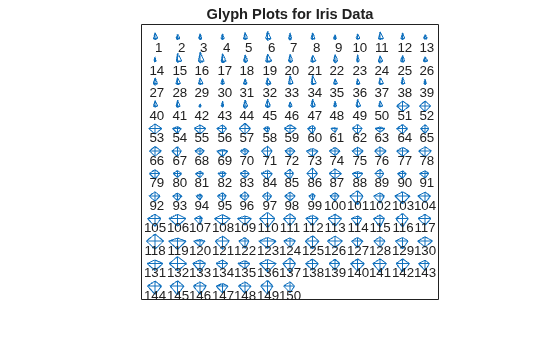

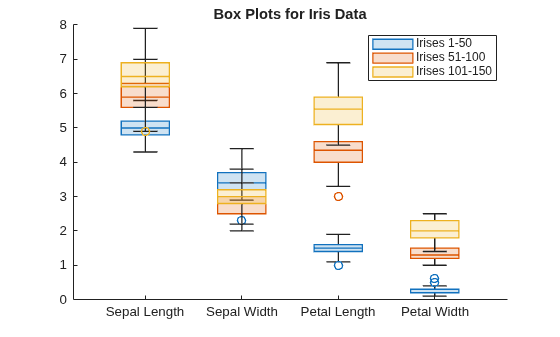

`glyphplot(X)`

creates a star plot from the
multivariate data in the *n*-by-*p* matrix `X`

.
Rows of `X`

correspond to observations, columns to
variables. A star plot represents each observation as a “star”
whose *i*th spoke is proportional in length to the *i*th
coordinate of that observation. `glyphplot`

standardizes `X`

by
shifting and scaling each column separately onto the interval `[0,1]`

before
making the plot, and centers the glyphs on a rectangular grid that
is as close to square as possible. `glyphplot`

treats `NaN`

s
in `X`

as missing values, and does not plot the corresponding
rows of `X`

. `glyphplot(X,'glyph','star')`

is
a synonym for `glyphplot(X)`

.

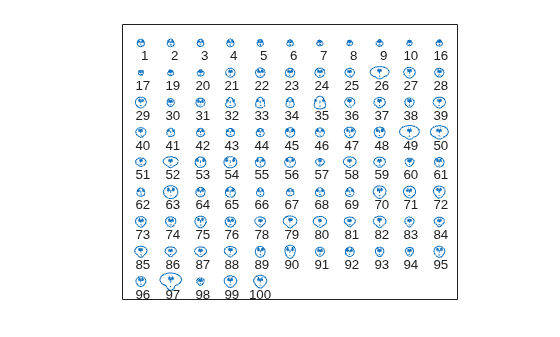

`glyphplot(X,'glyph','face')`

creates a face
plot from `X`

. A face plot represents each observation
as a “face,” whose *i*th facial feature
is drawn with a characteristic proportional to the *i*th
coordinate of that observation. The features are described in Face Features.

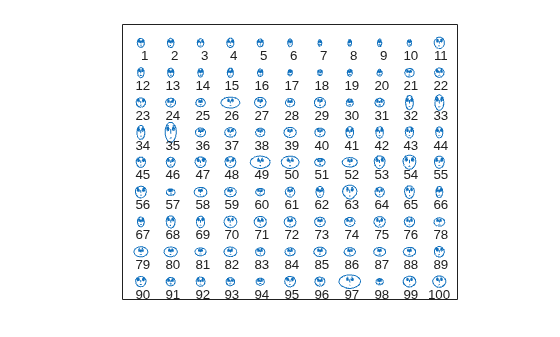

`glyphplot(X,'glyph','face','features',f)`

creates
a face plot where the *i*th element of the index
vector `f`

defines which facial feature will represent
the *i*th column of `X`

. `f`

must
contain integers from `0`

to `17`

,
where `0`

indicate that the corresponding column
of `X`

should not be plotted. See Face Features for more information.

`glyphplot(X,...,'grid',[rows,cols])`

organizes
the glyphs into a `rows`

-by-`cols`

grid.

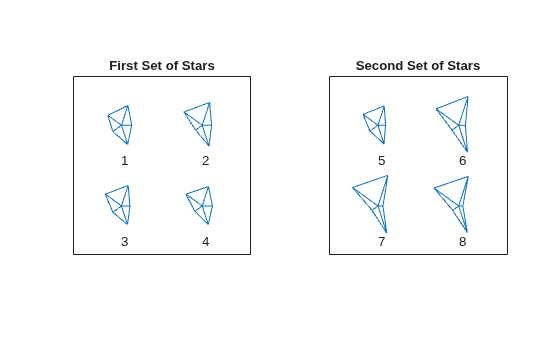

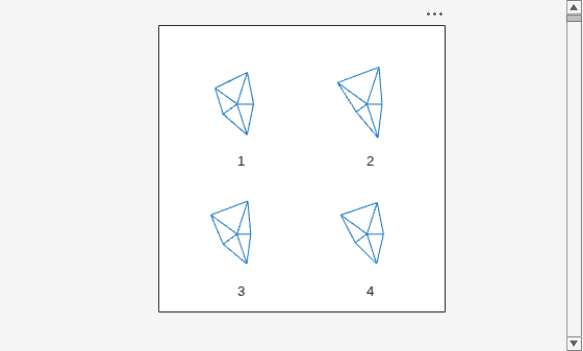

`glyphplot(X,...,'grid',[rows,cols],'page',p)`

organizes
the glyph into one or more pages of a `rows`

-by-`cols`

grid,
and displays the page `p`

. If `p`

is
a vector, `glyphplot`

displays multiple pages in
succession. If `p`

is `'all'`

, `glyphplot`

displays
all pages. If `p`

is `'scroll'`

, `glyphplot`

displays
a single plot with a scrollbar.

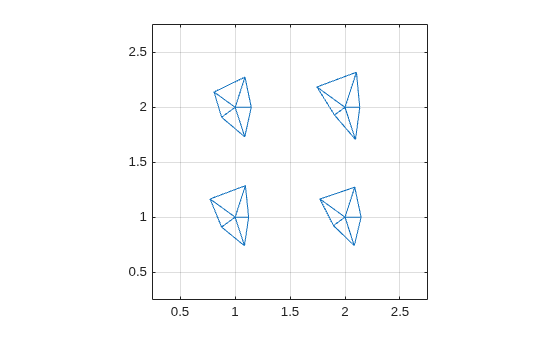

`glyphplot(X,...,'centers',C)`

creates a
plot with each glyph centered at the locations in the *n*-by-2
matrix `C`

.

`glyphplot(X,...,'centers',C,'radius',r)`

creates
a plot with glyphs positioned using `C`

, and scale
the glyphs so the largest has radius `r`

.

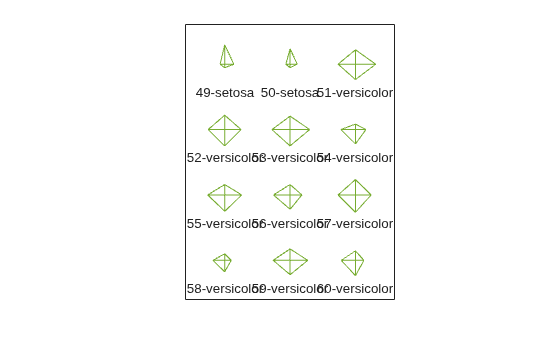

`glyphplot(X,...,'obslabels',labels)`

labels
each glyph with the text in `labels`

. By default,
the glyphs are labelled `1:N`

. Use `''`

for
blank labels.

`glyphplot(X,...,'standardize',`

standardizes * method*)

`X`

before
making the plot. Choices for `method`

`'column'`

— Maps each column of`X`

separately onto the interval [0,1]. This is the default.`'matrix'`

— Maps the entire matrix`X`

onto the interval`[0,1]`

.`'PCA'`

— Transforms`X`

to its principal component scores, in order of decreasing eigenvalue, and maps each one onto the interval`[0,1]`

.`'off'`

— No standardization. Negative values in`X`

may make a star plot uninterpretable.

`glyphplot(X,...,`

sets
properties to the specified property values for all line graphics
objects created by * prop1*,

`val1`

`glyphplot`

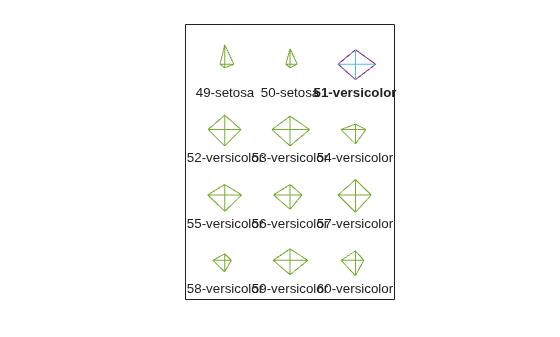

.`h = glyphplot(X,...)`

returns a matrix of
handles to the graphics objects created by `glyphplot`

.
For a star plot, `h(:,1)`

and `h(:,2)`

contain
handles to the line objects for each star's perimeter and spokes,
respectively. For a face plot, `h(:,1)`

and `h(:,2)`

contain
object handles to the lines making up each face and to the pupils,
respectively. `h(:,3)`

contains handles to the text
objects for the labels, if present.

The following table describes the correspondence between the
columns of the vector `f`

, the value of the `'Features'`

input
parameter, and the facial features of the glyph plot. If `X`

has
fewer than 17 columns, unused features are displayed at their default
value.

Column | Facial Feature |
---|---|

1 | Size of face |

2 | Forehead/jaw relative arc length |

3 | Shape of forehead |

4 | Shape of jaw |

5 | Width between eyes |

6 | Vertical position of eyes |

7 | Height of eyes |

8 | Width of eyes (this also affects eyebrow width) |

9 | Angle of eyes (this also affects eyebrow angle) |

10 | Vertical position of eyebrows |

11 | Width of eyebrows (relative to eyes) |

12 | Angle of eyebrows (relative to eyes) |

13 | Direction of pupils |

14 | Length of nose |

15 | Vertical position of mouth |

16 | Shape of mouth |

17 | Mouth arc length |
