This example shows how to tune hyperparameters of a classification support vector machine (SVM) model by using hyperparameter optimization in the Classification Learner app. Compare the test set performance of the trained optimizable SVM to that of the best-performing preset SVM model.
In the MATLAB® Command Window, load the
ionosphere data set,
and create a table containing the data. Separate the table into training and
load ionosphere tbl = array2table(X); tbl.Y = Y; rng('default') % For reproducibility of the data split partition = cvpartition(Y,'Holdout',0.15); idxTrain = training(partition); % Indices for the training set tblTrain = tbl(idxTrain,:); tblTest = tbl(~idxTrain,:);
Open Classification Learner. Click the Apps tab, and then click the arrow at the right of the Apps section to open the apps gallery. In the Machine Learning and Deep Learning group, click Classification Learner.
On the Classification Learner tab, in the File section, select New Session > From Workspace.
In the New Session from Workspace dialog box, select the
tblTrain table from the Data Set
As shown in the dialog box, the app selects the response and predictor
variables. The default response variable is
default validation option is 5-fold cross-validation, to protect against
overfitting. For this example, do not change the default settings.
To accept the default options and continue, click Start Session.
Train all preset SVM models. On the Classification Learner tab, in the Model Type section, click the arrow to open the gallery. In the Support Vector Machines group, click All SVMs. In the Training section, click Train. The app trains one of each SVM model type and displays the models in the Models pane.
If you have Parallel Computing Toolbox™, you can train all the SVM models (All SVMs) simultaneously by selecting the Use Parallel button in the Training section before clicking Train. After you click Train, the Opening Parallel Pool dialog box opens and remains open while the app opens a parallel pool of workers. During this time, you cannot interact with the software. After the pool opens, the app trains the SVM models simultaneously.
The app displays a scatter plot of the
Correctly classified points are marked with an O, and incorrectly classified
points are marked with an X. The Models pane on the left
shows the validation accuracy for each model.
Validation introduces some randomness into the results. Your model validation results can vary from the results shown in this example.
Select an optimizable SVM model to train. On the Classification Learner tab, in the Model Type section, click the arrow to open the gallery. In the Support Vector Machines group, click Optimizable SVM. The app disables the Use Parallel button when you select an optimizable model.
Select the model hyperparameters to optimize. In the Model
Type section, select Advanced > Advanced.
The app opens a dialog box in which you can select Optimize
check boxes for the hyperparameters that you want to optimize. By default, all
the check boxes for the available hyperparameters are selected. For this
example, clear the Optimize check boxes for
Kernel function and Standardize
data. By default, the app disables the
Optimize check box for Kernel
scale whenever the kernel function has a fixed value other than
Gaussian. Select a
Gaussian kernel function, and select the
Optimize check box for Kernel
In the Training section, click Train.

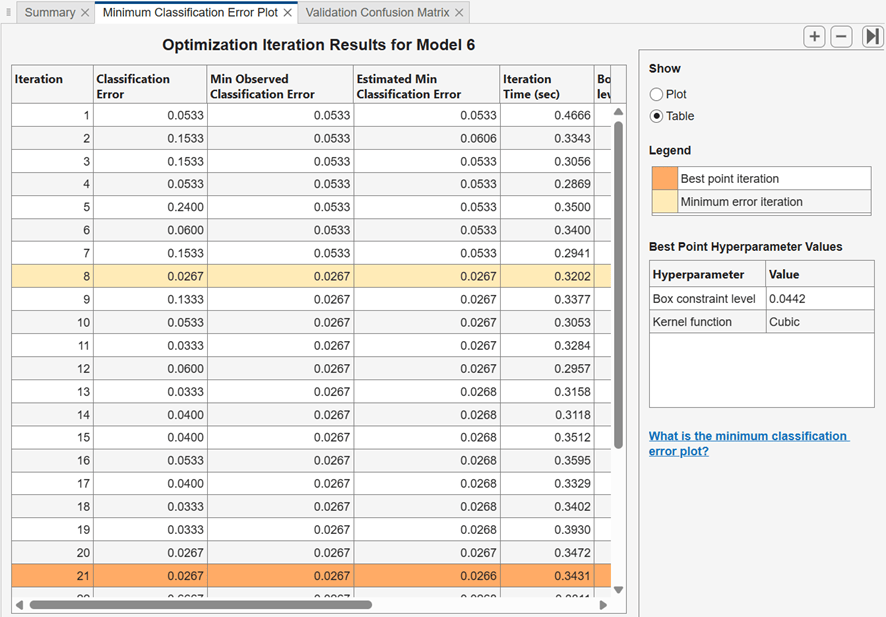

The app displays a Minimum Classification Error Plot as it runs the optimization process. At each iteration, the app tries a different combination of hyperparameter values and updates the plot with the minimum validation classification error observed up to that iteration, indicated in dark blue. When the app completes the optimization process, it selects the set of optimized hyperparameters, indicated by a red square. For more information, see Minimum Classification Error Plot.
The app lists the optimized hyperparameters in both the Optimization Results section to the right of the plot and the Optimized Hyperparameters section of the Current Model Summary pane.
In general, the optimization results are not reproducible.
Compare the trained preset SVM models to the trained optimizable model. In the Models pane, the app highlights the highest Accuracy (Validation) by outlining it in a box. In this example, the trained optimizable SVM model outperforms the six preset models.
A trained optimizable model does not always have a higher accuracy than the
trained preset models. If a trained optimizable model does not perform well, you
can try to get better results by running the optimization for longer. In the
Model Type section, select Advanced >
Optimizer Options. In the dialog box, increase the
Iterations value. For example, you can double-click the
default value of
30 and enter a value of
Because hyperparameter tuning often leads to overfitted models, check the performance of the optimizable SVM model on a test set and compare it to the performance of the best preset SVM model. Begin by importing test data into the app.
On the Classification Learner tab, in the Testing section, select Test Data > From Workspace.
In the Import Test Data dialog box, select the
tblTest table from the Test Data Set
As shown in the dialog box, the app identifies the response and predictor variables.
Compute the accuracy of the best preset model and the optimizable model on the
First, in the Models pane, click the star icons next to the Medium Gaussian SVM model and the Optimizable SVM model.
For each model, select the model in the Models pane, and then select Test All > Test Selected in the Testing section. The app computes the test set performance of the model trained on the full data set, including training and validation data.
Sort the models based on the test set accuracy. In the
Models pane, open the Sort by list
In this example, the trained optimizable model does not perform as well as the trained preset model on the test set data.
In the Plots section on the Classification Learner tab, select Confusion Matrix > Test Data. Toggle between the medium Gaussian SVM model and the optimizable SVM model, and visually compare the two confusion matrices.
