insertObjectAnnotation
Annotate truecolor or grayscale image or video
Syntax
Description
___ = insertObjectAnnotation(___,
specifies options using one or more name-value arguments in addition to the previous
syntax. For example, Name=Value
)FontSize=18
sets the annotation font size to
18
.
Examples
Annotate Image with Numbers and Strings
Read an image into the workspace.
I = imread("board.tif");
Create confidence value labels using floating point numbers.
label_str = cell(3,1); conf_val = [85.212 98.76 78.342]; for ii = 1:3 label_str{ii} = ['Confidence: ' num2str(conf_val(ii), '%0.2f') '%']; end
Set the positions for the rectangular bounding boxes associated with the labels using the form [x y width height].
position = [23 373 60 66; 35 185 77 81; 77 107 59 26];
Insert the labels into the image.
RGB = insertObjectAnnotation(I,"rectangle",position,label_str,TextBoxOpacity=0.9,FontSize=18);
Display the annotated image.
figure
imshow(RGB)

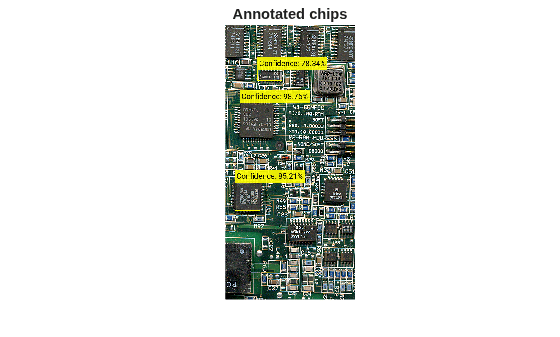

title("Annotated chips")
Annotate Image with Integers
Read an image into the workspace.
I = imread("coins.png");
Set the positions on the image for the circular bounding boxes associated with the labels. The first two values of each row specify the center coordinates of a circle, (x,y) and the third value is the radius.
position = [96 146 31; 236 173 26];
Set the values for the labels to display as 5 and 10, in integers. These values represent US currency in the form of a nickle and dime, respectively.
label = [5 10];
Insert the annotations into the image.
RGB = insertObjectAnnotation(I,"circle",position,label,LineWidth=3,AnnotationColor=["cyan","yellow"],FontColor="black");
Display the annotated image.
figure
imshow(RGB)

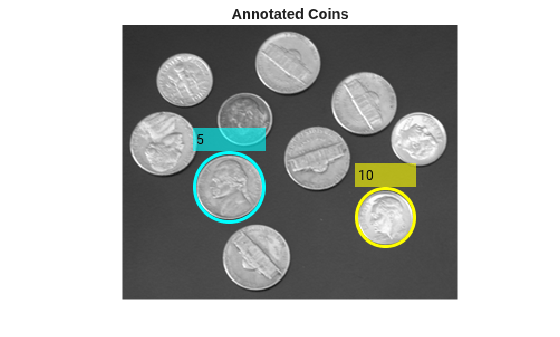

title("Annotated Coins")
Input Arguments
I
— Input image
M-by-N-by-3 truecolor image | M-by-N grayscale image
Input image, specified as an M-by-N-by-3 truecolor or an M-by-N grayscale image.
Data Types: single
| double
| int16
| uint8
| uint16
shape
— Shape of annotation
"rectangle"
| "circle"
| "projected-cuboid"
| "ellipse"
Shape of the annotation, specified as "rectangle"
,
"circle"
, "projected-cuboid"
, or
"ellipse"
. If you specify a "rectangle"
annotation be specify the position of either an axis-aligned or rotated
rectangle.
Data Types: char
| string
position
— Position of shape
matrix | vector | cell array
Position of the shape, specified according to the type of shape, as described in the table.
Shape | Position | Definition |
---|---|---|
| For one or more axis-aligned rectangles or filled rectangles, specify as an M-by-4 numeric matrix, where each row specifies a rectangle of the form .
| |
For one or more rotated rectangles, specify in spatial coordinates as an M-by-5 numeric matrix, where each row specifies a rotated rectangle of the form [xctr yctr w h yaw].
| ||
| For one or more circles, specify spatial coordinates as an M-by-3 numeric matrix, where each row specifies a circle of the form [xctr yctr radius].
| |
ellipse | For one or more ellipses, specify in spatial coordinates as an M-by-5 matrix, where each row specifies an ellipse of the form [xctr yctr major minor yaw]
|
|
projected-cuboid | For one or more projected cuboids, specify in spatial coordinates as an 8-by-2-by-M array or an M-by-8 matrix, where M is the number of projected cuboids. When specified as an 8-by-2-by-M array, each row must contain the [x y] location of a projected cuboid vertex. The vertices connect to form a cuboid with six faces. The order of the input vertices must match the order shown in the diagram. When specified as an M-by-8 matrix, each row specifies the dimensions of the front-facing and rear-facing sides of a projected cuboid in the form, [x1 y1 w1 h1 x2 y2 w2 h2], where [x1 y1] and [x2 y2] specify the upper-left coordinates of the front-facing and rear-facing sides, respectively, and [w1 h1] and [w2 h2] specify the corresponding widths and heights. |
|
Data Types: single
| double
| cell
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
label
— Label to associate with shape
M-element numeric vector | string array | vector of categorical labels | cell array of ASCII character vectors
Label to associate with a shape, specified as an M-element numeric vector, string array, vector of categorical labels, or a cell array of ASCII character vectors. If you use character vectors, string scalars, or categorical labels, you must encode them as ASCII characters. If you specify a cell array, it must be equal in length to the number of specified shape positions. You can specify a single label for all shapes using a numeric scalar, string scalar, or scalar categorical label.
Example: [5 10]
marks the first shape with the label
5
, and the second shape with the label
10
.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: insertObjectAnnotation(I,"rectangle",position,label,FontSize=18);
sets the font size to use for inserting annotations to 18
.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: insertObjectAnnotation(I,"rectangle",position,label,"FontSize","18");
sets the font size to use for inserting annotations to 18
.
Font
— Font face of label text
"LucidaSansRegular"
(default) | character vector | string scalar
Font face of the label text, specified as a character vector or string scalar. The
font face must be one of the available truetype fonts installed on your system. To get
a list of available fonts on your system, use the listTrueTypeFonts
function from the MATLAB® command prompt.
Data Types: char
| string
FontSize
— Label text font size
12
(default) | integer in range [8 72
]
Label text font size, specified as an integer that corresponds to points in the range of
[8 72
].
Data Types: double
| single
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
FontColor
— Font color
"black"
(default) | short color name | color name | vector of color names | three-column matrix of RGB triplets
Font color, specified as a short color name, color name, vector of color names, three-column matrix of RGB triplets.
The supported colors table lists RGB intensities in the range [0, 1], but you must
specify RGB triplets in the range of your selected data type. For example, if
specifying this argument as a matrix of uint8
values, you must
convert each intensity value to the range [0, 255]. To convert the listed intensity
values to a uint8
data type, use the code
uint8(255*intensity)
, where intensity is an RGB triplet value
listed in the table.
You can specify a different color for each font string or one color for all
strings. To specify one color for all strings, specify FontColor
as a color name or an [R
G
B] vector.
Data Types: logical
| uint8
| uint16
| int16
| double
| single
AnnotationColor
— Annotation color
"yellow"
(default) | short color name | color name | vector of color names | three-column matrix of RGB triplets
Annotation color, specified as a short color name, color name, vector of color names, three-column matrix of RGB triplets.
The supported colors table lists RGB intensities in the range [0, 1], but you must
specify RGB triplets in the range of your selected data type. For example, if
specifying this argument as a matrix of uint8
values, you must
convert each intensity value to the range [0, 255]. To convert the listed intensity
values to a uint8
data type, use the code
uint8(255*intensity)
, where intensity is an RGB triplet value
listed in the table.
You can specify a different color for each marker or one color for all markers. To
specify one color for all markers, specify AnnotationColor
as a
color name or an [R
G
B] vector.
Specification | Format | Example |
---|---|---|
Specify one color for all shapes (or markers) | Short color name or color name |
|
RGB triplet |
| |
Specify a color for each shape (or marker) | Vector of color names |
|
Three-column matrix of RGB triplets | [1 0 0 0 1 1 1 0 1 1 1 1] |
Supported colors are listed in the table.
Color Name | Short Name | RGB Triplet | Appearance |
---|---|---|---|
"red" | "r" | [1 0 0] | |
"green" | "g" | [0 1 0] | |
"blue" | "b" | [0 0 1] | |
"cyan" | "c" | [0 1 1] | |
"magenta" | "m" | [1 0 1] | |
"yellow" | "y" | [1 1 0] | |
"black" | "k" | [0 0 0] | |
"white" | "w" | [1 1 1] |
Data Types: cell
| char
| uint8
| uint16
| int16
| double
| single
TextBoxOpacity
— Opacity of text label box background
0.6
(default) | scalar in the range of [0
1
]
Opacity of the text label box background, specified as a scalar in the range of [0,
1]
. A value of 0
renders the background of the label
text box as fully transparent, while a value of 1
renders it as
fully opaque.
Data Types: double
| single
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
LineWidth
— Shape border line width
1
(default) | positive integer
Shape border line width, specified as a positive integer, in pixels.
ShowOrientation
— Original orientation indicator
0
(false
) (default) | 1
(true
)
Original orientation indicator, specified as a numeric or logical
1
(true
) or 0
(false
). A value of 1
(true
) displays the original orientation of the rotated rectangle
by using an arrow annotation on the bounding box. The original orientation is defined
as a zero rotation angle. A value of 0
(false
)
does not show the arrow annotation.
This argument applies only when Shape
describes a rotated
rectangle or an ellipse.
Data Types: logical
| integer
Output Arguments
RGB
— Output image
M-by-N-by-3 truecolor image
Output image, returned as an M-by-N-by-3 truecolor image.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
Input image must be bounded. See Specify Upper Bounds for Variable-Size Arrays (MATLAB Coder).
Code generation requires a C++ compiler. For a list of supported compilers, see Supported and Compatible Compilers
Version History
Introduced in R2012bR2024b: Support for ellipse shape
Added support for "ellipse"
to visualize one or more ellipses on top
of an image or on video data.
R2024b: Default value for orientation indicator changed from true
to false
Starting in R2024b, the default value for the ShowOrientation
name-value argument will be false
.
R2023b: Specify RGB color in the range [0,1]
Starting in R2023b, you can specify marker color with RGB values in the range [0,1].
R2023b: Rotated rectangle support for bounding box
You can specify a rotated rectangle bounding box using the form [xctr yctr width height yaw].
R2023b: Show orientation of rectangle of bounding box
You can now specify the ShowOrientation
name-value argument to
display the orientation and angle of a rotated rectangle bounding box.
R2022b: Visualize projected cuboids
Added support to visualize projected cuboids.
