powerbw

DWT filter bank power bandwidth

collapse all in page

Syntax

bwtable = powerbw(fb)

Description

bwtable = powerbw(fb) returns a MATLAB® table bwtable containing the theoretical and measured bandwidths of the discrete wavelet transform (DWT) filter bank fb. The table contains the following variables by level:

  • DWT frequency bands

  • Measured wavelet and scaling filter 3 dB bandwidths

  • Proportions of the total energy in the reported bands

example

Examples

collapse all

Open Live Script

Obtain the 3 dB bandwidths of a level-4 discrete wavelet transform with the Fejér-Korovkin fk18 wavelet. Obtain the frequency responses of the wavelets. Plot the one-sided frequency responses for the wavelet filters.

fb = dwtfilterbank('Wavelet','fk18','Level',4);
bw = powerbw(fb);
[psidft,f] = freqz(fb);
freqz(fb)

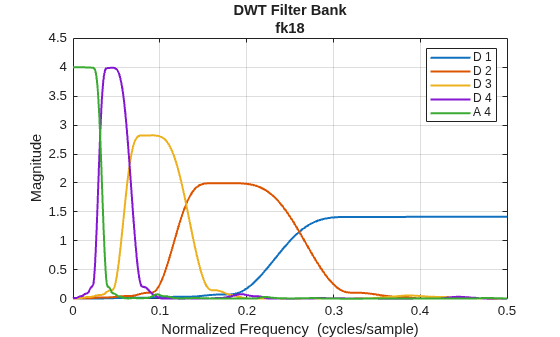

Figure contains an axes object. The axes object with title DWT Filter Bank fk18, xlabel Normalized Frequency (cycles/sample), ylabel Magnitude contains 5 objects of type line. These objects represent D 1, D 2, D 3, D 4, A 4.

Choose the wavelet bandpass filter whose peak magnitude is equal to 2. Obtain the lower and upper bounds of the 3 dB bandwidth of the filter.

wv = 2;
wvBw = bw.Wavelet3dBBandwidth(wv,:);

Plot the magnitude frequency response of the filter and the 3 dB limits. Since the frequency response has a maximum value equal to 2, confirm the lower and upper frequency bounds intersect the frequency response at 2.

filLength = size(psidft,2);
plot(f(filLength/2+1:end),abs(psidft(wv,filLength/2+1:end)))
hold on
plot([wvBw(1) wvBw(1)],[0 2],'r')
plot([wvBw(2) wvBw(2)],[0 2],'r')
hold off
grid on
title(['Proportion of Wavelet Power in 3 dB Band: ', ...
    num2str(bw.WaveletPowerIn3dBBand(wv))])
xlabel('Normalized Frequency (cycles/sample)')
ylabel('Magnitude')

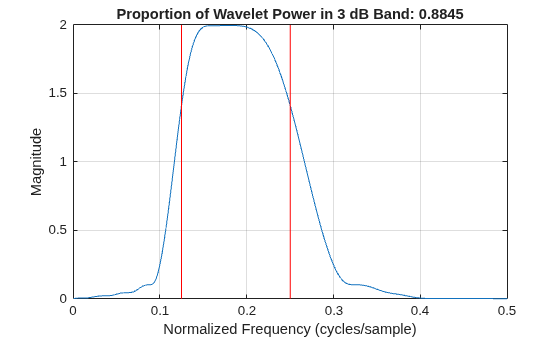

Figure contains an axes object. The axes object with title Proportion of Wavelet Power in 3 dB Band: 0.8845, xlabel Normalized Frequency (cycles/sample), ylabel Magnitude contains 3 objects of type line.

Input Arguments

collapse all

Discrete wavelet transform (DWT) filter bank, specified as a dwtfilterbank object.

Output Arguments

collapse all

Theoretical and measured bandwidths of the DWT filter bank fb, returned as a MATLAB table. bwtable is L-by-8, where L is the wavelet transform level of the filter bank. Levels are ordered by decreasing resolution. bwtable has the following eight variables:

Level of DWT decomposition, returned as a positive integer.

Theoretical DWT frequency bands by level, returned as a two-element real-valued vector.

Measured wavelet 3 dB bandwidths by level, returned as a two-element real-valued vector.

Measured scaling filter 3 dB bandwidths by level, returned as a two-element real-valued vector.

Proportion of total wavelet power in the measured 3 dB band by level, returned as a positive scalar.

Proportion of total scaling filter power in the measured 3 dB band by level, returned as a positive scalar.

Proportion of total wavelet power in the theoretical DWT band by level, returned as a positive scalar.

Proportion of total scaling filter power in the theoretical DWT band by level, returned as a positive scalar.

Version History

Introduced in R2018a
