# imodwpt

Inverse maximal overlap discrete wavelet packet transform

## Syntax

``xrec = imodwpt(coefs)``
``xrec = imodwpt(coefs,wname)``
``xrec = imodwpt(coefs,lo,hi)``

## Description

example

````xrec = imodwpt(coefs)` returns the inverse maximal overlap discrete wavelet packet transform (inverse MODWPT), in `xrec`. The inverse transform is for the terminal node coefficient matrix (`coefs`) obtained using `modwpt` with the default length 18 Fejér-Korovkin (`"fk18"`) wavelet.```

example

````xrec = imodwpt(coefs,wname)` returns the inverse MODWPT using the wavelet specified by `wname`.```

example

````xrec = imodwpt(coefs,lo,hi)` returns the inverse MODWPT using the orthogonal scaling filter, `lo`, and wavelet filter, `hi`.```

## Examples

collapse all

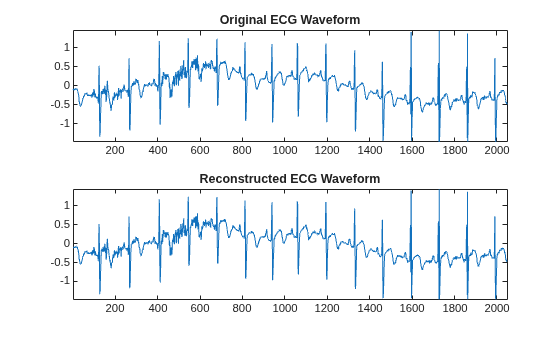

Obtain the MODWPT of an ECG waveform and demonstrate perfect reconstruction using the inverse MODWPT.

```load wecg wpt = modwpt(wecg); xrec = imodwpt(wpt); tiledlayout(2,1) nexttile plot(wecg) axis tight title("Original ECG Waveform") nexttile plot(xrec) axis tight title("Reconstructed ECG Waveform")```

Demonstrate perfect reconstruction. Find the largest absolute difference between the original signal and the reconstruction.

`max(abs(wecg-xrec'))`
```ans = 1.7903e-11 ```

Obtain the MODWPT of Southern Oscillation Index data using the Daubechies extremal phase wavelet with two vanishing moments (`'db2'`). Reconstruct the signal using the inverse MODWPT.

```load soi wsoi = modwpt(soi,"db2"); xrec = imodwpt(wsoi,"db2");```

Obtain the MODWPT of Southern Oscillation Index data using specified scaling and wavelets filters with the Daubechies extremal phase wavelet with two vanishing moments (`'db2'`).

```load soi [lo,hi] = wfilters("db2"); wpt = modwpt(soi,lo,hi); xrec = imodwpt(wpt,lo,hi);```

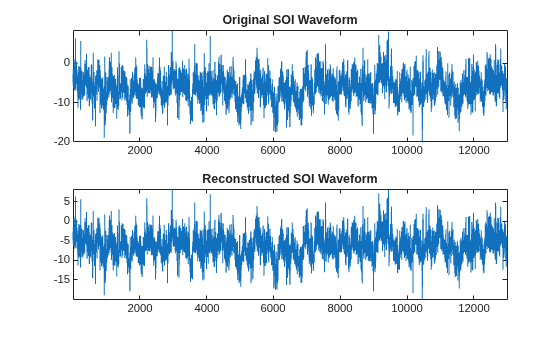

Plot the original SOI waveform and the reconstructed waveform.

```tiledlayout(2,1) nexttile plot(soi) axis tight title("Original SOI Waveform") nexttile plot(xrec) axis tight title("Reconstructed SOI Waveform")```

## Input Arguments

collapse all

Terminal node coefficients of a wavelet packet tree, specified as a matrix. You must obtain the coefficient matrix from `modwpt` using the `FullTree=false` option. `FullTree=false` is the default value of `modwpt`. The `imodwpt` function only accepts the terminal nodes of a wavelet packet tree. If you do not modify the coefficients, `xrec` is a perfect reconstruction of the signal.

Data Types: `single` | `double`
Complex Number Support: Yes

Synthesizing wavelet used to invert the MODWPT, specified as a character vector or string scalar. `wname` must be the same wavelet used in the analysis with `modwpt`.

Filters, specified as a pair of even-length real-valued vectors. `lo` is the orthogonal scaling filter and `hi` is the orthogonal wavelet filter. `lo` and `hi` must be the same filter pair used in the analysis with `modwpt`. You cannot specify both `wname` and a scaling-wavelet filter pair.

Data Types: `single` | `double`

## Output Arguments

collapse all

Inverse maximal overlap discrete wavelet packet transform, returned as a row vector. The inverse transform is the reconstructed version of the original signal based on the MODWPT terminal node coefficients. `xrec` has the same number of columns as the input `coefs` matrix.

## References

[1] Percival, Donald B., and Andrew T. Walden. Wavelet Methods for Time Series Analysis. Cambridge Series in Statistical and Probabilistic Mathematics. Cambridge ; New York: Cambridge University Press, 2000.

[2] Walden, A. T., and A. Contreras Cristan. “The Phase–Corrected Undecimated Discrete Wavelet Packet Transform and Its Application to Interpreting the Timing of Events.” Proceedings of the Royal Society of London. Series A: Mathematical, Physical and Engineering Sciences 454, no. 1976 (August 8, 1998): 2243–66. https://doi.org/10.1098/rspa.1998.0257.

## Version History

Introduced in R2016a
