monopoleCylindrical
Description

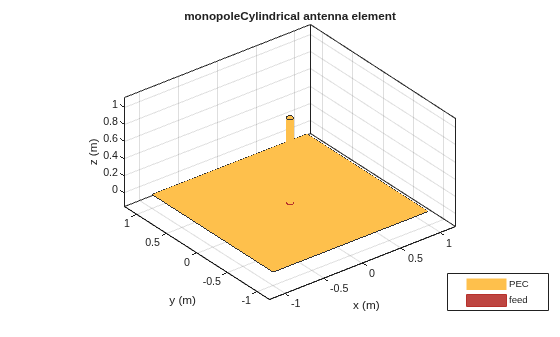

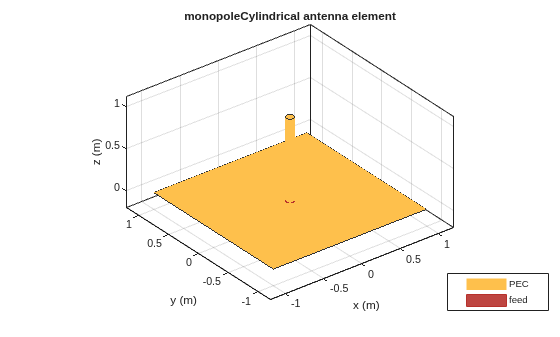

The monopoleCylindrical
object is a cylindrical monopole
antenna mounted over a rectangular ground plane. This antenna is useful for designing thicker
monopole antennas. These antennas are mostly used in wireless mobile communication due to
their broadband characteristics and simple design.
Creation
Description
creates a
cylindrical monopole antenna object with default dimensions for an operating frequency
of 70 MHz.ant
= monopoleCylindrical
sets
Properties using one or more
name-value pairs. For example, ant
= monopoleCylindrical(Name,Value)ant =
monopoleCylindrical('Radius',0.04)
, creates a cylindrical monopole antenna
with a radius of 0.04 meters.
Properties
Object Functions
axialRatio | Calculate and/or plot axial ratio of antenna or array |
bandwidth | Calculate and/or plot absolute bandwidth of antenna |
beamwidth | Beamwidth of antenna |
charge | Charge distribution on antenna or array surface |

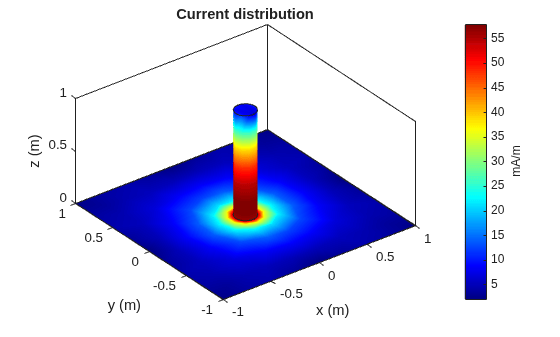

current | Current distribution on antenna or array surface |
cylinder2strip | Cylinder equivalent width approximation |
design | Design prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects |
efficiency | Radiation efficiency of antenna |
EHfields | Electric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays |
impedance | Input impedance of antenna or scan impedance of array |
info | Display information about antenna, array, or platform |
memoryEstimate | Estimate memory required to solve antenna or array mesh |
mesh | Mesh properties of metal, dielectric antenna, or array structure |
meshconfig | Change meshing mode of antenna, array, custom antenna, custom array, or custom geometry |
optimize | Optimize antenna or array using SADEA optimizer |

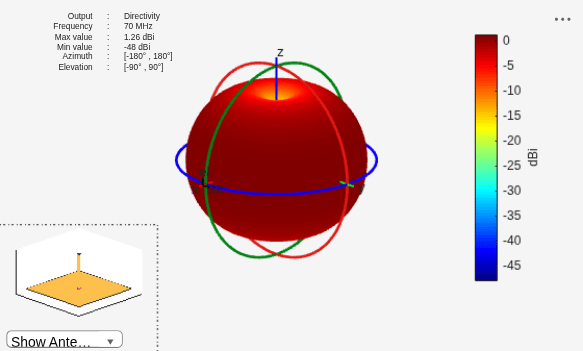

pattern | Plot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array |
patternAzimuth | Azimuth plane radiation pattern of antenna or array |
patternElevation | Elevation plane radiation pattern of antenna or array |
rcs | Calculate and plot monostatic and bistatic radar cross section (RCS) of platform, antenna, or array |
resonantFrequency | Calculate and/or plot resonant frequency of antenna |
returnLoss | Return loss of antenna or scan return loss of array |
show | Display antenna, array structures, shapes, or platform |

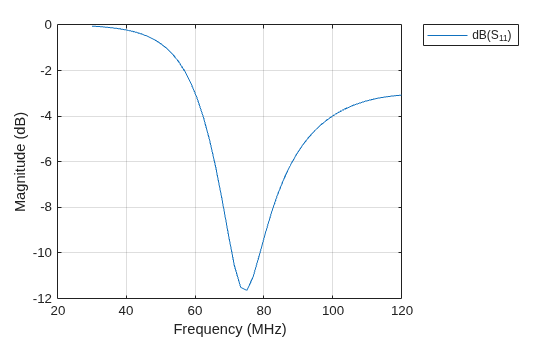

sparameters | Calculate S-parameters for antennas and antenna arrays |
strip2cylinder | Calculate equivalent radius approximation for strip |
vswr | Voltage standing wave ratio (VSWR) of antenna or array element |
Examples
More About
References
[1] King, Ronald W.P. Characteristics of Cylindrical Dipoles and Monopoles. Boston, MA: Springer, 1971.
Version History
Introduced in R2021a
