deleteFaces

Delete specified faces of box

Since R2023b

Syntax

deleteFaces(box,faceID)

Description

deleteFaces(box,faceID) deletes the specified faces from the box shape.

Examples

Delete Box Faces

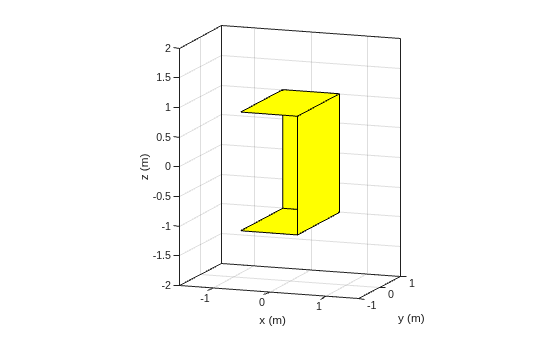

This example shows how to delete multiple faces from the box.

Create a box and delete the faces 4 and 6.

sh = shape.Box;
deleteFaces(sh,[4 6]);
view([20.28 11.41])

Input Arguments

box — Box to remove faces

shape.Box object (default)

Box to remove faces, specified as a shape.Box object.

Example: shape.Box

faceID — Faces to remove from box

integer scalar | n-by-1 integer vector

Faces to remove from the box, specified as a scalar integer for a single face or a n-by-1 vector for multiple faces. n is the number of faces.

Example: 2

Example: [1 4 5]

Data Types: double

Version History

Introduced in R2023b
