verify

    Description

    example

    tf = verify(ivs,data,label) returns true if i-vector system ivs finds that data corresponds to label and false otherwise.

    example

    tf = verify(ivs,data,label,scorer) specifies the scorer used for verification.

    example

    tf = verify(ivs,data,label,scorer,threshold) specifies the decision threshold used for the score.

    [tf,score] = verify(___) also returns a score indicating the similarity between the i-vector derived from the data and the i-vector template corresponding to the label.

    Examples

    collapse all

    Use the Pitch Tracking Database from Graz University of Technology (PTDB-TUG) [1]. The data set consists of 20 English native speakers reading 2342 phonetically rich sentences from the TIMIT corpus. Download and extract the data set. Depending on your system, downloading and extracting the data set can take approximately 1.5 hours.

    url = 'https://www2.spsc.tugraz.at/databases/PTDB-TUG/SPEECH_DATA_ZIPPED.zip';
    downloadFolder = tempdir;
    datasetFolder = fullfile(downloadFolder,'PTDB-TUG');

    if ~exist(datasetFolder,'dir')
        disp('Downloading PTDB-TUG (3.9 G) ...')
        unzip(url,datasetFolder)
    end

    Create an audioDatastore object that points to the data set. The data set was originally intended for use in pitch-tracking training and evaluation and includes laryngograph readings and baseline pitch decisions. Use only the original audio recordings.

    ads = audioDatastore([fullfile(datasetFolder,"SPEECH DATA","FEMALE","MIC"),fullfile(datasetFolder,"SPEECH DATA","MALE","MIC")], ...
                         'IncludeSubfolders',true, ...
                         'FileExtensions','.wav');

    The file names contain the speaker IDs. Decode the file names to set the labels in the audioDatastore object.

    ads.Labels = extractBetween(ads.Files,'mic_','_');
    countEachLabel(ads)
    ans=18×2 table
        Label    Count
        _____    _____

         F01      211
         F02      213
         F03      213
         F04      213
         F05      236
         F06      213
         F07      213
         F08      210
         F09      213
         M01      211
         M02      213
         M03      213
         M04      213
         M05      235
         M06      213
         M07      213
          ⋮



    Read an audio file from the data set, listen to it, and plot it.

    [audioIn,audioInfo] = read(ads);
    fs = audioInfo.SampleRate;

    t = (0:size(audioIn,1)-1)/fs;
    sound(audioIn,fs)
    plot(t,audioIn)
    xlabel('Time (s)')
    ylabel('Amplitude')
    axis([0 t(end) -1 1])
    title('Sample Utterance from Data Set')

    Separate the audioDatastore object into four: one for training, one for enrollment, one to evaluate the detection-error tradeoff, and one for testing. The training set contains 16 speakers. The enrollment, detection-error tradeoff, and test sets contain the other four speakers.

    speakersToTest = categorical(["M01","M05","F01","F05"]);

    adsTrain = subset(ads,~ismember(ads.Labels,speakersToTest));

    ads = subset(ads,ismember(ads.Labels,speakersToTest));
    [adsEnroll,adsTest,adsDET] = splitEachLabel(ads,3,1);

    Display the label distributions of the audioDatastore objects.

    countEachLabel(adsTrain)
    ans=14×2 table
        Label    Count
        _____    _____

         F02      213
         F03      213
         F04      213
         F06      213
         F07      213
         F08      210
         F09      213
         M02      213
         M03      213
         M04      213
         M06      213
         M07      213
         M08      213
         M09      213


    countEachLabel(adsEnroll)
    ans=4×2 table
        Label    Count
        _____    _____

         F01       3
         F05       3
         M01       3
         M05       3


    countEachLabel(adsTest)
    ans=4×2 table
        Label    Count
        _____    _____

         F01       1
         F05       1
         M01       1
         M05       1


    countEachLabel(adsDET)
    ans=4×2 table
        Label    Count
        _____    _____

         F01      207
         F05      232
         M01      207
         M05      231



    Create an i-vector system. By default, the i-vector system assumes the input to the system is mono audio signals.

    speakerVerification = ivectorSystem('SampleRate',fs)
    speakerVerification =
      ivectorSystem with properties:

             InputType: 'audio'
            SampleRate: 48000
          DetectSpeech: 1
        EnrolledLabels: [0×2 table]



    To train the extractor of the i-vector system, call trainExtractor. Specify the number of universal background model (UBM) components as 128 and the number of expectation maximization iterations as 5. Specify the total variability space (TVS) rank as 64 and the number of iterations as 3.

    trainExtractor(speakerVerification,adsTrain, ...
        'UBMNumComponents',128,'UBMNumIterations',5, ...
        'TVSRank',64,'TVSNumIterations',3)
    Calculating standardization factors ....done.
    Training universal background model ........done.
    Training total variability space ......done.
    i-vector extractor training complete.


    To train the classifier of the i-vector system, use trainClassifier. To reduce dimensionality of the i-vectors, specify the number of eigenvectors in the projection matrix as 16. Specify the number of dimensions in the probabilistic linear discriminant analysis (PLDA) model as 16, and the number of iterations as 3.

    trainClassifier(speakerVerification,adsTrain,adsTrain.Labels, ...
        'NumEigenvectors',16, ...
        'PLDANumDimensions',16,'PLDANumIterations',3)
    Extracting i-vectors ...done.
    Training projection matrix .....done.
    Training PLDA model ......done.
    i-vector classifier training complete.


    To inspect parameters used previously to train the i-vector system, use info.

    info(speakerVerification)
    i-vector system input
      Input feature vector length: 60
      Input data type: double

    trainExtractor
      Train signals: 2979
      UBMNumComponents: 128
      UBMNumIterations: 5
      TVSRank: 64
      TVSNumIterations: 3

    trainClassifier
      Train signals: 2979
      Train labels: F02 (213), F03 (213) ... and 12 more
      NumEigenvectors: 16
      PLDANumDimensions: 16
      PLDANumIterations: 3


    Split the enrollment set.

    [adsEnrollPart1,adsEnrollPart2] = splitEachLabel(adsEnroll,1,2);

    To enroll speakers in the i-vector system, call enroll.

    enroll(speakerVerification,adsEnrollPart1,adsEnrollPart1.Labels)
    Extracting i-vectors ...done.
    Enrolling i-vectors .......done.
    Enrollment complete.


    When you enroll speakers, the read-only EnrolledLabels property is updated with the enrolled labels and corresponding template i-vectors. The table also keeps track of the number of signals used to create the template i-vector. Generally, using more signals results in a better template.

    speakerVerification.EnrolledLabels
    ans=4×2 table
                  ivector       NumSamples
               _____________    __________

        F01    {16×1 double}        1
        F05    {16×1 double}        1
        M01    {16×1 double}        1
        M05    {16×1 double}        1



    Enroll the second part of the enrollment set and then view the enrolled labels table again. The i-vector templates and the number of samples are updated.

    enroll(speakerVerification,adsEnrollPart2,adsEnrollPart2.Labels)
    Extracting i-vectors ...done.
    Enrolling i-vectors .......done.
    Enrollment complete.

    speakerVerification.EnrolledLabels
    ans=4×2 table
                  ivector       NumSamples
               _____________    __________

        F01    {16×1 double}        3
        F05    {16×1 double}        3
        M01    {16×1 double}        3
        M05    {16×1 double}        3



    To evaluate the i-vector system and determine a decision threshold for speaker verification, call detectionErrorTradeoff.

    [results, eerThreshold] = detectionErrorTradeoff(speakerVerification,adsDET,adsDET.Labels);
    Extracting i-vectors ...done.
    Scoring i-vector pairs ...done.
    Detection error tradeoff evaluation complete.


    The first output from detectionErrorTradeoff is a structure with two fields: CSS and PLDA. Each field contains a table. Each row of the table contains a possible decision threshold for speaker verification tasks, and the corresponding false alarm rate (FAR) and false rejection rate (FRR). The FAR and FRR are determined using the enrolled speaker labels and the data input to the detectionErrorTradeoff function.

    results
    results = struct with fields:
        PLDA: [1000×3 table]
         CSS: [1000×3 table]


    results.CSS
    ans=1000×3 table
        Threshold      FAR      FRR
        _________    _______    ___

        0.030207           1     0
        0.031161     0.99962     0
        0.032115     0.99962     0
        0.033069     0.99962     0
        0.034023     0.99962     0
        0.034977     0.99962     0
        0.035931     0.99962     0
        0.036885     0.99962     0
        0.037839     0.99962     0
        0.038793     0.99962     0
        0.039747     0.99962     0
        0.040701     0.99962     0
        0.041655     0.99962     0
        0.042609     0.99962     0
        0.043563     0.99962     0
        0.044517     0.99962     0
          ⋮


    results.PLDA
    ans=1000×3 table
        Threshold      FAR      FRR
        _________    _______    ___

         -217.63           1     0
          -217.4     0.99962     0
         -217.17     0.99962     0
         -216.95     0.99962     0
         -216.72     0.99962     0
         -216.49     0.99962     0
         -216.27     0.99962     0
         -216.04     0.99962     0
         -215.81     0.99962     0
         -215.59     0.99962     0
         -215.36     0.99962     0
         -215.13     0.99962     0
         -214.91     0.99962     0
         -214.68     0.99962     0
         -214.45     0.99962     0
         -214.23     0.99962     0
          ⋮



    The second output from detectionErrorTradeoff is a structure with two fields: CSS and PLDA. The corresponding value is the decision threshold that results in the equal error rate (when FAR and FRR are equal).

    eerThreshold
    eerThreshold = struct with fields:
        PLDA: -34.3083
         CSS: 0.7991



    The first time you call detectionErrorTradeoff, you must provide data and corresponding labels to evaluate. Subsequently, you can get the same information, or a different analysis using the same underlying data, by calling detectionErrorTradeoff without data and labels.

    Call detectionErrorTradeoff a second time with no data arguments or output arguments to visualize the detection-error tradeoff.

    detectionErrorTradeoff(speakerVerification)

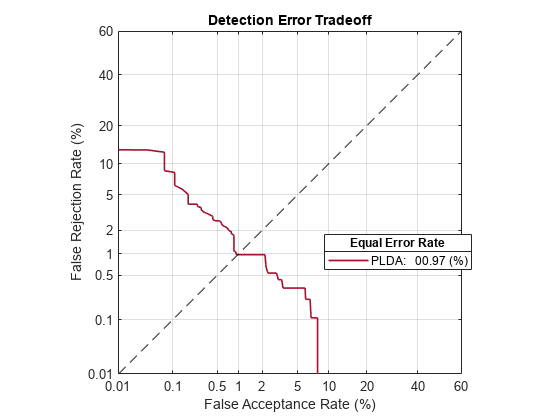

    Call detectionErrorTradeoff again. This time, visualize only the detection-error tradeoff for the PLDA scorer.

    detectionErrorTradeoff(speakerVerification,'Scorer',"plda")

    Depending on your application, you may want to use a threshold that weights the error cost of a false alarm higher or lower than the error cost of a false rejection. You may also be using data that is not representative of the prior probability of the speaker being present. You can use the minDCF parameter to specify custom costs and prior probability. Call detectionErrorTradeoff again, this time specify the cost of a false rejection as 1, the cost of a false acceptance as 2, and the prior probability that a speaker is present as 0.1.

    costFR = 1;
    costFA = 2;
    priorProb = 0.1;
    detectionErrorTradeoff(speakerVerification,'Scorer',"plda",'minDCF',[costFR,costFA,priorProb])

    Call detectionErrorTradeoff again. This time, get the minDCF threshold for the PLDA scorer and the parameters of the detection cost function.

    [~,minDCFThreshold] = detectionErrorTradeoff(speakerVerification,'Scorer',"plda",'minDCF',[costFR,costFA,priorProb])
    minDCFThreshold = -23.4316


    Test Speaker Verification System

    Read a signal from the test set.

    adsTest = shuffle(adsTest);
    [audioIn,audioInfo] = read(adsTest);
    knownSpeakerID = audioInfo.Label
    knownSpeakerID = 1×1 cell array
        {'F05'}



    To perform speaker verification, call verify with the audio signal and specify the speaker ID, a scorer, and a threshold for the scorer. The verify function returns a logical value indicating whether a speaker identity is accepted or rejected, and a score indicating the similarity of the input audio and the template i-vector corresponding to the enrolled label.

    [tf,score] = verify(speakerVerification,audioIn,knownSpeakerID,"plda",eerThreshold.PLDA);
    if tf
        fprintf('Success!\nSpeaker accepted.\nSimilarity score = %0.2f\n\n',score)
    else
        fprinf('Failure!\nSpeaker rejected.\nSimilarity score = %0.2f\n\n',score)
    end
    Success!
    Speaker accepted.
    Similarity score = -4.19


    Call speaker verification again. This time, specify an incorrect speaker ID.

    possibleSpeakers = speakerVerification.EnrolledLabels.Properties.RowNames;
    imposterIdx = find(~ismember(possibleSpeakers,knownSpeakerID));
    imposter = possibleSpeakers(imposterIdx(randperm(numel(imposterIdx),1)))
    imposter = 1×1 cell array
        {'F01'}


    [tf,score] = verify(speakerVerification,audioIn,imposter,"plda",eerThreshold.PLDA);
    if tf
        fprintf('Failure!\nSpeaker accepted.\nSimilarity score = %0.2f\n\n',score)
    else
        fprintf('Success!\nSpeaker rejected.\nSimilarity score = %0.2f\n\n',score)
    end
    Success!
    Speaker rejected.
    Similarity score = -63.44


    References

    [1] Signal Processing and Speech Communication Laboratory. https://www.spsc.tugraz.at/databases-and-tools/ptdb-tug-pitch-tracking-database-from-graz-university-of-technology.html. Accessed 12 Dec. 2019.

    Input Arguments

    collapse all

    i-vector system, specified as an object of type ivectorSystem.

    Data to verify, specified as a column vector representing a single-channel (mono) audio signal or a matrix of audio features.

    • If InputType is set to 'audio' when the i-vector system is created, data must be a column vector with underlying type single or double.

    • If InputType is set to 'features' when the i-vector system is created, data must be a matrix with underlying type single or double. The matrix must consist of audio features where the number of features (columns) is locked the first time trainExtractor is called and the number of hops (rows) is variable-sized.

    Data Types: single | double

    Label to verify, specified as a categorical scalar, a character vector, or a string.

    Data Types: categorical | char | string

    Scoring algorithm used by the i-vector system, specified as "plda", which corresponds to probabilistic linear discriminant analysis (PLDA), or "css", which corresponds to cosine similarity score (CSS). If the PLDA model was trained by trainClassifier, the default scorer is "plda". Otherwise, the default scorer is "css".

    Data Types: char | string

    Decision threshold applied to the similarity score, specified as a scalar. The default decision threshold is the equal error rate of the scorer determined by calling detectionErrorTradeoff. If detectionErrorTradeoff is not called, then you must define the threshold.

    Data Types: single | double

    Output Arguments

    collapse all

    Correspondence indicator, returned as a logical.

    • If the i-vector system finds that data corresponds to label, tf is returned as true.

    • If the i-vector system finds that data does not correspond to label, tf is returned as false.

    Data Types: logical

    Score indicating the similarity between the i-vector derived from data and the i-vector corresponding to label, returned as a scalar.

    Data Types: double

    Introduced in R2021a
