Shelving Equalizer Design

Design tunable shelving equalizer coefficients

Since R2024a

•

Libraries:
Audio Toolbox / Filters

Description

The Shelving Equalizer Design block designs a shelving equalizer with the specified gain, slope, and cutoff frequency. You can choose to design a low-shelf or a high-shelf equalizer. The block outputs the coefficients of a second-order section (SOS) filter, which you can use with the Second-Order Section Filter block to filter audio signals. You can tune the filter parameters during simulation.

Examples

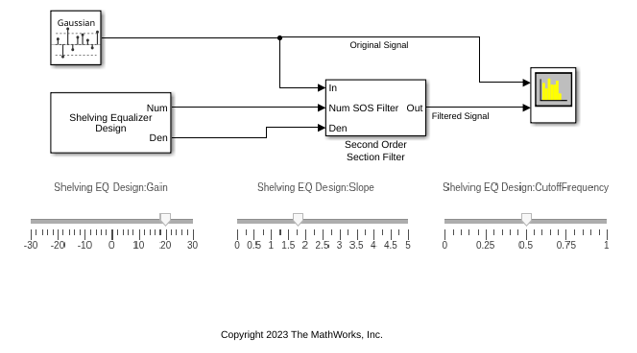

Design Shelving Equalizer in Simulink

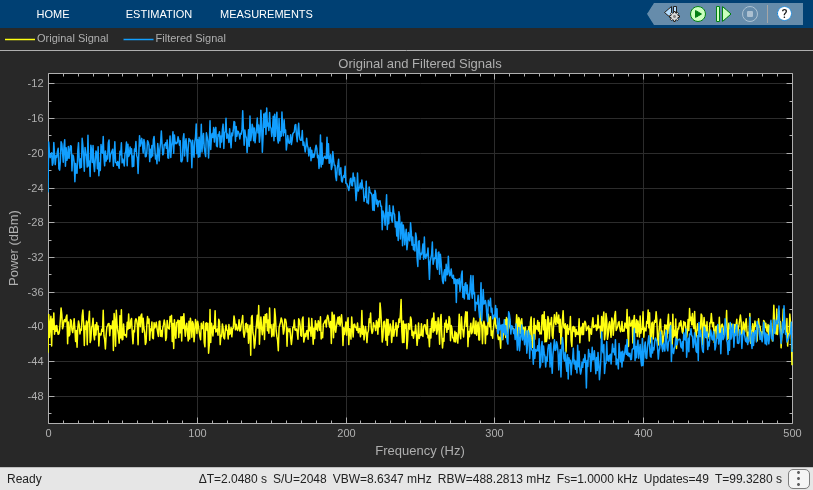

Use the Shelving Equalizer Design block to design a shelving equalizer and pass the coefficients to a Second-Order Section Filter block to filter a signal of random noise. Tune the filter parameters using the dashboard controls and see how the spectrum of the filtered signal changes.

Ports

Input

G — Peak gain (dB)

real scalar

Use this port to specify the value of the Peak gain (dB) parameter.

Dependencies

To enable this port, select the Specify peak gain from input port parameter.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

S — Slope coefficient

positive scalar

Use this port to specify the value of the Slope coefficient parameter.

Dependencies

To enable this port, select the Specify slope coefficient from input port parameter.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Fc — Normalized cutoff frequency

scalar in range [0,1]

Use this port to specify the value of the Normalized cutoff frequency parameter.

Dependencies

To enable this port, select the Specify normalized cutoff frequency from input port parameter.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

T — Filter type

0 (low-shelf) | 1 (high-shelf)

Use this port to specify the value of the Filter type parameter; 0 corresponds to a low-shelf equalizer and 1 corresponds to a high-shelf equalizer.

Dependencies

To enable this port, select the Specify filter type from input port parameter.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | enumerated

Output

Num — Numerator filter coefficients

three-element row vector

Numerator filter coefficients of the designed SOS filter, returned as a three-element row vector.

Dependencies

The data type of the output depends on the Output data type parameter.

Data Types: single | double

Den — Denominator filter coefficients

three-element row vector

Denominator filter coefficients of the designed SOS filter, returned as a three-element row vector.

Dependencies

The data type of the output depends on the Output data type parameter.

Data Types: single | double

Parameters

To edit block parameters interactively, use the Property Inspector. From the Simulink^® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Smooth tuned filter parameters — Smooth filter parameters when tuning

off (default) | on

Select this parameter to gradually change a filter parameter to the new value when tuning it. If you clear this parameter, the tuned parameter immediately switches to the new value. Specify the level of smoothing with the Smoothing factor parameter.

Smoothing factor — Smoothing factor for tuned parameters

0.6 (default) | scalar in range [0,1)

Smoothing factor for tuned parameters, specified as a scalar in the range [0,1). As the smoothing factor approaches 1, a tuned parameter changes more gradually to the new value. A smoothing factor of 0 is equivalent to no smoothing.

For more information about smoothing, see Smoothing.

Tunable: Yes

Dependencies

To enable this parameter, select the Smooth tuned filter parameters parameter.

Specify peak gain from input port — Use additional input port to specify gain

off (default) | on

When you select this parameter, an additional input port, G, is added to the block. Use this port to specify the gain of the filter.

Peak gain (dB) — Peak gain (dB)

0 (default) | real scalar

Peak gain of the filter in dB, specified as a real scalar. The gain specifies how much the filter boosts (if the gain is positive) or cuts (if the gain is negative) the frequency spectrum of the input signal.

Tunable: Yes

Dependencies

To enable this parameter, clear the Specify peak gain from input port parameter.

Specify slope coefficient from input port — Use additional input port to specify slope coefficient

off (default) | on

When you select this parameter, an additional input port, S, is added to the block. Use this port to specify the slope of the filter.

Slope coefficient — Slope coefficient

1.5 (default) | positive scalar

Slope coefficient of the filter, specified as a positive scalar. The slope controls the width of the transition band in the filter response.

Tunable: Yes

Dependencies

To enable this parameter, clear the Specify slope coefficient from input port parameter.

Specify normalized cutoff frequency from input port — Use additional input port to specify normalized cutoff frequency

off (default) | on

When you select this parameter, an additional input port, Fc, is added to the block.

Normalized cutoff frequency — Normalized cutoff frequency

0.1 (default) | scalar in range [0,1]

Normalized cutoff frequency of the filter, specified as a scalar in the range [0,1] where 1 corresponds to the Nyquist frequency. The cutoff frequency specifies the frequency at half of the peak gain of the filter, G/2 dB, where G is the peak gain.

Tunable: Yes

Dependencies

To enable this parameter, clear the Specify normalized cutoff frequency from input port parameter.

Specify filter type from input port — Use additional input port to specify filter type

off (default) | on

When you select this parameter, an additional input port, T, is added to the block.

Filter type — Type of shelving equalizer

low (default) | high

Type of shelving equalizer, specified as low for a low-shelf equalizer or high for a high-shelf equalizer.

• A low-shelf equalizer boosts or cuts the frequency spectrum below the cutoff frequency.

• A high-shelf equalizer boosts or cuts the frequency spectrum above the cutoff frequency.

Output data type — Data type of output coefficients

double (default) | single

Data type of output coefficients, specified as double or single.

Sample time — Sample time of block

-1 (default) | positive scalar

Sample time of the block, in seconds, specified as -1 or a positive scalar. Setting this parameter to -1 means Simulink determines the sample time automatically for you. You can set this parameter to enable the design block to run at a slower rate than the filtering block.

Simulate using — Specify type of simulation to run

Interpreted execution (default) | Code generation

• Interpreted execution –– Simulate model using the MATLAB^® interpreter. This option shortens startup time but has a slower simulation speed than Code generation. In this mode, you can debug the source code of the block.

• Code generation –– Simulate model using generated C code. The first time you run a simulation, Simulink generates C code for the block. The C code is reused for subsequent simulations, as long as the model does not change. This option requires additional startup time, but the speed of the subsequent simulations is comparable to Interpreted execution.

Block Characteristics

Data Types	double | single
Direct Feedthrough	no
Multidimensional Signals	no
Variable-Size Signals	no
Zero-Crossing Detection	no

Algorithms

Smoothing

When you select Smooth tuned filter parameters, the Shelving Equalizer Design block uses the following formula to gradually adjust the parameter to the target value when tuning. The block redesigns the filter at each time step with the intermediate parameter values, until the target value is reached.

$$g[n]=\alpha g[n-1]+(1-\alpha )t[n],$$

where:

• n is the time step in the simulation.

• g is the instantaneous smoothed parameter.

• t is the target value for the tuned parameter.

• α is the smoothing factor, specified by the Smoothing factor parameter.

References

[1] Bristow-Johnson, Robert. "Cookbook Formulae for Audio EQ Biquad Filter Coefficients." Accessed September 13, 2021. https://webaudio.github.io/Audio-EQ-Cookbook/Audio-EQ-Cookbook.txt.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2024a
