Exploring Primer Design

Open Script

This example shows how to use the Bioinformatics Toolbox™ to find potential primers that can be used for automated DNA sequencing.

Introduction

Primer design for PCR can be a daunting task. A good primer should usually meet the following criteria:

Length is 18-30 bases.
Melting temperature is 50-60 degrees Celsius.
GC content is between 45% and 55%.
Does not form stable hairpins.
Does not self dimerize.
Does not cross dimerize with other primers in the reaction.
Has a GC clamp at the 3' end of the primer.

This example uses MATLAB® and Bioinformatics Toolbox to find PCR primers for the human hexosaminidase gene.

First load the hexosaminidase nucleotide sequence from the provided MAT-file hexosaminidase.mat. The DNA sequence that you want to find primers for is in the Sequence field of the loaded structure.

load('hexosaminidase.mat','humanHEXA')
sequence = humanHEXA.Sequence;

You can also use the getgenbank function to retrieve the sequence information from the NCBI data repository and load it into MATLAB. The NCBI reference sequence for HEXA has accession number NM_000520.

humanHEXA = getgenbank('NM_000520');

Calculating Properties of an Oligonucleotide

The oligoprop function is a useful tool to get properties of oligonucleotide DNA sequences. This function calculates the GC content, molecular weight, melting temperature, and secondary structure information. oligoprop returns a structure that has fields with the associated information. Use the help command to see what other properties oligoprop returns.

nt = oligoprop('AAGCTCAAAAACGCGCGGTATTCGACTGGCGTGATCTATTTTATGCT')

nt =

  struct with fields:

                GC: 44.6809
           GCdelta: 0
          Hairpins: [3×47 char]
            Dimers: [9×47 char]
         MolWeight: 1.4468e+04
    MolWeightdelta: 0
                Tm: [68.9128 79.7752 85.3393 69.6497 68.2474 75.8931]
           Tmdelta: [0 0 0 0 0 0]
            Thermo: [4×3 double]
       Thermodelta: [4×3 double]

Finding All Potential Forward Primers

The goal is to create a list of all potential forward primers of length 20. You can do this either by iterating over the entire sequence and taking subsequences at every possible position or by using a matrix of indices. The following example shows how you can set a matrix of indices and then use it to create all possible forward subsequences of length 20, in this case N-19 subsequences where N is the length of the target hexosaminidase sequence. Then you can use the oligoprop function to get properties for each of the potential primers in the list.

N = length(sequence) % length of the target sequence
M = 20  % desired primer length
index = repmat((0:N-M)',1,M)+repmat(1:M,N-M+1,1);
fwdprimerlist = sequence(index);

for i = N-19:-1:1 % reverse order to pre-allocate structure
    fwdprimerprops(i) = oligoprop(fwdprimerlist(i,:));
end

Finding All Potential Reverse Primers

After you have all potential forward primers, you can search for reverse primers in a similar fashion. Reverse primers are found on the complementary strand. To obtain the complementary strand use the seqcomplement function.

comp_sequence = seqcomplement(sequence);
revprimerlist = seqreverse(comp_sequence(index));

for i = N-19:-1:1 % reverse order to preallocate structure
    revprimerprops(i) = oligoprop(revprimerlist(i,:));
end

Filtering Primers Based on GC Content

The GC content information for the primers is in a structure with the field GC. To eliminate all potential primers that do not meet the criteria stated above (a GC content of 45% to 55%), you can make a logical indexing vector that indicates which primers have GC content outside the acceptable range. Extract the GC field from the structure and convert it to a numeric vector.

fwdgc = [fwdprimerprops.GC]';
revgc = [revprimerprops.GC]';

bad_fwdprimers_gc = fwdgc < 45 | fwdgc > 55;
bad_revprimers_gc = revgc < 45 | revgc > 55;

Filtering Primers Based on Their Melting Temperature

The melting temperature is significant when you are designing PCR protocols. Create another logical indexing vector to keep track of primers with bad melting temperatures. The melting temperatures from oligoprop are estimated in a variety of ways (basic, salt-adjusted, nearest-neighbor). The following example uses the nearest-neighbor estimates for melting temperatures with parameters established by SantaLucia, Jr. [1]. These are stored in the fifth element of the field Tm returned by oligoprop. The other elements of this field represent other methods to estimate the melting temperature. You can also use the mean function to compute an average over all the estimates.

fwdtm = cell2mat({fwdprimerprops.Tm}');
revtm = cell2mat({revprimerprops.Tm}');
bad_fwdprimers_tm = fwdtm(:,5) < 50 | fwdtm(:,5) > 60;
bad_revprimers_tm = revtm(:,5) < 50 | revtm(:,5) > 60;

Finding Primers With Self-Dimerization and Hairpin Formation

Self-dimerization and hairpin formation can prevent the primer from binding to the target sequence. As above, you can create logical indexing vectors to indicate whether the potential primers do or do not form self-dimers or hairpins.

bad_fwdprimers_dimers  = ~cellfun('isempty',{fwdprimerprops.Dimers}');
bad_fwdprimers_hairpin = ~cellfun('isempty',{fwdprimerprops.Hairpins}');
bad_revprimers_dimers  = ~cellfun('isempty',{revprimerprops.Dimers}');
bad_revprimers_hairpin = ~cellfun('isempty',{revprimerprops.Hairpins}');

Finding Primers Without a GC Clamp

A strong base pairing at the 3' end of the primer is helpful. Find all the primers that do not end in a G or C. Remember that all the sequences in the lists are 5'->3'.

bad_fwdprimers_clamp = lower(fwdprimerlist(:,end)) == 'a' | lower(fwdprimerlist(:,end)) == 't';
bad_revprimers_clamp = lower(revprimerlist(:,end)) == 'a' | lower(revprimerlist(:,end)) == 't';

Finding Primers With Nucleotide Repeats

Primers that have stretches of repeated nucleotides can give poor PCR results. These are sequences with low complexity. To eliminate primers with stretches of four or more repeated bases, use the function regexp.

fwdrepeats = regexpi(cellstr(fwdprimerlist),'a{4,}|c{4,}|g{4,}|t{4,}','ONCE');
revrepeats = regexpi(cellstr(revprimerlist),'a{4,}|c{4,}|g{4,}|t{4,}','ONCE');
bad_fwdprimers_repeats = ~cellfun('isempty',fwdrepeats);
bad_revprimers_repeats = ~cellfun('isempty',revrepeats);

Find the Primers That Satisfy All the Criteria

The rows of the original list of subsequences correspond to the base number where each subsequence starts. You can use the logical indexing vectors collected so far and create a new list of primers that satisfy all the criteria discussed above. The figure shows how the forward primers have been filtered, where values equal to 1 indicates bad primers and values equal to 0 indicates good primers.

bad_fwdprimers = [bad_fwdprimers_gc, bad_fwdprimers_tm,...
                  bad_fwdprimers_dimers, bad_fwdprimers_hairpin,...
                  bad_fwdprimers_clamp, bad_fwdprimers_repeats];
bad_revprimers = [bad_revprimers_gc, bad_revprimers_tm,...
                  bad_revprimers_dimers, bad_revprimers_hairpin,...
                  bad_revprimers_clamp, bad_revprimers_repeats];

good_fwdpos = find(all(~bad_fwdprimers,2));
good_fwdprimers = fwdprimerlist(good_fwdpos,:);
good_fwdprop = fwdprimerprops(good_fwdpos);
N_good_fwdprimers = numel(good_fwdprop)

good_revpos = find(all(~bad_revprimers,2));
good_revprimers = revprimerlist(good_revpos,:);
good_revprop = revprimerprops(good_revpos);
N_good_revprimers = numel(good_revprop)

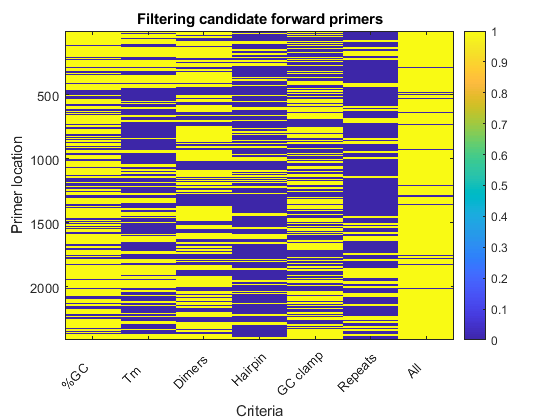

figure
imagesc([bad_fwdprimers any(bad_fwdprimers,2)]);
title('Filtering candidate forward primers');
ylabel('Primer location');
xlabel('Criteria');
ax = gca;
ax.XTickLabel = char({'%GC','Tm','Dimers','Hairpin','GC clamp','Repeats','All'});
ax.XTickLabelRotation = 45;
colorbar

N_good_fwdprimers =

   140


N_good_revprimers =

   147

Checking For Cross Dimerization

Cross dimerization can occur between the forward and reverse primer if they have a significant amount of complementarity. The primers will not function properly if they dimerize with each other. To check for dimerization, align every forward primer against every reverse primer, using the swalign function, and keep the low-scoring pairs of primers. This information can be stored in a matrix with rows representing forward primers and columns representing reverse primers. This exhaustive calculation can be quite time-consuming. However, there is no point in performing this calculation on primer pairs where the reverse primer is upstream of the forward primer. Therefore, these primer pairs can be ignored. The image in the figure shows the pairwise scores before being thresholded, low scores (dark blue) represent primer pairs that do not dimerize.

scr_mat = [-1,-1,-1,1;-1,-1,1,-1;-1,1,-1,-1;1,-1,-1,-1;];
scr = zeros(N_good_fwdprimers,N_good_revprimers);
for i = 1:N_good_fwdprimers
    for j = 1:N_good_revprimers
        if good_fwdpos(i) < good_revpos(j)
            scr(i,j) = swalign(good_fwdprimers(i,:), good_revprimers(j,:), ...
                              'SCORINGMATRIX',scr_mat,'GAPOPEN',5,'ALPHA','NT');
        else
            scr(i,j) = 13; % give a high score to ignore forward primers
                           % that are after reverse primers
        end
    end
end

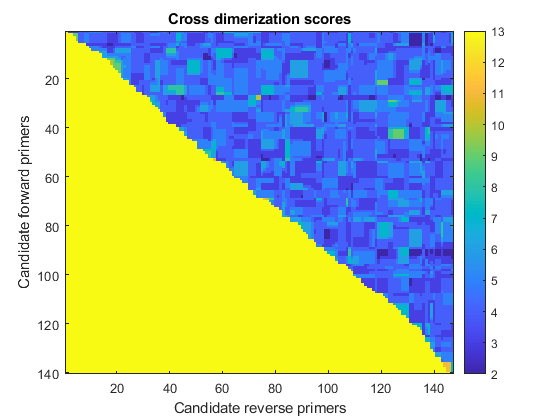

figure
imagesc(scr)
title('Cross dimerization scores')
xlabel('Candidate reverse primers')
ylabel('Candidate forward primers')
colorbar

Low scoring primer pairs are identified as logical one in an indicator matrix.

pairedprimers = scr<=3;

Visualizing Potential Pairs of Primers in the Sequence Domain

An alternative way to present this information is to look at all potential combinations of primers in the sequence domain. Each dot in the plot represents a possible combination between the forward and reverse primers after filtering out all those cases with potential cross dimerization.

[f,r] = find(pairedprimers);

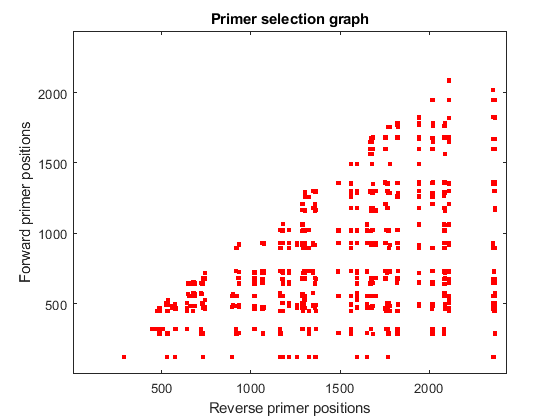

figure
plot(good_revpos(r),good_fwdpos(f),'r.','markersize',10)
axis([1 N 1 N])
title('Primer selection graph')
xlabel('Reverse primer positions')
ylabel('Forward primer positions')

Selecting a Primer Pair to Amplify a Specific Region

You can use the information calculated so far to find the best primer pairs that allow amplification of the 220bp region from position 880 to 1100. First, you find all pairs that can cover the required region, taking into account the length of the primer. Then, you calculate the Euclidean distance of the actual positions to the desired ones, and re-order the list starting with the closest distance.

pairs = find(good_fwdpos(f)<(880-M) & good_revpos(r)>1100);
dist = (good_fwdpos(f(pairs))-(880-M)).^2 + (good_revpos(r(pairs))-(1100)).^2;
[dist,h] = sort(dist);
pairs = pairs(h);

hold on
plot(good_revpos(r(pairs)),good_fwdpos(f(pairs)),'b.','markersize',10)
plot([1100 1100],[1 880-M],'g')
plot([1100 N],[880-M 880-M],'g')

Retrieve Primer Pairs

Use the sprintf function to generate a report with the ten best pairs and associated information. These primer pairs can then be verified experimentally. These primers can also be 'BLASTed' using the blastncbi function to check specificity.

Primers = sprintf('Fwd/Rev Primers      Start End   %%GC   mT   Length\n\n');
for i = 1:10
    fwd = f(pairs(i));
    rev = r(pairs(i));
    Primers = sprintf('%s%-21s%-6d%-6d%-4.4g%-4.4g\n%-21s%-6d%-6d%-4.4g%-7.4g%-6d\n\n', ...
    Primers, good_fwdprimers(fwd,:),good_fwdpos(fwd),good_fwdpos(fwd)+M-1,good_fwdprop(fwd).GC,good_fwdprop(fwd).Tm(5), ...
             good_revprimers(rev,:),good_revpos(rev)+M-1,good_revpos(rev),good_revprop(rev).GC,good_revprop(rev).Tm(5), ...
             good_revpos(rev) - good_fwdpos(fwd) );
end
disp(Primers)

Fwd/Rev Primers      Start End   %GC   mT   Length

tacatctcgccattacctgc 732   751   50  55.61
tcaacctcatctcctccaag 1181  1162  50  54.8   430

atacatctcgccattacctg 731   750   45  52.87
tcaacctcatctcctccaag 1181  1162  50  54.8   431

tacatctcgccattacctgc 732   751   50  55.61
aaatcaacctcatctcctcc 1184  1165  45  52.9   433

tacatctcgccattacctgc 732   751   50  55.61
gaaatcaacctcatctcctc 1185  1166  45  51.08  434

atacatctcgccattacctg 731   750   45  52.87
aaatcaacctcatctcctcc 1184  1165  45  52.9   434

atacatctcgccattacctg 731   750   45  52.87
gaaatcaacctcatctcctc 1185  1166  45  51.08  435

ggatacatctcgccattacc 729   748   50  53.45
tcaacctcatctcctccaag 1181  1162  50  54.8   433

tacatctcgccattacctgc 732   751   50  55.61
gtgaaatcaacctcatctcc 1187  1168  45  51.63  436

tacatctcgccattacctgc 732   751   50  55.61
ggtgaaatcaacctcatctc 1188  1169  45  51.63  437

atacatctcgccattacctg 731   750   45  52.87
gtgaaatcaacctcatctcc 1187  1168  45  51.63  437

Find Restriction Enzymes That Cut Inside the Primer

Use the rebasecuts function to list all the restriction enzymes from the REBASE® database [2] that will cut a primer. These restriction enzymes can be used in the design of cloning experiments. For example, you can use this on the first pair of primers from the list of possible primers that you just calculated.

fwdprimer = good_fwdprimers(f(pairs(1)),:)
fwdcutter = unique(rebasecuts(fwdprimer))

revprimer = good_revprimers(r(pairs(1)),:)
revcutter = unique(rebasecuts(revprimer))

fwdprimer =

    'tacatctcgccattacctgc'


fwdcutter =

  14×1 cell array

    {'AbaSI' }
    {'Acc36I'}
    {'BfuAI' }
    {'BmeDI' }
    {'BspMI' }
    {'BveI'  }
    {'FspEI' }
    {'LpnPI' }
    {'MspJI' }
    {'RlaI'  }
    {'SetI'  }
    {'SgeI'  }
    {'SgrTI' }
    {'YkrI'  }


revprimer =

    'tcaacctcatctcctccaag'


revcutter =

  12×1 cell array

    {'AbaSI' }
    {'AspBHI'}
    {'BmeDI' }
    {'BsaXI' }
    {'FspEI' }
    {'MnlI'  }
    {'MspJI' }
    {'RlaI'  }
    {'SetI'  }
    {'SgeI'  }
    {'SgrTI' }
    {'YkrI'  }

References

[1] SantaLucia, J. Jr., "A unified view of polymer, dumbbell, and oligonucleotide DNA nearest-neighbor thermodynamics", PNAS, 95(4):1460-5, 1998.

[2] Roberts, R.J., et al., "REBASE--restriction enzymes and DNA methyltransferases", Nucleic Acids Research, 33:D230-2, 2005.
