Spatial Multiplexing

This example shows spatial multiplexing schemes wherein the data stream is subdivided into independent sub-streams, one for each transmit antenna employed. As a consequence, these schemes provide a multiplexing gain and do not require explicit orthogonalization as needed for space-time block coding.

Spatial multiplexing requires powerful decoding techniques at the receiver though. Of the many proposed [ 1 ], this example highlights two ordered Successive Interference Cancellation (SIC) detection schemes. These schemes are similar to the original Bell Labs Layered Space-Time (BLAST) techniques as per [ 2 ], [ 3 ].

For expositional benefits the example uses the basic 2x2 MIMO system employing two transmit and two receive antennas. For an uncoded QPSK modulated system it employs flat Rayleigh fading over independent transmit-receive links. At the receiver end, we assume perfect channel knowledge with no feedback to the transmitter, i.e., an open-loop spatial multiplexing system.

The example shows two nonlinear interference cancellation methods - Zero-Forcing (ZF) and Minimum-Mean-Square-Error (MMSE) - with symbol cancellation and compares their performance with the Maximum-Likelihood (ML) optimum receiver.


We start by defining some common simulation parameters

N = 2;                  % Number of transmit antennas
M = 2;                  % Number of receive antennas
EbNoVec = 2:3:8;        % Eb/No in dB
modOrd = 2;             % constellation size = 2^modOrd

and set up the simulation.

% Create a local random stream to be used by random number generators for
% repeatability.
stream = RandStream('mt19937ar');

% Create PSK modulator and demodulator System objects
pskModulator   = comm.PSKModulator(...
            'ModulationOrder',  2^modOrd, ...
            'PhaseOffset',      0, ...
            'BitInput',         true);
pskDemodulator = comm.PSKDemodulator( ...
            'ModulationOrder',  2^modOrd, ...
            'PhaseOffset',      0, ...
            'BitOutput',        true);

% Calculate SNR from EbNo for each independent transmission link
snrIndB = convertSNR(EbNoVec,'ebno','BitsPerSymbol',modOrd);
snrLinear = 10.^(0.1*snrIndB);

% Create error rate calculation System objects for 3 different receivers
zfBERCalc = comm.ErrorRate;
mmseBERCalc = comm.ErrorRate;
mlBERCalc = comm.ErrorRate;

% Get all bit and symbol combinations for ML receiver
allBits = int2bit(0:2^(modOrd*N)-1, modOrd*N);
allTxSig = reshape(pskModulator(allBits(:)), N, 2^(modOrd*N));

% Pre-allocate variables to store BER results for speed
[BER_ZF, BER_MMSE, BER_ML] = deal(zeros(length(EbNoVec), 3));

The simulation loop below simultaneously evaluates the BER performance of the three receiver schemes for each Eb/No value using the same data and channel realization. A short range of Eb/No values are used for simulation purposes. Results for a larger range, using the same code, are presented later.

% Set up a figure for visualizing BER results
fig = figure;
grid on;
hold on;
ax = fig.CurrentAxes;
ax.YScale = 'log';
xlim([EbNoVec(1)-0.01 EbNoVec(end)]);
ylim([1e-3 1]);
xlabel('Eb/No (dB)');
fig.NumberTitle = 'off';
fig.Name = 'Spatial Multiplexing';
title('2x2 Uncoded QPSK System');

% Loop over selected EbNo points
for idx = 1:length(EbNoVec)
    % Reset error rate calculation System objects

    while (BER_ZF(idx, 3) < 1e5) && ((BER_MMSE(idx, 2) < 100) || ...
          (BER_ZF(idx, 2) < 100) ||  (BER_ML(idx, 2)   < 100))
        % Create random bit vector to modulate
        msg = randi(stream, [0 1], [N*modOrd, 1]);

        % Modulate data
        txSig = pskModulator(msg);

        % Flat Rayleigh fading channel with independent links
        rayleighChan = (randn(stream, M, N) +  1i*randn(stream, M, N))/sqrt(2);

        % Add noise to faded data
        rxSig = awgn(rayleighChan*txSig, snrIndB(idx), 0, stream);

        % ZF-SIC receiver
        r = rxSig;
        H = rayleighChan; % Assume perfect channel estimation
        % Initialization
        estZF = zeros(N*modOrd, 1);
        orderVec = 1:N;
        k = N+1;
        % Start ZF nulling loop
        for n = 1:N
            % Shrink H to remove the effect of the last decoded symbol
            H = H(:, [1:k-1,k+1:end]);
            % Shrink order vector correspondingly
            orderVec = orderVec(1, [1:k-1,k+1:end]);
            % Select the next symbol to be decoded
            G = (H'*H) \ eye(N-n+1); % Same as inv(H'*H), but faster
            [~, k] = min(diag(G));
            symNum = orderVec(k);

            % Hard decode the selected symbol
            decBits = pskDemodulator(G(k,:) * H' * r);
            estZF(modOrd * (symNum-1) + (1:modOrd)) = decBits;

            % Subtract the effect of the last decoded symbol from r
            if n < N
                r = r - H(:, k) * pskModulator(decBits);

        % MMSE-SIC receiver
        r = rxSig;
        H = rayleighChan;
        % Initialization
        estMMSE = zeros(N*modOrd, 1);
        orderVec = 1:N;
        k = N+1;
        % Start MMSE nulling loop
        for n = 1:N
            H = H(:, [1:k-1,k+1:end]);
            orderVec = orderVec(1, [1:k-1,k+1:end]);
            % Order algorithm (matrix G calculation) is the only difference
            % with the ZF-SIC receiver
            G = (H'*H + ((N-n+1)/snrLinear(idx))*eye(N-n+1)) \ eye(N-n+1);
            [~, k] = min(diag(G));
            symNum = orderVec(k);

            decBits = pskDemodulator(G(k,:) * H' * r);
            estMMSE(modOrd * (symNum-1) + (1:modOrd)) = decBits;

            if n < N
                r = r - H(:, k) * pskModulator(decBits);

        % ML receiver
        r = rxSig;
        H = rayleighChan;
        [~, k] = min(sum(abs(repmat(r,[1,2^(modOrd*N)]) - H*allTxSig).^2));
        estML = allBits(:,k);

        % Update BER
        BER_ZF(  idx, :) = zfBERCalc(msg, estZF);
        BER_MMSE(idx, :) = mmseBERCalc(msg, estMMSE);
        BER_ML(  idx, :) = mlBERCalc(msg, estML);

    % Plot results
    semilogy(EbNoVec(1:idx), BER_ZF(  1:idx, 1), 'r*', ...
             EbNoVec(1:idx), BER_MMSE(1:idx, 1), 'bo', ...
             EbNoVec(1:idx), BER_ML(  1:idx, 1), 'gs');
    legend('ZF-SIC', 'MMSE-SIC', 'ML');

% Draw the lines
semilogy(EbNoVec, BER_ZF(  :, 1), 'r-', ...
         EbNoVec, BER_MMSE(:, 1), 'b-', ...
         EbNoVec, BER_ML(  :, 1), 'g-');
hold off;

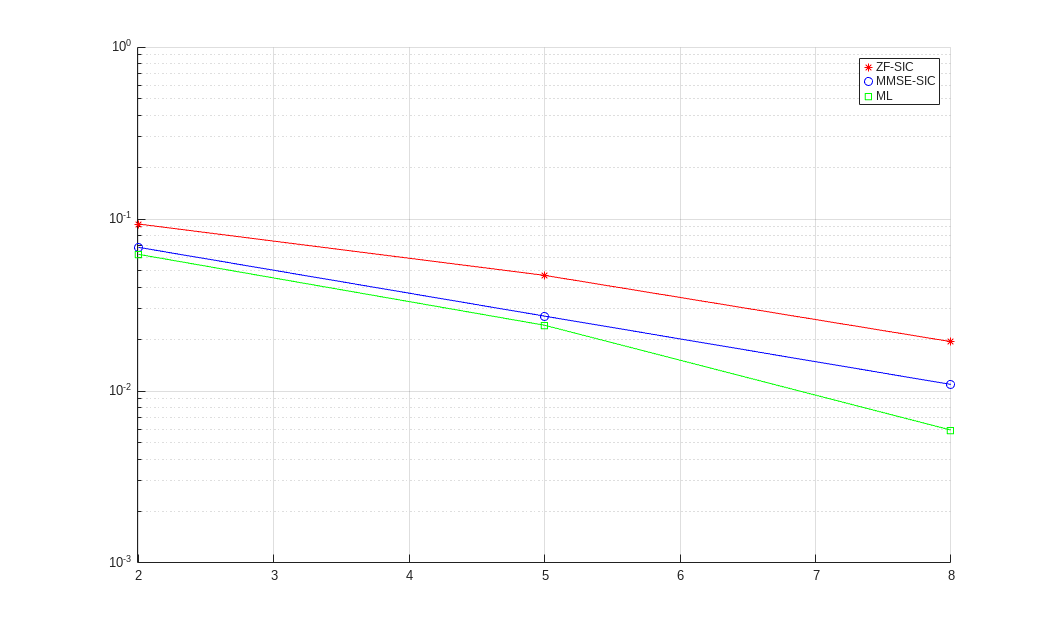

We observe that the ML receiver is the best in performance followed by the MMSE-SIC and ZF-SIC receivers, as also seen in [ 4 ]. In terms of receiver complexity, ML grows exponentially with the number of transmit antennas while the ZF-SIC and MMSE-SIC are linear receivers combined with successive interference cancellation. Optimized ZF-SIC and MMSE-SIC algorithms for reduced complexity can be found in [ 5 ].

Simulation results comparing the three schemes for a larger range of Eb/No values are displayed next. These curves allow you to gauge the diversity order attained from the slope of the BER curve.


Some areas of further exploration would be to try these methods for a larger number of antennas, with and without channel estimation.
