Plan vehicle path using RRT* path planner
plans a vehicle path from
refPath = plan(
goalPose using the input
pathPlannerRRT object. This object configures an optimal rapidly
exploring random tree (RRT*) path planner.
Plan Path to Parking Spot
Plan a vehicle path to a parking spot by using the RRT* algorithm.

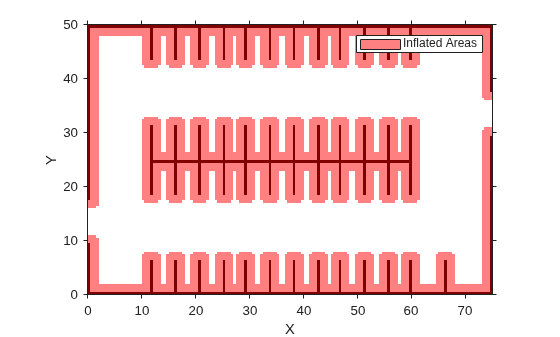

Load a costmap of a parking lot. Plot the costmap to see the parking lot and inflated areas for the vehicle to avoid.
data = load('parkingLotCostmapReducedInflation.mat'); costmap = data.parkingLotCostmapReducedInflation; plot(costmap)
Define start and goal poses for the path planner as [x, y, Θ] vectors. World units for the (x,y) locations are in meters. World units for the Θ orientation values are in degrees.
startPose = [11, 10, 0]; % [meters, meters, degrees] goalPose = [31.5, 17, 90];
Create an RRT* path planner to plan a path from the start pose to the goal pose.
planner = pathPlannerRRT(costmap); refPath = plan(planner,startPose,goalPose);

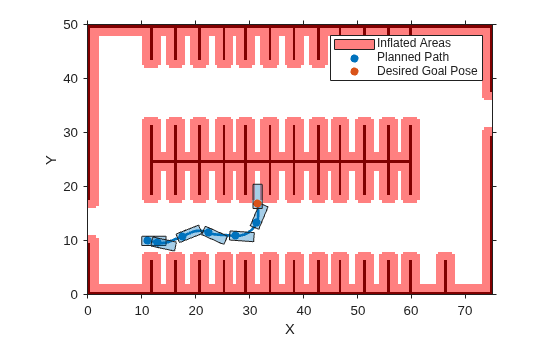

Plot the planned path.
planner — RRT* path planner
RRT* path planner, specified as a
startPose — Initial pose of vehicle
[x, y, Θ]
Initial pose of the vehicle, specified as an [x, y, Θ] vector. x and y are in world units, such as meters. Θ is in degrees.
goalPose — Goal pose of vehicle
[x, y, Θ]
Goal pose of the vehicle, specified as an [x, y, Θ] vector. x and y are in world units, such as meters. Θ is in degrees.
The vehicle achieves its goal pose when the last pose in the path is
GoalTolerance property of
refPath — Planned vehicle path
Planned vehicle path, returned as a
driving.Path object containing reference poses along the
planned path. If planning was unsuccessful, the path has no poses. To check
if the path is still valid due to costmap updates, use the
tree — Exploration tree
Exploration tree, returned as a
digraph object. Nodes within
tree represent explored vehicle poses. Edges within
tree represent the distance between connected
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
treeoutput argument, a digraph object, is not supported.
Introduced in R2018a
