# crosscorr

Sample cross-correlation

## Syntax

``[xcf,lags] = crosscorr(y1,y2)``
``XCFTbl = crosscorr(Tbl)``
``````[___,bounds] = crosscorr(___)``````
``[___] = crosscorr(___,Name=Value)``
``crosscorr(___)``
``crosscorr(ax,___)``
``````[___,h] = crosscorr(___)``````

## Description

example

````[xcf,lags] = crosscorr(y1,y2)` returns the sample cross-correlation function (XCF) `xcf` and associated lags `lags` between the univariate time series `y1` and `y2`.```

example

````XCFTbl = crosscorr(Tbl)` returns the table `XCFTbl` containing variables for the sample XCF and associated lags of the last two variables in the input table or timetable `Tbl`. To select different variables in `Tbl`, for which to compute the XCF, use the `DataVariables` name-value argument.```

example

``````[___,bounds] = crosscorr(___)``` uses any input-argument combination in the previous syntaxes, and returns the output-argument combination for the corresponding input arguments and the approximate upper and lower confidence bounds `bounds` on the XCF.```

example

````[___] = crosscorr(___,Name=Value)` uses additional options specified by one or more name-value arguments. For example, ```crosscorr(Tbl,DataVariables=["RGDP" "CPI"],NumLags=10,NumSTD=1.96)``` returns the sample XCF for lags -10 through 10 of the table variables `"RGDP"` and `"CPI"` in `Tbl` and 95% confidence bounds.```

example

````crosscorr(___)` plots the sample XCF between the input series with confidence bounds.```
````crosscorr(ax,___)` plots on the axes specified by `ax` instead of the current axes (`gca`). `ax` can precede any of the input argument combinations in the previous syntaxes.```
``````[___,h] = crosscorr(___)``` plots the sample XCF between the input series and additionally returns handles to plotted graphics objects. Use elements of `h` to modify properties of the plot after you create it.```

## Examples

collapse all

Compute the XCF between two univariate time series. Input the time series data as numeric vectors.

Load the equity index data `Data_EquityIdx.mat`. The variable `Data` is a 3028-by-2 matrix of daily closing prices from the NASDAQ and NYSE composite indices. Plot the two series.

```load Data_EquityIdx yyaxis left dt = datetime(dates,ConvertFrom="datenum"); plot(dt,Data(:,1)) ylabel("NASDAQ") yyaxis right plot(dt,Data(:,2)) ylabel("NYSE") title("Daily Closing Prices, 1990-2001")```

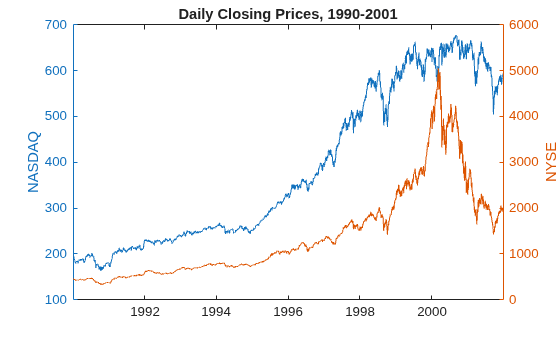

The series exhibit exponential growth.

Compute the returns of each series.

`Ret = price2ret(Data);`

`Ret` is a 3027-by-2 series of returns; it has one less observation than `Data`.

Compute the XCF between the NASDAQ and NYSE returns, and return the associated lags.

```rnasdaq = Ret(:,1); rnyse = Ret(:,2); [xcf,lags] = crosscorr(rnasdaq,rnyse);```

`xcf` and `lags` are 41-by-1 vectors that describe the XCF.

Display several values of the XCF.

```XCF = [xcf lags]; XCF([1:3 20:22 end-2:end],:)```
```ans = 9×2 -0.0108 -20.0000 0.0186 -19.0000 -0.0002 -18.0000 0.0345 -1.0000 0.7080 0 0.0651 1.0000 -0.0461 18.0000 0.0010 19.0000 0.0015 20.0000 ```

The correlation between the current NASDAQ return and the NYSE return from 20 days before is `xcf(1) = -0.0108`. The correlation between the NASDAQ and NYSE returns is `xcf(21) = 0.7080`. The correlation between the NASDAQ return from 20 days ago and the current NYSE return is `xcf(41) = 0.0015`.

Compute the XCF between two univariate time series, which are two variables in a table.

Load the equity index data `Data_EquityIdx.mat`. The variable `DataTable` is a 3028-by-2 table of daily closing prices from the NYSE and NASDAQ composite indices, which are stored in the variables `NYSE` and `NASDAQ`.

```load Data_EquityIdx DataTable.Properties.VariableNames```
```ans = 1x2 cell {'NYSE'} {'NASDAQ'} ```

Compute the returns of the series. Store the results in a new table.

```RetTbl = price2ret(DataTable); head(RetTbl)```
``` Tick Interval NYSE NASDAQ ____ ________ __________ __________ 2 1 -0.0010106 0.0034122 3 1 -0.0076633 -0.0032816 4 1 -0.0084415 -0.0025501 5 1 0.0035387 0.0010688 6 1 -0.010188 -0.0042382 7 1 -0.0063818 -0.013378 8 1 0.0034295 -0.0040909 9 1 -0.023407 -0.020573 ```

`RetTbl` is a 3027-by-4 table containing the returns of the indices, ticks (days by default), and time intervals between successive prices.

Compute the XCF between the NASDAQ and NYSE return series.

`XCFTbl = crosscorr(RetTbl)`
```XCFTbl=41×2 table Lags XCF ____ ___________ -20 -0.010809 -19 0.018571 -18 -0.00016185 -17 -0.020271 -16 -0.029353 -15 0.00023188 -14 -0.0080616 -13 0.041498 -12 0.078821 -11 -0.013793 -10 0.0076655 -9 0.01763 -8 -0.0011033 -7 -0.011457 -6 -0.016523 -5 -0.046749 ⋮ ```

`crosscorr` returns the results in the table `XCFTbl`, where variables correspond to the XCF (`XCF`) and associated lags `(Lags)`.

By default, `crosscorr` computes the XCF of the two variables in the table. To select variables from an input table, set the `DataVariables` option.

Consider the equity index series in Compute XCF of Table Variable.

Load the NYSE and NASDAQ closing price series in `Data_EquityIdx.mat` and preprocess the series. Compute the XCF and return the XCF confidence bounds.

```load Data_EquityIdx RetTbl = price2ret(DataTable); [XCFTbl,bounds] = crosscorr(RetTbl)```
```XCFTbl=41×2 table Lags XCF ____ ___________ -20 -0.010809 -19 0.018571 -18 -0.00016185 -17 -0.020271 -16 -0.029353 -15 0.00023188 -14 -0.0080616 -13 0.041498 -12 0.078821 -11 -0.013793 -10 0.0076655 -9 0.01763 -8 -0.0011033 -7 -0.011457 -6 -0.016523 -5 -0.046749 ⋮ ```
```bounds = 2×1 0.0364 -0.0364 ```

Assuming the NYSE and NASDAQ return series are uncorrelated, an approximate 95.4% confidence interval on the XCF is (-0.0364, 0.0364).

Generate 100 random variates from a Gaussian distribution with mean 0 and variance 1.

```rng(3); % For reproducibility x = randn(100,1);```

Create a 4-period delayed version of `x`.

`y = lagmatrix(x,4);`

Plot the XCF between `x` and `y`. Because `lagmatrix` prepends lagged series with NaN values and `crosscorr` does not support NaN values, start the series at observation 5.

`crosscorr(x(5:end),y(5:end))`

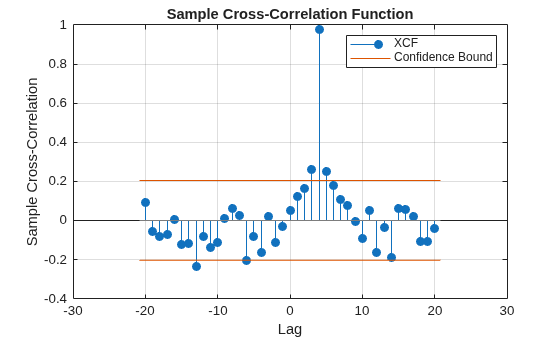

The upper and lower confidence bounds are the horizontal lines in the XCF plot. By design, the `XCF` peaks at lag 4.

Load the currency exchange rates data set `Data_FXRates.mat`. The table `DataTable` contains daily exchange rates of several countries, relative to the US dollar from 1980 through 1998 (with omissions).

```load Data_FXRates.mat dt = datetime(dates,ConvertFrom="datenum");```

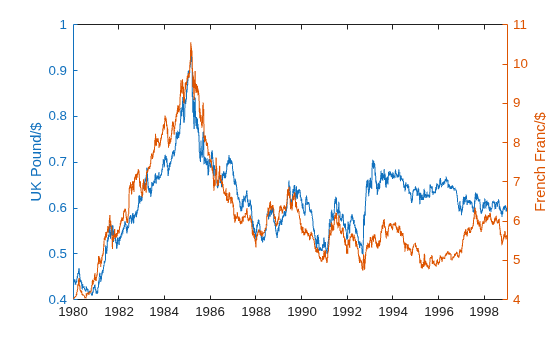

Plot the UK pound and French franc exchange rates.

```yyaxis left plot(dt,DataTable.GBP) ylabel("UK Pound/\$") yyaxis right plot(dt,DataTable.FRF) ylabel("French Franc/\$")```

The series appear to be correlated.

Stabilize all series in the table by computing the first difference.

```DiffDT = varfun(@diff,DataTable); DiffDT.Properties.VariableNames = DataTable.Properties.VariableNames;```

Determine whether lags of one series are associated with the other series by computing the XCF between the daily changes in the UK pound and French franc exchange rates.

```figure crosscorr(DiffDT,DataVariables=["GBP" "FRF"]);```

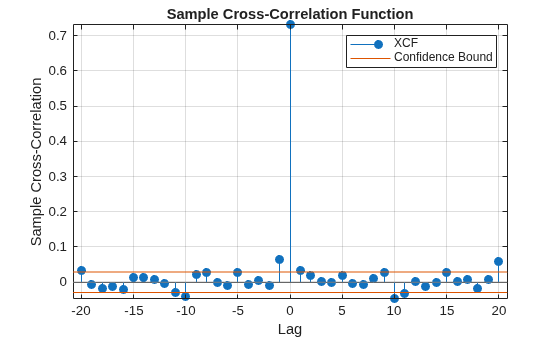

The series have a high contemporaneous correlation, but all other cross-correlations are either insignificant or below 0.1.

Specify the AR(1) model for the first series

`${y}_{1t}=2+0.3{y}_{1t-1}+{\epsilon }_{t},$`

where ${\epsilon }_{t}$ is Gaussian with mean 0 and variance 1.

`MdlY1 = arima(AR=0.3,Constant=2,Variance=1);`

`MdlY1` is a fully specified `arima` object representing the AR(1) model.

Simulate data from the AR(1) model.

```rng(3); % For reproducibility T = 1000; y1 = simulate(MdlY1,T);```

Simulate standard Gaussian variates for the second series; induce correlation at lag 36.

`y2 = [randn(36,1); y1(1:end-36) + randn(T-36,1)*0.1];`

Plot the XCF by using the default settings.

`crosscorr(y1,y2)`

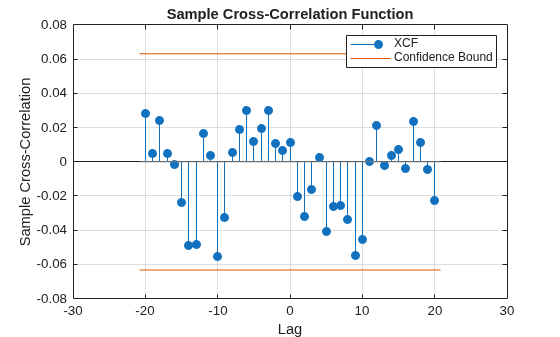

All correlations in the plot are within the 2-standard-error confidence bounds. Therefore, none are significant.

Plot the XCF for 60 lags on both sides of lag 0. Specify 3 standard errors for the confidence bounds.

`crosscorr(y1,y2,NumLags=60,NumSTD=3)`

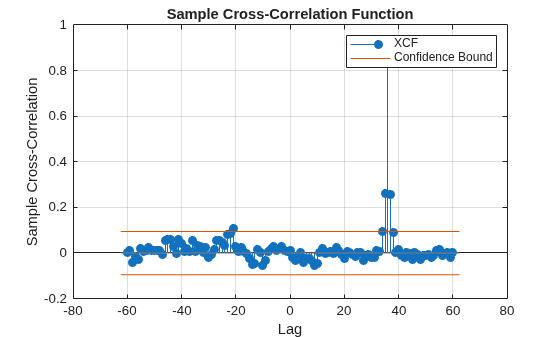

The plot shows significant correlations at and around lag 36.

## Input Arguments

collapse all

Univariate time series data, specified as a numeric vector of length T1.

Data Types: `double`

Univariate time series data, specified as a numeric vector of length T2.

Data Types: `double`

Time series data, specified as a table or timetable with T rows. Each row of `Tbl` contains contemporaneous observations of all variables.

Specify the two input series (variables) by using the `DataVariables` argument. The selected variables must be numeric.

Axes on which to plot, specified as an `Axes` object.

By default, `crosscorr` plots to the current axes (`gca`).

Note

Missing observations, specified by `NaN` entries in the input series, result in a `NaN`-valued XCF.

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: ```crosscorr(Tbl,DataVariables=["RGDP" "CPI"],NumLags=10,NumSTD=1.96)``` returns the sample XCF for lags -10 through 10 of the table variables `"RGDP"` and `"CPI"` in `Tbl` and 95% confidence bounds.

Number of lags in the sample XCF, specified as a positive integer. `crosscorr` uses lags 0, ±1, ±2, …, ±`NumLags` to compute the sample XCF.

If you supply `y1` and `y2`, the default is min(20, min(T1,T2) – 1)). If you supply `Tbl`, the default is min(20, T – 1).

Example: `crosscorr(y1,y2,NumLags=10)` plots the sample XCF between `y1` and `y2` for lags `–10` through `10`.

Data Types: `double`

Number of standard errors in the confidence bounds, specified as a nonnegative scalar. The confidence bounds are 0 ± `NumSTD*`$\stackrel{^}{\sigma }$, where $\stackrel{^}{\sigma }$ is the estimated standard error of the sample cross-correlation between the input series assuming the series are uncorrelated.

The default yields approximate 95% confidence bounds.

Example: `crosscorr(y1,y2,NumSTD=1.5)` plots the XCF of `y1` and `y2` with confidence bounds `1.5` standard errors away from 0.

Data Types: `double`

Two variables in `Tbl` for which `crosscorr` computes the XCF, specified as a string vector or cell vector of character vectors containing two variable names in `Tbl.Properties.VariableNames`, or an integer or logical vector representing the indices of two names. The selected variables must be numeric.

Example: `DataVariables=["GDP" "CPI"]`

Example: `DataVariables=[true true false false]` or `DataVariables=[1 2]` selects the first and second table variables.

Data Types: `double` | `logical` | `char` | `string`

## Output Arguments

collapse all

Sample XCF between the input time series, returned as a numeric vector of length `2*NumLags` + `1`.

The elements of `xcf` correspond to the elements of `lags`. The center element is the lag 0 cross-correlation. `crosscorr` returns `xcf` only when you supply the inputs `y1` and `y2`.

XCF lags, returned as a numeric vector with elements `(-NumLags):NumLags` having the same orientation as `y1`. `crosscorr` returns `lags` only when you supply the inputs `y1` and `y2`.

Sample XCF, returned as a table with variables for the outputs `xcf` and `lags`. `crosscorr` returns `XCFTbl` only when you supply the input `Tbl`.

Approximate upper and lower XCF confidence bounds assuming the input series are uncorrelated, returned as a two-element numeric vector. The `NumSTD` option specifies the number of standard errors from 0 in the confidence bounds.

Handles to plotted graphics objects, returned as a graphics array. `h` contains unique plot identifiers, which you can use to query or modify properties of the plot.

collapse all

### Cross-Correlation Function

The cross-correlation function (XCF) measures the similarity between a time series and lagged versions of another time series as a function of the lag.

Consider the time series y1,t and y2,t and lags k = 0, ±1, ±2, …. For data pairs (y1,1,y2,1), (y1,2,y2,2), …, (y1,T,y2,T), an estimate of the lag k cross-covariance is

`${c}_{{y}_{1}{y}_{2}}\left(k\right)=\left\{\begin{array}{c}\frac{1}{T}\sum _{t=1}^{T-k}\left({y}_{1,t}-{\overline{y}}_{1}\right)\left({y}_{2,t+k}-{\overline{y}}_{2}\right);\text{\hspace{0.17em}}k=0,1,2,\dots \\ \frac{1}{T}\sum _{t=1}^{T+k}\left({y}_{2,t}-{\overline{y}}_{2}\right)\left({y}_{1,t-k}-{\overline{y}}_{1}\right);\text{\hspace{0.17em}}k=0,-1,-2,\dots \end{array},$`

where ${\overline{y}}_{1}$ and ${\overline{y}}_{2}$ are the sample means of the series.

The sample standard deviations of the series are:

• ${s}_{{y}_{1}}=\sqrt{{c}_{{y}_{1}{y}_{1}}\left(0\right)},$ where ${c}_{{y}_{1}{y}_{1}}\left(0\right)=Var\left({y}_{1}\right).$

• ${s}_{{y}_{2}}=\sqrt{{c}_{{y}_{2}{y}_{2}}\left(0\right)},$ where ${c}_{{y}_{2}{y}_{2}}\left(0\right)=Var\left({y}_{2}\right).$

An estimate of the cross-correlation is

`${r}_{{y}_{1}{y}_{2}}\left(k\right)=\frac{{c}_{{y}_{1}{y}_{2}}\left(k\right)}{{s}_{{y}_{1}}{s}_{{y}_{2}}};\text{\hspace{0.17em}}k=0,±1,±2,\dots \text{.}$`

## Algorithms

• If `y1` and `y2` have different lengths, `crosscorr` appends enough zeros to the end of the shorter vector to make both vectors the same size.

• `crosscorr` uses a Fourier transform (`fft`) to compute the XCF in the frequency domain, and then `crosscorr` converts back to the time domain using an inverse Fourier transform (`ifft`).

• `NaN` values in the input series result in `NaN` values in the output XCF. Unlike `autocorr` and `parcorr`, `crosscorr` does not treat `NaN` values as missing completely at random. Whereas `autocorr` and `parcorr` compute coefficients in the time domain, `crosscorr` uses `fft` and `ifft` to compute coefficients in the frequency domain. Therefore, missing data treatments follow `fft` and `ifft` defaults.

• `crosscorr` plots the XCF when you do not request any output or when you request the fourth output.

## References

[1] Box, George E. P., Gwilym M. Jenkins, and Gregory C. Reinsel. Time Series Analysis: Forecasting and Control. 3rd ed. Englewood Cliffs, NJ: Prentice Hall, 1994.
