ifft

Inverse fast Fourier transform

Syntax

X = ifft(Y)

X = ifft(Y,n)

X = ifft(Y,n,dim)

X = ifft(___,symflag)

Description

X = ifft(Y) computes the inverse discrete Fourier transform of Y using a fast Fourier transform algorithm. X is the same size as Y.

• If Y is a vector, then ifft(Y) returns the inverse transform of the vector.

• If Y is a matrix, then ifft(Y) returns the inverse transform of each column of the matrix.

• If Y is a multidimensional array, then ifft(Y) treats the values along the first dimension whose size does not equal 1 as vectors and returns the inverse transform of each vector.

X = ifft(Y,n) returns the n-point inverse Fourier transform of Y by padding Y with trailing zeros to length n.

X = ifft(Y,n,dim) returns the inverse Fourier transform along the dimension dim. For example, if Y is a matrix, then ifft(Y,n,2) returns the n-point inverse transform of each row.

X = ifft(___,symflag) specifies the symmetry of Y in addition to any of the input argument combinations in previous syntaxes. For example, ifft(Y,'symmetric') treats Y as conjugate symmetric.

Examples

Inverse Transform of Vector

The Fourier transform and its inverse convert between data sampled in time and space and data sampled in frequency.

Create a vector and compute its Fourier transform.

X = [1 2 3 4 5];
Y = fft(X)

Y = 1×5 complex

  15.0000 + 0.0000i  -2.5000 + 3.4410i  -2.5000 + 0.8123i  -2.5000 - 0.8123i  -2.5000 - 3.4410i

Compute the inverse transform of Y, which is the same as the original vector X.

ifft(Y)

ans = 1×5

     1     2     3     4     5

Inverse Transform of Single-Sided Spectrum

Find the inverse Fourier transform of the single-sided spectrum that is the Fourier transform of a real signal.

Load the single-sided spectrum in the frequency domain. Show the sampling frequency and the sampling period of this spectrum.

load Y1spectrum.mat
Fs

Fs =
1000

T

T =
1.0000e-03

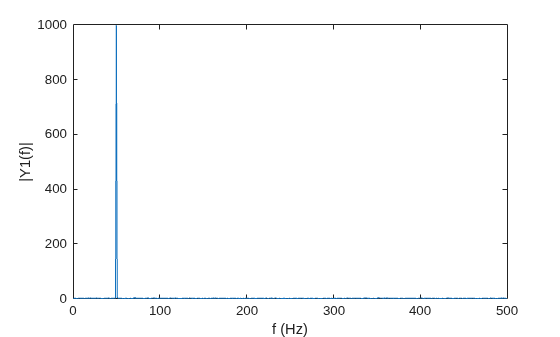

Plot the complex magnitude of the single-sided spectrum.

L1 = length(Y1);
f = Fs/(2*L1-1)*(0:L1-1);
plot(f,abs(Y1))
xlabel("f (Hz)")
ylabel("|Y1(f)|")

The discrete Fourier transform of a time-domain signal has a periodic nature, where the first half of its spectrum is in positive frequencies and the second half is in negative frequencies, with the first element reserved for the zero frequency. For real signals, the discrete Fourier transform in the frequency domain is a two-sided spectrum, where the spectrum in the positive frequencies is the complex conjugate of the spectrum in the negative frequencies with half the peak amplitudes of the real signal in the time domain. To find the inverse Fourier transform of a single-sided spectrum, convert the single-sided spectrum to a two-sided spectrum.

Y2 = [Y1(1) Y1(2:end)/2 fliplr(conj(Y1(2:end)))/2];

Find the inverse Fourier transform of the two-sided spectrum to recover the real signal in the time domain.

X = ifft(Y2);

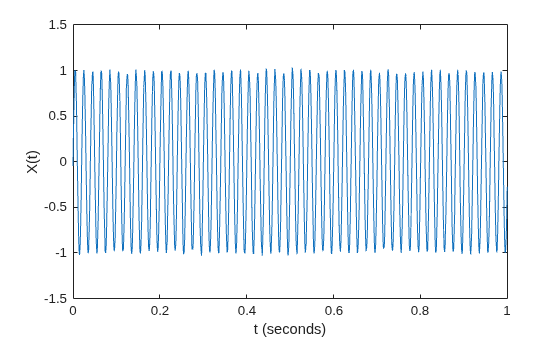

Plot the signal.

t = (0:length(X)-1)*T;
plot(t,X)
xlabel("t (seconds)")
ylabel("X(t)")

Padded Inverse Transform of Matrix

The ifft function allows you to control the size of the transform.

Create a random 3-by-5 matrix and compute the 8-point inverse Fourier transform of each row. Each row of the result has length 8.

Y = rand(3,5);
n = 8;
X = ifft(Y,n,2);
size(X)

ans = 1×2

     3     8

Conjugate Symmetric Vector

For nearly conjugate symmetric vectors, you can compute the inverse Fourier transform faster by specifying the 'symmetric' option, which also ensures that the output is real. Nearly conjugate symmetric data can arise when computations introduce round-off error.

Create a vector Y that is nearly conjugate symmetric and compute its inverse Fourier transform. Then, compute the inverse transform specifying the 'symmetric' option, which eliminates the nearly 0 imaginary parts.

Y = [1 2:4+eps(4) 4:-1:2]

Y = 1×7

     1     2     3     4     4     3     2

X = ifft(Y)

X = 1×7

    2.7143   -0.7213   -0.0440   -0.0919   -0.0919   -0.0440   -0.7213

Xsym = ifft(Y,'symmetric')

Xsym = 1×7

    2.7143   -0.7213   -0.0440   -0.0919   -0.0919   -0.0440   -0.7213

Input Arguments

Y — Input array

vector | matrix | multidimensional array

Input array, specified as a vector, a matrix, or a multidimensional array. If Y is of type single, then ifft natively computes in single precision, and X is also of type single. Otherwise, X is returned as type double.

Data Types: double | single | int8 | int16 | int32 | uint8 | uint16 | uint32 | logical
Complex Number Support: Yes

n — Inverse transform length

[] (default) | nonnegative integer scalar

Inverse transform length, specified as [] or a nonnegative integer scalar. Padding Y with zeros by specifying a transform length larger than the length of Y can improve the performance of ifft. The length is typically specified as a power of 2 or a product of small prime numbers. If n is less than the length of the signal, then ifft ignores the remaining signal values past the nth entry and returns the truncated result. If n is 0, then ifft returns an empty matrix.

Data Types: double | single | int8 | int16 | int32 | uint8 | uint16 | uint32 | logical

dim — Dimension to operate along

positive integer scalar

Dimension to operate along, specified as a positive integer scalar. By default, dim is the first array dimension whose size does not equal 1. For example, consider a matrix Y.

• ifft(Y,[],1) returns the inverse Fourier transform of each column.



• ifft(Y,[],2) returns the inverse Fourier transform of each row.



Data Types: double | single | int8 | int16 | int32 | uint8 | uint16 | uint32 | logical

symflag — Symmetry type

'nonsymmetric' (default) | 'symmetric'

Symmetry type, specified as 'nonsymmetric' or 'symmetric'. When Y is not exactly conjugate symmetric due to round-off error, ifft(Y,'symmetric') treats Y as if it were conjugate symmetric by ignoring the second half of its elements (that are in the negative frequency spectrum). For more information on conjugate symmetry, see Algorithms.

More About

Discrete Fourier Transform of Vector

Y = fft(X) and X = ifft(Y) implement the Fourier transform and inverse Fourier transform, respectively. For X and Y of length n, these transforms are defined as follows:

$$\begin{array}{l}Y(k)={\displaystyle \sum _{j=1}^{n}X}(j)W_n^{(j-1)\text{}(k-1)}\\ X(j)=\frac{1}{n}{\displaystyle \sum _{k=1}^{n}Y}(k)W_n{}^{-(j-1)\text{}(k-1)},\end{array}$$

where

$$W_n=e^{(-2\pi i)/n}$$

is one of n roots of unity.

Algorithms

• The ifft function tests whether the vectors in Y are conjugate symmetric. If the vectors in Y are conjugate symmetric, then the inverse transform computation is faster and the output is real.

  A function $$g(a)$$ is conjugate symmetric if $$g(a)=g^{*}(-a)$$. However, the fast Fourier transform of a time-domain signal has one half of its spectrum in positive frequencies and the other half in negative frequencies, with the first element reserved for the zero frequency. For this reason, a vector v is conjugate symmetric when v(2:end) is equal to conj(v(end:-1:2)).

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• Unless symflag is 'symmetric', the output is always complex even if all imaginary parts are zero.

• Code generation uses the symmetric algorithm only when the option symmetric is specified.

• For input argument Y:

  • If you do not specify a dimension, the code generator operates along the first dimension of the input array that is variable size or whose size does not equal 1. If this dimension is variable size at code generation time and is 1 at run time, a run-time error can occur. To avoid this error, specify the dimension.

• If used, the dim argument must be a constant at code generation time.

• For MEX output, MATLAB^® Coder™ uses the library that MATLAB uses for FFT algorithms. For standalone C/C++ code, by default, the code generator produces code for FFT algorithms instead of producing FFT library calls. To generate calls to a specific installed FFTW library, provide an FFT library callback class. For more information about an FFT library callback class, see coder.fftw.StandaloneFFTW3Interface (MATLAB Coder).

• For simulation of a MATLAB Function block, the simulation software uses the library that MATLAB uses for FFT algorithms. For C/C++ code generation, by default, the code generator produces code for FFT algorithms instead of producing FFT library calls. To generate calls to a specific installed FFTW library, provide an FFT library callback class. For more information about an FFT library callback class, see coder.fftw.StandaloneFFTW3Interface (MATLAB Coder).

• Using the Code Replacement Library (CRL), you can generate optimized code that runs on ARM^® Cortex^®-A processors with Neon extension. To generate this optimized code, you must install the Embedded Coder^® Support Package for ARM Cortex-A Processors (Embedded Coder). The generated code for ARM Cortex-A uses the Ne10 library. For more information, see Ne10 Conditions for MATLAB Functions to Support ARM Cortex-A Processors (Embedded Coder).

• Using the Code Replacement Library (CRL), you can generate optimized code that runs on ARM Cortex-M processors. To generate this optimized code, you must install the Embedded Coder Support Package for ARM Cortex-M Processors (Embedded Coder). The generated code for ARM Cortex-M uses the CMSIS library. For more information, see CMSIS Conditions for MATLAB Functions to Support ARM Cortex-M Processors (Embedded Coder).

GPU Code Generation

Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Usage notes and limitations:

• Unless symflag is 'symmetric', the output is always complex even if all imaginary parts are zero.

• Code generation uses the symmetric algorithm only when the option symmetric is specified.

• For input argument Y:

  • If you do not specify a dimension, the code generator operates along the first dimension of the input array that is variable size or whose size does not equal 1. If this dimension is variable size at code generation time and is 1 at run time, a run-time error can occur. To avoid this error, specify the dimension.

• If used, the dim argument must be a constant at code generation time.

Thread-Based Environment

Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The ifft function supports GPU array input with these usage notes and limitations:

• Unless symflag is 'symmetric', the output is always complex even if all imaginary parts are zero.

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Distributed Arrays

Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.

This function fully supports distributed arrays. For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).

Version History

Introduced before R2006a
