# forecast

Forecast states and observations of diffuse state-space models

## Syntax

## Description

`[`

returns forecasted observations (`Y`

,`YMSE`

]
= forecast(`Mdl`

,`numPeriods`

,`Y0`

)`Y`

)
and their corresponding variances (`YMSE`

) from forecasting
the diffuse
state-space model `Mdl`

using a `numPeriods`

forecast
horizon and in-sample observations `Y0`

.

`[`

uses
additional options specified by one or more `Y`

,`YMSE`

]
= forecast(`Mdl`

,`numPeriods`

,`Y0`

,`Name,Value`

)`Name,Value`

pair
arguments. For example, for state-space models that include a linear
regression component in the observation model, include in-sample predictor
data, predictor data for the forecast horizon, and the regression
coefficient.

## Input Arguments

`Mdl`

— Diffuse state-space model

`dssm`

model object

Diffuse state-space model, specified as an `dssm`

model
object returned by `dssm`

or `estimate`

.

If `Mdl`

is not fully specified (that is, `Mdl`

contains
unknown parameters), then specify values for the unknown parameters
using the `'`

`Params`

`'`

name-value
pair argument. Otherwise, the software issues an error. `estimate`

returns
fully-specified state-space models.

`Mdl`

does not store observed responses or
predictor data. Supply the data wherever necessary using the appropriate
input or name-value pair arguments.

`numPeriods`

— Forecast horizon

positive integer

Forecast horizon, specified as a positive integer. That is,
the software returns 1,..,`numPeriods`

forecasts.

**Data Types: **`double`

`Y0`

— In-sample, observed responses

cell vector of numeric vectors | numeric matrix

In-sample, observed responses, specified as a cell vector of numeric vectors or a matrix.

If

`Mdl`

is time invariant, then`Y0`

is a*T*-by-*n*numeric matrix, where each row corresponds to a period and each column corresponds to a particular observation in the model. Therefore,*T*is the sample size and*m*is the number of observations per period. The last row of`Y`

contains the latest observations.If

`Mdl`

is time varying with respect to the observation equation, then`Y`

is a*T*-by-1 cell vector. Each element of the cell vector corresponds to a period and contains an*n*-dimensional vector of observations for that period. The corresponding dimensions of the coefficient matrices in_{t}`Mdl.C{t}`

and`Mdl.D{t}`

must be consistent with the matrix in`Y{t}`

for all periods. The last cell of`Y`

contains the latest observations.

If `Mdl`

is an estimated state-space
model (that is, returned by `estimate`

), then it is best practice to set `Y0`

to
the same data set that you used to fit `Mdl`

.

`NaN`

elements indicate missing
observations. For details on how the Kalman filter accommodates missing
observations, see Algorithms.

**Data Types: **`double`

| `cell`

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`'Beta',beta,'Predictors',Z`

specifies
to deflate the observations by the regression component composed of
the predictor data `Z`

and the coefficient matrix `beta`

.

`A`

— Forecast-horizon, state-transition, coefficient matrices

cell vector of numeric matrices

Forecast-horizon, state-transition, coefficient matrices, specified
as the comma-separated pair consisting of `'A'`

and
a cell vector of numeric matrices.

`A`

must contain at least`numPeriods`

cells. Each cell must contain a matrix specifying how the states transition in the forecast horizon. If the length of`A`

is greater than`numPeriods`

, then the software uses the first`numPeriods`

cells. The last cell indicates the latest period in the forecast horizon.If

`Mdl`

is time invariant with respect to the states, then each cell of`A`

must contain an*m*-by-*m*matrix, where*m*is the number of the in-sample states per period. By default, the software uses`Mdl.A`

throughout the forecast horizon.If

`Mdl`

is time varying with respect to the states, then the dimensions of the matrices in the cells of`A`

can vary, but the dimensions of each matrix must be consistent with the matrices in`B`

and`C`

in the corresponding periods. By default, the software uses`Mdl.A{end}`

throughout the forecast horizon.

**Note**

The matrices in `A`

cannot contain `NaN`

values.

**Data Types: **`cell`

`B`

— Forecast-horizon, state-disturbance-loading, coefficient matrices

cell vector of matrices

Forecast-horizon, state-disturbance-loading, coefficient matrices,
specified as the comma-separated pair consisting of `'B'`

and
a cell vector of matrices.

`B`

must contain at least`numPeriods`

cells. Each cell must contain a matrix specifying how the states transition in the forecast horizon. If the length of`B`

is greater than`numPeriods`

, then the software uses the first`numPeriods`

cells. The last cell indicates the latest period in the forecast horizon.If

`Mdl`

is time invariant with respect to the states and state disturbances, then each cell of`B`

must contain an*m*-by-*k*matrix, where*m*is the number of the in-sample states per period, and*k*is the number of in-sample, state disturbances per period. By default, the software uses`Mdl.B`

throughout the forecast horizon.If

`Mdl`

is time varying, then the dimensions of the matrices in the cells of`B`

can vary, but the dimensions of each matrix must be consistent with the matrices in`A`

in the corresponding periods. By default, the software uses`Mdl.B{end}`

throughout the forecast horizon.

**Note**

The matrices in `B`

cannot contain `NaN`

values.

**Data Types: **`cell`

`C`

— Forecast-horizon, measurement-sensitivity, coefficient matrices

cell vector of matrices

Forecast-horizon, measurement-sensitivity, coefficient matrices,
specified as the comma-separated pair consisting of `'C'`

and
a cell vector of matrices.

`C`

must contain at least`numPeriods`

cells. Each cell must contain a matrix specifying how the states transition in the forecast horizon. If the length of`C`

is greater than`numPeriods`

, then the software uses the first`numPeriods`

cells. The last cell indicates the latest period in the forecast horizon.If

`Mdl`

is time invariant with respect to the states and the observations, then each cell of`C`

must contain an*n*-by-*m*matrix, where*n*is the number of the in-sample observations per period, and*m*is the number of in-sample states per period. By default, the software uses`Mdl.C`

throughout the forecast horizon.If

`Mdl`

is time varying with respect to the states or the observations, then the dimensions of the matrices in the cells of`C`

can vary, but the dimensions of each matrix must be consistent with the matrices in`A`

and`D`

in the corresponding periods. By default, the software uses`Mdl.C{end}`

throughout the forecast horizon.

**Note**

The matrices in `C`

cannot contain `NaN`

values.

**Data Types: **`cell`

`D`

— Forecast-horizon, observation-innovation, coefficient matrices

cell vector of matrices

Forecast-horizon, observation-innovation, coefficient matrices,
specified as the comma-separated pair consisting of `'D'`

and
a cell vector of matrices.

`D`

must contain at least`numPeriods`

cells. Each cell must contain a matrix specifying how the states transition in the forecast horizon. If the length of`D`

is greater than`numPeriods`

, then the software uses the first`numPeriods`

cells. The last cell indicates the latest period in the forecast horizon.If

`Mdl`

is time invariant with respect to the observations and the observation innovations, then each cell of`D`

must contain an*n*-by-*h*matrix, where*n*is the number of the in-sample observations per period, and*h*is the number of in-sample, observation innovations per period. By default, the software uses`Mdl.D`

throughout the forecast horizon.If

`Mdl`

is time varying with respect to the observations or the observation innovations, then the dimensions of the matrices in the cells of`D`

can vary, but the dimensions of each matrix must be consistent with the matrices in`C`

in the corresponding periods. By default, the software uses`Mdl.D{end}`

throughout the forecast horizon.

**Note**

The matrices in `D`

cannot contain `NaN`

values.

**Data Types: **`cell`

`Beta`

— Regression coefficients

`[]`

(default) | numeric matrix

Regression coefficients corresponding to predictor variables,
specified as the comma-separated pair consisting of `'Beta'`

and
a *d*-by-*n* numeric matrix. *d* is
the number of predictor variables (see `Predictors0`

and `PredictorsF`

)
and *n* is the number of observed response series
(see `Y0`

).

If you specify

`Beta`

, then you must also specify`Predictors0`

and`PredictorsF`

.If

`Mdl`

is an estimated state-space model, then specify the estimated regression coefficients stored in`Mdl.estParams`

.

By default, the software excludes a regression component from the state-space model.

`Predictors0`

— In-sample, predictor variables in state-space model observation equation

`[]`

(default) | matrix

In-sample, predictor variables in the state-space model observation
equation, specified as the comma-separated pair consisting of `'Predictors0'`

and
a matrix. The columns of `Predictors0`

correspond
to individual predictor variables. `Predictors0`

must
have *T* rows, where row *t* corresponds
to the observed predictors at period *t* (*Z _{t}*).
The expanded observation equation is

$${y}_{t}-{Z}_{t}\beta =C{x}_{t}+D{u}_{t}.$$

In other words, the
software deflates the observations using the regression component. *β* is
the time-invariant vector of regression coefficients that the software
estimates with all other parameters.

If there are

*n*observations per period, then the software regresses all predictor series onto each observation.If you specify

`Predictors0`

, then`Mdl`

must be time invariant. Otherwise, the software returns an error.If you specify

`Predictors0`

, then you must also specify`Beta`

and`PredictorsF`

.If

`Mdl`

is an estimated state-space model (that is, returned by`estimate`

), then it is best practice to set`Predictors0`

to the same predictor data set that you used to fit`Mdl`

.

By default, the software excludes a regression component from the state-space model.

**Data Types: **`double`

`PredictorsF`

— Forecast-horizon, predictor variables in state-space model observation equation

`[]`

(default) | numeric matrix

In-sample, predictor variables in the state-space model observation
equation, specified as the comma-separated pair consisting of `'Predictors0'`

and
a *T*-by-*d* numeric matrix. *T* is
the number of in-sample periods and *d* is the number
of predictor variables. Row *t* corresponds to the
observed predictors at period *t* (*Z _{t}*).
The expanded observation equation is

$${y}_{t}-{Z}_{t}\beta =C{x}_{t}+D{u}_{t}.$$

In other words, the
software deflates the observations using the regression component. *β* is
the time-invariant vector of regression coefficients that the software
estimates with all other parameters.

If there are

*n*observations per period, then the software regresses all predictor series onto each observation.If you specify

`Predictors0`

, then`Mdl`

must be time invariant. Otherwise, the software returns an error.If you specify

`Predictors0`

, then you must also specify`Beta`

and`PredictorsF`

.If

`Mdl`

is an estimated state-space model (that is, returned by`estimate`

), then it is best practice to set`Predictors0`

to the same predictor data set that you used to fit`Mdl`

.

By default, the software excludes a regression component from the state-space model.

**Data Types: **`double`

## Output Arguments

`Y`

— Forecasted observations

matrix | cell vector of numeric vectors

Forecasted observations, returned as a matrix or a cell vector of numeric vectors.

If `Mdl`

is a time-invariant, state-space model
with respect to the observations, then `Y`

is a `numPeriods`

-by-*n* matrix.

If `Mdl`

is a time-varying, state-space model
with respect to the observations, then `Y`

is a `numPeriods`

-by-1
cell vector of numeric vectors. Cell *t* of `Y`

contains
an *n _{t}*-by-1 numeric vector
of forecasted observations for period

*t*.

`YMSE`

— Error variances of forecasted observations

matrix | cell vector of numeric vectors

Error variances of forecasted observations, returned as a matrix or a cell vector of numeric vectors.

If `Mdl`

is a time-invariant, state-space model
with respect to the observations, then `YMSE`

is
a `numPeriods`

-by-*n* matrix.

If `Mdl`

is a time-varying, state-space model
with respect to the observations, then `YMSE`

is
a `numPeriods`

-by-1 cell vector of numeric vectors.
Cell *t* of `YMSE`

contains an *n _{t}*-by-1
numeric vector of error variances for the corresponding forecasted
observations for period

*t*.

`X`

— State forecasts

matrix | cell vector of numeric vectors

State forecasts, returned as a matrix or a cell vector of numeric vectors.

If `Mdl`

is a time-invariant, state-space model
with respect to the states, then `X`

is a `numPeriods`

-by-*m* matrix.

If `Mdl`

is a time-varying, state-space model
with respect to the states, then `X`

is a `numPeriods`

-by-1
cell vector of numeric vectors. Cell *t* of `X`

contains
an *m _{t}*-by-1 numeric vector
of forecasted observations for period

*t*.

`XMSE`

— Error variances of state forecasts

matrix | cell vector of numeric vectors

Error variances of state forecasts, returned as a matrix or a cell vector of numeric vectors.

If `Mdl`

is a time-invariant, state-space model
with respect to the states, then `XMSE`

is a `numPeriods`

-by-*m* matrix.

If `Mdl`

is a time-varying, state-space model
with respect to the states, then `XMSE`

is a `numPeriods`

-by-1
cell vector of numeric vectors. Cell *t* of `XMSE`

contains
an *m _{t}*-by-1 numeric vector
of error variances for the corresponding forecasted observations for
period

*t*.

## Examples

### Forecast Observations of Time-Invariant Diffuse State-Space Model

Suppose that a latent process is a random walk. The state equation is

$${x}_{t}={x}_{t-1}+{u}_{t},$$

where $${u}_{t}$$ is Gaussian with mean 0 and standard deviation 1.

Generate a random series of 100 observations from $${x}_{t}$$, assuming that the series starts at 1.5.

```
T = 100;
x0 = 1.5;
rng(1); % For reproducibility
u = randn(T,1);
x = cumsum([x0;u]);
x = x(2:end);
```

Suppose further that the latent process is subject to additive measurement error. The observation equation is

$${y}_{t}={x}_{t}+{\epsilon}_{t},$$

where $${\epsilon}_{t}$$ is Gaussian with mean 0 and standard deviation 0.75. Together, the latent process and observation equations compose a state-space model.

Use the random latent state process (`x`

) and the observation equation to generate observations.

y = x + 0.75*randn(T,1);

Specify the four coefficient matrices.

A = 1; B = 1; C = 1; D = 0.75;

Create the diffuse state-space model using the coefficient matrices. Specify that the initial state distribution is diffuse.

`Mdl = dssm(A,B,C,D,'StateType',2)`

Mdl = State-space model type: dssm State vector length: 1 Observation vector length: 1 State disturbance vector length: 1 Observation innovation vector length: 1 Sample size supported by model: Unlimited State variables: x1, x2,... State disturbances: u1, u2,... Observation series: y1, y2,... Observation innovations: e1, e2,... State equation: x1(t) = x1(t-1) + u1(t) Observation equation: y1(t) = x1(t) + (0.75)e1(t) Initial state distribution: Initial state means x1 0 Initial state covariance matrix x1 x1 Inf State types x1 Diffuse

`Mdl`

is an `dssm`

model. Verify that the model is correctly specified using the display in the Command Window.

Forecast observations 10 periods into the future, and estimate the mean squared errors of the forecasts.

numPeriods = 10; [ForecastedY,YMSE] = forecast(Mdl,numPeriods,y);

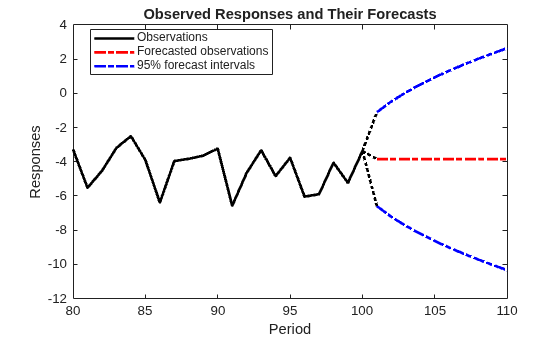

Plot the forecasts with the in-sample responses, and 95% Wald-type forecast intervals.

ForecastIntervals(:,1) = ForecastedY - 1.96*sqrt(YMSE); ForecastIntervals(:,2) = ForecastedY + 1.96*sqrt(YMSE); figure plot(T-20:T,y(T-20:T),'-k',T+1:T+numPeriods,ForecastedY,'-.r',... T+1:T+numPeriods,ForecastIntervals,'-.b',... T:T+1,[y(end)*ones(3,1),[ForecastedY(1);ForecastIntervals(1,:)']],':k',... 'LineWidth',2) hold on title({'Observed Responses and Their Forecasts'}) xlabel('Period') ylabel('Responses') legend({'Observations','Forecasted observations','95% forecast intervals'},... 'Location','Best') hold off

The forecast intervals flare out because the process is nonstationary.

### Forecast Observations of Diffuse State-Space Model Containing Regression Component

Suppose that the linear relationship between unemployment rate and the nominal gross national product (nGNP) is of interest. Suppose further that unemployment rate is an AR(1) series. Symbolically, and in state-space form, the model is

$$\begin{array}{l}{x}_{t}=\varphi {x}_{t-1}+\sigma {u}_{t}\\ {y}_{t}-\beta {Z}_{t}={x}_{t},\end{array}$$

where:

$${x}_{t}$$ is the unemployment rate at time

*t*.$${y}_{t}$$ is the observed change in the unemployment rate being deflated by the return of nGNP ($${Z}_{t}$$).

$${u}_{t}$$ is the Gaussian series of state disturbances having mean 0 and unknown standard deviation $$\sigma $$.

Load the Nelson-Plosser data set, which contains the unemployment rate and nGNP series, among other things.

`load Data_NelsonPlosser`

Preprocess the data by taking the natural logarithm of the nGNP series and removing the starting `NaN`

values from each series.

isNaN = any(ismissing(DataTable),2); % Flag periods containing NaNs gnpn = DataTable.GNPN(~isNaN); y = diff(DataTable.UR(~isNaN)); T = size(gnpn,1); % The sample size Z = price2ret(gnpn);

This example continues using the series without `NaN`

values. However, using the Kalman filter framework, the software can accommodate series containing missing values.

Determine how well the model forecasts observations by removing the last 10 observations for comparison.

numPeriods = 10; % Forecast horizon isY = y(1:end-numPeriods); % In-sample observations oosY = y(end-numPeriods+1:end); % Out-of-sample observations ISZ = Z(1:end-numPeriods); % In-sample predictors OOSZ = Z(end-numPeriods+1:end); % Out-of-sample predictors

Specify the coefficient matrices.

A = NaN; B = NaN; C = 1;

Create the state-space model using `dssm`

by supplying the coefficient matrices and specifying that the state values come from a diffuse distribution. The diffuse specification indicates complete ignorance about the moments of the initial distribution.

```
StateType = 2;
Mdl = dssm(A,B,C,'StateType',StateType);
```

Estimate the parameters. Specify the regression component and its initial value for optimization using the `'Predictors'`

and `'Beta0'`

name-value pair arguments, respectively. Display the estimates and all optimization diagnostic information. Restrict the estimate of $$\sigma $$ to all positive, real numbers.

params0 = [0.3 0.2]; % Initial values chosen arbitrarily Beta0 = 0.1; [EstMdl,estParams] = estimate(Mdl,y,params0,'Predictors',Z,'Beta0',Beta0,... 'lb',[-Inf 0 -Inf]);

Method: Maximum likelihood (fmincon) Effective Sample size: 60 Logarithmic likelihood: -110.477 Akaike info criterion: 226.954 Bayesian info criterion: 233.287 | Coeff Std Err t Stat Prob -------------------------------------------------------- c(1) | 0.59436 0.09408 6.31738 0 c(2) | 1.52554 0.10758 14.17991 0 y <- z(1) | -24.26161 1.55730 -15.57930 0 | | Final State Std Dev t Stat Prob x(1) | 2.54764 0 Inf 0

`EstMdl`

is a `dssm`

model, and you can access its properties using dot notation.

Forecast observations over the forecast horizon. `EstMdl`

does not store the data set, so you must pass it in appropriate name-value pair arguments.

[fY,yMSE] = forecast(EstMdl,numPeriods,isY,'Predictors0',ISZ,... 'PredictorsF',OOSZ,'Beta',estParams(end));

`fY`

is a 10-by-1 vector containing the forecasted observations, and `yMSE`

is a 10-by-1 vector containing the variances of the forecasted observations.

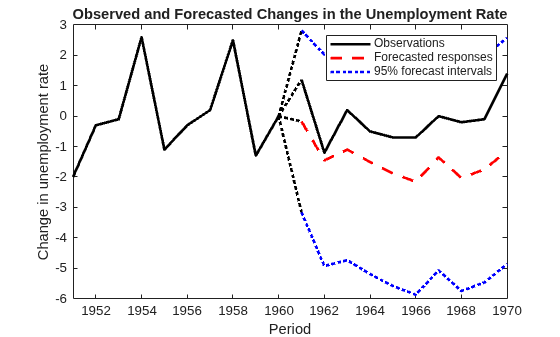

Obtain 95% Wald-type forecast intervals. Plot the forecasted observations with their true values and the forecast intervals.

ForecastIntervals(:,1) = fY - 1.96*sqrt(yMSE); ForecastIntervals(:,2) = fY + 1.96*sqrt(yMSE); figure h = plot(dates(end-numPeriods-9:end-numPeriods),isY(end-9:end),'-k',... dates(end-numPeriods+1:end),oosY,'-k',... dates(end-numPeriods+1:end),fY,'--r',... dates(end-numPeriods+1:end),ForecastIntervals,':b',... dates(end-numPeriods:end-numPeriods+1),... [isY(end)*ones(4,1),[oosY(1);ForecastIntervals(1,:)';fY(1)]],':k',... 'LineWidth',2); xlabel('Period') ylabel('Change in unemployment rate') legend(h([1,3,4]),{'Observations','Forecasted responses',... '95% forecast intervals'}) title('Observed and Forecasted Changes in the Unemployment Rate')

### Forecast States of Diffuse State-Space Model

Suppose that a latent process is a random walk. The state equation is

$${x}_{t}={x}_{t-1}+{u}_{t},$$

where $${u}_{t}$$ is Gaussian with mean 0 and standard deviation 1.

Generate a random series of 100 observations from $${x}_{t}$$, assuming that the series starts at 1.5.

```
T = 100;
x0 = 1.5;
rng(1); % For reproducibility
u = randn(T,1);
x = cumsum([x0;u]);
x = x(2:end);
```

Suppose further that the latent process is subject to additive measurement error. The observation equation is

$${y}_{t}={x}_{t}+{\epsilon}_{t},$$

where $${\epsilon}_{t}$$ is Gaussian with mean 0 and standard deviation 0.75. Together, the latent process and observation equations compose a state-space model.

Use the random latent state process (`x`

) and the observation equation to generate observations.

y = x + 0.75*randn(T,1);

Specify the four coefficient matrices.

A = 1; B = 1; C = 1; D = 0.75;

Create the diffuse state-space model using the coefficient matrices. Specify that the initial state distribution is diffuse.

`Mdl = dssm(A,B,C,D,'StateType',2)`

Mdl = State-space model type: dssm State vector length: 1 Observation vector length: 1 State disturbance vector length: 1 Observation innovation vector length: 1 Sample size supported by model: Unlimited State variables: x1, x2,... State disturbances: u1, u2,... Observation series: y1, y2,... Observation innovations: e1, e2,... State equation: x1(t) = x1(t-1) + u1(t) Observation equation: y1(t) = x1(t) + (0.75)e1(t) Initial state distribution: Initial state means x1 0 Initial state covariance matrix x1 x1 Inf State types x1 Diffuse

`Mdl`

is an `dssm`

model. Verify that the model is correctly specified using the display in the Command Window.

Forecast states 10 periods into the future, and estimate the mean squared errors of the forecasts.

numPeriods = 10; [~,~,ForecastedX,XMSE] = forecast(Mdl,numPeriods,y);

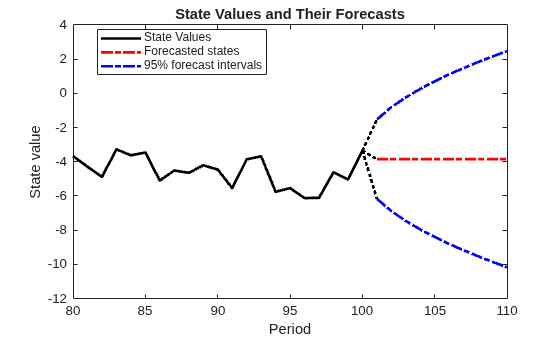

Plot the forecasts with the in-sample states, and 95% Wald-type forecast intervals.

ForecastIntervals(:,1) = ForecastedX - 1.96*sqrt(XMSE); ForecastIntervals(:,2) = ForecastedX + 1.96*sqrt(XMSE); figure plot(T-20:T,x(T-20:T),'-k',T+1:T+numPeriods,ForecastedX,'-.r',... T+1:T+numPeriods,ForecastIntervals,'-.b',... T:T+1,[x(end)*ones(3,1),[ForecastedX(1);ForecastIntervals(1,:)']],':k',... 'LineWidth',2) hold on title({'State Values and Their Forecasts'}) xlabel('Period') ylabel('State value') legend({'State Values','Forecasted states','95% forecast intervals'},... 'Location','Best') hold off

The forecast intervals flare out because the process is nonstationary.

## Tips

`Mdl`

does not store the response data, predictor
data, and the regression coefficients. Supply them whenever necessary
using the appropriate input or name-value pair arguments.

## Algorithms

The Kalman filter accommodates
missing data by not updating filtered state estimates corresponding
to missing observations. In other words, suppose there is a missing
observation at period *t*. Then, the state forecast
for period *t* based on the previous *t* –
1 observations and filtered state for period *t* are
equivalent.

## References

[1] Durbin J., and S. J. Koopman. *Time Series
Analysis by State Space Methods*. 2nd ed. Oxford: Oxford
University Press, 2012.

## Version History

**Introduced in R2015b**

## Comando MATLAB

Hai fatto clic su un collegamento che corrisponde a questo comando MATLAB:

Esegui il comando inserendolo nella finestra di comando MATLAB. I browser web non supportano i comandi MATLAB.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
