forecast

Forecast vector error-correction (VEC) model responses

Description

Conditional and Unconditional Forecasts for Numeric Arrays

Y = forecast(Mdl,numperiods,Y0) returns a numeric array containing paths of minimum mean squared error (MMSE) multivariate response forecasts Y over a length numperiods forecast horizon, using the fully specified VEC(p – 1) model Mdl. The forecasted responses represent the continuation of the presample data in the numeric array Y0.

example

Y = forecast(Mdl,numperiods,Y0,Name=Value) uses additional options specified by one or more name-value arguments. forecast returns numeric arrays when all optional input data are numeric arrays. For example, forecast(Mdl,10,Y0,X=Exo) returns a numeric array containing a 10-period forecasted response path from Mdl and the numeric matrix of presample response data Y0, and specifies the numeric matrix of future predictor data for the model regression component in the forecast horizon Exo.

To produce a conditional forecast, specify future response data in a numeric array by using the YF name-value argument.

example

[Y,YMSE] = forecast(___) also returns the corresponding forecast mean squared error (MSE) matrices YMSE of each forecasted multivariate response using any input argument combination in the previous syntaxes.

example

Unconditional Forecasts for Tables and Timetables

Tbl2 = forecast(Mdl,numperiods,Tbl1) returns the table or timetable Tbl2 containing the length numperiods paths of multivariate MMSE response variable forecasts, which result from computing unconditional forecasts from the VEC model Mdl. forecast uses the table or timetable of presample data Tbl1 to initialize the response series. (since R2022b)

forecast selects the variables in Mdl.SeriesNames to forecast, or it selects all variables in Tbl1. To select different response variables in Tbl1 to forecast, use the PresampleResponseVariables name-value argument.

example

Tbl2 = forecast(Mdl,numperiods,Tbl1,Name=Value) uses additional options specified by one or more name-value arguments. For example, forecast(Mdl,10,Tbl1,PresampleResponseVariables=["GDP" "CPI"]) returns a timetable of response variables containing their unconditional forecasts from the VEC model Mdl, initialized by the data in the GDP and CPI variables of the timetable of presample data in Tbl1. (since R2022b)

example

[Tbl2,YMSE] = forecast(___) also returns the corresponding forecast MSE matrices YMSE of each forecasted multivariate response using any input argument combination in the previous two syntaxes. (since R2022b)

example

Conditional Forecasts for Tables and Timetables

Tbl2 = forecast(Mdl,numperiods,Tbl1,InSample=InSample,ResponseVariables=ResponseVariables) returns the table or timetable Tbl2 containing the length numperiods paths of multivariate MMSE response variable forecasts and corresponding forecast MSEs, which result from computing conditional forecasts from the VEC model Mdl. forecast uses the table or timetable of presample data Tbl1 to initialize the response series. InSample is a table or timetable of future data in the forecast horizon that forecast uses to compute conditional forecasts and ResponseVariables specifies the response variables in InSample. (since R2022b)

example

Tbl2 = forecast(Mdl,numperiods,Tbl1,InSample=InSample,ResponseVariables=ResponseVariables,Name=Value) uses additional options specified by one or more name-value arguments. (since R2022b)

example

[Tbl2,YMSE] = forecast(___) also returns the corresponding forecast MSE matrices YMSE of each forecasted multivariate response using any input argument combination in the previous two syntaxes. (since R2022b)

example

Examples

collapse all

Consider a VEC model for the following seven macroeconomic series. Then, fit the model to the data and forecast responses 12 quarters into the future. Supply all required data in numeric matrices.

  • Gross domestic product (GDP)

  • GDP implicit price deflator

  • Paid compensation of employees

  • Nonfarm business sector hours of all persons

  • Effective federal funds rate

  • Personal consumption expenditures

  • Gross private domestic investment

Suppose that a cointegrating rank of 4 and one short-run term are appropriate, that is, consider a VEC(1) model.

Load the Data_USEconVECModel data set.

load Data_USEconVECModel

For more information on the data set and variables, enter Description at the command line.

Determine whether the data needs to be preprocessed by plotting the series on separate plots.

figure
tiledlayout(2,2)
nexttile
plot(FRED.Time,FRED.GDP)
title("Gross Domestic Product")
ylabel("Index")
xlabel("Date")
nexttile
plot(FRED.Time,FRED.GDPDEF)
title("GDP Deflator")
ylabel("Index")
xlabel("Date")
nexttile
plot(FRED.Time,FRED.COE)
title("Paid Compensation of Employees")
ylabel("Billions of $")
xlabel("Date")
nexttile
plot(FRED.Time,FRED.HOANBS)
title("Nonfarm Business Sector Hours")
ylabel("Index")
xlabel("Date")

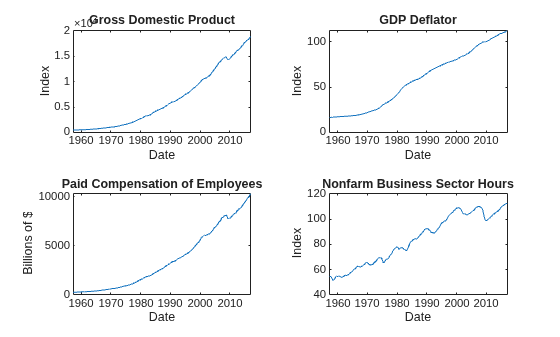

Figure contains 4 axes objects. Axes object 1 with title Gross Domestic Product, xlabel Date, ylabel Index contains an object of type line. Axes object 2 with title GDP Deflator, xlabel Date, ylabel Index contains an object of type line. Axes object 3 with title Paid Compensation of Employees, xlabel Date, ylabel Billions of $ contains an object of type line. Axes object 4 with title Nonfarm Business Sector Hours, xlabel Date, ylabel Index contains an object of type line.

figure
tiledlayout(2,2)
nexttile
plot(FRED.Time,FRED.FEDFUNDS)
title("Federal Funds Rate")
ylabel("Percent")
xlabel("Date")
nexttile
plot(FRED.Time,FRED.PCEC)
title("Consumption Expenditures")
ylabel("Billions of $")
xlabel("Date")
nexttile
plot(FRED.Time,FRED.GPDI)
title("Gross Private Domestic Investment")
ylabel("Billions of $")
xlabel("Date")

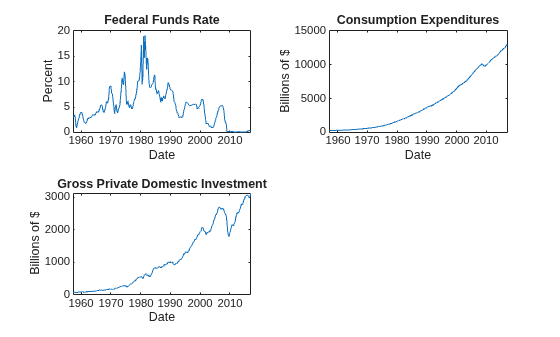

Figure contains 3 axes objects. Axes object 1 with title Federal Funds Rate, xlabel Date, ylabel Percent contains an object of type line. Axes object 2 with title Consumption Expenditures, xlabel Date, ylabel Billions of $ contains an object of type line. Axes object 3 with title Gross Private Domestic Investment, xlabel Date, ylabel Billions of $ contains an object of type line.

Stabilize all series, except the federal funds rate, by applying the log transform. Scale the resulting series by 100 so that all series are on the same scale.

FRED.GDP = 100*log(FRED.GDP);
FRED.GDPDEF = 100*log(FRED.GDPDEF);
FRED.COE = 100*log(FRED.COE);
FRED.HOANBS = 100*log(FRED.HOANBS);
FRED.PCEC = 100*log(FRED.PCEC);
FRED.GPDI = 100*log(FRED.GPDI);

Create a VEC(1) model using the shorthand syntax. Specify the variable names.

Mdl = vecm(7,4,1);
Mdl.SeriesNames = FRED.Properties.VariableNames;

Mdl is a vecm model object. All properties containing NaN values correspond to parameters to be estimated given data.

Estimate the model using the entire data set and the default options.

EstMdl = estimate(Mdl,FRED.Variables)
EstMdl =
  vecm with properties:

             Description: "7-Dimensional Rank = 4 VEC(1) Model"
             SeriesNames: "GDP"  "GDPDEF"  "COE"  ... and 4 more
               NumSeries: 7
                    Rank: 4
                       P: 2
                Constant: [14.1329 8.77841 -7.20359 ... and 4 more]'
              Adjustment: [7×4 matrix]
           Cointegration: [7×4 matrix]
                  Impact: [7×7 matrix]
   CointegrationConstant: [-28.6082 -109.555 77.0912 ... and 1 more]'
      CointegrationTrend: [4×1 vector of zeros]
                ShortRun: {7×7 matrix} at lag [1]
                   Trend: [7×1 vector of zeros]
                    Beta: [7×0 matrix]
              Covariance: [7×7 matrix]

EstMdl is an estimated vecm model object. It is fully specified because all parameters have known values. By default, estimate imposes the constraints of the H1 Johansen VEC model form by removing the cointegrating trend and linear trend terms from the model. Parameter exclusion from estimation is equivalent to imposing equality constraints to zero.

Forecast responses from the estimated model over a three-year horizon. Specify the entire data set as presample observations.

numperiods = 12;
Y0 = FRED.Variables;
Y = forecast(EstMdl,numperiods,Y0);

Y is a 12-by-7 matrix of forecasted responses. Rows correspond to the forecast horizon, and columns correspond to the variables in EstMdl.SeriesNames.

Plot the forecasted responses and the last 50 true responses.

fh = dateshift(FRED.Time(end),"end","quarter",1:12);

figure;
tiledlayout(2,2)
nexttile
h1 = plot(FRED.Time((end-49):end),FRED.GDP((end-49):end));
hold on
h2 = plot(fh,Y(:,1));
title("Gross Domestic Product");
ylabel("Index (scaled)");
xlabel("Date");
h = gca;
fill([FRED.Time(end) fh([end end]) FRED.Time(end)],h.YLim([1 1 2 2]),"k", ...
    FaceAlpha=0.1,EdgeColor="none");
legend([h1 h2],"True","Forecast",Location="best")
hold off
nexttile
h1 = plot(FRED.Time((end-49):end),FRED.GDPDEF((end-49):end));
hold on
h2 = plot(fh,Y(:,2));
title("GDP Deflator");
ylabel("Index (scaled)");
xlabel("Date");
h = gca;
fill([FRED.Time(end) fh([end end]) FRED.Time(end)],h.YLim([1 1 2 2]),"k", ...
    FaceAlpha=0.1,EdgeColor="none");
legend([h1 h2],"True","Forecast",Location="best")
hold off
nexttile
h1 = plot(FRED.Time((end-49):end),FRED.COE((end-49):end));
hold on
h2 = plot(fh,Y(:,3));
title("Paid Compensation of Employees");
ylabel("Billions of $ (scaled)");
xlabel("Date");
h = gca;
fill([FRED.Time(end) fh([end end]) FRED.Time(end)],h.YLim([1 1 2 2]),"k", ...
    FaceAlpha=0.1,EdgeColor="none");
legend([h1 h2],"True","Forecast",Location="best")
hold off
nexttile
h1 = plot(FRED.Time((end-49):end),FRED.HOANBS((end-49):end));
hold on
h2 = plot(fh,Y(:,4));
title("Nonfarm Business Sector Hours");
ylabel("Index (scaled)");
xlabel("Date");
h = gca;
fill([FRED.Time(end) fh([end end]) FRED.Time(end)],h.YLim([1 1 2 2]),"k", ...
    FaceAlpha=0.1,EdgeColor="none");
legend([h1 h2],"True","Forecast",Location="best")
hold off

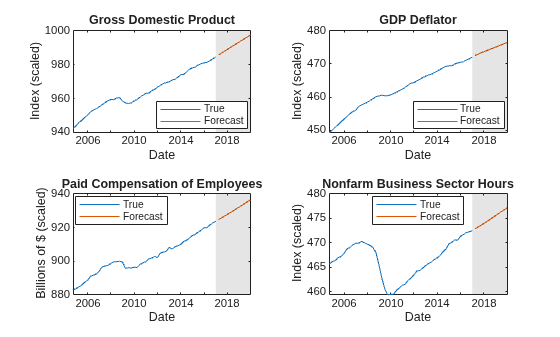

Figure contains 4 axes objects. Axes object 1 with title Gross Domestic Product, xlabel Date, ylabel Index (scaled) contains 3 objects of type line, patch. These objects represent True, Forecast. Axes object 2 with title GDP Deflator, xlabel Date, ylabel Index (scaled) contains 3 objects of type line, patch. These objects represent True, Forecast. Axes object 3 with title Paid Compensation of Employees, xlabel Date, ylabel Billions of $ (scaled) contains 3 objects of type line, patch. These objects represent True, Forecast. Axes object 4 with title Nonfarm Business Sector Hours, xlabel Date, ylabel Index (scaled) contains 3 objects of type line, patch. These objects represent True, Forecast.

figure
tiledlayout(2,2)
nexttile
h1 = plot(FRED.Time((end-49):end),FRED.FEDFUNDS((end-49):end));
hold on
h2 = plot(fh,Y(:,5));
title("Federal Funds Rate");
ylabel("Percent");
xlabel("Date");
h = gca;
fill([FRED.Time(end) fh([end end]) FRED.Time(end)],h.YLim([1 1 2 2]),"k", ...
    FaceAlpha=0.1,EdgeColor="none");
legend([h1 h2],"True","Forecast",Location="best")
hold off
nexttile
h1 = plot(FRED.Time((end-49):end),FRED.PCEC((end-49):end));
hold on
h2 = plot(fh,Y(:,6));
title("Consumption Expenditures");
ylabel("Billions of $ (scaled)");
xlabel("Date");
h = gca;
fill([FRED.Time(end) fh([end end]) FRED.Time(end)],h.YLim([1 1 2 2]),"k", ...
    FaceAlpha=0.1,EdgeColor="none");
legend([h1 h2],"True","Forecast",Location="best")
hold off
nexttile
h1 = plot(FRED.Time((end-49):end),FRED.GPDI((end-49):end));
hold on
h2 = plot(fh,Y(:,7));
title("Gross Private Domestic Investment");
ylabel("Billions of $ (scaled)");
xlabel("Date");
h = gca;
fill([FRED.Time(end) fh([end end]) FRED.Time(end)],h.YLim([1 1 2 2]),"k", ...
    FaceAlpha=0.1,EdgeColor="none");
legend([h1 h2],"True","Forecast",Location="best")
hold off

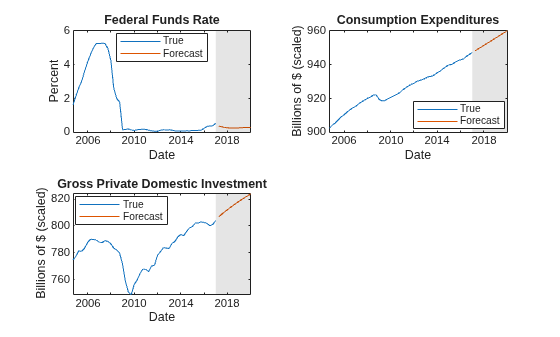

Figure contains 3 axes objects. Axes object 1 with title Federal Funds Rate, xlabel Date, ylabel Percent contains 3 objects of type line, patch. These objects represent True, Forecast. Axes object 2 with title Consumption Expenditures, xlabel Date, ylabel Billions of $ (scaled) contains 3 objects of type line, patch. These objects represent True, Forecast. Axes object 3 with title Gross Private Domestic Investment, xlabel Date, ylabel Billions of $ (scaled) contains 3 objects of type line, patch. These objects represent True, Forecast.

This example is based on Return Matrix of VEC Model Forecasts. Forecast all response variables of the VEC model into a 3-year forecast horizon beyond the sampling data, given that the effective federal funds rate FEDFUNDS is 0.5% during each future quarter.

Load the Data_USEconVECModel data set.

load Data_USEconVECModel

Stabilize all series, except the federal funds rate, by applying the log transform. Scale the resulting series by 100 so that all series are on the same scale.

FRED.GDP = 100*log(FRED.GDP);
FRED.GDPDEF = 100*log(FRED.GDPDEF);
FRED.COE = 100*log(FRED.COE);
FRED.HOANBS = 100*log(FRED.HOANBS);
FRED.PCEC = 100*log(FRED.PCEC);
FRED.GPDI = 100*log(FRED.GPDI);

Create a VEC(1) model using the shorthand syntax. Specify the variable names.

Mdl = vecm(7,4,1);
Mdl.SeriesNames = FRED.Properties.VariableNames;

Estimate the model using the entire data set and the default options.

EstMdl = estimate(Mdl,FRED.Variables);

Suppose economists hypothesize that the effective federal funds rate will be at 0.5% for the next 12 quarters.

Create a matrix with the following qualities:

  1. The matrix has 12 rows representing periods in the forecast horizon.

  2. All columns associated with variables of FRED, except for FEDFUNDS, are composed of NaN values.

  3. The column corresponding to the variable FEDFUNDS is composed of 0.5.

numperiods = 12;
CondF = NaN(numperiods,EstMdl.NumSeries);
idxFF = string(EstMdl.SeriesNames) == "FEDFUNDS";
CondF(:,idxFF) = 0.5*ones(numperiods,1);

CondF is a 12-by-7 matrix of NaN values, except for the column associated with FEDFUNDS, which is a vector composed of the value 0.5. For each period in the forecast horizon, forecast fills the NaN elements of the matrix with forecasts, given the values of FEDFUNDS.

Forecast all variables given the hypothesis by supplying the conditioning data CondF. Supply the estimation sample as a presample to initialize the model.

Y = forecast(EstMdl,numperiods,FRED.Variables,YF=CondF);

Y is a 12-by-7 matrix of forecasts and the fixed values in the column corresponding to FEDFUNDS.

Plot the forecasts with the last few periods of the estimation sample.

fh = dateshift(FRED.Time(end),"end","quarter",1:numperiods);
idx = find(~idxFF);

figure;
ht = tiledlayout(2,2);
for j = idx(1:4)
    nexttile
    h1 = plot(FRED.Time((end-49):end),FRED{(end-49):end,j});
    hold on
    h2 = plot(fh,Y(:,j));
    title(EstMdl.SeriesNames(j));
    xlabel("Date");
    h = gca;
    fill([FRED.Time(end) fh([end end]) FRED.Time(end)],h.YLim([1 1 2 2]),"k", ...
        FaceAlpha=0.1,EdgeColor="none");
    legend([h1 h2],"True","Forecast",Location="best")
    hold off
end
title(ht,"Forecasts With FEDFUNDS = 0.5")

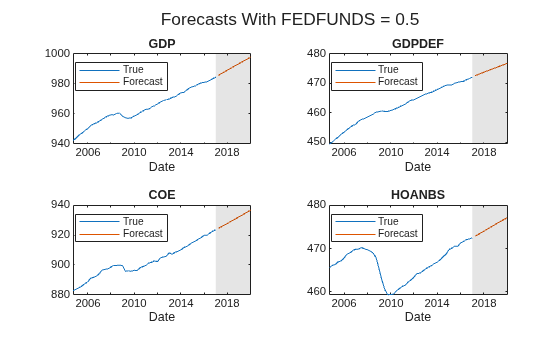

Figure contains 4 axes objects. Axes object 1 with title GDP, xlabel Date contains 3 objects of type line, patch. These objects represent True, Forecast. Axes object 2 with title GDPDEF, xlabel Date contains 3 objects of type line, patch. These objects represent True, Forecast. Axes object 3 with title COE, xlabel Date contains 3 objects of type line, patch. These objects represent True, Forecast. Axes object 4 with title HOANBS, xlabel Date contains 3 objects of type line, patch. These objects represent True, Forecast.

figure;
ht = tiledlayout(2,1);
for j = idx(5:6)
    nexttile
    h1 = plot(FRED.Time((end-49):end),FRED{(end-49):end,j});
    hold on
    h2 = plot(fh,Y(:,j));
    title(EstMdl.SeriesNames(j));
    xlabel("Date");
    h = gca;
    fill([FRED.Time(end) fh([end end]) FRED.Time(end)],h.YLim([1 1 2 2]),"k", ...
        FaceAlpha=0.1,EdgeColor="none");
    legend([h1 h2],"True","Forecast",Location="best")
    hold off
end
title(ht,"Forecasts With FEDFUNDS = 0.5")

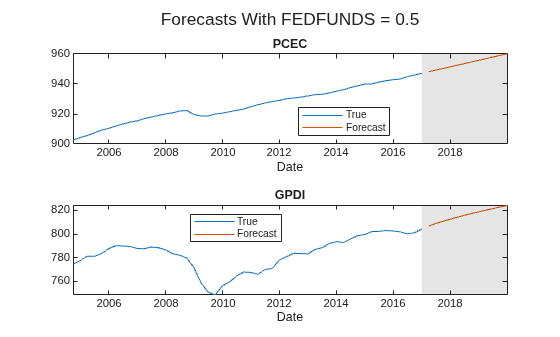

Figure contains 2 axes objects. Axes object 1 with title PCEC, xlabel Date contains 3 objects of type line, patch. These objects represent True, Forecast. Axes object 2 with title GPDI, xlabel Date contains 3 objects of type line, patch. These objects represent True, Forecast.

Analyze forecast accuracy using forecast intervals over a three-year horizon. This example follows from Return Matrix of VEC Model Forecasts.

Load the Data_USEconVECModel data set and preprocess the data.

load Data_USEconVECModel
FRED.GDP = 100*log(FRED.GDP);
FRED.GDPDEF = 100*log(FRED.GDPDEF);
FRED.COE = 100*log(FRED.COE);
FRED.HOANBS = 100*log(FRED.HOANBS);
FRED.PCEC = 100*log(FRED.PCEC);
FRED.GPDI = 100*log(FRED.GPDI);

Estimate a VEC(1) model. Reserve the last three years of data to assess forecast accuracy. Assume that the appropriate cointegration rank is 4, and the H1 Johansen form is appropriate for the model.

bfh = FRED.Time(end) - years(3);
estIdx = FRED.Time < bfh;
Mdl = vecm(7,4,1);
Mdl.SeriesNames = FRED.Properties.VariableNames;
EstMdl = estimate(Mdl,FRED{estIdx,:});

Forecast responses from the estimated model over a three-year horizon. Specify all in-sample observations as a presample. Return the MSE of the forecasts.

numperiods = 12;
Y0 = FRED{estIdx,:};
[Y,YMSE] = forecast(EstMdl,numperiods,Y0);

Y is a 12-by-7 matrix of forecasted responses. YMSE is a 12-by-1 cell vector of 7-by-7 matrices corresponding to the MSEs.

Extract the main diagonal elements from the matrices in each cell of YMSE. Apply the square root of the result to obtain standard errors.

extractMSE = @(x)diag(x)';
MSE = cellfun(extractMSE,YMSE,UniformOutput=false);
SE = sqrt(cell2mat(MSE));

Estimate approximate 95% forecast intervals for each response series.

YFI = zeros(numperiods,Mdl.NumSeries,2);

YFI(:,:,1) = Y - 2*SE;
YFI(:,:,2) = Y + 2*SE;

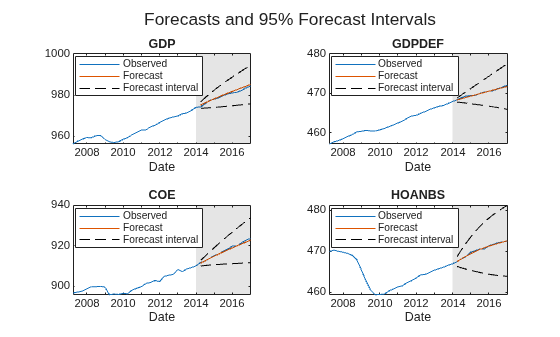

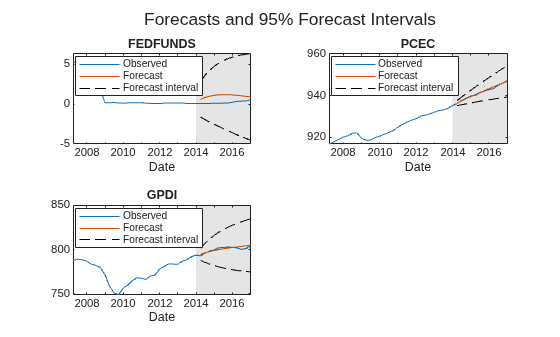

Plot the forecasted responses and the last 40 true responses.

figure
ht = tiledlayout(2,2);
for j = 1:4
    nexttile
    h1 = plot(FRED.Time((end-39):end),FRED{(end-39):end,j});
    hold on
    h2 = plot(FRED.Time(~estIdx),Y(:,j));
    h3 = plot(FRED.Time(~estIdx),YFI(:,j,1),"k--");
    plot(FRED.Time(~estIdx),YFI(:,j,2),"k--");
    title(EstMdl.SeriesNames(j));
    xlabel("Date");
    h = gca;
    fill([bfh h.XLim([2 2]) bfh],h.YLim([1 1 2 2]),"k", ...
        FaceAlpha=0.1,EdgeColor="none");
    legend([h1 h2 h3],"Observed","Forecast","Forecast interval", ...
        Location="best");
    hold off
end
title(ht,"Forecasts and 95% Forecast Intervals")

Figure contains 4 axes objects. Axes object 1 with title GDP, xlabel Date contains 5 objects of type line, patch. These objects represent Observed, Forecast, Forecast interval. Axes object 2 with title GDPDEF, xlabel Date contains 5 objects of type line, patch. These objects represent Observed, Forecast, Forecast interval. Axes object 3 with title COE, xlabel Date contains 5 objects of type line, patch. These objects represent Observed, Forecast, Forecast interval. Axes object 4 with title HOANBS, xlabel Date contains 5 objects of type line, patch. These objects represent Observed, Forecast, Forecast interval.

figure
ht = tiledlayout(2,2);
for j = 5:7
    nexttile
    h1 = plot(FRED.Time((end-39):end),FRED{(end-39):end,j});
    hold on
    h2 = plot(FRED.Time(~estIdx),Y(:,j));
    h3 = plot(FRED.Time(~estIdx),YFI(:,j,1),"k--");
    plot(FRED.Time(~estIdx),YFI(:,j,2),"k--");
    title(EstMdl.SeriesNames(j));
    xlabel("Date");
    h = gca;
    fill([bfh h.XLim([2 2]) bfh],h.YLim([1 1 2 2]),"k", ...
        FaceAlpha=0.1,EdgeColor="none");
    legend([h1 h2 h3],"Observed","Forecast","Forecast interval", ...
        Location="best");
    hold off
end
title(ht,"Forecasts and 95% Forecast Intervals")

Figure contains 3 axes objects. Axes object 1 with title FEDFUNDS, xlabel Date contains 5 objects of type line, patch. These objects represent Observed, Forecast, Forecast interval. Axes object 2 with title PCEC, xlabel Date contains 5 objects of type line, patch. These objects represent Observed, Forecast, Forecast interval. Axes object 3 with title GPDI, xlabel Date contains 5 objects of type line, patch. These objects represent Observed, Forecast, Forecast interval.

Since R2022b

Consider a VEC model for the following seven macroeconomic series, and then fit the model to a timetable of response data. This example is based on Return Matrix of VEC Model Forecasts.

Load and Preprocess Data

Load the Data_USEconVECModel data set.

load Data_USEconVECModel

DTT = FRED;
DTT.GDP = 100*log(DTT.GDP);
DTT.GDPDEF = 100*log(DTT.GDPDEF);
DTT.COE = 100*log(DTT.COE);
DTT.HOANBS = 100*log(DTT.HOANBS);
DTT.PCEC = 100*log(DTT.PCEC);
DTT.GPDI = 100*log(DTT.GPDI);

Prepare Timetable for Estimation

When you plan to supply a timetable directly to estimate, you must ensure it has all the following characteristics:

  • All selected response variables are numeric and do not contain any missing values.

  • The timestamps in the Time variable are regular, and they are ascending or descending.

Remove all missing values from the table.

DTT = rmmissing(DTT);
T = height(DTT)
T =
240

DTT does not contain any missing values.

Determine whether the sampling timestamps have a regular frequency and are sorted.

areTimestampsRegular = isregular(DTT,"quarters")
areTimestampsRegular = logical
   0

areTimestampsSorted = issorted(DTT.Time)
areTimestampsSorted = logical
   1

areTimestampsRegular = 0 indicates that the timestamps of DTT are irregular. areTimestampsSorted = 1 indicates that the timestamps are sorted. Macroeconomic series in this example are timestamped at the end of the month. This quality induces an irregularly measured series.

Remedy the time irregularity by shifting all dates to the first day of the quarter.

dt = DTT.Time;
dt = dateshift(dt,"start","quarter");
DTT.Time = dt;

DTT is regular with respect to time.

Create Model Template for Estimation

Create a VEC(1) model by using the shorthand syntax. Specify the variable names.

Mdl = vecm(7,4,1);
Mdl.SeriesNames = DTT.Properties.VariableNames;

Mdl is a vecm model object. All properties containing NaN values correspond to parameters to be estimated given data.

Fit Model to Data

Estimate the model by supplying the timetable of data DTT. By default, because the number of variables in Mdl.SeriesNames is the number of variables in DTT, estimate fits the model to all the variables in DTT.

EstMdl = estimate(Mdl,DTT);

EstMdl is an estimated vecm model object.

Forecast Responses and Compute Forecast MSEs

Forecast responses from the estimated model over a three-year horizon. Specify the entire data set DTT as a presample observations.

numperiods = 12;
[Tbl,YMSE] = forecast(EstMdl,numperiods,DTT);
size(Tbl)
ans = 1×2

    12     7

tail(DTT)
       Time         GDP      GDPDEF     COE      HOANBS    FEDFUNDS     PCEC      GPDI
    ___________    ______    ______    ______    ______    ________    ______    ______

    01-Jan-2015     978.6    469.42    915.93     470.1      0.11      940.09    802.11
    01-Apr-2015     979.8    469.97    917.34    470.57      0.13      941.25    802.29
    01-Jul-2015     980.6    470.28     918.4    470.52      0.14       942.2    803.01
    01-Oct-2015    981.04    470.51    919.95    471.33      0.24      942.86    802.61
    01-Jan-2016    981.37    470.62    919.95    471.67      0.36      943.33    801.86
    01-Apr-2016    982.28    471.19     921.5    472.09      0.38      944.88    800.22
    01-Jul-2016     983.5    471.54    922.78    472.24       0.4      945.97    801.21
    01-Oct-2016    984.48    472.06    923.69    472.47      0.54      947.12    804.13
head(Tbl)
       Time        GDP_Responses    GDPDEF_Responses    COE_Responses    HOANBS_Responses    FEDFUNDS_Responses    PCEC_Responses    GPDI_Responses
    ___________    _____________    ________________    _____________    ________________    __________________    ______________    ______________

    01-Jan-2017        985.7             472.53            924.74             472.87               0.3725              948.18            806.74
    01-Apr-2017       986.82             472.93            925.75             473.21              0.33795              949.24            808.66
    01-Jul-2017       987.92             473.31            926.78             473.57              0.30002              950.29            810.45
    01-Oct-2017       988.99             473.67            927.82             473.94              0.27518              951.35            812.12
    01-Jan-2018       990.07             474.02            928.88             474.33                0.263              952.42            813.74
    01-Apr-2018       991.14             474.37            929.95             474.74              0.26045              953.49            815.32
    01-Jul-2018       992.22             474.71            931.04             475.15              0.26472              954.56            816.86
    01-Oct-2018       993.29             475.05            932.14             475.56              0.27283              955.64            818.35
YMSE
YMSE=12×1 cell array
    {7x7 double}
    {7x7 double}
    {7x7 double}
    {7x7 double}
    {7x7 double}
    {7x7 double}
    {7x7 double}
    {7x7 double}
    {7x7 double}
    {7x7 double}
    {7x7 double}
    {7x7 double}

YMSE{6}
ans = 7×7

    7.6245    1.6879    7.7978    6.3846    3.5735    5.2342   26.8879
    1.6879    1.9506    1.7640    0.4391    1.6560    1.2281    4.4627
    7.7978    1.7640    8.8184    6.9137    3.6937    5.4552   28.3538
    6.3846    0.4391    6.9137    7.4894    2.9271    4.2783   25.3822
    3.5735    1.6560    3.6937    2.9271    4.3945    2.1872   12.6306
    5.2342    1.2281    5.4552    4.2783    2.1872    4.1945   18.0819
   26.8879    4.4627   28.3538   25.3822   12.6306   18.0819  113.1428

Tbl is a 12-by-7 matrix of forecasted responses (denoted responseVariable_Responses). The timestamps of Tbl follow directly from the timestamps of DTT, and they have the same sampling frequency. YMSE is a 12-by-1 cell array of 7-by-7 forecast MSE matrices. For example, the forecast covariance of GDP and COE in period 6 of the forecast horizon if element (1,3) of the matrix in YMSE{6}, which is 7.7978.

Since R2022b

Consider the model and data in Return Matrix of VEC Model Forecasts.

Load Data

Load the Data_USEconVECModel data set.

load Data_USEconVECModel

The Data_Recessions data set contains the beginning and ending serial dates of recessions. Load this data set. Convert the matrix of date serial numbers to a datetime array.

load Data_Recessions
dtrec = datetime(Recessions,ConvertFrom="datenum");

Preprocess Data

Remove the exponential trend from the series, and then scale them by a factor of 100.

DTT = FRED;
DTT.GDP = 100*log(DTT.GDP);
DTT.GDPDEF = 100*log(DTT.GDPDEF);
DTT.COE = 100*log(DTT.COE);
DTT.HOANBS = 100*log(DTT.HOANBS);
DTT.PCEC = 100*log(DTT.PCEC);
DTT.GPDI = 100*log(DTT.GPDI);

Create a dummy variable that identifies periods in which the U.S. was in a recession or worse. Specifically, the variable should be 1 if FRED.Time occurs during a recession, and 0 otherwise. Include the variable with the FRED data.

isin = @(x)(any(dtrec(:,1) <= x & x <= dtrec(:,2)));
DTT.IsRecession = double(arrayfun(isin,DTT.Time));

Prepare Timetable for Estimation

Remove all missing values from the table.

DTT = rmmissing(DTT);

To make the series regular, shift all dates to the first day of the quarter.

dt = DTT.Time;
dt = dateshift(dt,"start","quarter");
DTT.Time = dt;

DTT is regular with respect to time.

Create Model Template for Estimation

Create a VEC(1) model using the shorthand syntax. Assume that the appropriate cointegration rank is 4. You do not have to specify the presence of a regression component when creating the model. Specify the variable names.

Mdl = vecm(7,4,1);
Mdl.SeriesNames = DTT.Properties.VariableNames(1:end-1);

Fit Model to Data

Estimate the model using all but the last three years of data. Specify the predictor identifying whether the observation was measured during a recession.

bfh = DTT.Time(end) - years(3);
fh = DTT.Time(DTT.Time >= bfh);
EstSample = DTT(DTT.Time < bfh,:);
FSample = DTT(fh,:);
EstMdl = estimate(Mdl,EstSample,PredictorVariables="IsRecession");

Forecast Responses

Forecast a path of quarterly responses three years into the future.

numperiods = numel(fh);
Tbl = forecast(EstMdl,numperiods,EstSample, ...
    InSample=FSample,PredictorVariables="IsRecession");
head(Tbl(:,endsWith(Tbl.Properties.VariableNames,"_Responses")))
       Time        GDP_Responses    GDPDEF_Responses    COE_Responses    HOANBS_Responses    FEDFUNDS_Responses    PCEC_Responses    GPDI_Responses
    ___________    _____________    ________________    _____________    ________________    __________________    ______________    ______________

    01-Jan-2014       974.87             468.25            911.21             467.31              0.47511              936.25            793.63
    01-Apr-2014       975.81              468.6            912.19             467.82              0.63807              937.22            794.68
    01-Jul-2014       976.67             468.91            913.19              468.3              0.72011              938.16            795.47
    01-Oct-2014       977.53             469.21            914.16             468.77              0.76135              939.08            796.33
    01-Jan-2015       978.38             469.49            915.12              469.2               0.7691              939.98            797.17
    01-Apr-2015       979.22             469.77            916.06             469.62              0.75747              940.86               798
    01-Jul-2015       980.05             470.04            916.99             470.02              0.73223              941.74            798.83
    01-Oct-2015       980.89             470.31            917.91             470.41              0.69828              942.62            799.67

Tbl is a 12-by-15 matrix of variables in FSample and forecasted responses (variables named responseVariable_Responses, for each response responseVariable in the model).

Plot the forecasted responses and the last 50 true responses.

figure;
tiledlayout(2,2)
for j = EstMdl.SeriesNames(1:4)
    nexttile
    h1 = plot(DTT.Time((end-49):end),DTT{(end-49):end,j});
    hold on
    h2 = plot(Tbl.Time,Tbl{:,j+"_Responses"});
    title(j);
    xlabel("Date");
    h = gca;
    fill([DTT.Time(end) bfh([end end]) DTT.Time(end)],h.YLim([1 1 2 2]),"k", ...
        FaceAlpha=0.1,EdgeColor="none");
    legend([h1 h2],"True","Forecast",Location="best")
    hold off
end

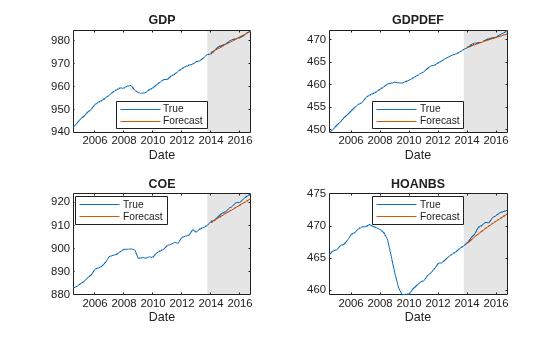

Figure contains 4 axes objects. Axes object 1 with title GDP, xlabel Date contains 3 objects of type line, patch. These objects represent True, Forecast. Axes object 2 with title GDPDEF, xlabel Date contains 3 objects of type line, patch. These objects represent True, Forecast. Axes object 3 with title COE, xlabel Date contains 3 objects of type line, patch. These objects represent True, Forecast. Axes object 4 with title HOANBS, xlabel Date contains 3 objects of type line, patch. These objects represent True, Forecast.

figure
tiledlayout(2,2)
for j = EstMdl.SeriesNames(5:7)
    nexttile
    h1 = plot(DTT.Time((end-49):end),DTT{(end-49):end,j});
    hold on
    h2 = plot(Tbl.Time,Tbl{:,j+"_Responses"});
    title(j);
    xlabel("Date");
    h = gca;
    fill([DTT.Time(end) bfh([end end]) DTT.Time(end)],h.YLim([1 1 2 2]),"k", ...
        FaceAlpha=0.1,EdgeColor="none");
    legend([h1 h2],"True","Forecast",Location="best")
    hold off
end

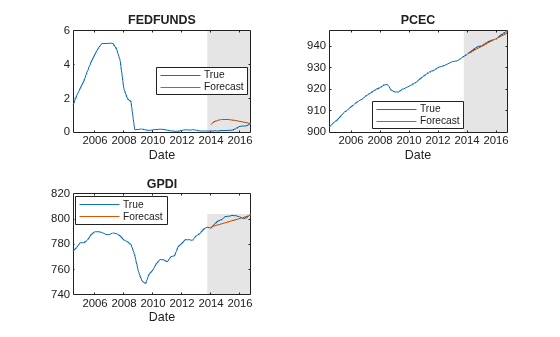

Figure contains 3 axes objects. Axes object 1 with title FEDFUNDS, xlabel Date contains 3 objects of type line, patch. These objects represent True, Forecast. Axes object 2 with title PCEC, xlabel Date contains 3 objects of type line, patch. These objects represent True, Forecast. Axes object 3 with title GPDI, xlabel Date contains 3 objects of type line, patch. These objects represent True, Forecast.

Since R2022b

This example is based on Return Timetable of Forecasts and Array of Forecast MSEs. Forecast all response variables of the VEC model into a 3-year forecast horizon beyond the sampling data, given that the effective federal funds rate FEDFUNDS is 0.5% during each future quarter.

Load and Preprocess Data

Load the Data_USEconVECModel data set.

load Data_USEconVECModel

DTT = FRED;
DTT.GDP = 100*log(DTT.GDP);
DTT.GDPDEF = 100*log(DTT.GDPDEF);
DTT.COE = 100*log(DTT.COE);
DTT.HOANBS = 100*log(DTT.HOANBS);
DTT.PCEC = 100*log(DTT.PCEC);
DTT.GPDI = 100*log(DTT.GPDI);

Prepare Timetable for Estimation

Remove all missing values from the table.

DTT = rmmissing(DTT);

To make the series regular, shift all dates to the first day of the quarter.

dt = DTT.Time;
dt = dateshift(dt,"start","quarter");
DTT.Time = dt;

DTT is regular with respect to time.

Create Model Template for Estimation

Create a VEC(1) model using the shorthand syntax. Specify the variable names.

Mdl = vecm(7,4,1);
Mdl.SeriesNames = DTT.Properties.VariableNames;

Mdl is a vecm model object. All properties containing NaN values correspond to parameters to be estimated given data.

Fit Model to Data

Estimate the model. Pass the entire timetable DTT.

EstMdl = estimate(Mdl,DTT);

Prepare for Conditional Forecast of Estimated Model

Suppose economists hypothesize that the effective federal funds rate will be at 0.5% for the next 12 quarters.

Create a timetable with the following qualities:

  1. The timestamps are regular with respect to the estimation sample timestamps and they are ordered from Q1 of 2017 through Q4 of 2019.

  2. All variables of DTT, except for FEDFUNDS, are a 12-by-1 vector of NaN values.

  3. FEDFUNDS is a 12-by-1 vector, where each element is 0.5.

numperiods = 12;
shdt = DTT.Time(end) + calquarters(1:numperiods);
DTTCondF = retime(DTT,shdt,"fillwithmissing");
DTTCondF.FEDFUNDS = 0.5*ones(numperiods,1);

DTTCondF is a 12-by-7 timetable that follows directly, in time, from DTT, and both timetables have the same variables. All variables in DTTCondF contain NaN values, except for FEDFUNDS, which is a vector composed of the value 0.5.

Perform Conditional Simulation of Estimated Model

Forecast all response variables, given the hypothesis, by supplying the conditioning data DTTCondF and specifying the response variable names. Supply the estimation sample as a presample to initialize the model.

Tbl = forecast(EstMdl,numperiods,DTT, ...
    InSample=DTTCondF,ResponseVariables=EstMdl.SeriesNames);
size(Tbl)
ans = 1×2

    12    14

idx = endsWith(Tbl.Properties.VariableNames,"_Responses");
head(Tbl(:,idx))
       Time        GDP_Responses    GDPDEF_Responses    COE_Responses    HOANBS_Responses    FEDFUNDS_Responses    PCEC_Responses    GPDI_Responses
    ___________    _____________    ________________    _____________    ________________    __________________    ______________    ______________

    01-Jan-2017       985.73             472.53            924.76             472.89                0.5                 948.2            806.83
    01-Apr-2017       986.89             472.96             925.8             473.27                0.5                949.27            808.96
    01-Jul-2017       988.01             473.36            926.87             473.65                0.5                950.34            810.86
    01-Oct-2017       989.12             473.74            927.94             474.04                0.5                951.42            812.62
    01-Jan-2018       990.22             474.12            929.04             474.45                0.5                 952.5            814.28
    01-Apr-2018       991.31             474.49            930.14             474.85                0.5                953.59            815.85
    01-Jul-2018       992.39             474.86            931.25             475.25                0.5                954.67            817.35
    01-Oct-2018       993.47             475.24            932.36             475.65                0.5                955.76            818.79

Tbl is a 12-by-14 matrix of forecasts of all response variables of the VEC model in the forecast horizon, given FEDFUNDS is 0.5%. GDP_Responses contains the forecasts of the transformed GDP series. FEDFUNDS_Responses is a 12-by-1 vector composed of the value 0.5.

Since R2022b

This example is based on Return Timetable of Forecasts and Array of Forecast MSEs. Forecast all response variables of the VEC model into a 1-year forecast horizon beyond the sampling data, given several hypotheses economists make on the effective federal funds rate FEDFUNDS during each quarter of the next year after the sampling period.

Load the Data_USEconVECModel data set.

load Data_USEconVECModel

DTT = FRED;
DTT.GDP = 100*log(DTT.GDP);
DTT.GDPDEF = 100*log(DTT.GDPDEF);
DTT.COE = 100*log(DTT.COE);
DTT.HOANBS = 100*log(DTT.HOANBS);
DTT.PCEC = 100*log(DTT.PCEC);
DTT.GPDI = 100*log(DTT.GPDI);

Remove all missing values from the table.

DTT = rmmissing(DTT);

To make the series regular, shift all dates to the first day of the quarter.

dt = DTT.Time;
dt = dateshift(dt,"start","quarter");
DTT.Time = dt;

DTT is regular with respect to time.

Create a VEC(1) model using the shorthand syntax. Specify the variable names.

Mdl = vecm(7,4,1);
Mdl.SeriesNames = DTT.Properties.VariableNames;

Estimate the model. Pass the entire timetable DTT.

EstMdl = estimate(Mdl,DTT);

Assuming the effective federal funds rate is 0.1%, 0.25%, 0.5%, 0.75%, and 1% percent throughout a 1-year forecast horizon, generate a forecast path for all response variables under each scenario.

Create a timetable with the following qualities:

  1. The timestamps are regular with respect to the estimation sample timestamps and they are ordered from Q1 of 2017 through Q4 of 2017.

  2. The variable FEDFUNDS is a 4-by-5 matrix, where each column is composed of each of the assumptions on the value of the effective federal funds rate in the forecast horizon; the elements of the first column are 0.1, elements of the second column are 0.25, and so on.

  3. Each other response variable is a 4-by-5 matrix of NaN values to be filled with forecasted paths by forecast.

numperiods = 4;
shdt = DTT.Time(end) + calquarters(1:numperiods);
DTTCondF = retime(DTT,shdt,"fillwithmissing");
DTTCondF = varfun(@(x)nan(numperiods,5),DTTCondF);
DTTCondF.Properties.VariableNames = EstMdl.SeriesNames;
DTTCondF.FEDFUNDS = ones(numperiods,1)*[0.1 0.25 0.5 0.75 1];
DTTCondF
DTTCondF=4×7 timetable
       Time                      GDP                              GDPDEF                               COE                              HOANBS                              FEDFUNDS                               PCEC                               GPDI
    ___________    _______________________________    _______________________________    _______________________________    _______________________________    ___________________________________    _______________________________    _______________________________

    01-Jan-2017    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    0.1    0.25     0.5    0.75       1    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN
    01-Apr-2017    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    0.1    0.25     0.5    0.75       1    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN
    01-Jul-2017    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    0.1    0.25     0.5    0.75       1    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN
    01-Oct-2017    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    0.1    0.25     0.5    0.75       1    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN    NaN

DTTCondF is a 4-by-7 timetable that follows directly, in time, from DTT, and both timetables have the same variables. Each variable in DTTCondF contains a 4-by-5 matrix of NaN values, except for FEDFUNDS, which is a matrix with each column containing a different scenario for the conditional forecasts.

Forecast all response variables, given the hypotheses, by supplying the conditioning data DTTCondF and specifying the response variable names. Supply the estimation sample as a presample to initialize the model. Return the forecast MSE matrices.

[Tbl,YMSE] = forecast(EstMdl,numperiods,DTT, ...
    InSample=DTTCondF,ResponseVariables=EstMdl.SeriesNames);
size(Tbl)
ans = 1×2

     4    14

idx = endsWith(Tbl.Properties.VariableNames,"_Responses");
head(Tbl(:,idx))
       Time                        GDP_Responses                                    GDPDEF_Responses                                   COE_Responses                                    HOANBS_Responses                           FEDFUNDS_Responses                             PCEC_Responses                                    GPDI_Responses
    ___________    ______________________________________________    ______________________________________________    ______________________________________________    ______________________________________________    ___________________________________    ______________________________________________    ______________________________________________

    01-Jan-2017    985.65    985.68    985.73    985.77    985.82    472.51    472.52    472.53    472.54    472.55     924.7    924.72    924.76    924.79    924.82    472.83    472.85    472.89    472.94    472.98    0.1    0.25     0.5    0.75       1    948.14    948.16     948.2    948.23    948.27    806.54    806.65    806.83    807.01     807.2
    01-Apr-2017    986.73    986.79    986.89    986.98    987.08     472.9    472.92    472.96    472.99    473.03    925.67    925.72     925.8    925.88    925.97    473.13    473.18    473.27    473.35    473.44    0.1    0.25     0.5    0.75       1     949.2    949.23    949.27    949.31    949.36    808.17    808.47    808.96    809.45    809.94
    01-Jul-2017    987.83     987.9    988.01    988.12    988.24    473.26    473.29    473.36    473.42    473.48    926.69    926.76    926.87    926.97    927.08     473.5    473.55    473.65    473.74    473.84    0.1    0.25     0.5    0.75       1    950.26    950.29    950.34     950.4    950.45    810.06    810.36    810.86    811.36    811.86
    01-Oct-2017    988.93       989    989.12    989.24    989.37     473.6    473.65    473.74    473.83    473.92    927.74    927.82    927.94    928.07     928.2     473.9    473.96    474.04    474.13    474.22    0.1    0.25     0.5    0.75       1    951.33    951.36    951.42    951.48    951.54    811.86    812.15    812.62     813.1    813.58
YMSE
YMSE=4×1 cell array
    {7x7 double}
    {7x7 double}
    {7x7 double}
    {7x7 double}

YMSE{4}
ans = 7×7

    2.9103    0.2459    2.6926    2.2954         0    1.9785   10.5522
    0.2459    0.6435    0.2598   -0.2005         0    0.2656    0.1772
    2.6926    0.2598    3.1251    2.3680         0    1.9150   10.3987
    2.2954   -0.2005    2.3680    3.0306         0    1.5138   10.0253
         0         0         0         0         0         0         0
    1.9785    0.2656    1.9150    1.5138         0    1.7880    6.7155
   10.5522    0.1772   10.3987   10.0253         0    6.7155   50.7359

Tbl is a 4-by-14 matrix of forecasts of all response variables of the VEC model in the forecast horizon, given each assumption on FEDFUNDS. GDP_Responses contains the matrix of 5 forecast paths of the transformed GDP series from matrix of 5 forecast paths. Each path uses the corresponding assumption about the value of FEDFUNDS_Responses.

YMSE is a 4-by-1 cell vector of 7-by-7 forecast MSE matrices for each period in the forecast horizon. The MSE matrices apply to each forecast path, and all elements of each matrix corresponding to the conditioning variable are 0.

Input Arguments

collapse all

VEC model, specified as a vecm model object created by vecm or estimate. Mdl must be fully specified.

Forecast horizon, or the number of time points in the forecast period, specified as a positive integer.

Data Types: double

Presample response data that provides initial values for the forecasts, specified as a numpreobs-by-numseries numeric matrix or a numpreobs-by-numseries-by-numprepaths numeric array. Use Y0 only when you supply optional data inputs as numeric arrays.

numpreobs is the number of presample observations. numseries is the number of response series (Mdl.NumSeries). numprepaths is the number of presample response paths.

Each row is a presample observation, and measurements in each row, among all pages, occur simultaneously. The last row contains the latest presample observation. Y0 must have at least Mdl.P rows. If you supply more rows than necessary, forecast uses the latest Mdl.P observations only.

Each column corresponds to the response series name in Mdl.SeriesNames.

Pages correspond to separate, independent paths.

  • If you compute unconditional forecasts (that is, you do not specify the YF name-value argument), forecast initializes each forecasted path (page) using the corresponding page of Y0. Therefore, the output argument Y has numpaths = numprepaths pages.

  • If you compute conditional forecasts by specifying future response data in YF: forecast takes one of these actions:

    • If Y0 is a matrix, forecast initializes each response path (page) in YF using the corresponding presample response in Y0. Therefore, numpaths is the number of paths in YF, and all paths in the output argument Y derive from common initial conditions.

    • If YF is a matrix, forecast generates numprepaths forecast paths, initialized by each presample response path in Y0, but the future response data, from which to condition the forecasts, is the same among all paths. Therefore, numprepaths is the number of paths in the output argument Y, and all paths evolve from possibly different initial conditions.

    • Otherwise, numpaths is the minimum between numprepaths and the number of pages in YF, and forecast applies Y0(:,:,j) to initialize forecasting path j, for j = 1,…,numpaths.

Data Types: double

Since R2022b

Presample response data that provides initial values for the forecasts, specified as a table or timetable with numprevars variables and numpreobs rows. forecast returns the forecasted response variable in the output table or timetable Tbl2, which is commensurate with Tbl1.

Each row is a presample observation, and measurements in each row, among all paths, occur simultaneously. numpreobs must be at least Mdl.P. If you supply more rows than necessary, forecast uses the latest Mdl.P observations only.

Each selected response variable is a numpreobs-by-numprepaths numeric matrix. You can optionally specify numseries response variables by using the PresampleResponseVariables name-value argument.

Paths (columns) within a particular response variable are independent, but path j of all variables correspond, for j = 1,…,numprepaths. The following conditions apply:

  • If you compute unconditional forecasts (that is, you do not specify the InSample and ResponseVariables name-value arguments), forecast initializes each forecasted path per selected response variable using the corresponding path in Tbl1. Therefore, each forecasted response variable in the output argument Tbl2 is a numperiods-by-numprepaths matrix.

  • If you compute conditional forecasts by specifying future response data in InSample and corresponding response variables from the data by using ResponseVariables, forecast takes one of these actions:

    • If the selected presample response variables are vectors, forecast initializes each forecast path (column) of the selected response variables in InSample by using the corresponding presample variable in Tbl1. Therefore, all paths in the forecasted response variables evolve from common initial conditions.

    • If the selected response variables in InSample are vectors, forecast generates numprepaths forecast paths, initialized by the paths of each selected presample response variable in Tbl1, but the future response data, from which to condition the forecasts, is the same among all paths. Therefore, numpaths = numprepaths is the number of paths in all forecasted response variables, and all paths evolve from possibly different initial conditions.

    • Otherwise, numpaths is the minimum between numprepaths and the number of paths in each selected response variable in InSample. For each selected presample and future sample response variable ResponseK and each path j = 1,…,numpaths, forecast applies Tbl1.ResponseK(:,j) to initialize the conditional forecast for the response data in Tbl2.ResponseK(:,j).

If Tbl1 is a timetable, all the following conditions must be true:

  • Tbl1 must represent a sample with a regular datetime time step (see isregular).

  • The inputs InSample and Tbl1 must be consistent in time such that Tbl1 immediately precedes InSample with respect to the sampling frequency and order.

  • The datetime vector of sample timestamps Tbl1.Time must be ascending or descending.

If Tbl1 is a table, the last row contains the latest presample observation.

Since R2022b

Future time series response or predictor data, specified as a table or timetable. InSample contains numvars variables, including numseries response variables yt or numpreds predictor variables xt for the model regression component. You can specify InSample only when you specify Tbl1.

Use InSample in the following situations:

  • Perform conditional simulation. You must also supply the response variable names to select response data in InSample by using the ResponseVariables name-value argument.

  • Supply future predictor data for either unconditional or conditional simulation. To supply predictor data, you must specify predictor variable names in InSample by using the PredictorVariables name-value argument. Otherwise, forecast ignores the model regression component.

Each row corresponds to an observation in the forecast horizon, the first row is the earliest observation, and measurements in each row, among all paths, occur simultaneously. Specifically, row j of variable VariableK (InSample.VariableK(j,:)) contains observations j periods into the future, or the j-period-ahead forecasts. InSample must have at least numperiods rows to cover the forecast horizon. If you supply more rows than necessary, forecast uses only the first numperiods rows.

Each selected response variable is a numeric matrix. For each selected response variable K, columns are separate, independent paths. Specifically, path j of response variable ResponseK captures the state, or knowledge, of ResponseK as it evolves from the presample past (for example, Tbl1.ResponseK) into the future. For each selected response variable ResponseK:

  • If the selected presample response variables in Tbl1 are vectors, forecast initializes each forecast path (column) of the selected response variables in InSample by using the corresponding presample variable in Tbl1. Therefore, all paths in the forecasted response variables of the output Tbl2 evolve from common initial conditions.

  • If the selected response variables in InSample are vectors, forecast generates numprepaths forecast paths, initialized by the paths of each selected presample response variable in Tbl1, but the future response data, from which to condition the forecasts, is the same among all paths. Therefore, numpaths = numprepaths is the number of paths in all forecasted response variables, and all paths evolve from possibly different initial conditions.

  • Otherwise, numpaths is the minimum between numprepaths and the number of paths in each selected response variable in InSample. For each selected presample and future sample response variable ResponseK and each path j = 1,…,numpaths, forecast applies Tbl1.ResponseK(:,j) to initialize the conditional forecast for the response data in Tbl2.ResponseK(:,j).

Each predictor variable is a numeric vector. All predictor variables are present in the regression component of each response equation and apply to all response paths.

If InSample is a timetable, the following conditions apply:

  • InSample must represent a sample with a regular datetime time step (see isregular).

  • The datetime vector InSample.Time must be ascending or descending.

  • Tbl1 must immediately precede InSample, with respect to the sampling frequency.

If InSample is a table, the last row contains the latest observation.

Elements of the response variables of InSample can be numeric scalars or missing values (indicated by NaN values). forecast treats numeric scalars as deterministic future responses that are known in advance, for example, set by policy. forecast forecasts responses for corresponding NaN values conditional on the known values. Elements of selected predictor variables must be numeric scalars.

By default, forecast computes conventional MMSE forecasts and forecast MSEs without a regression component in the model (each selected response variable is a numperiods-by-numprepaths matrix composed of NaN values indicating a complete lack of knowledge of the future state of the responses in the forecast horizon).

For more details, see Algorithms.

Example: Consider forecasting one path from a model composed of two response series, GDP and CPI, three periods into the future. Suppose that you have prior knowledge about some of the future values of the responses, and you want to forecast the unknown responses conditional on your knowledge. Specify InSample as a matrix containing the values that you know, and use NaN for values you do not know but want to forecast. For example, InSample=array2table([2 NaN; 0.1 NaN; NaN NaN],VariableNames=["GDP" "CPI"]) specifies that you have no knowledge of the future values of CPI, but you know that GDP is 2, 0.1, and unknown in periods 1, 2, and 3, respectively, in the forecast horizon.

Since R2022b

Variables to select from InSample to treat as response variables yt, specified as one of the following data types:

  • String vector or cell vector of character vectors containing numseries variable names in InSample.Properties.VariableNames

  • A length numseries vector of unique indices (integers) of variables to select from InSample.Properties.VariableNames

  • A length numvars logical vector, where ResponseVariables(j) = true selects variable j from InSample.Properties.VariableNames, and sum(ResponseVariables) is numseries

The selected variables must be numeric vectors (single path) or matrices (columns represent multiple independent paths) of the same width.

To compute conditional forecasts, you must specify ResponseVariables to select the response variables in InSample for the conditioning data. ResponseVariables applies only when you specify InSample.

By default, forecast computes conventional MMSE forecasts and forecast MSEs.

Example: ResponseVariables=["GDP" "CPI"]

Example: ResponseVariables=[true false true false] or ResponseVariable=[1 3] selects the first and third table variables as the response variables.

Data Types: double | logical | char | cell | string

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: forecast(Mdl,10,Y0,X=Exo) returns a numeric array containing a 10-period forecasted response path from Mdl and the numeric matrix of presample response data Y0, and specifies the numeric matrix of future predictor data for the model regression component in the forecast horizon Exo.

Since R2022b

Variables to select from Tbl1 to use for presample data, specified as one of the following data types:

  • String vector or cell vector of character vectors containing numseries variable names in Tbl1.Properties.VariableNames

  • A length numseries vector of unique indices (integers) of variables to select from Tbl1.Properties.VariableNames

  • A length numprevars logical vector, where PresampleResponseVariables(j) = true selects variable j from Tbl1.Properties.VariableNames, and sum(PresampleResponseVariables) is numseries

The selected variables must be numeric vectors and cannot contain missing values (NaN).

PresampleResponseNames does not need to contain the same names as in Mdl.SeriesNames; forecast uses the data in selected variable PresampleResponseVariables(j) as a presample for Mdl.SeriesNames(j).

If the number of variables in Tbl1 matches Mdl.NumSeries, the default specifies all variables in Tbl1. If the number of variables in Tbl1 exceeds Mdl.NumSeries, the default matches variables in Tbl1 to names in Mdl.SeriesNames.

Example: PresampleResponseVariables=["GDP" "CPI"]

Example: PresampleResponseVariables=[true false true false] or PresampleResponseVariable=[1 3] selects the first and third table variables for presample data.

Data Types: double | logical | char | cell | string

Forecasted time series of predictor data xt to include in the model regression component, specified as a numeric matrix containing numpreds columns. Use X only when you supply Y0.

numpreds is the number of predictor variables (size(Mdl.Beta,2)).

Each row corresponds to an observation in the forecast horizon, and measurements in each row occur simultaneously. Specifically, row j (X(j,:)) contains the predictor observations j periods into the future, or the j-period-ahead forecasts. X must have at least numperiods rows. If you supply more rows than necessary, forecast uses only the earliest numperiods observations. The first row contains the earliest observation. forecast does not use the regression component in the presample period.

Each column is an individual predictor variable. All predictor variables are present in the regression component of each response equation.

forecast applies X to each path (page); that is, X represents one path of observed predictors.

To maintain model consistency into the forecast horizon, specify forecasted predictors when Mdl has a regression component.

By default, forecast excludes the regression component, regardless of its presence in Mdl.

Data Types: double

Future multivariate response series data for conditional forecasting, specified as a numeric matrix or array containing numseries columns. Use YF only when you supply Y0.

Each row corresponds to observations in the forecast horizon, and the first row is the earliest observation. Specifically, row j in sample path k (YF(j,:,k)) contains the responses j periods into the future, or the j-period-ahead forecasts. YF must have at least numperiods rows to cover the forecast horizon. If you supply more rows than necessary, forecast uses only the first numperiods rows.

Each column corresponds to the response variable name in Mdl.SeriesNames.

Each page corresponds to a separate sample path. Specifically, path k (YF(:,:,k)) captures the state, or knowledge, of the response series as they evolve from the presample past (Y0) into the future.

  • If YF is a matrix, forecast generates numprepaths forecast paths, initialized by each presample response path in Y0, but the future response data, from which to condition the forecasts, is the same among all paths. Therefore, numprepaths is the number of paths in the output argument Y, and all paths evolve from possibly different initial conditions.

  • If Y0 is a matrix, forecast initializes each response path (page) in YF using the corresponding presample response in Y0. Therefore, numpaths is the number of paths in YF, and all paths in the output argument Y derive from common initial conditions.

  • Otherwise, numpaths is the minimum between numprepaths and the number of pages in YF, and forecast applies Y0(:,:,j) to initialize forecasting path j, for j = 1,…,numpaths.

Elements of YF can be numeric scalars or missing values (indicated by NaN values). forecast treats numeric scalars as deterministic future responses that are known in advance, for example, set by policy. forecast forecasts responses for corresponding NaN values conditional on the known values.

By default, YF is an array composed of NaN values indicating a complete lack of knowledge of all responses in the forecast horizon. In this case, forecast estimates conventional MMSE forecasts.

For more details, see Algorithms.

Example: Consider forecasting one path from a model composed of four response series three periods into the future. Suppose that you have prior knowledge about some of the future values of the responses, and you want to forecast the unknown responses conditional on your knowledge. Specify YF as a matrix containing the values that you know, and use NaN for values you do not know but want to forecast. For example, 'YF',[NaN 2 5 NaN; NaN NaN 0.1 NaN; NaN NaN NaN NaN] specifies that you have no knowledge of the future values of the first and fourth response series; you know the value for period 1 in the second response series, but no other value; and you know the values for periods 1 and 2 in the third response series, but not the value for period 3.

Data Types: double

Since R2022b

Variables to select from InSample to treat as exogenous predictor variables xt, specified as one of the following data types:

  • String vector or cell vector of character vectors containing numpreds variable names in InSample.Properties.VariableNames

  • A length numpreds vector of unique indices (integers) of variables to select from InSample.Properties.VariableNames

  • A length numvars logical vector, where PredictorVariables(j) = true selects variable j from InSample.Properties.VariableNames, and sum(PredictorVariables) is numpreds

Regardless, selected predictor variable j corresponds to the coefficients Mdl.Beta(:,j).

PredictorVariables applies only when you specify InSample.

The selected variables must be numeric vectors and cannot contain missing values (NaN).

By default, forecast excludes the regression component, regardless of its presence in Mdl.

Example: PredictorVariables=["M1SL" "TB3MS" "UNRATE"]

Example: PredictorVariables=[true false true false] or PredictorVariable=[1 3] selects the first and third table variables as the response variables.

Data Types: double | logical | char | cell | string

Note

  • NaN values in Y0 and X indicate missing values. forecast removes missing values from the data by list-wise deletion. If Y0 is a 3-D array, then forecast performs these steps:

    1. Horizontally concatenate pages to form a numpreobs-by-numpaths*numseries matrix.

    2. Remove any row that contains at least one NaN from the concatenated data.

    In the case of missing observations, the results obtained from multiple paths of Y0 can differ from the results obtained from each path individually.

    For missing values in X, forecast removes the corresponding row from each page of YF. After row removal from X and YF, if the number of rows is less than numperiods, forecast issues an error.

  • forecast issues an error when selected response variables from Tbl1 and selected predictor variables from InSample contain any missing values.

Output Arguments

collapse all

MMSE forecasts of the multivariate response series, returned as a numobs-by-numseries numeric matrix or a numobs-by-numseries-by-numpaths numeric array. forecast returns Y only when you supply presample data Y0 as a numeric matrix or array.

Y represents the continuation of the presample responses in Y0.

Each row is a time point in the simulation horizon. Specifically, row j contains the j-period-ahead forecasts. Values in a row, among all pages, occur simultaneously. The last row contains the latest forecasted values.

Each column corresponds to the response series name in Mdl.SeriesNames.

Pages correspond to separate, independently forecasted paths.

If you specify future responses for conditional forecasting using the YF name-value argument, the known values in YF appear in the same positions in Y. However, Y contains forecasted values for the missing observations in YF.

Since R2022b

MMSE forecasts of multivariate response series and other variables, returned as a table or timetable, the same data type as Tbl1. forecast returns Tbl2 only when you supply the inputs Tbl1.

Tbl2 contains the following variables:

  • The forecasted response paths within the numperiods length forecast horizon of the selected response series yt. Each forecasted response variable in Tbl2 is a numperiods-by-numpaths numeric matrix, where numpaths depends on the number of response paths in the specified presample or future sample data (see Tbl1 or InSample). Each row corresponds to a time in the forecast horizon and each column corresponds to a separate path. forecast names the forecasted response variable ResponseK ResponseK_Responses. For example, if Mdl.Series(K) is GDP, Tbl2 contains a variable for the corresponding forecasted response with the name GDP_Responses. If you specify ResponseVariables, ResponseK is ResponseVariable(K). Otherwise, ResponseK is PresampleResponseVariable(K).

  • If you specify InSample, all specified future response variables.

If Tbl2 is a timetable, the following conditions hold:

  • The row order of Tbl2, either ascending or descending, matches the row order of InSample, when you specify it. If you do not specify InSample, the row order of Tbl2 is the same as the row order Tbl1.

  • If you specify InSample, row times Tbl2.Time are InSample.Time(1:numperiods). Otherwise, Tbl2.Time(1) is the next time after Tbl1(end) relative to the sampling frequency, and Tbl2.Time(2:numperiods) are the following times relative to the sampling frequency.

MSE matrices of the forecasted responses, returned as a numperiods-by-1 cell vector of numseries-by-numseries numeric matrices. Cells of YMSE compose a time series of forecast error covariance matrices. Cell j contains the j-period-ahead MSE matrix.

YMSE is identical for all paths.

Because forecast treats predictor variables in X as exogenous and nonstochastic, YMSE reflects the error covariance associated with the autoregressive component of the input model Mdl only.

Algorithms

  • forecast estimates unconditional forecasts using the equation

    Δy^t=A^B^y^t1+Φ^1Δy^t1+...+Φ^pΔy^tp+c^+d^t+xtβ^,

    where t = 1,...,numperiods. forecast filters a numperiods-by-numseries matrix of zero-valued innovations through Mdl. forecast uses specified presample innovations (Y0 or Tbl1) wherever necessary.

  • forecast estimates conditional forecasts using the Kalman filter.

    1. forecast represents the VEC model Mdl as a state-space model (ssm model object) without observation error.

    2. forecast filters the forecast data YF through the state-space model. At period t in the forecast horizon, any unknown response is

      Δy^t=A^B^y^t1+Φ^1Δy^t1+...+Φ^pΔy^tp+c^+d^t+xtβ^,

      where y^s, s < t, is the filtered estimate of y from period s in the forecast horizon. forecast uses specified presample values in Y0 or Tbl1 for periods before the forecast horizon.

    For more details, see filter and [4], pp. 612 and 615.

  • The way forecast determines numpaths, the number of paths (pages) in the output argument Y, or the number of paths (columns) in the forecasted response variables in the output argument Tbl2, depends on the forecast type.

    • If you estimate unconditional forecasts, which means you do not specify the YF name-value argument, or InSample and ResponseVariables name-value arguments, numpaths is the number of paths in the Y0 or Tbl1 input argument.

    • If you estimate conditional forecasts and the presample data Y0 and future sample data YF, or response variables in Tbl1 and InSample have more than one path, numpaths is the fewest number of paths between the presample and future sample response data. Consequently, forecast uses only the first numpaths paths of each response variable for each input.

    • If you estimate conditional forecasts and either Y0 or YF, or response variables in Tbl1 or InSample have one path, numpaths is the number of pages in the array with the most pages. forecast uses the variables with one path to produce each output path.

  • forecast sets the time origin of models that include linear time trends t0 to numpreobsMdl.P (after removing missing values), where numpreobs is the number of presample observations. Therefore, the times in the trend component are t = t0 + 1, t0 + 2,..., t0 + numpreobs. This convention is consistent with the default behavior of model estimation in which estimate removes the first Mdl.P responses, reducing the effective sample size. Although forecast explicitly uses the first Mdl.P presample responses in Y0 or Tbl1 to initialize the model, the total number of usable observations determines t0. An observation in Y0 is usable if it does not contain a NaN.

References

[1] Hamilton, James D. Time Series Analysis. Princeton, NJ: Princeton University Press, 1994.

[2] Johansen, S. Likelihood-Based Inference in Cointegrated Vector Autoregressive Models. Oxford: Oxford University Press, 1995.

[3] Juselius, K. The Cointegrated VAR Model. Oxford: Oxford University Press, 2006.

[4] Lütkepohl, H. New Introduction to Multiple Time Series Analysis. Berlin: Springer, 2005.

Version History

Introduced in R2017b

expand all
