# Analyze Performance Attribution Using Brinson Model

This example shows how to prepare data, create a `brinsonAttribution` object, and then analyze the performance attribution with respect to category (sector) weights and returns. In this example, you use the `categoryAttribution`, `categoryReturns`, `categoryWeights`, `totalAttribution`, and `summary` functions for the anlaysis.

### Prepare Data

Load the stock price data into a table.

```T = readtable('dowPortfolio.xlsx'); MonthIdx = [1;20;39;62;81;103;125;145;168;188;210;231;251]; MonthlyPrices = T(MonthIdx,3:end);```

Compute the monthly returns using `tick2ret`.

```MonthlyReturns = tick2ret(MonthlyPrices.Variables)'; [NumAssets,NumPeriods] = size(MonthlyReturns);```

Define the asset categories (sectors) using `categorical`.

```Category = categorical(["Materials";"Financials";"Financials"; ... "Industrials";"Financials";"Industrials";"Materials";... "Communication Services";"Industrials";"Consumer Discretionary"; ... "Consumer Discretionary";"Industrials";"Information Technology"; ... "Information Technology";"Information Technology";"Health Care"; ... "Financials";"Consumer Staples";"Consumer Discretionary"; ... "Industrials";"Consumer Staples";"Health Care"; ... "Information Technology";"Health Care";"Consumer Staples"; ... "Communication Services";"Industrials";"Communication Services"; ... "Consumer Staples";"Energy"]); Category = repmat(Category,1,NumPeriods);```

### Define Benchmark and Portfolio Weights

Define the benchmark weight and the portfolio weights, by quarter, for each of the stock assets.

```BenchmarkWeight = 1./length(MonthlyReturns).*ones(NumAssets, NumPeriods); PortfolioWeightQ1 = [0;0;0.022;0.033;0;0.044;0.022;0.011;0.065;0.033; ... 0.055;0.072;0;0.04;0;0.05;0.08;0.042;0.03;0.043;0.055;0.036;0.111; ... 0.036;0;0.03;0;0.05;0;0.04]*ones(1,3); PortfolioWeightQ2 = [0;0;0.022;0.033;0;0.044;0.022;0.011;0.049;0.033; ... 0.055;0.074;0;0.04;0;0.05;0.08;0.042;0.03;0.02;0.055;0.036;0.148; ... 0.036;0;0.03;0;0.05;0;0.04]*ones(1,3); PortfolioWeightQ3 = [0;0;0.022;0.033;0;0.042;0.022;0.01;0.049;0.033; ... 0.05;0.07;0;0.04;0;0.05;0.08;0.042;0.03;0.02;0.055;0.036;0.16; ... 0.036;0;0.03;0;0.05;0;0.04]*ones(1,3); PortfolioWeightQ4 = [0;0;0.022;0.033;0;0.042;0.02;0.01;0.039;0.033; ... 0.05;0.07;0;0.04;0;0.05;0.08;0.042;0.03;0.02;0.055;0.036;0.198; ... 0.036;0;0.03;0;0.03;0;0.034]*ones(1,3); PortfolioWeight = [PortfolioWeightQ1 PortfolioWeightQ2 ... PortfolioWeightQ3 PortfolioWeightQ4]; Period = (1:NumPeriods).*ones(NumAssets,1); Name = repmat(string(MonthlyPrices.Properties.VariableNames(:)),1,NumPeriods);```

### Create `AssetTable` Input

Use `table` to create the `AssetTable` input to use when creating a `brinsonAttribution` object.

```AssetTable = table(Period(:), Name(:), ... MonthlyReturns(:), Category(:), ... PortfolioWeight(:), BenchmarkWeight(:), ... VariableNames=["Period", "Name","Return","Category",... "PortfolioWeight","BenchmarkWeight"])```
```AssetTable=360×6 table Period Name Return Category PortfolioWeight BenchmarkWeight ______ ______ ___________ ______________________ _______________ _______________ 1 "AA" 0.053621 Materials 0 0.033333 1 "AIG" -0.05964 Financials 0 0.033333 1 "AXP" -0.00019406 Financials 0.022 0.033333 1 "BA" -0.030162 Industrials 0.033 0.033333 1 "C" -0.055015 Financials 0 0.033333 1 "CAT" 0.17956 Industrials 0.044 0.033333 1 "DD" -0.090708 Materials 0.022 0.033333 1 "DIS" 0.037221 Communication Services 0.011 0.033333 1 "GE" -0.07381 Industrials 0.065 0.033333 1 "GM" 0.27273 Consumer Discretionary 0.033 0.033333 1 "HD" -0.016838 Consumer Discretionary 0.055 0.033333 1 "HON" 0.025457 Industrials 0.072 0.033333 1 "HPQ" 0.083598 Information Technology 0 0.033333 1 "IBM" -0.009235 Information Technology 0.04 0.033333 1 "INTC" -0.1685 Information Technology 0 0.033333 1 "JNJ" -0.066351 Health Care 0.05 0.033333 ⋮ ```

### Create `brinsonAttribution` Object

Use `brinsonAttribution` to create a `brinsonAttribution` object.

`BrinsonPAobj = brinsonAttribution(AssetTable)`
```BrinsonPAobj = brinsonAttribution with properties: NumAssets: 30 NumPortfolioAssets: 22 NumBenchmarkAssets: 30 NumPeriods: 12 NumCategories: 9 AssetName: [30x1 string] AssetReturn: [30x12 double] AssetCategory: [30x12 categorical] PortfolioAssetWeight: [30x12 double] BenchmarkAssetWeight: [30x12 double] PortfolioCategoryReturn: [9x12 double] BenchmarkCategoryReturn: [9x12 double] PortfolioCategoryWeight: [9x12 double] BenchmarkCategoryWeight: [9x12 double] PortfolioReturn: 0.2234 BenchmarkReturn: 0.2046 ActiveReturn: 0.0188 ```

### Compute Category Weights

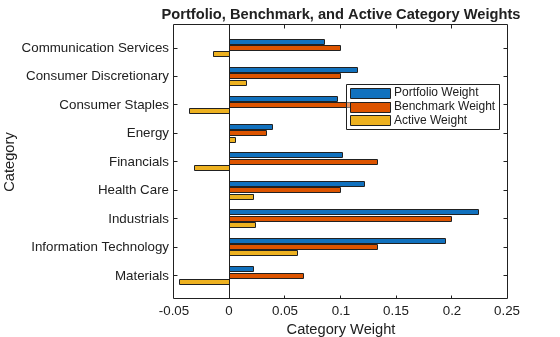

Use the `brinsonAttribution` object and `categoryWeights` to compute the average and periodic category weights for the portfolio and the benchmark, as well as, the corresponding active weights.

`[AverageCategoryWeights, PeriodicCategoryWeights] = categoryWeights(BrinsonPAobj)`
```AverageCategoryWeights=9×4 table Category AveragePortfolioWeight AverageBenchmarkWeight AverageActiveWeight ______________________ ______________________ ______________________ ___________________ Communication Services 0.0855 0.1 -0.0145 Consumer Discretionary 0.1155 0.1 0.0155 Consumer Staples 0.097 0.13333 -0.036333 Energy 0.0385 0.033333 0.0051667 Financials 0.102 0.13333 -0.031333 Health Care 0.122 0.1 0.022 Industrials 0.22375 0.2 0.02375 Information Technology 0.19425 0.13333 0.060917 Materials 0.0215 0.066667 -0.045167 ```
```PeriodicCategoryWeights=108×5 table Period Category PortfolioWeight BenchmarkWeight ActiveWeight ______ ______________________ _______________ _______________ ____________ 1 Communication Services 0.091 0.1 -0.009 1 Consumer Discretionary 0.118 0.1 0.018 1 Consumer Staples 0.097 0.13333 -0.036333 1 Energy 0.04 0.033333 0.0066667 1 Financials 0.102 0.13333 -0.031333 1 Health Care 0.122 0.1 0.022 1 Industrials 0.257 0.2 0.057 1 Information Technology 0.151 0.13333 0.017667 1 Materials 0.022 0.066667 -0.044667 2 Communication Services 0.091 0.1 -0.009 2 Consumer Discretionary 0.118 0.1 0.018 2 Consumer Staples 0.097 0.13333 -0.036333 2 Energy 0.04 0.033333 0.0066667 2 Financials 0.102 0.13333 -0.031333 2 Health Care 0.122 0.1 0.022 2 Industrials 0.257 0.2 0.057 ⋮ ```

### Compute Category Returns

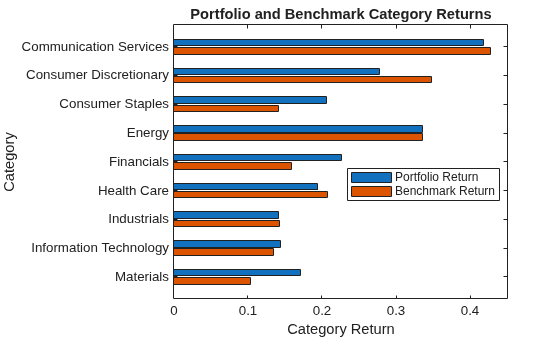

Use the `brinsonAttribution` object and `categoryReturns` to computes the aggregate and periodic category (sector) returns for the portfolio and the benchmark.

`[AggregateCategoryReturns, PeriodicCategoryReturns] = categoryReturns(BrinsonPAobj)`
```AggregateCategoryReturns=9×3 table Category AggregatePortfolioReturn AggregateBenchmarkReturn ______________________ ________________________ ________________________ Communication Services 0.41756 0.42797 Consumer Discretionary 0.27772 0.34718 Consumer Staples 0.20572 0.14112 Energy 0.33598 0.33598 Financials 0.22678 0.15838 Health Care 0.19451 0.20679 Industrials 0.14132 0.14253 Information Technology 0.14339 0.13485 Materials 0.17109 0.10402 ```
```PeriodicCategoryReturns=108×4 table Period Category PortfolioReturn BenchmarkReturn ______ ______________________ _______________ _______________ 1 Communication Services 0.056262 0.052385 1 Consumer Discretionary 0.079767 0.10017 1 Consumer Staples -0.01485 -0.0033588 1 Energy 0.073093 0.073093 1 Financials -0.0021179 -0.029374 1 Health Care 0.012124 0.022297 1 Industrials 0.0018686 0.0088589 1 Information Technology 0.033481 -0.011315 1 Materials -0.090708 -0.018543 2 Communication Services 0.069253 0.078033 2 Consumer Discretionary -0.023091 -0.036416 2 Consumer Staples 0.0027749 0.00096619 2 Energy -0.0487 -0.0487 2 Financials 0.033379 0.02054 2 Health Care 0.014975 0.015929 2 Industrials 0.047732 0.041906 ⋮ ```

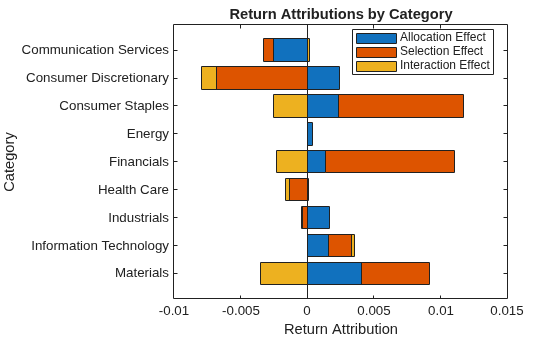

Use the `brinsonAttribution` object and `categoryAttribution` to compute the performance attribution of the portfolio for each category (sector).

`[AggregateCategoryAttribution,PeriodicCategoryAttribution] = categoryAttribution(BrinsonPAobj)`
```AggregateCategoryAttribution=9×5 table Category Allocation Selection Interaction ActiveReturn ______________________ __________ ___________ ___________ ____________ Communication Services -0.0025318 -0.00071062 0.0002061 -0.0030363 Consumer Discretionary 0.0024505 -0.00678 -0.0011609 -0.0054903 Consumer Staples 0.0023692 0.0093618 -0.0025511 0.00918 Energy 0.00038824 1.3872e-19 2.7745e-20 0.00038824 Financials 0.0013464 0.0097268 -0.0022858 0.0087874 Health Care 0.00011567 -0.0013031 -0.00028667 -0.0014741 Industrials 0.0016701 -0.00035051 -5.7623e-05 0.001262 Information Technology 0.0015686 0.0017812 0.00016898 0.0035187 Materials 0.0040725 0.0050687 -0.0034678 0.0056734 ```
```PeriodicCategoryAttribution=108×7 table Period LinkingCoefficient Category Allocation Selection Interaction ActiveReturn ______ __________________ ______________________ ___________ ___________ ___________ ____________ 1 1.1901 Communication Services -0.00034021 0.00038766 -3.489e-05 1.2564e-05 1 1.1901 Consumer Discretionary 0.0015405 -0.0020403 -0.00036725 -0.00086699 1 1.1901 Consumer Staples 0.00065192 -0.0015322 0.00041752 -0.00046274 1 1.1901 Energy 0.00039006 0 0 0.00039006 1 1.1901 Financials 0.0013774 0.0036342 -0.00085403 0.0041575 1 1.1901 Health Care 0.00016968 -0.0010173 -0.0002238 -0.0010714 1 1.1901 Industrials -0.00032634 -0.0013981 -0.00039845 -0.0021229 1 1.1901 Information Technology -0.00045756 0.0059728 0.0007914 0.0063066 1 1.1901 Materials 0.0014797 -0.004811 0.0032234 -0.00010793 2 1.1935 Communication Services -0.00058016 -0.000878 7.902e-05 -0.0013791 2 1.1935 Consumer Discretionary -0.00089975 0.0013325 0.00023985 0.00067261 2 1.1935 Consumer Staples 0.00045794 0.00024116 -6.5715e-05 0.00063338 2 1.1935 Energy -0.00041514 0 0 -0.00041514 2 1.1935 Financials -0.00021838 0.0017119 -0.0004023 0.0010912 2 1.1935 Health Care 5.19e-05 -9.5418e-05 -2.0992e-05 -6.451e-05 2 1.1935 Industrials 0.0016152 0.0011651 0.00033205 0.0031123 ⋮ ```

Use the `brinsonAttribution` object and `totalAttribution` to compute the total performance attribution of the portfolio summed up for all categories (sectors).

`[AggregateTotalAttribution, PeriodicTotalAttribution] = totalAttribution(BrinsonPAobj)`
```AggregateTotalAttribution=1×4 table Allocation Selection Interaction ActiveReturn __________ _________ ___________ ____________ 0.011449 0.016794 -0.0094348 0.018809 ```
```PeriodicTotalAttribution=12×6 table Period LinkingCoefficient Allocation Selection Interaction ActiveReturn ______ __________________ ___________ ___________ ___________ ____________ 1 1.1901 0.0044852 -0.00080413 0.0025538 0.0062349 2 1.1935 0.00087285 0.0032617 -0.0025973 0.0015372 3 1.1904 -6.9025e-05 0.0052394 0.00069386 0.0058643 4 1.208 -0.004707 -0.0095748 -0.0046622 -0.018944 5 1.1995 -0.00030704 -0.006091 -0.00061525 -0.0070132 6 1.1935 0.0012025 -0.00026724 0.00058932 0.0015246 7 1.1813 0.0032236 0.017541 -0.0021062 0.018658 8 1.196 0.004629 -0.004929 -0.0018038 -0.0021038 9 1.1927 0.0013046 0.00036681 0.00099195 0.0026634 10 1.1923 0.0032172 0.0023077 -0.0023663 0.0031586 11 1.194 -0.001881 0.00044958 0.0022018 0.00077039 12 1.1918 -0.0022819 0.0069324 -0.0007375 0.003913 ```

### Generate Summary for Performance Attribution

Use the `brinsonAttribution` object and `summary` to generate a table that summarizes the final results (aggregated over all time periods and categories) of the performance attribution using the Brinson model.

`SummaryTable = summary(BrinsonPAobj)`
```SummaryTable=11×1 table Brinson Attribution Summary ___________________________ Total Number of Assets 30 Number of Assets in Portfolio 22 Number of Assets in Benchmark 30 Number of Periods 12 Number of Categories 9 Portfolio Return 0.22345 Benchmark Return 0.20464 Active Return 0.018809 Allocation Effect 0.011449 Selection Effect 0.016794 Interaction Effect -0.0094348 ```
