Prepare DUT for UVM Framework Generation

What is UVM Framework?

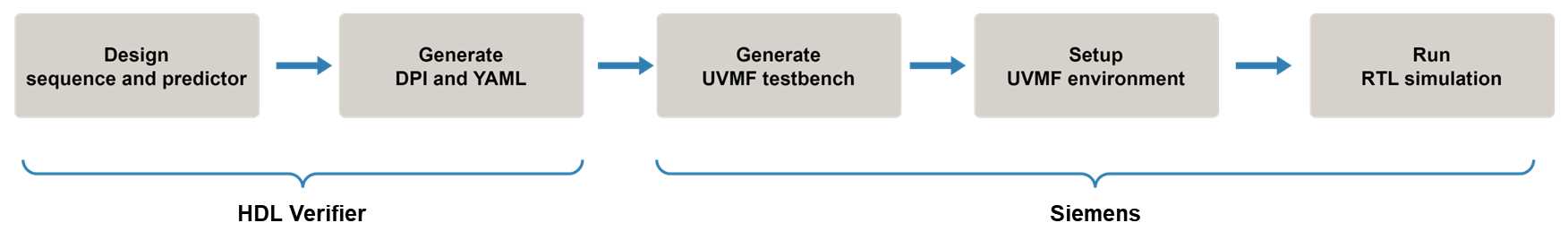

With HDL Verifier™, you can generate DPI components for a UVM sequence and predictor, and then integrate them into a UVM framework (UVMF) testbench for block-level verification.

Use the uvmfbuild function or the uvmfTestBenchConfiguration object to generate sequence and predictor components from MATLAB^® or Simulink^®, respectively. This step also generates a YAML file for UVMF. Once you have these artifacts, you can use them with Siemens^® UVMF tools to generate a UFMV testbench. For an example, see Generate UVM Framework Testbench for Block-Level Verification.

HDL DUT Requirements

Due to the limitations of UVMF tools, your HDL DUT must meet the following requirements:

• The DUT must be written in Verilog^® or SystemVerilog.

• The name of the reset signal must be rst.

• The polarity of the reset signal must be active-low.

• Multi-dimensional arrays on the interface are not supported.

• Using data types (such as logic or bit) is not supported in the interface declaration. You can specify data types in the module. For example:

  module adder
            (clk,
             rst,
             addend1,
             addend2,
             sum);

    input   logic clk;
    input   logic rst;
    input   logic [15:0] addend1;  // uint16
    input   logic [15:0] addend2;  // uint16
    output  logic [15:0] sum;      // uint16

• The DUT cannot have a clock enable signal.

HDL Coder DUT Requirements

If you are using HDL Coder™ to generate the DUT, you must configure the following model settings so that the generated HDL meets the requirements for UVMF generation:

• Language (HDL Coder) — Select Verilog or SystemVerilog. For SystemVerilog code, manually remove any instances of data types in the module declaration.

• Reset asserted level (HDL Coder) — Select active-low.

• Reset input port (HDL Coder) — Specify rst.

• Minimize clock enables (HDL Coder) — Make sure the check box is selected (under Additional settings > Ports).
