NB-IoT Uplink Waveform Generation

This example shows how to generate LTE-Advanced Pro Release 13 Narrowband IoT (NB-IoT) uplink waveforms consisting of the Narrowband Physical Uplink Shared Channel (NPUSCH) and the associated demodulation reference signals for test and measurement applications using the LTE Toolbox™.


3GPP introduced a new air interface, Narrowband IoT (NB-IoT) optimized for low data rate machine type communications in LTE-Advanced Pro Release 13. NB-IoT provides cost and power efficiency improvements as it avoids the need for complex signaling overhead required for LTE based systems.

The LTE Toolbox can be used to generate standard compliant NB-IoT uplink complex baseband waveforms representing the 180kHz narrowband carrier suitable for test and measurement applications. The LTE Toolbox supports all the NB-IoT modes of operation described below - standalone, guardband and in-band.

  • Standalone: NB-IoT carrier deployed outside the LTE spectrum, e.g. the spectrum used for GSM or satellite communications

  • Guardband: NB-IoT carrier deployed in the guardband between two LTE carriers

  • In-band: NB-IoT carrier deployed in resource blocks of an LTE carrier

The NB-IoT uplink consists of the following physical layer channels and signals:

  • Narrowband demodulation reference signal (DM-RS)

  • Narrowband physical uplink shared channel (NPUSCH)

  • Narrowband physical random access channel (NPRACH)

This example demonstrates the NB-IoT uplink resource element (RE) grid and waveform generation consisting of the NPUSCH and DM-RS signals. The sections below introduce these physical signals and channels that form the grid along with key concepts including subframe repetition, logical and transport channel mappings, and the corresponding grids for the different configurations.

The example outputs the complex baseband waveform along with the populated grid containing the NPUSCH and DM-RS signals. The waveform can be used for a range of applications from RF testing to simulation of receiver implementations.

NPUSCH Allocation

This section provides an overall description of how the NPUSCH gets mapped into the NB-IoT uplink slots.

The NPUSCH can carry the uplink shared channel (UL-SCH) or the uplink control information according to the two formats:

  • NPUSCH format 1, used to carry the uplink shared channel (UL-SCH)

  • NPUSCH format 2, used to carry uplink control information

The NPUSCH is transmitted on one or more resource units and each of these resource units are repeated up to 128 times to improve transmission reliability and coverage without compromising on the low power and low complexity requirements to meet ultra low end IoT use cases.

The smallest mapping unit for the NPUSCH is a resource unit. It is defined as 7 * |NslotsUL| consecutive SC-FDMA symbols in the time domain and NscRU consecutive subcarriers in the frequency domain, where NslotsUL and NscRU are defined in TS 36.211 Table [ 1 ]. The NB-IoT UL-SCH may carry Common Control Channel (CCCH), Dedicated Control Channel (DCCH) or Dedicated Traffic Channel (DTCH) and maps on to the NPUSCH physical channel (TS 36.300 section and section 5.3.1a [ 6 ]). The NPUSCH can be mapped to one or more than one resource units, NRU as defined by TS 36.211 Section [ 1 ] and each resource unit can be transmitted Nrep times.

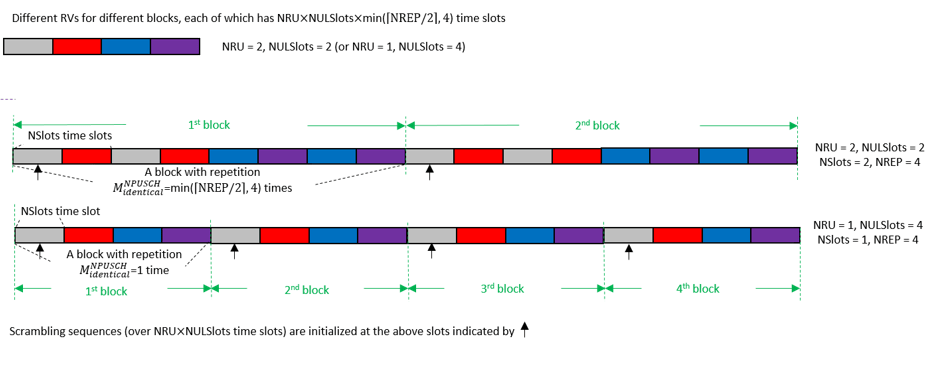

The examples in the figure shows the repetition pattern with NRep = 4. The total duration for transmitting a block of data is given by NRU * |NULSlots| * |MidenticalNPUSCH| as specified in TS 36.211 Section [ 1 ]. For the first case shown below, each transport block is transmitted over NRU = 2 and each of these NRU contains two UL slots indicated by NULSlots. After mapping to Nslots, these slots will be repeated MidenticalNPUSCH = 2 (assuming NscRU > 1) times. In the second case, we assume that NscRU is 1 and hence MidenticalNPUSCH = 1. This, combined with Nslots = 1 results in the transmission pattern where each block is transmitted without internal repetitions. In all cases, the scrambling sequence is reset at the start of the codeword transmission or retransmission (see TS 36.211 Section [ 1 ]). The detailed specification of the repetition scheme can be found in TS 36.211 10.1.3 [ 1 ].

NB-IoT Uplink Slot Grid

In addition to the slot allocation described above, this section further explains the RE allocation in a slot. The grid consists of one or more frames containing NPUSCH and corresponding DM-RS.

  • DM-RS: The DM-RS is transmitted in every NPUSCH slot with the same bandwidth as the associated NPUSCH. The reference signals depend on the number of subcarriers NscRU, the narrowband cell ID NNcellID and the NPUSCH format NPUSCHFormat. The RE positions depend on the NPUSCH format and subcarrier spacing. For NPUSCH format 1 with subcarrier spacing of 3.75kHz, the DM-RS is transmitted on symbol 4 and with subcarrier spacing of 15kHz, the DM-RS is transmitted on symbol 3. For NPUSCH format 2 with subcarrier spacing of 3.75kHz, the DM-RS is transmitted on symbols 0,1,2 and with subcarrier spacing of 15kHz, the DM-RS is transmitted on symbols 2,3 and 4 in the slot.

  • NPUSCH: The NPUSCH supports single tone bandwidth in addition to the multitone (12 subcarriers) bandwidth. Single tone transmissions can use either the 15kHz or 3.75kHz subcarrier spacing whereas the multitone transmissions use the 15kHz subcarrier spacing. This means that the slot duration for 15kHz mode is 0.5ms and for 3.75kHz the slot duration is 2ms. The scrambling sequence is initialized in the first slot of the transmission of the codeword. If there are repetitions enabled, then the scrambling sequence is reinitialized after every MidenticalNPUSCH transmission of the codeword as described in TS 36.211 Section[ 1 ]. The codewords are BPSK/QPSK modulated on to a single layer and precoded before mapping to one or more resource units. All the resource elements other than those used for demodulation reference signals are used for NPUSCH transmission. If higher layer signaling (npusch-AllSymbols as described in TS 36.211 Section [ 1 ]) indicates the presence of the SRS symbol, these symbols are counted in the NPUSCH mapping, but not used for the transmission of the NPUSCH (i.e. these NPUSCH positions are punctured by SRS).

NPUSCH Configuration

In this section, you configure the parameters required for NPUSCH generation. The UE uses the combination of MCS (modulation and coding scheme) and resource assignment signaled via the DCI to determine the transport block size from the set defined in TS 36.213 Table [ 3 ] to use for NPUSCH transmission. In this example, this is specified via the parameter tbs and the duration of the generated waveform is controlled via the totNumBlks parameter.

tbs = 144;                          % The transport block size
totNumBlks = 1;                     % Number of simulated transport blocks

ue = struct();                      % Initialize the UE structure
ue.NBULSubcarrierSpacing = '15kHz'; % 3.75kHz, 15kHz
ue.NNCellID = 0;                    % Narrowband cell identity

chs = struct();
% NPUSCH carries data or control information
chs.NPUSCHFormat = 'Data'; % Payload type (Data or Control)
% The number of subcarriers used for NPUSCH 'NscRU' depends on the NPUSCH
% format and subcarrier spacing 'NBULSubcarrierSpacing' as shown in TS
% 36.211 Table There are 1,3,6 or 12 contiguous subcarriers for
chs.NBULSubcarrierSet = 0;  % Range is 0-11 (15kHz); 0-47 (3.75kHz)
chs.NRUsc = length(chs.NBULSubcarrierSet);
chs.CyclicShift = 0;   % Cyclic shift required when NRUsc = 3 or 6
chs.RNTI = 0;          % RNTI value
chs.NLayers = 1;       % Number of layers
chs.NRU = 2;           % Number of resource units
chs.NRep = 4;          % Number of repetitions of the NPUSCH
chs.SlotIdx = 0;       % Start slot index in a bundle
% The symbol modulation depends on the NPUSCH format and NscRU as
% given by TS 36.211 Table
chs.Modulation = 'QPSK';
rvDCI = 0;             % RV offset signaled via DCI (See 36.213

% Specify the NPUSCH and DM-RS power scaling in dB for plot visualization
chs.NPUSCHPower = 30;
chs.NPUSCHDRSPower = 34;

For DM-RS signals in NPUSCH format 1, sequence-group hopping can be enabled or disabled by the higher layer cell-specific parameter groupHoppingEnabled. Sequence-group hopping for a particular UE can be disabled through the higher layer parameter groupHoppingDisabled as described in TS 36.211 Section [ 1 ]. In this example, we use the SeqGroupHopping parameter to enable or disable sequence-group hopping.

chs.SeqGroupHopping = 'on'; % Enable/Disable Sequence-Group Hopping for UE
chs.SeqGroup = 0;           % Delta_SS. Higher-layer parameter groupAssignmentNPUSCH

% Get number of time slots in a resource unit NULSlots according to
% TS 36.211 Table
if strcmpi(chs.NPUSCHFormat,'Data')
    if chs.NRUsc == 1
        NULSlots = 16;
    elseif any(chs.NRUsc == [3 6 12])
        NULSlots = 24/chs.NRUsc;
        error('Invalid number of subcarriers. NRUsc must be one of 1,3,6,12');
elseif strcmpi(chs.NPUSCHFormat,'Control')
    NULSlots = 4;
    error('Invalid NPUSCH Format (%s). NPUSCHFormat must be ''Data'' or ''Control''',chs.NPUSCHFormat);
chs.NULSlots = NULSlots;

NSlotsPerBundle = chs.NRU*chs.NULSlots*chs.NRep; % Number of slots in a codeword bundle
TotNSlots = totNumBlks*NSlotsPerBundle;   % Total number of simulated slots

NB-IoT Uplink Waveform Generation

In this section, you create the resource grid populated with the NPUSCH and the corresponding demodulation reference signals. This grid is then SC-FDMA modulated to generate the time domain waveform.

% Initialize the random generator to default state

% Get the slot grid and number of slots per frame
emptySlotGrid = lteNBResourceGrid(ue);
slotGridSize = size(emptySlotGrid);
NSlotsPerFrame = 20/(slotGridSize(1)/12);

state = [];    % NPUSCH encoder and DM-RS state, auto re-initialization in the function
trblk = [];    % Initialize the transport block
txgrid = [];   % Full grid initialization

% Display the number of slots being generated
fprintf('\nGenerating %d slots corresponding to %d transport block(s)\n',TotNSlots,totNumBlks);
for slotIdx = 0+(0:TotNSlots-1)
    % Calculate the frame number and slot number within the frame
    ue.NFrame = fix(slotIdx/NSlotsPerFrame);
    ue.NSlot = mod(slotIdx,NSlotsPerFrame);

    if isempty(trblk)
       if strcmpi(chs.NPUSCHFormat,'Data')
           % UL-SCH encoding is done for the two RV values used for
           % transmitting the codewords. The RV sequence used is determined
           % from the rvDCI value signaled in the DCI and alternates
           % between 0 and 2 as given in TS 36.213 Section

           % Define the transport block which will be encoded to create the
           % codewords for different RV
           trblk = randi([0 1],tbs,1);

           % Determine the coded transport block size
           [~, info] = lteNPUSCHIndices(ue,chs);
           outblklen = info.G;
           % Create the codewords corresponding to the two RV values used
           % in the first and second block, this will be repeated till all
           % blocks are transmitted
           chs.RV = 2*mod(rvDCI+0,2); % RV for the first block
           cw = lteNULSCH(chs,outblklen,trblk); % CRC and Turbo coding
           chs.RV = 2*mod(rvDCI+1,2); % RV for the second block
           cw = [cw lteNULSCH(chs,outblklen,trblk)]; %#ok<AGROW> % CRC and Turbo coding is repeated
           trblk = randi([0 1],1); % 1 bit ACK
           % For ACK, the same codeword is transmitted every block as
           % defined in TS 36.212 Section 6.3.3
           cw = lteNULSCH(trblk);
       blockIdx = 0; % First block to be transmitted

    % Initialize grid
    slotGrid = emptySlotGrid;

    % NPUSCH encoding and mapping onto the slot grid
    txsym = lteNPUSCH(ue,chs,cw(:,mod(blockIdx,size(cw,2))+1),state);

    % Map NPUSCH symbols in the grid of a slot
    indicesNPUSCH = lteNPUSCHIndices(ue,chs);
    slotGrid(indicesNPUSCH) = txsym*db2mag(chs.NPUSCHPower);

    % Create DM-RS sequence and map to the slot grid
    [dmrs,state] = lteNPUSCHDRS(ue,chs,state);
    indicesDMRS = lteNPUSCHDRSIndices(ue,chs);
    slotGrid(indicesDMRS) = dmrs*db2mag(chs.NPUSCHDRSPower);

    % Concatenate this slot to the slot grid
    txgrid = [txgrid slotGrid]; %#ok<AGROW>

    % If a full block is transmitted, increment the clock counter so that
    % the correct codeword can be selected
    if state.EndOfBlk
        blockIdx = blockIdx + 1;

    % trblk err count and re-initialization
    if state.EndOfTx
       % Re-initialize to enable the transmission of a new transport block
       trblk = [];


% Perform SC-FDMA modulation to create time domain waveform
ue.CyclicPrefixUL = 'Normal'; % Normal cyclic prefix length for NB-IoT
[waveform,scfdmaInfo] = lteSCFDMAModulate(ue,chs,txgrid);
Generating 128 slots corresponding to 1 transport block(s)

Plot Transmitted Grid

Plot the populated grid and observe the NPUSCH and corresponding DM-RS. The positions of the NPUSCH and DM-RS depends on the number of subcarriers chs.NRUsc and the subcarriers used as specified by chs.NBULSubcarrierSet. Note that the resource grid plot uses the power levels of the PUSCH and the DM-RS to assign colors to the resource elements.

% Create an image of overall resource grid
im = image(abs(txgrid));
cmap = parula(64);
axis xy;
title(sprintf('NB-IoT Uplink RE Grid (NRep = %d, NRUsc = %d, NRU = %d)',chs.NRep,chs.NRUsc,chs.NRU))
xlabel('OFDM symbols')
% Create the legend box to indicate the channel/signal types associated with the REs
reNames = {'NPUSCH';'DM-RS'};
clevels = round(db2mag([chs.NPUSCHPower chs.NPUSCHDRSPower]));
N = numel(reNames);
L = line(ones(N),ones(N), 'LineWidth',8); % Generate lines
% Set the colors according to cmap
set(L,{'color'},mat2cell(cmap( min(1+clevels,length(cmap) ),:),ones(1,N),3));
