This example shows how to use MATLAB® to formulate and solve several different types of differential equations. MATLAB offers several numerical algorithms to solve a wide variety of differential equations:

Initial value problems

Boundary value problems

Delay differential equations

Partial differential equations

`vanderpoldemo`

is a function that defines the van der Pol equation

$$\frac{{d}^{2}y}{d{t}^{2}}-\mu (1-{y}^{2})\frac{dy}{dt}+y=0.$$

`type vanderpoldemo`

function dydt = vanderpoldemo(t,y,Mu) %VANDERPOLDEMO Defines the van der Pol equation for ODEDEMO. % Copyright 1984-2014 The MathWorks, Inc. dydt = [y(2); Mu*(1-y(1)^2)*y(2)-y(1)];

The equation is written as a system of two first-order ordinary differential equations (ODEs). These equations are evaluated for different values of the parameter $\mu $. For faster integration, you should choose an appropriate solver based on the value of $\mu $.

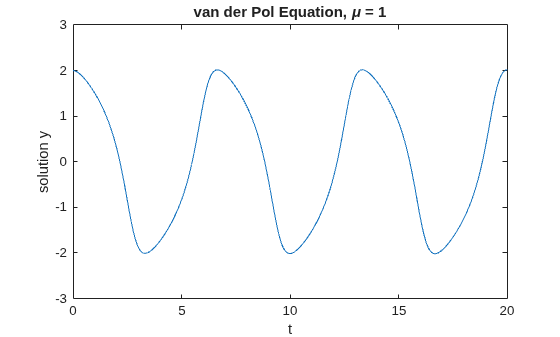

For $\mu =1$, any of the MATLAB ODE solvers can solve the van der Pol equation efficiently. The `ode45`

solver is one such example. The equation is solved in the domain $\left[0,20\right]$ with the initial conditions $\mathit{y}\left(0\right)=2$ and $\frac{\mathrm{dy}}{\mathrm{dt}}{|}_{\mathit{t}=0}=0$.

tspan = [0 20]; y0 = [2; 0]; Mu = 1; ode = @(t,y) vanderpoldemo(t,y,Mu); [t,y] = ode45(ode, tspan, y0); % Plot solution plot(t,y(:,1)) xlabel('t') ylabel('solution y') title('van der Pol Equation, \mu = 1')

For larger magnitudes of $\mu $, the problem becomes *stiff*. This label is for problems that resist attempts to be evaluated with ordinary techniques. Instead, special numerical methods are needed for fast integration. The `ode15s`

, `ode23s`

, `ode23t`

, and `ode23tb`

functions can solve stiff problems efficiently.

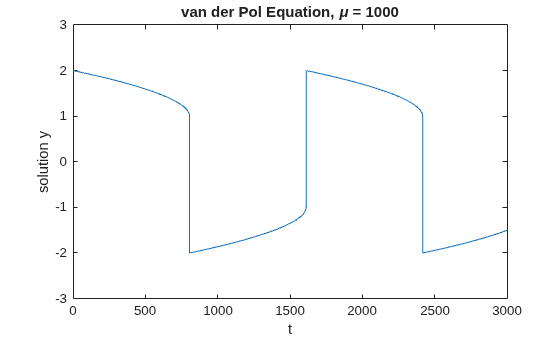

This solution to the van der Pol equation for $\mu =1000$ uses `ode15s`

with the same initial conditions. You need to stretch out the time span drastically to $\left[0,3000\right]$ to be able to see the periodic movement of the solution.

tspan = [0, 3000]; y0 = [2; 0]; Mu = 1000; ode = @(t,y) vanderpoldemo(t,y,Mu); [t,y] = ode15s(ode, tspan, y0); plot(t,y(:,1)) title('van der Pol Equation, \mu = 1000') axis([0 3000 -3 3]) xlabel('t') ylabel('solution y')

`bvp4c`

and `bvp5c`

solve boundary value problems for ordinary differential equations.

The example function `twoode`

has a differential equation written as a system of two first-order ODEs. The differential equation is

$$\frac{{d}^{2}y}{d{t}^{2}}+\left|y\right|=0.$$

`type twoode`

function dydx = twoode(x,y) %TWOODE Evaluate the differential equations for TWOBVP. % % See also TWOBC, TWOBVP. % Lawrence F. Shampine and Jacek Kierzenka % Copyright 1984-2014 The MathWorks, Inc. dydx = [ y(2); -abs(y(1)) ];

The function `twobc`

has the boundary conditions for the problem: $\mathit{y}\left(0\right)=0$ and $\mathit{y}\left(4\right)=-2$.

`type twobc`

function res = twobc(ya,yb) %TWOBC Evaluate the residual in the boundary conditions for TWOBVP. % % See also TWOODE, TWOBVP. % Lawrence F. Shampine and Jacek Kierzenka % Copyright 1984-2014 The MathWorks, Inc. res = [ ya(1); yb(1) + 2 ];

Prior to calling `bvp4c`

, you have to provide a guess for the solution you want represented at a mesh. The solver then adapts the mesh as it refines the solution.

The `bvpinit`

function assembles the initial guess in a form you can pass to the solver `bvp4c`

. For a mesh of `[0 1 2 3 4]`

and constant guesses of $\mathit{y}\left(\mathit{x}\right)=1$ and $\mathrm{y\text{'}}\left(\mathit{x}\right)=0$, the call to `bvpinit`

is:

solinit = bvpinit([0 1 2 3 4],[1; 0]);

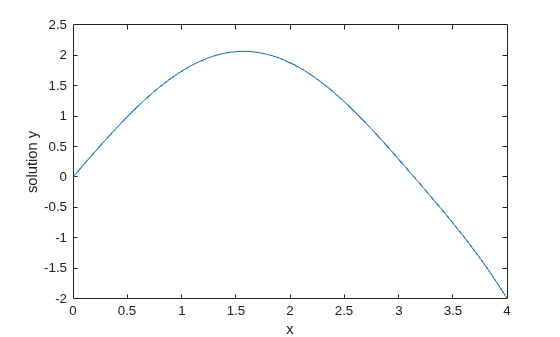

With this initial guess, you can solve the problem with `bvp4c`

. Evaluate the solution returned by `bvp4c`

at some points using `deval`

, and then plot the resulting values.

sol = bvp4c(@twoode, @twobc, solinit); xint = linspace(0, 4, 50); yint = deval(sol, xint); plot(xint, yint(1,:)); xlabel('x') ylabel('solution y') hold on

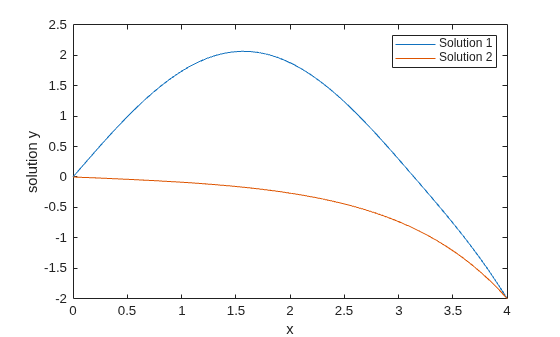

This particular boundary value problem has exactly two solutions. You can obtain the other solution by changing the initial guesses to $\mathit{y}\left(\mathit{x}\right)=-1$ and $\mathrm{y\text{'}}\left(\mathit{x}\right)=0$.

solinit = bvpinit([0 1 2 3 4],[-1; 0]); sol = bvp4c(@twoode,@twobc,solinit); xint = linspace(0,4,50); yint = deval(sol,xint); plot(xint,yint(1,:)); legend('Solution 1','Solution 2') hold off

`dde23`

, `ddesd`

, and `ddensd`

solve delay differential equations with various delays. The examples `ddex1`

, `ddex2`

, `ddex3`

, `ddex4`

, and `ddex5`

form a mini tutorial on using these solvers.

The `ddex1`

example shows how to solve the system of differential equations

$$\begin{array}{l}{\mathit{y}}_{1}^{\mathit{\text{'}}}\left(\mathit{t}\right)={\mathit{y}}_{1}\left(\mathit{t}-1\right)\\ {\mathit{y}}_{2}^{\mathit{\text{'}}}\left(\mathit{t}\right)={\mathit{y}}_{1}\left(\mathit{t}-1\right)+{\mathit{y}}_{2}\left(\mathit{t}-0.2\right)\\ {\mathit{y}}_{3}^{\mathit{\text{'}}}\left(\mathit{t}\right)={\mathit{y}}_{2}\left(\mathit{t}\right).\end{array}$$

You can represent these equations with the anonymous function

ddex1fun = @(t,y,Z) [Z(1,1); Z(1,1)+Z(2,2); y(2)];

The history of the problem (for $\mathit{t}\le 0$) is constant:

$$\begin{array}{l}{\mathit{y}}_{1}\left(\mathit{t}\right)=1\\ {\mathit{y}}_{2}\left(\mathit{t}\right)=1\\ {\mathit{y}}_{3}\left(\mathit{t}\right)=1.\end{array}$$

You can represent the history as a vector of ones.

ddex1hist = ones(3,1);

A two-element vector represents the delays in the system of equations.

lags = [1 0.2];

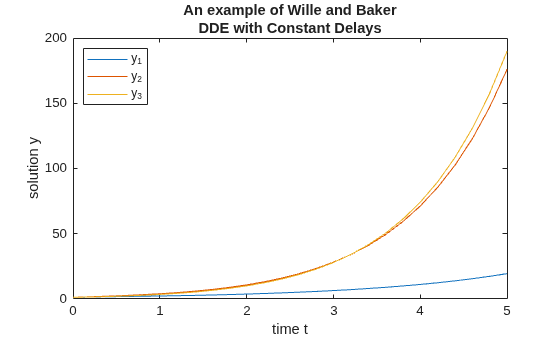

Pass the function, delays, solution history, and interval of integration $\left[0,5\right]$ to the solver as inputs. The solver produces a continuous solution over the whole interval of integration that is suitable for plotting.

sol = dde23(ddex1fun, lags, ddex1hist, [0 5]); plot(sol.x,sol.y); title({'An example of Wille and Baker', 'DDE with Constant Delays'}); xlabel('time t'); ylabel('solution y'); legend('y_1','y_2','y_3','Location','NorthWest');

`pdepe`

solves partial differential equations in one space variable and time. The examples `pdex1`

, `pdex2`

, `pdex3`

, `pdex4`

, and `pdex5`

form a mini tutorial on using `pdepe`

.

This example problem uses the functions `pdex1pde`

, `pdex1ic`

, and `pdex1bc`

.

`pdex1pde`

defines the differential equation

$${\pi}^{2}\frac{\partial u}{\partial t}=\frac{\partial}{\partial x}\left(\frac{\partial u}{\partial x}\right).$$

`type pdex1pde`

function [c,f,s] = pdex1pde(x,t,u,DuDx) %PDEX1PDE Evaluate the differential equations components for the PDEX1 problem. % % See also PDEPE, PDEX1. % Lawrence F. Shampine and Jacek Kierzenka % Copyright 1984-2014 The MathWorks, Inc. c = pi^2; f = DuDx; s = 0;

`pdex1ic`

sets up the initial condition

$$u(x,0)=\mathrm{sin}\pi x.$$

`type pdex1ic`

function u0 = pdex1ic(x) %PDEX1IC Evaluate the initial conditions for the problem coded in PDEX1. % % See also PDEPE, PDEX1. % Lawrence F. Shampine and Jacek Kierzenka % Copyright 1984-2014 The MathWorks, Inc. u0 = sin(pi*x);

`pdex1bc`

sets up the boundary conditions

$$\mathit{u}\left(0,\mathit{t}\right)=0,$$

$$\pi {\mathit{e}}^{-\mathit{t}}+\frac{\partial}{\partial \mathit{x}}\mathit{u}\left(1,\mathit{t}\right)=0.$$

`type pdex1bc`

function [pl,ql,pr,qr] = pdex1bc(xl,ul,xr,ur,t) %PDEX1BC Evaluate the boundary conditions for the problem coded in PDEX1. % % See also PDEPE, PDEX1. % Lawrence F. Shampine and Jacek Kierzenka % Copyright 1984-2014 The MathWorks, Inc. pl = ul; ql = 0; pr = pi * exp(-t); qr = 1;

`pdepe`

requires the spatial discretization `x`

and a vector of times `t`

(at which you want a snapshot of the solution). Solve the problem using a mesh of 20 nodes and request the solution at five values of `t`

. Extract and plot the first component of the solution.

x = linspace(0,1,20); t = [0 0.5 1 1.5 2]; sol = pdepe(0,@pdex1pde,@pdex1ic,@pdex1bc,x,t); u1 = sol(:,:,1); surf(x,t,u1); xlabel('x'); ylabel('t'); zlabel('u');
