graph

Graph with undirected edges

Description

graph objects represent undirected graphs, which have direction-less edges connecting the nodes. After you create a graph object, you can learn more about the graph by using object functions to perform queries against the object. For example, you can add or remove nodes or edges, determine the shortest path between two nodes, or locate a specific node or edge.

G = graph([1 1], [2 3]);
e = G.Edges
G = addedge(G,2,3)
G = addnode(G,4)
plot(G)

Creation

Syntax

G = graph

G = graph(A)

G = graph(A,nodenames)

G = graph(A,NodeTable)

G = graph(A,___,type)

G = graph(A,___,'omitselfloops')

G = graph(s,t)

G = graph(s,t,weights)

G = graph(s,t,weights,nodenames)

G = graph(s,t,weights,NodeTable)

G = graph(s,t,weights,num)

G = graph(s,t,___,'omitselfloops')

G = graph(s,t,EdgeTable,___)

G = graph(EdgeTable)

G = graph(EdgeTable,NodeTable)

G = graph(EdgeTable,___,'omitselfloops')

Description

G = graph creates an empty undirected graph object, G, which has no nodes or edges.

G = graph(A) creates a graph using a square, symmetric adjacency matrix, A.

• For logical adjacency matrices, the graph has no edge weights.

• For nonlogical adjacency matrices, the graph has edge weights. The location of each nonzero entry in A specifies an edge for the graph, and the weight of the edge is equal to the value of the entry. For example, if A(2,1) = 10, then G contains an edge between node 2 and node 1 with a weight of 10.

G = graph(A,nodenames) additionally specifies node names. The number of elements in nodenames must be equal to size(A,1).

G = graph(A,NodeTable) specifies node names (and possibly other node attributes) using a table, NodeTable. The table must have the same number of rows as A. Specify node names using the table variable Name.

G = graph(A,___,type) specifies a triangle of the adjacency matrix to use in constructing the graph. You must specify A and optionally can specify nodenames or NodeTable. To use only the upper or lower triangle of A to construct the graph, type can be either 'upper' or 'lower'.

G = graph(A,___,'omitselfloops') ignores the diagonal elements of A and returns a graph without any self-loops. You can use any of the input argument combinations in previous syntaxes.

G = graph(s,t) specifies graph edges (s,t) in node pairs. s and t can specify node indices or node names. graph sorts the edges in G first by source node, and then by target node. If you have edge properties that are in the same order as s and t, use the syntax G = graph(s,t,EdgeTable) to pass in the edge properties so that they are sorted in the same manner in the resulting graph.

G = graph(s,t,weights) also specifies edge weights with the array weights.

G = graph(s,t,weights,nodenames) specifies node names using the cell array of character vectors or string array, nodenames. s and t cannot contain node names that are not in nodenames.

G = graph(s,t,weights,NodeTable) specifies node names (and possibly other node attributes) using a table, NodeTable. Specify node names using the Name table variable. s and t cannot contain node names that are not in NodeTable.

G = graph(s,t,weights,num) specifies the number of nodes in the graph with the numeric scalar num.

G = graph(s,t,___,'omitselfloops') does not add any self-loops to the graph. That is, any k that satisfies s(k) == t(k) is ignored. You can use any of the input argument combinations in previous syntaxes.

G = graph(s,t,EdgeTable,___) uses a table to specify edge attributes instead of specifying weights. The EdgeTable input must be a table with a row for each corresponding pair of elements in s and t. Specify edge weights using the table variable Weight.

G = graph(EdgeTable) uses the table EdgeTable to define the graph. With this syntax, the first variable in EdgeTable must be named EndNodes, and it must be a two-column array defining the edge list of the graph.

G = graph(EdgeTable,NodeTable) additionally specifies the names (and possibly other attributes) of the graph nodes using a table, NodeTable.

G = graph(EdgeTable,___,'omitselfloops') does not add self-loops to the graph. That is, any k that satisfies EdgeTable.EndNodes(k,1) == EdgeTable.EndNodes(k,2) is ignored. You must specify EdgeTable and optionally can specify NodeTable.

Input Arguments

A — Adjacency matrix

matrix

Adjacency matrix, specified as a full or sparse, numeric matrix. The entries in A specify the network of connections (edges) between the nodes of the graph. The location of each nonzero entry in A specifies an edge between two nodes. The value of that entry provides the edge weight. A logical adjacency matrix results in an unweighted graph.

Nonzero entries on the main diagonal of A specify self-loops, or nodes that are connected to themselves with an edge. Use the 'omitselfloops' input option to ignore diagonal entries.

A must be symmetric unless the type input is specified. Use issymmetric to confirm matrix symmetry. For triangular adjacency matrices, specify type to use only the upper or lower triangle.

Example: A = [0 1 5; 1 0 0; 5 0 0] describes a graph with three nodes and two edges. The edge between node 1 and node 2 has a weight of 1, and the edge between node 1 and node 3 has a weight of 5.

Data Types: single | double | logical

nodenames — Node names

cell array of character vectors | string array

Node names, specified as a cell array of character vectors or string array. nodenames must have length equal to numnodes(G) so that it contains a nonempty, unique name for each node in the graph.

Example: G = graph(A,{'n1','n2','n3'}) specifies three node names for a 3-by-3 adjacency matrix, A.

Data Types: cell | string

type — Type of adjacency matrix

'upper' | 'lower'

Type of adjacency matrix, specified as either 'upper' or 'lower'.

Example: G = graph(A,'upper') uses only the upper triangle of A to construct the graph, G.

s,t — Node pairs (as separate arguments)

node indices | node names

Node pairs, specified as node indices or node names. graph creates edges between the corresponding nodes in s and t, which must both be numeric, or both be character vectors, cell arrays of character vectors, string arrays, or categorical arrays. In all cases, s and t must have the same number of elements.

• If s and t are numeric, then they correspond to indices of graph nodes. Numeric node indices must be positive integers greater than or equal to 1.

• If s and t are character vectors, cell arrays of character vectors, or string arrays, then they specify names for the nodes. The Nodes property of the graph is a table containing a Name variable with the node names, G.Nodes.Name.

• If s and t are categorical arrays, then the categories in s and t are used as the node names in the graph. This can include categories that are not elements in s or t.

• If s and t specify multiple edges between the same two nodes, then the result is a multigraph.

This table shows the different ways to refer to one or more nodes either by their numeric node indices or by their node names.

Form	Single Node	Multiple Nodes
Node index	Scalar Example: 1	Vector Example: [1 2 3]
Node name	Character vector Example: 'A'	Cell array of character vectors Example: {'A' 'B' 'C'}
	String scalar Example: "A"	String array Example: ["A" "B" "C"]
	Categorical array Example: categorical("A")	Categorical array Example: categorical(["A" "B" "C"])

Example: G = graph([1 2 3],[2 4 5]) creates a graph with five nodes and three edges.

Example: G = graph({'Boston' 'New York' 'Washington D.C.'},{'New York' 'New Jersey' 'Pittsburgh'}) creates a graph with five named nodes and three edges.

weights — Edge weights

scalar | vector | matrix | multidimensional array | []

Edge weights, specified as a scalar, vector, matrix, or multidimensional array. weights must be a scalar or an array with the same number of elements as s and t.

graph stores the edge weights as a Weight variable in the G.Edges property table. To add or change weights after creating a graph, you can modify the table variable directly, for example, G.Edges.Weight = [25 50 75]'.

If you specify weights as an empty array [], then it is ignored.

Example: G = graph([1 2],[2 3],[100 200]) creates a graph with three nodes and two edges. The edges have weights of 100 and 200.

Data Types: single | double

num — Number of graph nodes

positive scalar integer

Number of graph nodes, specified as a positive scalar integer. num must be greater than or equal to the largest elements in s and t.

Example: G = graph([1 2],[2 3],[],5) creates a graph with three connected nodes and two isolated nodes.

EdgeTable — Table of edge information

table

Table of edge information. If you do not specify s and t, then the first variable in EdgeTable is required to be a two-column matrix, cell array of character vectors, or string array called EndNodes that defines the graph edges. For edge weights, use the variable Weight, since this table variable name is used by some graph functions. If there is a variable Weight, then it must be a numeric column vector. See table for more information on constructing a table.

After creating a graph, query the edge information table using G.Edges.

Example: EdgeTable = table([1 2; 2 3; 3 5; 4 5],'VariableNames',{'EndNodes'})

Data Types: table

NodeTable — Table of node information

table

Table of node information. NodeTable can contain any number of variables to describe attributes of the graph nodes. For node names, use the variable Name, since this variable name is used by some graph functions. If there is a variable Name, then it must be a cell array of character vectors or string array specifying a unique name in each row. See table for more information on constructing a table.

After the graph is created, query the node information table using G.Nodes.

Example: NodeTable = table({'a'; 'b'; 'c'; 'd'},'VariableNames',{'Name'})

Data Types: table

Properties

Edges — Edges of graph

table

Edges of graph, returned as a table. By default this is an M-by-1 table, where M is the number of edges in the graph. The edge list in G.Edges.EndNodes is sorted first by source node, and then by target node.

• To add new edge properties to the graph, create a new variable in the Edges table.

• To add or remove edges from the graph, use the addedge or rmedge object functions.

Example: G.Edges returns a table listing the edges in the graph

Example: G.Edges.Weight returns a numeric vector of the edge weights.

Example: G.Edges.Weight = [10 20 30 55]' specifies new edge weights for the graph.

Example: G.Edges.NormWeight = G.Edges.Weight/sum(G.Edges.Weight) adds a new edge property to the table containing the normalized weights of the edges.

Data Types: table

Nodes — Nodes of graph

table

Nodes of graph, returned as a table. By default this is an empty N-by-0 table, where N is the number of nodes in the graph.

• To add new node properties to the graph, create a new variable in the Nodes table.

• To add or remove nodes from the graph, use the addnode or rmnode object functions.

Example: G.Nodes returns a table listing the node properties of the graph. This table is empty by default.

Example: G.Nodes.Name = {'Montana', 'New York', 'Washington', 'California'}' adds node names to the graph by adding the variable Name to the Nodes table.

Example: G.Nodes.WiFi = logical([1 0 0 1 1]') adds the variable WiFi to the Nodes table. This property specifies that certain airports have wireless internet coverage.

Data Types: table

Object Functions

Modify Nodes and Edges

addedge	Add new edge to graph
rmedge	Remove edge from graph
addnode	Add new node to graph
rmnode	Remove node from graph
findedge	Locate edge in graph
findnode	Locate node in graph
numedges	Number of edges in graph
numnodes	Number of nodes in graph
edgecount	Number of edges between two nodes
reordernodes	Reorder graph nodes
subgraph	Extract subgraph

Analyze Structure

centrality	Measure node importance
conncomp	Connected graph components
biconncomp	Biconnected graph components
bctree	Block-cut tree graph
isisomorphic	Determine whether two graphs are isomorphic
isomorphism	Compute isomorphism between two graphs
ismultigraph	Determine whether graph has multiple edges
simplify	Reduce multigraph to simple graph

Traversals, Shortest Paths, and Cycles

bfsearch	Breadth-first graph search
dfsearch	Depth-first graph search
shortestpath	Shortest path between two single nodes
shortestpathtree	Shortest path tree from node
distances	Shortest path distances of all node pairs
maxflow	Maximum flow in graph
minspantree	Minimum spanning tree of graph
allpaths	Find all paths between two graph nodes
hascycles	Determine whether graph contains cycles
allcycles	Find all cycles in graph
cyclebasis	Fundamental cycle basis of graph

Matrix Representation

adjacency	Graph adjacency matrix
incidence	Graph incidence matrix
laplacian	Graph Laplacian matrix

Node Information

degree	Degree of graph nodes
neighbors	Neighbors of graph node
nearest	Nearest neighbors within radius
outedges	Outgoing edges from node

Visualization

plot	Plot graph nodes and edges
layoutcoords	Graph node and edge layout coordinates

Examples

Create and Modify Graph Object

Create a graph object with three nodes and two edges. One edge is between node 1 and node 2, and the other edge is between node 1 and node 3.

G = graph([1 1],[2 3])

G =
  graph with properties:

    Edges: [2x1 table]
    Nodes: [3x0 table]

View the edge table of the graph.

G.Edges

ans=2×1 table
    EndNodes
    ________

     1    2
     1    3

Add node names to the graph, and then view the new node and edge tables. The end nodes of each edge are now expressed using their node names.

G.Nodes.Name = {'A' 'B' 'C'}';
G.Nodes

ans=3×1 table
    Name
    _____

    {'A'}
    {'B'}
    {'C'}

G.Edges

ans=2×1 table
       EndNodes
    ______________

    {'A'}    {'B'}
    {'A'}    {'C'}

You can add or modify extra variables in the Nodes and Edges tables to describe attributes of the graph nodes or edges. However, you cannot directly change the number of nodes or edges in the graph by modifying these tables. Instead, use the addedge, rmedge, addnode, or rmnode functions to modify the number of nodes or edges in a graph.

For example, add an edge to the graph between nodes 2 and 3 and view the new edge list.

G = addedge(G,2,3)

G =
  graph with properties:

    Edges: [3x1 table]
    Nodes: [3x1 table]

G.Edges

ans=3×1 table
       EndNodes
    ______________

    {'A'}    {'B'}
    {'A'}    {'C'}
    {'B'}    {'C'}

Adjacency Matrix Graph Construction

Create a symmetric adjacency matrix, A, that creates a complete graph of order 4. Use a logical adjacency matrix to create a graph without weights.

A = ones(4) - diag([1 1 1 1])

A = 4×4

     0     1     1     1
     1     0     1     1
     1     1     0     1
     1     1     1     0

G = graph(A~=0)

G =
  graph with properties:

    Edges: [6x1 table]
    Nodes: [4x0 table]

View the edge list of the graph.

G.Edges

ans=6×1 table
    EndNodes
    ________

     1    2
     1    3
     1    4
     2    3
     2    4
     3    4

Adjacency Matrix Construction with Node Names

Create an upper triangular adjacency matrix.

A = triu(magic(4))

A = 4×4

    16     2     3    13
     0    11    10     8
     0     0     6    12
     0     0     0     1

Create a graph with named nodes using the adjacency matrix. Specify 'omitselfloops' to ignore the entries on the diagonal of A, and specify type as 'upper' to indicate that A is upper-triangular.

names = {'alpha' 'beta' 'gamma' 'delta'};
G = graph(A,names,'upper','omitselfloops')

G =
  graph with properties:

    Edges: [6x2 table]
    Nodes: [4x1 table]

View the edge and node information.

G.Edges

ans=6×2 table
           EndNodes           Weight
    ______________________    ______

    {'alpha'}    {'beta' }       2
    {'alpha'}    {'gamma'}       3
    {'alpha'}    {'delta'}      13
    {'beta' }    {'gamma'}      10
    {'beta' }    {'delta'}       8
    {'gamma'}    {'delta'}      12

G.Nodes

ans=4×1 table
      Name
    _________

    {'alpha'}
    {'beta' }
    {'gamma'}
    {'delta'}

Edge List Graph Construction

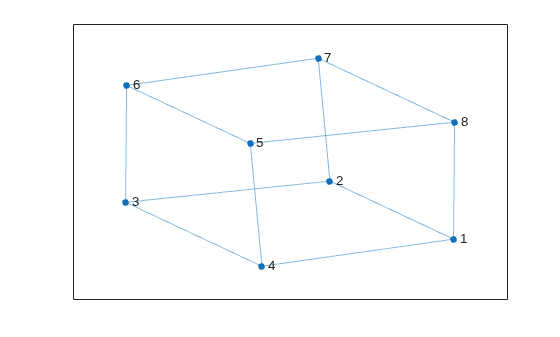

Create and plot a cube graph using a list of the end nodes of each edge.

s = [1 1 1 2 2 3 3 4 5 5 6 7];
t = [2 4 8 3 7 4 6 5 6 8 7 8];
G = graph(s,t)

G =
  graph with properties:

    Edges: [12x1 table]
    Nodes: [8x0 table]

plot(G)

Edge List Graph Construction with Node Names and Edge Weights

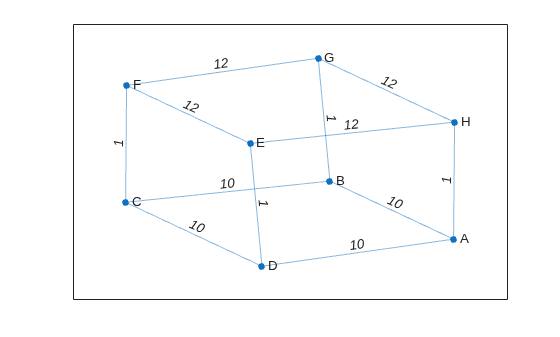

Create and plot a cube graph using a list of the end nodes of each edge. Specify node names and edge weights as separate inputs.

s = [1 1 1 2 2 3 3 4 5 5 6 7];
t = [2 4 8 3 7 4 6 5 6 8 7 8];
weights = [10 10 1 10 1 10 1 1 12 12 12 12];
names = {'A' 'B' 'C' 'D' 'E' 'F' 'G' 'H'};
G = graph(s,t,weights,names)

G =
  graph with properties:

    Edges: [12x2 table]
    Nodes: [8x1 table]

plot(G,'EdgeLabel',G.Edges.Weight)

Edge List Construction with Extra Nodes

Create a weighted graph using a list of the end nodes of each edge. Specify that the graph should contain a total of 10 nodes.

s = [1 1 1 1 1];
t = [2 3 4 5 6];
weights = [5 5 5 6 9];
G = graph(s,t,weights,10)

G =
  graph with properties:

    Edges: [5x2 table]
    Nodes: [10x0 table]

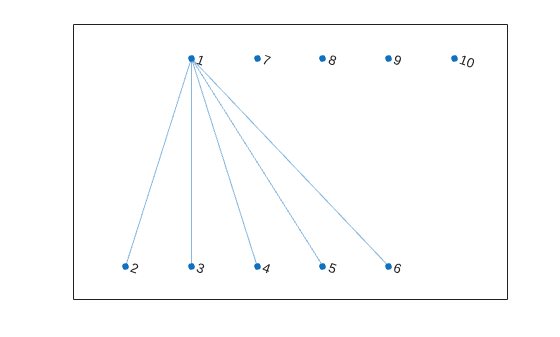

Plot the graph. The extra nodes are disconnected from the primary connected component.

plot(G)

Add Nodes and Edges to Empty Graph

Create an empty graph object, G.

G = graph;

Add three nodes and three edges to the graph. The corresponding entries in s and t define the end nodes of the graph edges. addedge automatically adds the appropriate nodes to the graph if they are not already present.

s = [1 2 1];
t = [2 3 3];
G = addedge(G,s,t)

G =
  graph with properties:

    Edges: [3x1 table]
    Nodes: [3x0 table]

View the edge list. Each row describes an edge in the graph.

G.Edges

ans=3×1 table
    EndNodes
    ________

     1    2
     1    3
     2    3

For the best performance, construct graphs all at once using a single call to graph. Adding nodes or edges in a loop can be slow for large graphs.

Graph Construction with Tables

Create an edge table that contains the variables EndNodes, Weight, and Code. Then create a node table that contains the variables Name and Country. The variables in each table specify properties of the graph nodes and edges.

s = [1 1 1 2 3];
t = [2 3 4 3 4];
weights = [6 6.5 7 11.5 17]';
code = {'1/44' '1/49' '1/33' '44/49' '49/33'}';
EdgeTable = table([s' t'],weights,code, ...
    'VariableNames',{'EndNodes' 'Weight' 'Code'})

EdgeTable=5×3 table
    EndNodes    Weight      Code
    ________    ______    _________

     1    2         6     {'1/44' }
     1    3       6.5     {'1/49' }
     1    4         7     {'1/33' }
     2    3      11.5     {'44/49'}
     3    4        17     {'49/33'}

names = {'USA' 'GBR' 'DEU' 'FRA'}';
country_code = {'1' '44' '49' '33'}';
NodeTable = table(names,country_code,'VariableNames',{'Name' 'Country'})

NodeTable=4×2 table
     Name      Country
    _______    _______

    {'USA'}    {'1' }
    {'GBR'}    {'44'}
    {'DEU'}    {'49'}
    {'FRA'}    {'33'}

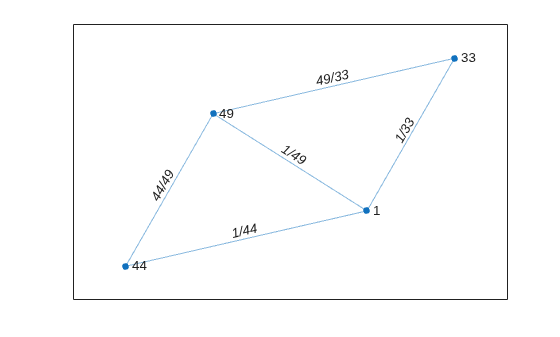

Create a graph using the node and edge tables. Plot the graph using the country codes as node and edge labels.

G = graph(EdgeTable,NodeTable);
plot(G,'NodeLabel',G.Nodes.Country,'EdgeLabel',G.Edges.Code)

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• Node names are not supported. Use node indices instead.

• Sparse inputs are not supported for constructing edge lists.

• Code generation for graph objects only supports the following object functions: addedge, addnode, adjacency, conncomp, degree, edgecount, indegree, neighbors, numedges, numnodes, outdegree, outedges, rmnode, rmedge, subgraph.

• Saving and loading graph objects is not supported.

• If a variable-size edge weight is specified during code generation and an empty weight vector is given at runtime, then the G.Edges table contains a Weight variable containing a vector of ones.

• You must specify the number and types of the edge and node properties when creating the graph objects. You cannot add new variables to the edge and node properties using addnode or addedge. That is, you cannot add new columns to the G.Edges and G.Nodes tables.

• When you construct a graph object in MATLAB^® and pass it to a MEX function generated using MATLAB Coder™, you cannot add or remove edges or nodes from the graph object.

• The edge and node properties must be data types that can be stored as variable-size arrays in code generation. For example, the data type cannot be any of these:

  • a string array

  • a cell array with different sizes on each cell

  • a cell array of character vectors converted using cellstr

  • a user-defined class

Thread-Based Environment
Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

Version History

Introduced in R2015b

R2019a: Support for categorical node names

Support added for categorical node names as inputs. This enables you to use data that is imported as categorical to create a graph, without the need for data type manipulation.

R2018a: Change in handling of duplicate edges

graph, digraph, and addedge no longer produce errors when they encounter duplicate edges. Instead, the duplicate edges are added to the graph and the result is a multigraph. The ismultigraph function is useful to detect this situation, and simplify provides an easy way to remove the extra edges.
