centroid

Centroid of polyshape

collapse all in page

Syntax

[x,y] = centroid(polyin)
[x,y] = centroid(polyin,I)

Description

[x,y] = centroid(polyin) returns the x-coordinates and the y-coordinates of the centroid of a polyshape.

example

[x,y] = centroid(polyin,I) returns the coordinates of the centroid of the Ith boundary of polyin.

This syntax is only supported when polyin is a scalar polyshape object.

example

Examples

collapse all

Open Live Script

Compute the centroids associated with a multiregion polygon.

Create a polygon containing two solid regions, and then compute its centroid.

x1 = [0 1 2];
y1 = [0 1 0];
x2 = [2 3 4];
y2 = [1 2 1];
polyin = polyshape({x1,x2},{y1,y2});
[x,y] = centroid(polyin);
plot(polyin)
hold on
plot(x,y,'r*')
hold off

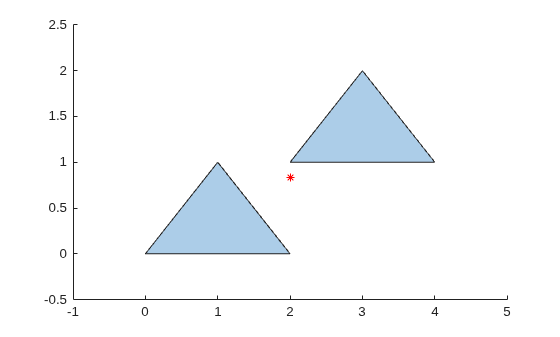

Figure contains an axes object. The axes object contains 2 objects of type polygon, line. One or more of the lines displays its values using only markers

To compute the centroid of each region separately, specify the boundary indices of each region in the second argument.

[x,y] = centroid(polyin,[1 2]);
plot(polyin)
hold on
plot(x(1),y(1),'r*',x(2),y(2),'r*')
hold off

Figure contains an axes object. The axes object contains 3 objects of type polygon, line. One or more of the lines displays its values using only markers

Alternatively, you can compute the centroid of each region by first separating the regions into separate polyshape objects. Use the regions function to create an array of polyshape objects, where each element of the array is a polyshape defining one of the triangular regions.

polyarray = regions(polyin)
polyarray =
  2×1 polyshape array with properties:

    Vertices
    NumRegions
    NumHoles


[x,y] = centroid(polyarray)
x = 2×1

     1
     3


y = 2×1

    0.3333
    1.3333

Input Arguments

collapse all

Input polyshape, specified as a scalar, vector, matrix, or multidimensional array.

Data Types: polyshape

Boundary index, specified as a scalar integer or vector of integers. Each element of I corresponds to a single boundary of the input polyshape.

Data Types: double | single | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Output Arguments

collapse all

x-coordinate of the centroid of a polyshape, returned as a scalar, vector, matrix, or multidimensional array. If the input is an array of polyshape objects, then x contains the x-coordinates of the centroid of each polyshape.

y-coordinate of the centroid of a polyshape, returned as a scalar, vector, matrix, or multidimensional array. If the input is an array of polyshape objects, then y contains the y-coordinates of the centroid of each polyshape.

Extended Capabilities

expand all

Version History

Introduced in R2017b
