rotate

Rotate polyshape

Syntax

polyout = rotate(polyin,theta)

polyout = rotate(polyin,theta,refpoint)

Description

polyout = rotate(polyin,theta) returns a polyshape object created by rotating polyin by theta degrees with respect to the reference point (0,0).

polyout = rotate(polyin,theta,refpoint) specifies a reference point to rotate with respect to.

Examples

Rotate Square

Create a square, polyin, and rotate it 45 degrees counterclockwise with respect to the point (0,0).

polyin = polyshape([0 0 1 1],[1 0 0 1]);
poly1 = rotate(polyin,45);

Rotate polyin 45 degrees with respect to the point (1,0).

poly2 = rotate(polyin,45,[1 0]);

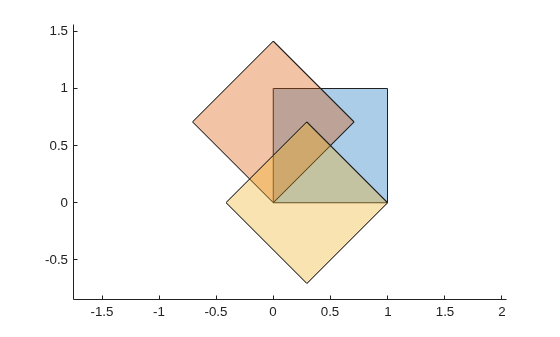

Plot all three polygons.

plot([polyin poly1 poly2])
axis equal

Input Arguments

polyin — Input polyshape

scalar | vector | matrix | multidimensional array

Input polyshape, specified as a scalar, vector, matrix, or multidimensional array.

Data Types: polyshape

theta — Rotation angle

scalar

Rotation angle, specified as a scalar number of degrees. When the input polyshape is an array, each element of the array is rotated by theta degrees. The rotation is counterclockwise when theta is positive, and clockwise when theta is negative.

Data Types: double | single | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

refpoint — Reference point

[0 0] | two-element row vector

Reference point, specified as a two-element row vector containing the x-coordinate and y-coordinate. The rotate function rotates with respect to the reference point. When the input polyshape is an array, each element of the array is rotated with respect to refpoint.

Data Types: double | single | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• Dynamic memory allocation must be enabled for code generation.

• Name-value pair must be compile time constant.

Version History

Introduced in R2017b
