Test Browser

Run MATLAB tests and view results

Since R2023a

expand all in page

Description

The Test Browser app enables you to run script-based, function-based, and class-based tests interactively.

You can use the test browser to:

Create a test suite from files or folders.
Run all or part of the specified tests.
Access diagnostics and debug test failures.
Customize a test run with options, such as running tests in parallel (requires Parallel Computing Toolbox™) or specifying a level of test output detail.
Generate an HTML code coverage report for MATLAB^® source code.

Overview of Test Browser Toolbar

This table provides a summary of the buttons on the toolbar of the test browser.

Button	Description
	Add tests from files or folders.
	Run the tests in the test suite.
	Enable or disable parallel test execution.
	Specify code coverage settings.
	Customize the test run by specifying whether to apply strict checks, amount of output detail, and logging level.
	Display or hide the passed tests.
	Display or hide the failed tests.
	Display or hide the incomplete tests.
	Display or hide the tests that have not run.
	Perform additional actions. For example, clear the test status filters or remove the tests.

Open the Test Browser App

MATLAB Toolstrip: On the Apps tab, under MATLAB, click the app icon.
MATLAB command prompt: Enter testBrowser.

You can also open the test browser if you run tests using either of these options. These options do not support script-based tests:

Right-click a test file in the Current Folder browser and then select Run.
Open a test file in the MATLAB Editor or Live Editor and then run the tests using the Run section in the Editor or Live Editor tab of the toolstrip.

Examples

expand all

Debug a Test Failure

Debug a test failure by using the test browser.

Create a function-based test file named sampleTest.m in your current folder. The file contains two tests that pass and one test that intentionally fails.

function tests = sampleTest
tests = functiontests(localfunctions);
end

function testA(testCase)
verifyEqual(testCase,2+3,5)
end

function testB(testCase)
verifyLessThan(testCase,-1.1,-1.2)
end

function testC(testCase)
verifySubstring(testCase,"Hello World!","llo")
end

Open the test browser.

testBrowser

Add the tests in the sampleTest.m file to the test browser. To add the tests, click the Add tests button on the toolbar and then select the test file. The test browser creates a test suite and displays the test names in a test tree.

Run the tests by clicking the Run current suite button on the toolbar. Two tests pass and one test fails due to a verification failure. If you click the node of testB in the test tree, the Test Diagnostics Viewer section at the bottom of the Test Browser panel displays the diagnostic information.

Diagnostic information for the failed test

Click the line-number link provided for testB in the test tree or the hyperlinked path in the Test Diagnostics Viewer section to view the code that resulted in the failure. To debug the test failure, set a breakpoint on the highlighted line of code by clicking its line number. Then, run testB by right-clicking its node in the test tree and selecting Run Test. MATLAB enters debug mode and enables debugging capabilities that you can use to investigate the cause of the test failure.

Menu option to run the failed testB in the test browser and a breakpoint set in the testB function code

If you rerun the failed test in the Command Window with an appropriate actual value, the test passes.

Running sampleTest
10  verifyLessThan(testCase,-1.1,-1.2)
K>> verifyLessThan(testCase,-1.3,-1.2)
K>>

Exit debug mode and clear the breakpoint. Update the actual value in the test file, and save the file. Run the tests again by clicking the Run current suite button . All the tests pass.

Run Parameterized Tests

Run parameterized tests by using the test browser.

In a file named cleanData.m in your current folder, create the cleanData function. The function accepts a numeric array and returns a cleaned and sorted version of the array. It vectorizes the array, removes the NaN, 0, and Inf entries, and finally sorts the vector.

function y = cleanData(X)
    y = X(:);         % Vectorize the array
    y = rmmissing(y); % Remove NaN entries
    % Remove 0 and Inf entries
    idx = (y == 0 | y == Inf);
    y = y(~idx);
    % If the vector is empty, set it to eps
    if isempty(y)
        y = eps;
    end
    y = sort(y);      % Sort the vector
end

To test the cleanData function, create the parameterized CleanDataTest test class in a file named CleanDataTest.m in your current folder.

classdef CleanDataTest < matlab.unittest.TestCase
    properties (TestParameter)
        data = struct("empty",[],"scalar",0, ...
            "vector",[13 NaN 0],"matrix",[NaN 2 0; 1 Inf 3]);
    end

    methods (Test)
        function sortTest(testCase,data)
            actual = cleanData(data);
            testCase.verifyTrue(issorted(actual))
        end
        function nonemptyTest(testCase,data)
            actual = cleanData(data);
            testCase.verifyNotEmpty(actual)
        end
    end
end

Open the test browser.

testBrowser

Add the tests in CleanDataTest to the test browser. To add the tests, click the Add tests button on the toolbar and then select the CleanDataTest.m file. The test browser creates a test suite and displays the test names in a test tree. Each name includes information about parameterization.

Run the tests that use the "matrix" parameter name. To run the tests, first select the two tests by pressing the Ctrl key while making selections with the mouse. Then, right-click one of the selected nodes and select Run Tests. In this example, both the tests pass.

Two parameterized tests selected to run

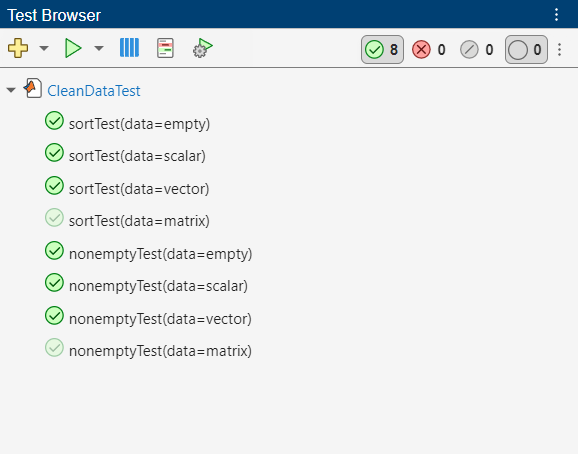

To run the remaining tests, click the Not Run button on the toolbar. Then, click the Run current suite button . All the tests pass.

Run Tests in Parallel

You can customize a test run by selecting options in the Test Browser toolbar. Select an option to run your tests in parallel (requires Parallel Computing Toolbox).

In a file named TestRand.m in your current folder, create the parameterized TestRand class. The class results in 175 tests.

classdef TestRand < matlab.unittest.TestCase
    properties (TestParameter)
        dim1 = createDimensionSizes;
        dim2 = createDimensionSizes;
        dim3 = createDimensionSizes;
        type = {'single','double'};
    end

    methods (Test)
        function testRepeatable(testCase,dim1,dim2,dim3)
            state = rng;
            firstRun = rand(dim1,dim2,dim3);
            rng(state)
            secondRun = rand(dim1,dim2,dim3);
            testCase.verifyEqual(firstRun,secondRun)
        end
        function testClass(testCase,dim1,dim2,type)
            testCase.verifyClass(rand(dim1,dim2,type),type)
        end
    end
end

function sizes = createDimensionSizes
% Create logarithmically spaced sizes up to 100
sizes = num2cell(round(logspace(0,2,5)));
end

Open the test browser.

testBrowser

Add the tests in the TestRand class to the test browser. To add the tests, click the Add tests button on the toolbar and then select the TestRand.m file. The test browser creates a test suite and displays the test names in a test tree.

To run the tests in parallel, first click the Enable parallel test execution button on the toolbar. Then, click the Run current suite button . The test browser divides the test suite into groups and runs the groups on the available workers. You can see information about the groups in the Command Window. The test browser might vary the order and number of groups or which tests it includes in each group.

Split tests into 18 groups and running them on 6 workers.
----------------
Finished Group 1
----------------
Running TestRand
.......... ..
Done TestRand
__________


----------------
Finished Group 3
----------------
Running TestRand
.......... .
Done TestRand
__________


----------------
Finished Group 2
----------------
Running TestRand
.......... ..
Done TestRand
__________


----------------
Finished Group 5
----------------
Running TestRand
.......... .
Done TestRand
__________


----------------
Finished Group 4
----------------
Running TestRand
.......... .
Done TestRand
__________


----------------
Finished Group 6
----------------
Running TestRand
.......... .
Done TestRand
__________


----------------
Finished Group 7
----------------
Running TestRand
..........
Done TestRand
__________


----------------
Finished Group 9
----------------
Running TestRand
..........
Done TestRand
__________


----------------
Finished Group 8
----------------
Running TestRand
..........
Done TestRand
__________


-----------------
Finished Group 11
-----------------
Running TestRand
.........
Done TestRand
__________


-----------------
Finished Group 10
-----------------
Running TestRand
..........
Done TestRand
__________


-----------------
Finished Group 12
-----------------
Running TestRand
.........
Done TestRand
__________


-----------------
Finished Group 13
-----------------
Running TestRand
.........
Done TestRand
__________


-----------------
Finished Group 15
-----------------
Running TestRand
........
Done TestRand
__________


-----------------
Finished Group 14
-----------------
Running TestRand
.........
Done TestRand
__________


-----------------
Finished Group 16
-----------------
Running TestRand
........
Done TestRand
__________


-----------------
Finished Group 17
-----------------
Running TestRand
........
Done TestRand
__________


-----------------
Finished Group 18
-----------------
Running TestRand
.......
Done TestRand
__________

Generate Code Coverage Report

Collect code coverage information and generate an HTML code coverage report for your source code when you run tests using the test browser.

function y = cleanData(X)
    y = X(:);         % Vectorize the array
    y = rmmissing(y); % Remove NaN entries
    % Remove 0 and Inf entries
    idx = (y == 0 | y == Inf);
    y = y(~idx);
    % If the vector is empty, set it to eps
    if isempty(y)
        y = eps;
    end
    y = sort(y);      % Sort the vector
end

To test the cleanData function, create the parameterized CleanDataTest test class in a file named CleanDataTest.m in your current folder.

classdef CleanDataTest < matlab.unittest.TestCase
    properties (TestParameter)
        data = struct("empty",[],"scalar",0, ...
            "vector",[13 NaN 0],"matrix",[NaN 2 0; 1 Inf 3]);
    end

    methods (Test)
        function sortTest(testCase,data)
            actual = cleanData(data);
            testCase.verifyTrue(issorted(actual))
        end
        function nonemptyTest(testCase,data)
            actual = cleanData(data);
            testCase.verifyNotEmpty(actual)
        end
    end
end

Open the test browser.

testBrowser

Add the tests in CleanDataTest to the test browser. To add the tests, click the Add tests button on the toolbar, and then select the CleanDataTest.m file. The test browser creates a test suite and displays the test names in a test tree.

To generate a code coverage report for your source code in cleanData.m:

Click the Open coverage settings button on the toolbar, and then select Enable coverage reporting.
In the Coverage Settings section, under Source, click the Add Files button and select the cleanData.m file.
In the Coverage Settings section, under Report, select Open coverage report after run if the check box is clear.

Coverage settings section, including the path to the source file

Run the tests by clicking the Run current suite button on the toolbar. The test browser runs the tests, generates an HTML code coverage report, and opens it after the test run. In this example, all the tests pass and the source code receives full function and statement coverage.

Related Examples

Run Tests Using Test Browser

Version History

Introduced in R2023a

expand all

R2024b: Add tests from currently open test file or clear test results

You can use Test Browser menu options to:

Add the tests from the currently open test file to the test browser. Click the drop-down arrow on the toolbar and then select Current File.
Clear the test results and return all the tests to a Not Run status . Click the three-dot button on the toolbar and then select Clear test results.

R2024a: Run tests using Test Browser in MATLAB Online

You can run script-based, function-based, and class-based tests using the test browser in MATLAB Online™.

R2024a: Test Browser handles valid test files differently in the presence of invalid test files

The behavior of the test browser has changed when a group of files includes both valid and invalid test files:

If you add tests to the test browser by selecting multiple test files, then the test browser imports the tests in the valid test files. In previous releases, the test browser does not import any tests if the group of selected files includes invalid test files.
If you run a group of both valid and invalid test files, then the test browser runs the tests in the valid test files. In previous releases, the test browser does not run any tests if the group includes invalid test files.

An invalid test file is a test file that the testing framework cannot run. Examples include a test file that contains syntax errors, a function-based test file that is missing local functions, and a file with a Test method that is passed an undefined parameterization property.
