updateOrientation

Update slice orientation of medical volume voxels

Since R2025a

Syntax

medVolReoriented = updateOrientation(medVol,direction)

medVolReoriented = updateOrientation(medVol,orientationCode)

Description

medVolReoriented = updateOrientation(medVol,direction) updates the slice orientation of the medicalVolume object medVol to the specified direction, direction. The output volume contains the reoriented voxel data in its Voxels property, and other property values update to reflect the intrinsic-to-world mapping between the new voxel data and the patient coordinate system. The position of the volume in patient coordinates remains unchanged. This syntax applies default conventions for the order and positive direction of each dimension of the voxel data.

medVolReoriented = updateOrientation(medVol,orientationCode) updates the orientation of medVol using the order and positive direction for each dimension of the voxel data specified by an orientation code.

Examples

Update Orientation of Medical Volume Using Direction String

Update the primary slice orientation of a CT volume from transverse to coronal.

Download Images

Download a file containing two CT chest volumes from the Medical Segmentation Decathlon data set [1]. The size of the data file is approximately 76 MB. Run this code to download the data set from the MathWorks® website and unzip the folder.

zipFile = matlab.internal.examples.downloadSupportFile("medical","MedicalVolumeNIfTIData.zip");
filepath = fileparts(zipFile);
unzip(zipFile,filepath)
dataFolder = fullfile(filepath,"MedicalVolumeNIfTIData");

Specify the path of the folder that contains the downloaded and unzipped data for the first volume.

filePath = fullfile(dataFolder,"lung_027.nii.gz");

Import Data as Medical Volume

Load the CT volume as a medicalVolume object. Note that the Orientation property value is "transverse", indicating the primary orientation is the transverse plane.

medVol = medicalVolume(filePath)

medVol =
  medicalVolume with properties:

                  Voxels: [512×512×264 single]
          VolumeGeometry: [1×1 medicalref3d]
            SpatialUnits: "mm"
             Orientation: "transverse"
            VoxelSpacing: [0.8594 0.8594 1.2453]
            NormalVector: [0 0 -1]
        NumCoronalSlices: 512
       NumSagittalSlices: 512
     NumTransverseSlices: 264
            PlaneMapping: ["sagittal"    "coronal"    "transverse"]
    DataDimensionMeaning: ["left"    "anterior"    "superior"]
                Modality: "unknown"
           WindowCenters: 0
            WindowWidths: 0

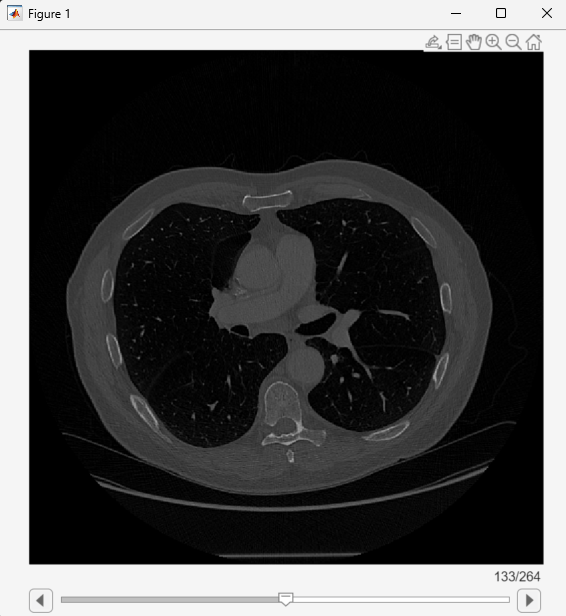

View the medicalVolume object using sliceViewer, which opens a new scrollable window that displays transverse slices.

sliceViewer(medVol)

Update Orientation to Coronal

Update the primary orientation to the coronal plane.

In the updated medicalVolume, the Orientation property value is "coronal". The DataDimensionMeaning property indicates the order and positive direction for all three dimensions of the voxel data in the Voxels property. When you specify the new orientation as a scalar string, the function uses default directions for the other dimensions. To fully define the new orientation, specify the orientationCode input argument as a 3-element string array.

medVolReoriented = updateOrientation(medVol,"coronal")

medVolReoriented =
  medicalVolume with properties:

                  Voxels: [264×512×512 single]
          VolumeGeometry: [1×1 medicalref3d]
            SpatialUnits: "unknown"
             Orientation: "coronal"
            VoxelSpacing: [0.8594 1.2453 0.8594]
            NormalVector: [0 1 0]
        NumCoronalSlices: 512
       NumSagittalSlices: 512
     NumTransverseSlices: 264
            PlaneMapping: ["transverse"    "sagittal"    "coronal"]
    DataDimensionMeaning: ["inferior"    "left"    "posterior"]
                Modality: "unknown"
           WindowCenters: []
            WindowWidths: []

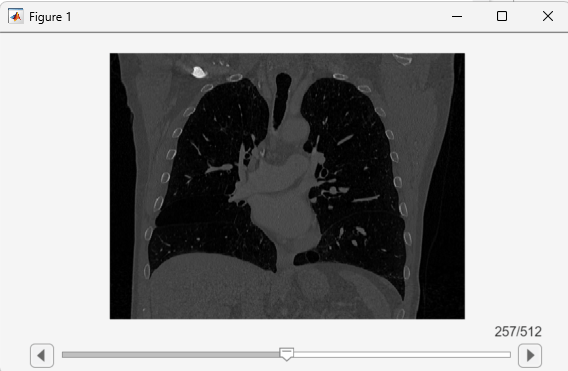

View the updated volume using sliceViewer, verifying that the window displays coronal slices.

sliceViewer(medVolReoriented)

[1] Medical Segmentation Decathlon. "Lung." Tasks. Accessed May 10, 2018. http://medicaldecathlon.com/.

The Medical Segmentation Decathlon data set is provided under the CC-BY-SA 4.0 license. All warranties and representations are disclaimed. See the license for details.

Update Orientation of Medical Volume Using Orientation Code

Update the orientation of a CT volume, specifying the positive direction of each dimension by using the orientationCode input argument. Use this approach when you require the voxel data in a specific, non-default orientation, such as when preprocessing data for a deep learning network with an expected input orientation.

Download Image Data

Download a file containing two CT chest volumes from the Medical Segmentation Decathlon data set [1]. The size of the data file is approximately 76 MB. Run this code to download the data set from the MathWorks® website and unzip the folder.

zipFile = matlab.internal.examples.downloadSupportFile("medical","MedicalVolumeNIfTIData.zip");
filepath = fileparts(zipFile);
unzip(zipFile,filepath)
dataFolder = fullfile(filepath,"MedicalVolumeNIfTIData");

Specify the path of the folder that contains the downloaded and unzipped data for the first volume.

filePath = fullfile(dataFolder,"lung_027.nii.gz");

Import Data as Medical Volume

Load the CT volume as a medicalVolume object.

The Orientation property value indicates the primary orientation is the transverse plane. The DataDimensionMeaning property value indicates that the row indices of the voxel data increase in the left direction, the column indices increase in the anterior direction, and the slice indices increase in the superior direction.

medVol = medicalVolume(filePath)

medVol =
  medicalVolume with properties:

                  Voxels: [512×512×264 single]
          VolumeGeometry: [1×1 medicalref3d]
            SpatialUnits: "mm"
             Orientation: "transverse"
            VoxelSpacing: [0.8594 0.8594 1.2453]
            NormalVector: [0 0 -1]
        NumCoronalSlices: 512
       NumSagittalSlices: 512
     NumTransverseSlices: 264
            PlaneMapping: ["sagittal"    "coronal"    "transverse"]
    DataDimensionMeaning: ["left"    "anterior"    "superior"]
                Modality: "unknown"
           WindowCenters: 0
            WindowWidths: 0

Update Orientation

Orient the volume such that the row indices increase in the posterior direction, column indices increase in the right direction, and slice indices increase in the inferior direction. Specify the target orientation as a three-element string array, where each string specifies the positive anatomical direction for the corresponding voxel dimension.

In the updated volume, the Orientation property value is still "transverse", because the primary direction remains unchanged. However, the DataDimensionMeaning property value indicates that the directions and the order of the first two dimensions have updated.

medVolReoriented = updateOrientation(medVol,["posterior","right","inferior"])

medVolReoriented =
  medicalVolume with properties:

                  Voxels: [512×512×264 single]
          VolumeGeometry: [1×1 medicalref3d]
            SpatialUnits: "unknown"
             Orientation: "transverse"
            VoxelSpacing: [0.8594 0.8594 1.2453]
            NormalVector: [0 0 1]
        NumCoronalSlices: 512
       NumSagittalSlices: 512
     NumTransverseSlices: 264
            PlaneMapping: ["coronal"    "sagittal"    "transverse"]
    DataDimensionMeaning: ["posterior"    "right"    "inferior"]
                Modality: "unknown"
           WindowCenters: []
            WindowWidths: []

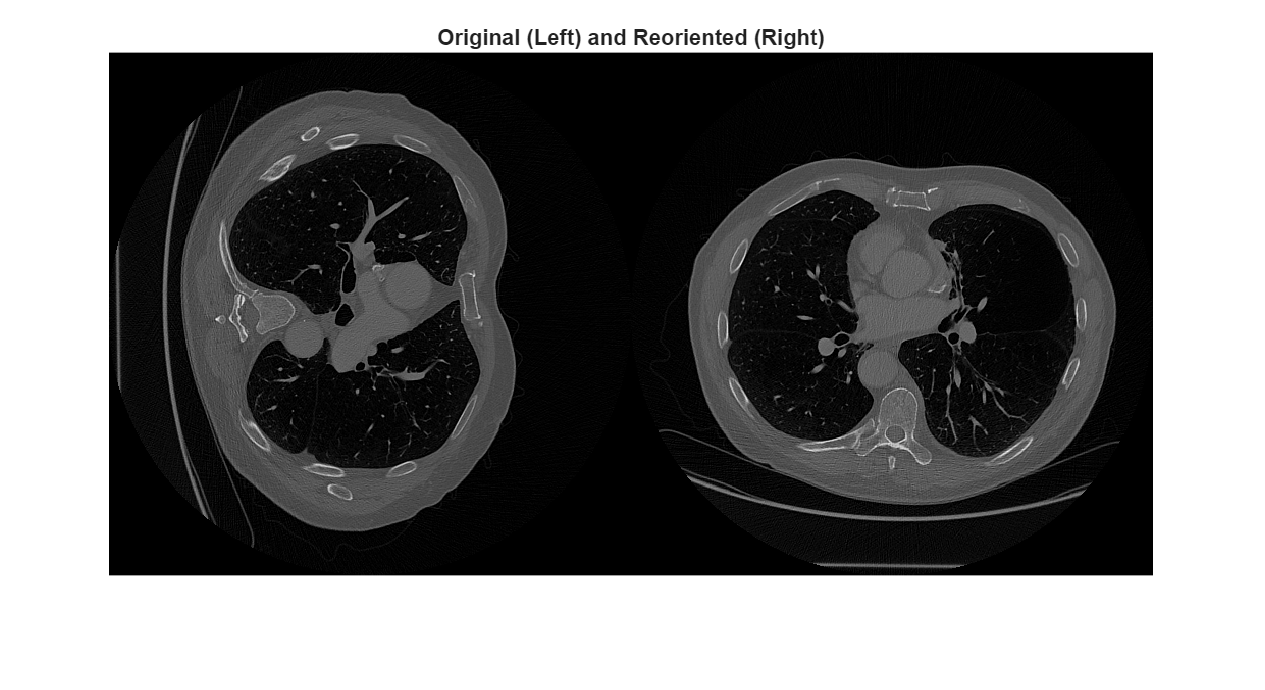

To observe the difference in the orientation between volumes, display a transverse slice from each volume in intrinsic coordinates. Display intrinsic coordinates by indexing into the Voxels property.

sliceOriginal = medVol.Voxels(:,:,150);
sliceReoriented = medVolReoriented.Voxels(:,:,150);

imshowpair(sliceOriginal,sliceReoriented,"montage")
title("Original (Left) and Reoriented (Right)")

When you display images using functions like imshow and imshowpair, the column indices increase as you move left to right in the display. Therefore, when you look at the patient position within the images, columns increase anteriorly for the original volume slice and to the right for the reoriented volume slice.

[1] Medical Segmentation Decathlon. "Lung." Tasks. Accessed May 10, 2018. http://medicaldecathlon.com/.

The Medical Segmentation Decathlon data set is provided under the CC-BY-SA 4.0 license. All warranties and representations are disclaimed. See the license for details.

Input Arguments

medVol — Medical volume

medicalVolume object

Medical volume, specified as a medicalVolume object.

direction — Primary orientation for updated volume

"coronal" | "sagittal" | "transverse"

Primary orientation for the updated volume, specified as one of these options:

Value	Description
"coronal"	Change the primary orientation to the coronal plane. Equivalent to specifying orientationCode as ["inferior","left","posterior"]. In the voxel data of the output volume, row indices increase inferiorly within the patient anatomy, column indices increase to the left, and slice indices increase posteriorly.
"sagittal"	Change the primary orientation to the sagittal plane. Equivalent to specifying orientationCode as ["inferior","posterior","left"]. In the voxel data of the output volume, row indices increase inferiorly within the patient anatomy, column indices increase posteriorly, and slice indices increase to the left.
"transverse"	Change the primary orientation to the transverse plane. Equivalent to specifying orientationCode as ["posterior","left","inferior"]. In the voxel data of the output volume, row indices increase posteriorly within the patient anatomy, column indices increase to the left, and slice indices increase inferiorly.

Note

The function reorients the input volume if its DataDimensionMeaning property does not match the equivalent orientation code for the specified direction. For example, if you specify direction as "transverse", and the DataDimensionMeaning value for the input volume is ["anterior","right","inferior"], the function reorients the volume to ["posterior","left","inferior"] even thought the input Orientation is already "transverse".

orientationCode — Orientation code for updated volume

3-element string array

Orientation code for the updated volume, specified as a 3-element string array. The code specifies a new orientation by mapping each anatomical axis to a dimension of the voxel data. The order of the strings determines which data dimension the specified anatomical axis maps to. The content of the strings defines the positive direction for the anatomical axis, as described in the table.

String	Description
"left" or "right"	Indicates positive direction of the left/right axis normal to the sagittal plane.
"inferior" or "superior"	Indicates the positive direction of the inferior/superior axis normal to the transverse plane.
"posterior" or "anterior"	Indicates the positive direction of the anterior/posterior axis normal to the coronal plane.

For example, ["anterior","inferior","right"] returns an updated volume where:

• Row indices increase as you move anteriorly through the patient in the coronal plane.

• Column indices increase as you move inferiorly through the patient in the transverse plane.

• Slice indices increase as you move toward the right side of the patient in the sagittal plane.

Example: ["right","posterior","inferior"]

Example: ["posterior","inferior","right"]

Example: ["superior","anterior","left"]

Data Types: char | string

Output Arguments

medVolReoriented — Reoriented medical volume

medicalVolume object

Reoriented medical volume, returned as a medicalVolume object. The Voxels property contains the reoriented voxel data. While dimensions of the voxel data might be permuted and flipped compared to the original volume, the total number of voxels in the volume remains unchanged.

Other properties, including VoxelSpacing, Orientation, PlaneMapping, DataDimensionMeaning, and NormalVector, update to reflect the new voxel data. Note that, while the order of the elements of VoxelSpacing can change, the spacing along each anatomical axis remains the same. The VolumeGeometry property contains an updated medicalref3d object that defines the intrinsic-to-world mapping between the new voxel data and the original position of the volume in the patient coordinate system.

Tips

• The updateOrientation function does not change the orientation or location of the volume in the patient coordinate system. To reposition the volume in patient coordinates, use the reposition function.

• The updateOrientation function permutes and flips the dimensions of the voxel data without changing the spacing or number of slices in each anatomical plane. To resample a medical volume to match the spacing, spatial extents, and orientation of a target volume, use the resample object function.

Version History

Introduced in R2025a
