buildMap
Build occupancy map from lidar scans
Description
creates an map
= buildMap(scans
,poses
,mapResolution
,maxRange
)occupancyMap
map by inserting lidar
scans
at the given poses
. Specify the
resolution of the resulting map, mapResolution
, and the maximum
range of the lidar sensor, maxRange
.
Examples
Build Occupancy Map from Lidar Scans and Poses
The buildMap
function takes in lidar scan readings and associated poses to build an occupancy grid as lidarScan
objects and associated [x y theta]
poses to build an occupancyMap
.
Load scan and pose estimates collected from sensors on a robot in a parking garage. The data collected is correlated using a lidarSLAM
algorithm, which performs scan matching to associate scans and adjust poses over the full robot trajectory. Check to make sure scans and poses are the same length.
load scansAndPoses.mat
length(scans) == length(poses)
ans = logical
1

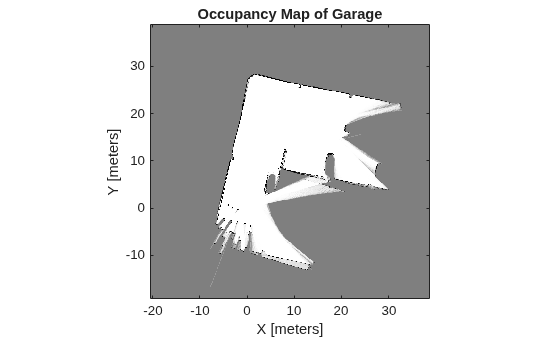

Build the map. Specify the scans and poses in the buildMap
function and include the desired map resolution (10 cells per meter) and the max range of the lidar (19.2 meters). Each scan is added at the associated poses and probability values in the occupancy grid are updated.
occMap = buildMap(scans,poses,10,19.2);
figure
show(occMap)
title('Occupancy Map of Garage')
Perform SLAM Using Lidar Scans
Use a lidarSLAM
object to iteratively add and compare lidar scans and build an optimized pose graph of the robot trajectory. To get an occupancy map from the associated poses and scans, use the buildMap
function.
Load Data and Set Up SLAM Algorithm
Load a cell array of lidarScan
objects. The lidar scans were collected in a parking garage on a Husky® robot from ClearPath Robotics®. Typically, lidar scans are taken at a high frequency and each scan is not needed for SLAM. Therefore, down sample the scans by selecting only every 40th scan.
load garage_fl1_southend.mat scans scans = scans(1:40:end);
To set up the SLAM algorithm, specify the lidar range, map resolution, loop closure threshold, and search radius. Tune these parameters for your specific robot and environment. Create the lidarSLAM
object with these parameters.
maxRange = 19.2; % meters resolution = 10; % cells per meter slamObj = lidarSLAM(resolution,maxRange); slamObj.LoopClosureThreshold = 360; slamObj.LoopClosureSearchRadius = 8;
Add Scans Iteratively
Using a for
loop, add scans to the SLAM object. The object uses scan matching to compare each added scan to previously added ones. To improve the map, the object optimizes the pose graph whenever it detects a loop closure. Every 10 scans, display the stored poses and scans.
for i = 1:numel(scans) addScan(slamObj,scans{i}); if rem(i,10) == 0 show(slamObj); end end title("Lidar Scans and Poses") xlabel("X [meters]") ylabel("Y [meters]")
View Occupancy Map
After adding all the scans to the SLAM object, build an occupancyMap
map by calling buildMap
with the scans and poses. Use the same map resolution and max range you used with the SLAM object.
[scansSLAM,poses] = scansAndPoses(slamObj);
occMap = buildMap(scansSLAM,poses,resolution,maxRange);
figure
show(occMap)
title('Occupancy Map of Garage')
Input Arguments
scans
— Lidar scans
cell array of lidarScan
objects
Lidar scans used to build the map, specified as a cell array of lidarScan
objects.
poses
— Poses of lidar scans
n-by-3 matrix
Poses of lidar scans, specified as an n-by-3 matrix.
Each row is an [x y theta]
vector representing the
xy-position and orientation angle of a scan.
mapResolution
— Resolution of occupancy grid
positive integer
Resolution of the output occupancyMap
map, specified as a
positive integer in cells per meter.
maxRange
— Maximum range of lidar sensor
positive scalar
Maximum range of lidar sensor, specified as a positive scalar in meters.
Points in the scans
outside this range are ignored.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: ['MapWidth',10]
MapWidth
— Width of occupancy grid
positive scalar
Width of the occupancy grid, specified as the comma-separated pair
consisting of 'MapWidth'
and a positive scalar. If
this value is not specified, the map is automatically scaled to fit all
laser scans.
MapHeight
— Height of occupancy grid
positive scalar
Height of occupancy grid, specified as the comma-separated pair
consisting of 'MapHeight'
and a positive scalar. If
this value is not specified, the map is automatically scaled to fit all
laser scans.
Output Arguments
map
— Occupancy Map
occupancyMap
object
Occupancy map, returned as a occupancyMap
object.
Version History
Introduced in R2019b
