# matchScans

## Syntax

## Description

finds the relative pose between two laser scans specified as ranges and
angles.`pose`

= matchScans(`currRanges`

,`currAngles`

,`refRanges`

,`refAngles`

)

`[___] = matchScans(___,Name,Value)`

specifies additional options specified by one or more
`Name,Value`

pair arguments.

## Examples

### Match Lidar Scans

Create a reference lidar scan using `lidarScan`

. Specify ranges and angles as vectors.

refRanges = 5*ones(1,300); refAngles = linspace(-pi/2,pi/2,300); refScan = lidarScan(refRanges,refAngles);

Using the `transformScan`

(Robotics System Toolbox) function, generate a second lidar scan at an `x,y`

offset of `(0.5,0.2)`

.

currScan = transformScan(refScan,[0.5 0.2 0]);

Match the reference scan and the second scan to estimate the pose difference between them.

pose = matchScans(currScan,refScan);

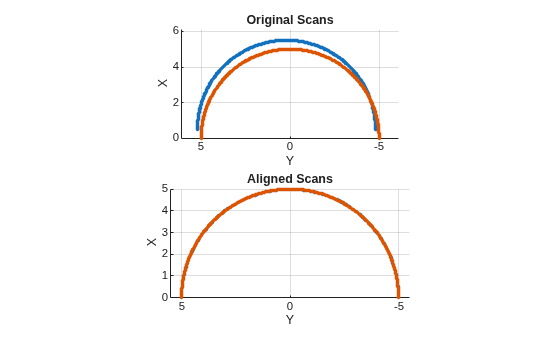

Use the `transformScan`

function to align the scans by transforming the second scan into the frame of the first scan using the relative pose difference. Plot both the original scans and the aligned scans.

currScan2 = transformScan(currScan,pose); subplot(2,1,1); hold on plot(currScan) plot(refScan) title('Original Scans') hold off subplot(2,1,2); hold on plot(currScan2) plot(refScan) title('Aligned Scans') xlim([0 5]) hold off

### Match Laser Scans

This example uses the `'fminunc'`

solver algorithm to perform scan matching. This solver algorithm requires an Optimization Toolbox™ license.

Specify a reference laser scan as ranges and angles.

refRanges = 5*ones(1,300); refAngles = linspace(-pi/2,pi/2,300);

Using the `transformScan`

(Robotics System Toolbox) function, generate a second laser scan at an `x,y`

offset of `(0.5,0.2)`

.

[currRanges,currAngles] = transformScan(refRanges,refAngles,[0.5 0.2 0]);

Match the reference scan and the second scan to estimate the pose difference between them.

pose = matchScans(currRanges,currAngles,refRanges,refAngles,'SolverAlgorithm','fminunc');

Improve the estimate by giving an initial pose estimate.

pose = matchScans(currRanges,currAngles,refRanges,refAngles,... 'SolverAlgorithm','fminunc','InitialPose',[-0.4 -0.1 0]);

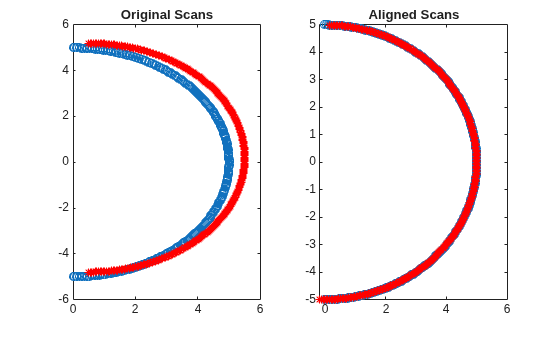

Use the `transformScan`

function to align the scans by transforming the second scan into the frame of the first scan using the relative pose difference. Plot both the original scans and the aligned scans.

[currRanges2,currAngles2] = transformScan(currRanges,currAngles,pose); [x1, y1] = pol2cart(refAngles,refRanges); [x2, y2] = pol2cart(currAngles,currRanges); [x3, y3] = pol2cart(currAngles2,currRanges2); subplot(1,2,1) plot(x1,y1,'o',x2,y2,'*r') title('Original Scans') subplot(1,2,2) plot(x1,y1,'o',x3,y3,'*r') title('Aligned Scans')

## Input Arguments

`currScan`

— Current lidar scan readings

`lidarScan`

object

Current lidar scan readings, specified as a `lidarScan`

object.

Your lidar scan can contain `Inf`

and
`NaN`

values, but the algorithm ignores them.

`refScan`

— Reference lidar scan readings

`lidarScan`

object

Reference lidar scan readings, specified as a `lidarScan`

object.

Your lidar scan can contain `Inf`

and
`NaN`

values, but the algorithm ignores them.

`currRanges`

— Current laser scan ranges

vector in meters

Current laser scan ranges, specified as a vector. Ranges are given as distances to objects measured from the laser sensor.

Your laser scan ranges can contain `Inf`

and
`NaN`

values, but the algorithm ignores them.

`currAngles`

— Current laser scan angles

vector in radians

Current laser scan angles, specified as a vector in radians. Angles are given as the orientations of the corresponding range measurements.

`refRanges`

— Reference laser scan ranges

vector in meters

Reference laser scan ranges, specified as a vector in meters. Ranges are given as distances to objects measured from the laser sensor.

Your laser scan ranges can contain `Inf`

and
`NaN`

values, but the algorithm ignores them.

`refAngles`

— Reference laser scan angles

vector in radians

Reference laser scan angles, specified as a vector in radians. Angles are given as the orientations of the corresponding range measurements.

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`"InitialPose",[1 1 pi/2]`

`SolverAlgorithm`

— Optimization algorithm

`"trust-region"`

(default) | `"fminunc"`

Optimization algorithm, specified as either
`"trust-region"`

or `"fminunc"`

.
Using `"fminunc"`

requires an Optimization Toolbox™ license.

`InitialPose`

— Initial guess of current pose

[0 0 0] (default) | `[x y theta]`

Initial guess of the current pose relative to the reference laser
scan, specified as the comma-separated pair consisting of
`"InitialPose"`

and an ```
[x y
theta]
```

vector. `[x y]`

is the translation
in meters and `theta`

is the rotation in
radians.

`CellSize`

— Length of cell side

1 (default) | numeric scalar

Length of a cell side in meters, specified as the comma-separated pair
consisting of `"CellSize"`

and a numeric scalar.
`matchScans`

uses the cell size to discretize the
space for the NDT algorithm.

Tuning the cell size is important for proper use of the NDT algorithm. The optimal cell size depends on the input scans and the environment of your robot. Larger cell sizes can lead to less accurate matching with poorly sampled areas. Smaller cell sizes require more memory and less variation between subsequent scans. Sensor noise influences the algorithm with smaller cell sizes as well. Choosing a proper cell size depends on the scale of your environment and the input data.

`MaxIterations`

— Maximum number of iterations

400 (default) | scalar integer

Maximum number of iterations, specified as the comma-separated pair
consisting of `"MaxIterations"`

and a scalar integer. A
larger number of iterations results in more accurate pose estimates, but
at the expense of longer execution time.

`ScoreTolerance`

— Lower bounds on the change in NDT score

`1e-6`

(default) | numeric scalar

Lower bound on the change in NDT score, specified as the
comma-separated pair consisting of `"ScoreTolerance"`

and a numeric scalar. The NDT score is stored in the
`Score`

field of the output
`stats`

structure. Between iterations, if the
score changes by less than this tolerance, the algorithm converges to a
solution. A smaller tolerance results in more accurate pose estimates,
but requires a longer execution time.

## Output Arguments

`pose`

— Pose of current scan

`[x y theta]`

Pose of current scan relative to the reference scan, returned as
`[x y theta]`

, where `[x y]`

is the
translation in meters and `theta`

is the rotation in
radians.

`stats`

— Scan matching statistics

structure

Scan matching statistics, returned as a structure with the following fields:

`Score`

— Numeric scalar representing the NDT score while performing scan matching. This score is an estimate of the likelihood that the transformed current scan matches the reference scan.`Score`

is always nonnegative. Larger scores indicate a better match.`Hessian`

— 3-by-3 matrix representing the Hessian of the NDT cost function at the given`pose`

solution. The Hessian is used as an indicator of the uncertainty associated with the pose estimate.

## References

[1] Biber, P., and W. Strasser. "The Normal Distributions Transform: A New Approach
to Laser Scan Matching." *Intelligent Robots and Systems
Proceedings*. 2003.

[2] Magnusson, Martin. "The Three-Dimensional Normal-Distributions Transform -- an Efficient Representation for Registration, Surface Analysis, and Loop Detection." PhD Dissertation. Örebro University, School of Science and Technology, 2009.

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Code generation is supported for the default `SolverAlgorithm`

,
`"trust-region"`

. You cannot use the
`"fminunc"`

algorithm in code generation.

## Version History

**Introduced in R2019b**
