parfeval

Run function on parallel pool worker

Description

example

F = parfeval(fcn,numout,X1,...,Xm) schedules the function fcn to be run. MATLAB® runs the function using a parallel pool if one is available. Otherwise, it runs the function in serial.

You can share your parallel code that uses this syntax with MATLAB users who do not have Parallel Computing Toolbox™.

MATLAB evaluates the function fcn asynchronously as [Y1,...,Yn] = fcn(X1,...,Xm), with m inputs and n outputs.

MATLAB returns the Future object F before the function fcn finishes running. You can use fetchOutputs to retrieve the results [Y1,...,Yn] from the future. To stop running the function fcn, use the cancel function. For more information about futures, see Future.

If a parallel pool is open, MATLAB uses that parallel pool to run the function fcn.

If a parallel pool is not open and:

  • Automatic pool creation is enabled, MATLAB starts a parallel pool using the default cluster profile, then uses that parallel pool to run the function fcn. Automatic pool creation is enabled by default.

    You can manually force this behavior by specifying parpool as the pool argument pool.

  • Automatic pool creation is disabled, MATLAB runs the function fcn using deferred execution.

    You can manually force this behavior by specifying parallel.Pool.empty as the pool argument pool.

example

F = parfeval(pool,fcn,numout,X1,...,Xm) schedules the function fcn to run using the pool pool. Use this syntax when you need to specify a pool at runtime.

To run code in the background, see parfeval.

Examples

collapse all

When you use parfeval or parfevalOnAll to run computations in the background, you create objects called futures. You can use the State property of a future to find out whether it is running, queued or finished. You can also use the FevalQueue property of a parallel pool to access running and queued futures. To cancel futures, you can use the cancel function. In this example, you:

  • Use cancel to cancel futures directly.

  • Check completion errors on completed futures.

  • Use the FevalQueue property to access futures.

Add Work to Queue

Create a parallel pool p with two workers.

p = parpool(2);
Starting parallel pool (parpool) using the 'Processes' profile ...
Connected to the parallel pool (number of workers: 2).

When you use parfeval to run computations in the background, the function creates and adds a future for each computation to the pool queue. Tasks remain in the queue until a worker becomes idle. When a worker becomes idle, it starts to compute a task if the queue is not empty. When a worker completes a task, the task is removed from the queue and the worker becomes idle.

Use parfeval to create an array of futures f by instructing workers to execute the function pause. Use an argument of 1 for the third future, and an argument of Inf for all other futures.

for n = 1:5
    if n == 3
        f(n) = parfeval(@pause,0,1);
    else
        f(n) = parfeval(@pause,0,Inf);
    end
end

Each use of parfeval returns a future object that represents the execution of a function on a worker. Except for the third future, every future will take an infinite amount of time to compute. The future created by parfeval(@pause,0,Inf) is an extreme case of a future which can slow down a queue.

Cancel Futures Directly

You can use the State property to obtain the status of futures. Construct a cell array of the state of each future in f.

{f.State}
ans = 1×5 cell
    {'running'}    {'running'}    {'queued'}    {'queued'}    {'queued'}

Every task except for the third pauses forever.

Cancel the second future directly with cancel.

cancel(f(2));
{f.State}
ans = 1×5 cell
    {'running'}    {'finished'}    {'running'}    {'queued'}    {'queued'}

After you cancel the second future, the third future runs. Wait until the third future completes, then examine the states again.

wait(f(3));
{f.State}
ans = 1×5 cell
    {'running'}    {'finished'}    {'finished'}    {'running'}    {'queued'}

The third future now has the state 'finished'.

Check Completion Errors

When a future completes, its State property becomes 'finished'. To distinguish between futures which are cancelled and complete normally, use the Error property.

fprintf("f(2): %s\n", f(2).Error.message)
f(2): Execution of the future was cancelled.
fprintf("f(3): %s\n", f(3).Error.message)
f(3):

The code cancels the second future, as the message property indicates. The second future was cancelled, as stated in the message property. The third future completes without error, and therefore does not have an error message.

Cancel Futures in Pool Queue

You can use the FevalQueue property to access the futures in the pool queue.

p.FevalQueue
ans =
 FevalQueue with properties:

        Number Queued: 1
       Number Running: 2

The queue has two properties: RunningFutures and QueuedFutures. The RunningFutures property is an array of futures corresponding to tasks that are currently running.

disp(p.FevalQueue.RunningFutures)
 1x2 FevalFuture array:

         ID              State  FinishDateTime  Function  Error
       --------------------------------------------------------
    1     3            running                    @pause
    2     6            running                    @pause

The QueuedFutures property is an array of futures corresponding to tasks that are currently queued and not running.

disp(p.FevalQueue.QueuedFutures)
 FevalFuture with properties:

                   ID: 7
             Function: @pause
       CreateDateTime: 08-Mar-2021 10:03:13
        StartDateTime:
      RunningDuration: 0 days 0h 0m 0s
                State: queued
                Error: none

You can cancel a single future or an array of futures. Cancel all the futures in QueuedFutures.

cancel(p.FevalQueue.QueuedFutures);
{f.State}
ans = 1×5 cell
    {'running'}    {'finished'}    {'finished'}    {'running'}    {'finished'}

RunningFutures and QueuedFutures are sorted from newest to oldest, regardless of whether f is in order from newest to oldest. Each future has a unique ID property for the lifetime of the client. Check the ID property of each of the futures in f.

disp(f)
 1x5 FevalFuture array:

         ID              State        FinishDateTime  Function  Error
       --------------------------------------------------------------
    1     3            running                          @pause
    2     4  finished (unread)  08-Mar-2021 10:03:20    @pause  Error
    3     5  finished (unread)  08-Mar-2021 10:03:21    @pause
    4     6            running                          @pause
    5     7  finished (unread)  08-Mar-2021 10:03:22    @pause  Error

Compare the result against the ID property of each of the RunningFutures.

for j = 1:length(p.FevalQueue.RunningFutures)
    rf = p.FevalQueue.RunningFutures(j);
    fprintf("p.FevalQueue.RunningFutures(%i): ID = %i\n", j, rf.ID)
end
p.FevalQueue.RunningFutures(1): ID = 3
p.FevalQueue.RunningFutures(2): ID = 6

Here, RunningFutures is an array containing f(1) and f(4). If you cancel RunningFutures(2), you cancel the fourth future f(4).

Sometimes, futures are not available in the workspace, for example, if you execute the same piece of code twice before it finishes, or if you use parfeval in a function. You can cancel futures that are not available in the workspace.

Clear f from the workspace.

clear f

You can use RunningFutures and QueuedFutures to access futures that have not yet completed. Use RunningFutures to cancel f(4).

rf2 = p.FevalQueue.RunningFutures(2);
cancel(rf2)
rf2.State
ans =
'finished'

To cancel all the futures still in the queue, use the following code.

cancel(p.FevalQueue.QueuedFutures);
cancel(p.FevalQueue.RunningFutures);

Use parfeval to request asynchronous execution of a function on a worker.

For example, submit a single request to the parallel pool. Retrieve the outputs by using fetchOutputs.

f = parfeval(@magic,1,10);
value = fetchOutputs(f);

You can also submit a vector of multiple future requests in a for-loop and collect the results as they become available. For efficiency, preallocate an array of future objects before.

f(1:10) = parallel.FevalFuture;
for idx = 1:10
    f(idx) = parfeval(@magic,1,idx);
end

Retrieve the individual future outputs as they become available by using fetchNext.

magicResults = cell(1,10);
for idx = 1:10
    [completedIdx,value] = fetchNext(f);
    magicResults{completedIdx} = value;
    fprintf('Got result with index: %d.\n', completedIdx);
end

This example shows how to perform a parallel parameter sweep with parfeval and send results back during computations with a DataQueue object.

parfeval does not block MATLAB, so you can continue working while computations take place.

The example performs a parameter sweep on the Lorenz system of ordinary differential equations, on the parameters σ and ρ, and shows the chaotic nature of this system.

ddtx=σ(y-z)ddty=x(ρ-z)-yddtz=xy-βx

Create Parameter Grid

Define the range of parameters that you want to explore in the parameter sweep.

gridSize = 40;
sigma = linspace(5, 45, gridSize);
rho = linspace(50, 100, gridSize);
beta = 8/3;

Create a 2-D grid of parameters by using the meshgrid function.

[rho,sigma] = meshgrid(rho,sigma);

Create a figure object, and set 'Visible' to true so that it opens in a new window, outside of the live script. To visualize the results of the parameter sweep, create a surface plot. Note that initializing the Z component of the surface with NaN creates an empty plot.

figure('Visible',true);
surface = surf(rho,sigma,NaN(size(sigma)));
xlabel('\rho','Interpreter','Tex')
ylabel('\sigma','Interpreter','Tex')

Set Up Parallel Environment

Create a pool of parallel workers by using the parpool function.

parpool;
Starting parallel pool (parpool) using the 'Processes' profile ...
Connected to the parallel pool (number of workers: 6).

To send data from the workers, create a DataQueue object. Set up a function that updates the surface plot each time a worker sends data by using the afterEach function. The updatePlot function is a supporting function defined at the end of the example.

Q = parallel.pool.DataQueue;
afterEach(Q,@(data) updatePlot(surface,data));

Perform Parallel Parameter Sweep

After you define the parameters, you can perform the parallel parameter sweep.

parfeval works more efficiently when you distribute the workload. To distribute the workload, group the parameters to explore into partitions. For this example, split into uniform partitions of size step by using the colon operator (:). The resulting array partitions contains the boundaries of the partitions. Note that you must add the end point of the last partition.

step = 100;
partitions = [1:step:numel(sigma), numel(sigma)+1]
partitions = 1×17

           1         101         201         301         401         501         601         701         801         901        1001        1101        1201        1301        1401        1501        1601

For best performance, try to split into partitions that are:

  • Large enough that the computation time is large compared to the overhead of scheduling the partition.

  • Small enough that there are enough partitions to keep all workers busy.

To represent function executions on parallel workers and hold their results, use future objects.

f(1:numel(partitions)-1) = parallel.FevalFuture;

Offload computations to parallel workers by using the parfeval function. parameterSweep is a helper function defined at the end of this script that solves the Lorenz system on a partition of the parameters to explore. It has one output argument, so you must specify 1 as the number of outputs in parfeval.

for ii = 1:numel(partitions)-1
    f(ii) = parfeval(@parameterSweep,1,partitions(ii),partitions(ii+1),sigma,rho,beta,Q);
end

parfeval does not block MATLAB, so you can continue working while computations take place. The workers compute in parallel and send intermediate results through the DataQueue as soon as they become available.

If you want to block MATLAB until parfeval completes, use the wait function on the future objects. Using the wait function is useful when subsequent code depends on the completion of parfeval.

wait(f);

After parfeval finishes the computations, wait finishes and you can execute more code. For example, plot the contour of the resulting surface. Use the fetchOutputs function to retrieve the results stored in the future objects.

results = reshape(fetchOutputs(f),gridSize,[]);
contourf(rho,sigma,results)
xlabel('\rho','Interpreter','Tex')
ylabel('\sigma','Interpreter','Tex')

If your parameter sweep needs more computational resources and you have access to a cluster, you can scale up your parfeval computations. For more information, see Scale Up from Desktop to Cluster.

Define Helper Functions

Define a helper function that solves the Lorenz system on a partition of the parameters to explore. Send intermediate results to the MATLAB client by using the send function on the DataQueue object.

function results = parameterSweep(first,last,sigma,rho,beta,Q)
    results = zeros(last-first,1);
    for ii = first:last-1
        lorenzSystem = @(t,a) [sigma(ii)*(a(2) - a(1)); a(1)*(rho(ii) - a(3)) - a(2); a(1)*a(2) - beta*a(3)];
        [t,a] = ode45(lorenzSystem,[0 100],[1 1 1]);
        result = a(end,3);
        send(Q,[ii,result]);
        results(ii-first+1) = result;
    end
end

Define another helper function that updates the surface plot when new data arrives.

function updatePlot(surface,data)
    surface.ZData(data(1)) = data(2);
    drawnow('limitrate');
end

This example shows how to update a user interface as computations complete. When you offload computations to workers using parfeval, all user interfaces are responsive while workers perform these computations. In this example, you use waitbar to create a simple user interface.

  • Use afterEach to update the user interface after each computation completes.

  • Use afterAll to update the user interface after all the computations complete.

Use waitbar to create a figure handle, h. When you use afterEach or afterAll, the waitbar function updates the figure handle. For more information about handle objects, see Handle Object Behavior.

h = waitbar(0,'Waiting...');

Use parfeval to calculate the real part of the eigenvalues of random matrices. With default preferences, parfeval creates a parallel pool automatically if one is not already created.

for idx = 1:100
    f(idx) = parfeval(@(n) real(eig(randn(n))),1,5e2);
end

You can use afterEach to automatically invoke functions on each of the results of parfeval computations. Use afterEach to compute the largest value in each of the output arrays after each future completes.

maxFuture = afterEach(f,@max,1);

You can use the State property to obtain the status of futures. Create a logical array where the State property of the futures in f is "finished". Use mean to calculate the fraction of finished futures. Then, create an anonymous function updateWaitbar. The function changes the fractional wait bar length of h to the fraction of finished futures.

updateWaitbar = @(~) waitbar(mean({f.State} == "finished"),h);

Use afterEach and updateWaitbar to update the fractional wait bar length after each future in maxFuture completes. Use afterAll and delete to close the wait bar after all the computations are complete.

updateWaitbarFutures = afterEach(f,updateWaitbar,0);
afterAll(updateWaitbarFutures,@(~) delete(h),0);

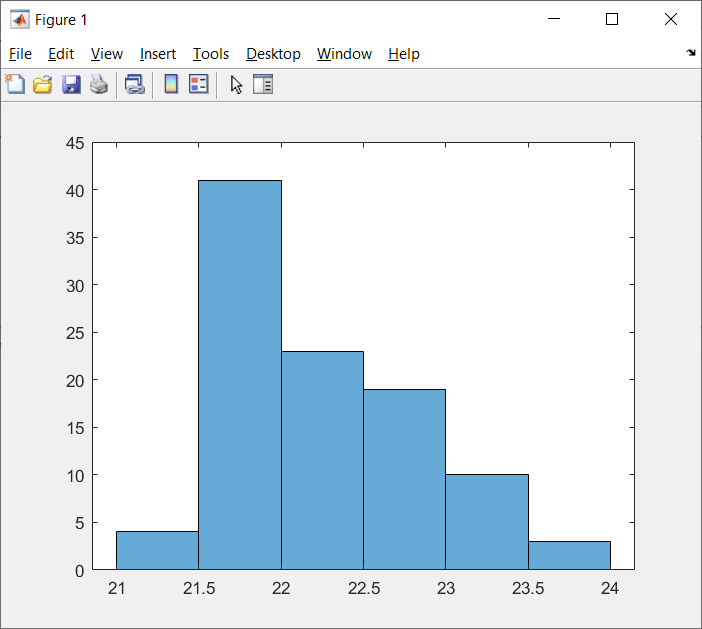

Use afterAll and histogram to show a histogram of the results in maxFuture after all the futures complete.

showsHistogramFuture = afterAll(maxFuture,@histogram,0);

Input Arguments

collapse all

Function to execute on a worker, specified as a function handle.

Example: fcn = @sum

Data Types: function_handle

Number of output arguments, specified as a nonnegative integer scalar.

n is the number of output arguments expected from running fcn(X1,...,Xm).

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Input arguments, specified as a comma-separated list of variables or expressions.

Pool, specified as a parallel.Pool object.

Example: parpool('Processes');

Example: backgroundPool;

Output Arguments

collapse all

Future, returned as a parallel.FevalFuture object.

Extended Capabilities

Version History

Introduced in R2013b
