setupRadiation

Specify radiation parameters for surface-to-surface heat transfer

Since R2023b

    Description

    fem = setupRadiation(fem) enables surface-to-surface radiation analysis using the enclosure formed by all faces of the specified model. An enclosure is a group of surfaces between which heat transfer occurs due to radiation without conductive media. The function creates a surfaceToSurfaceSettings object and returns the specified model, fem, with its ThermalRadiation property set to that object.

    example

    fem = setupRadiation(fem,Name=Value) specifies additional options using one or more name-value arguments. For example, you can specify the faces to form enclosures, the enclosure names, and their perfectness.

    Examples

    collapse all

    Specify radiation parameters for heat transfer between two parallel plates.

    Create the geometry representing two parallel plates of the same dimensions. The distance between the plates is 0.4 m.

    dist = 0.4;
    W = 0.05;
    L = 0.5;
    H = 0.5;
    R1 = [3 4 0 W W 0 0 0 L L];
    R2 = [3 4 W+dist 2*W+dist 2*W+dist W+dist 0 0 L L];
    geom2D = fegeometry(decsg([R1(:) R2(:)], ...
                        'R1+R2',[char('R1')' char('R2')']));
    geom3D = extrude(geom2D,H);

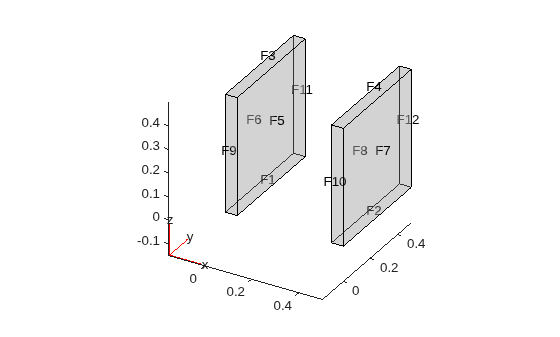

    pdegplot(geom3D,FaceLabels="on",FaceAlpha=0.3)

    Create a finite element model for thermal analysis and include the geometry.

    fem = femodel(AnalysisType="thermalSteady",Geometry=geom3D);

    Generate a mesh.

    fem = generateMesh(fem,Hmax=H/4);

    Account for surface-to-surface radiation in the enclosure formed by the plates by using the setupRadiation function.

    fem = setupRadiation(fem,EnclosureFaces=[5 6]);
    fem.ThermalRadiation
    ans =
      surfaceToSurfaceSettings with properties:

                    ViewFactors: [204×204 double]
                     Enclosures: dictionary (string ⟼ enclosureDefinition) with 1 entry
        ParticipatingEnclosures: "Enclosure_1"



    If you do not specify enclosure names, setupRadiation uses the default names, such as "Enclosure_1". The function also sets the enclosure perfectness to true, which means that the solver ignores ambient radiation. To change these settings, use the EnclosureNames and PerfectEnclosure name-value arguments.

    fem = setupRadiation(fem,EnclosureFaces=[5 6], ...
                            EnclosureNames="two_plates", ...
                            PerfectEnclosure=false);
    fem.ThermalRadiation
    ans =
      surfaceToSurfaceSettings with properties:

                    ViewFactors: [204×204 double]
                     Enclosures: dictionary (string ⟼ enclosureDefinition) with 1 entry
        ParticipatingEnclosures: "two_plates"



    Specify ambient temperature and emissivity for the enclosure formed by the plates.

    fem.FaceLoad([5 6]) = faceLoad(AmbientTemperature=0,Emissivity=0.5);

    Input Arguments

    collapse all

    Finite element model, specified as an femodel object.

    Name-Value Arguments

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Example: fem = setupRadiation(fem,EnclosureFaces=[5 6],EnclosureNames="two_plates")

    Faces to form enclosures, specified as a vector of positive integers for one enclosure in the model or a cell array of vectors of positive integers for multiple enclosures in the model.

    Example: EnclosureFaces={[1 2 50],[68 97]}

    Names of enclosures, specified as a string or a character vector for a single enclosure or a vector of strings or cell array of character vectors for multiple enclosures.

    Example: EnclosureNames=["groupA" "groupB"]

    Data Types: string | char

    Enclosure perfectness, specified as true or false for a single enclosure or a vector of these values for multiple enclosures. Setting perfectness to true ignores ambient radiation.

    Example: PerfectEnclosure=[true false]

    Data Types: logical

    Tips

    • You must generate a mesh before specifying radiation parameters. Call generateMesh before calling setupRadiation.

    • When calling setupRadiation, always use fem as the output argument to assign the resulting surfaceToSurfaceSettings object to the ThermalRadiation property of the model.

    Version History

    Introduced in R2023b
