evaluateReaction

Evaluate reaction forces on boundary

Syntax

``F = evaluateReaction(structuralresults,RegionType,RegionID)``

Description

example

````F = evaluateReaction(structuralresults,RegionType,RegionID)` evaluates reaction forces on the boundary specified by `RegionType` and `RegionID`. The function uses the global Cartesian coordinate system. For transient and frequency response structural models, `evaluateReaction` evaluates reaction forces for all time- and frequency-steps, respectively.```

Examples

collapse all

Create a static structural model.

`structuralmodel = createpde("structural","static-solid");`

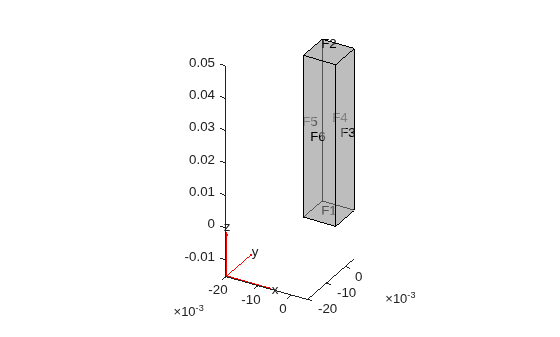

Create a cuboid geometry and include it in the model. Plot the geometry.

```structuralmodel.Geometry = multicuboid(0.01,0.01,0.05); pdegplot(structuralmodel,"FaceLabels","on","FaceAlpha",0.5);```

Specify Young's modulus and Poisson's ratio.

```structuralProperties(structuralmodel,"YoungsModulus",210E9, ... "PoissonsRatio",0.3);```

Fix one end of the bar and apply pressure to the opposite end.

`structuralBC(structuralmodel,"Face",1,"Constraint","fixed")`
```ans = StructuralBC with properties: RegionType: 'Face' RegionID: 1 Vectorized: 'off' Boundary Constraints and Enforced Displacements Displacement: [] XDisplacement: [] YDisplacement: [] ZDisplacement: [] Constraint: "fixed" Radius: [] Reference: [] Label: [] Boundary Loads Force: [] SurfaceTraction: [] Pressure: [] TranslationalStiffness: [] Label: [] ```
`structuralBoundaryLoad(structuralmodel,"Face",2,"Pressure",100)`
```ans = StructuralBC with properties: RegionType: 'Face' RegionID: 2 Vectorized: 'off' Boundary Constraints and Enforced Displacements Displacement: [] XDisplacement: [] YDisplacement: [] ZDisplacement: [] Constraint: [] Radius: [] Reference: [] Label: [] Boundary Loads Force: [] SurfaceTraction: [] Pressure: 100 TranslationalStiffness: [] Label: [] ```

Generate a mesh and solve the problem.

```generateMesh(structuralmodel,"Hmax",0.003); structuralresults = solve(structuralmodel);```

Compute the reaction forces on the fixed end.

`reaction = evaluateReaction(structuralresults,"Face",1)`
```reaction = struct with fields: Fx: 1.2830e-05 Fy: 1.9739e-05 Fz: 0.0104 ```

Evaluate the reaction forces at the fixed end of a beam subject to harmonic excitation.

Create a transient dynamic model for a 3-D problem.

`structuralmodel = createpde("structural","transient-solid");`

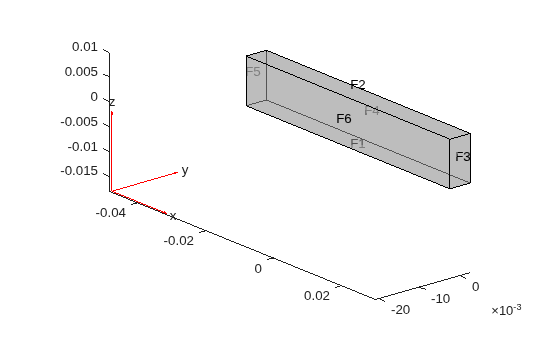

Create a geometry and include it in the model. Plot the geometry.

```gm = multicuboid(0.06,0.005,0.01); structuralmodel.Geometry = gm; pdegplot(structuralmodel,"FaceLabels","on","FaceAlpha",0.5) view(50,20)```

Specify Young's modulus, Poisson's ratio, and the mass density of the material.

```structuralProperties(structuralmodel,"YoungsModulus",210E9, ... "PoissonsRatio",0.3, ... "MassDensity",7800);```

Fix one end of the beam.

`structuralBC(structuralmodel,"Face",5,"Constraint","fixed");`

Apply a sinusoidal displacement along the y-direction on the end opposite the fixed end of the beam.

```structuralBC(structuralmodel,"Face",3, ... "YDisplacement",1E-4, ... "Frequency",50);```

Generate a mesh.

`generateMesh(structuralmodel,"Hmax",0.01);`

Specify the zero initial displacement and velocity.

`structuralIC(structuralmodel,"Displacement",[0;0;0],"Velocity",[0;0;0]);`

Solve the model.

```tlist = 0:0.002:0.2; structuralresults = solve(structuralmodel,tlist);```

Compute the reaction forces on the fixed end.

`reaction = evaluateReaction(structuralresults,"Face",5)`
```reaction = struct with fields: Fx: [101x1 double] Fy: [101x1 double] Fz: [101x1 double] ```

Input Arguments

collapse all

Solution of the structural analysis problem, specified as a `StaticStructuralResults`, `TransientStructuralResults`, or `FrequencyStructuralResults` object. Create `structuralresults` by using the `solve` function.

Example: ```structuralresults = solve(structuralmodel)```

Geometric region type, specified as `"Edge"` for a 2-D model or `"Face"` for a 3-D model.

Example: `evaluateReaction(structuralresults,"Face",2)`

Data Types: `char` | `string`

Geometric region ID, specified as a vector of positive integers. Find the region IDs by using `pdegplot`.

Example: `evaluateReaction(structuralresults,"Face",2)`

Data Types: `double`

Output Arguments

collapse all

Reaction forces, returned as a structure array. The array fields represent the integrated reaction forces and surface traction vector, which are computed by using the state of stress on the boundary and the outward normal.

Version History

Introduced in R2017b
