evaluateStrain

Evaluate strain for dynamic structural analysis problem

collapse all in page

Syntax

nodalStrain = evaluateStrain(structuralresults)

Description

nodalStrain = evaluateStrain(structuralresults) evaluates strain at nodal locations for all time- or frequency-steps.

example

Examples

collapse all

Open Live Script

Evaluate the strain in a beam under a harmonic excitation.

Create and plot a beam geometry.

gm = multicuboid(0.06,0.005,0.01);
pdegplot(gm,FaceLabels="on",FaceAlpha=0.5)
view(50,20)

Figure contains an axes object. The axes object contains 6 objects of type quiver, text, patch, line.

Create an femodel object for transient structural analysis and include the geometry into the model.

model = femodel(AnalysisType="structuralTransient", ...
                Geometry=gm);

Specify Young's modulus, Poisson's ratio, and the mass density of the material.

model.MaterialProperties = ...
    materialProperties(YoungsModulus=210E9, ...
                       PoissonsRatio=0.3, ...
                       MassDensity=7800);

Fix one end of the beam.

model.FaceBC(5) = faceBC(Constraint="fixed");

Apply a sinusoidal displacement along the y-direction on the end opposite the fixed end of the beam.

yDisplacemenmtFunc = ...
@(location, state) ones(size(location.y))*1E-4*sin(50*state.time);
model.FaceBC(3) = faceBC(YDisplacement=yDisplacemenmtFunc);

Generate a mesh.

model = generateMesh(model,Hmax=0.01);

Specify the zero initial displacement and velocity.

model.CellIC = cellIC(Displacement=[0,0,0],Velocity=[0,0,0]);

Solve the problem.

tlist = 0:0.002:0.2;
R = solve(model,tlist);

Evaluate the strain in the beam.

strain = evaluateStrain(R);

Plot the normal strain along x-direction for the last time-step.

figure
pdeplot3D(R.Mesh,ColorMapData=strain.exx(:,end))
title("x-Direction Normal Strain in the Beam of the Last Time-Step")

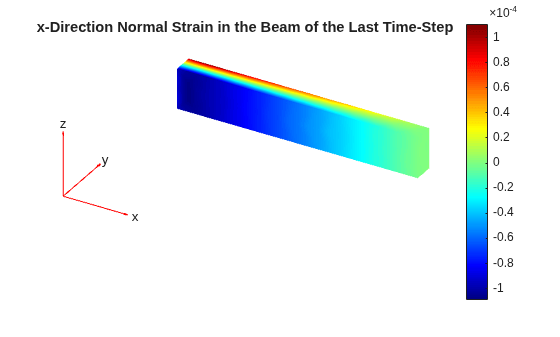

Figure contains an axes object. The hidden axes object with title x-Direction Normal Strain in the Beam of the Last Time-Step contains 5 objects of type patch, quiver, text.

Input Arguments

collapse all

Solution of a dynamic structural analysis problem, specified as a TransientStructuralResults or FrequencyStructuralResults object. Create structuralresults by using the solve function.

Output Arguments

collapse all

Strain at the nodes, returned as an FEStruct object with the properties representing the components of strain tensor at nodal locations. Properties of an FEStruct object are read-only.

Version History

Introduced in R2018a
