# diskmargin

Disk-based stability margins of feedback loops

## Description

`[`

computes the disk-based stability margins for the SISO or MIMO negative feedback loop
`DM`

,`MM`

] = diskmargin(`L`

)`feedback(L,eye(N))`

, where `N`

is the number of inputs
and outputs in `L`

.

The `diskmargin`

command returns loop-at-a-time stability margins in
`DM`

and multiloop margins in `MM`

. Disk-based
margin analysis provides a stronger guarantee of stability than the classical gain and phase
margins. For general information about disk margins, see Stability Analysis Using Disk Margins.

`___ = diskmargin(___,`

specifies an additional skew parameter that biases the modeled gain and phase variation
toward gain increase (positive `sigma`

)`sigma`

) or gain decrease (negative
`sigma`

). You can use this argument to test the relative sensitivity of
stability margins to gain increases versus decreases. You can use this argument with any of
the previous syntaxes.

## Examples

### Disk Margins of MIMO Feedback Loop

`diskmargin`

computes both loop-at-a-time and multiloop disk margins. This example illustrates that loop-at-a-time margins can give an overly optimistic assessment of the true robustness of MIMO feedback loops. Margins of individual loops can be sensitive to small perturbations in other loops, and loop-at-a-time margins ignore such loop interactions.

Consider the two-channel MIMO feedback loop of the following illustration.

The plant model `P`

is drawn from MIMO Stability Margins for Spinning Satellite and `C`

is the static output-feedback gain [1 -2;0 1].

a = [0 10;-10 0]; b = eye(2); c = [1 10;-10 1]; P = ss(a,b,c,0); C = [1 -2;0 1];

Compute the disk-based margins at the plant output. The negative-feedback open-loop response at the plant output is `Lo = P*C`

.

Lo = P*C; [DMo,MMo] = diskmargin(Lo);

Examine the loop-at-a-time disk margins returned in the structure array `DM`

. Each entry in `DM`

contains the stability margins of the corresponding feedback channel.

DMo(1)

`ans = `*struct with fields:*
GainMargin: [0 Inf]
PhaseMargin: [-90 90]
DiskMargin: 2
LowerBound: 2
UpperBound: 2
Frequency: Inf
WorstPerturbation: [2x2 ss]

DMo(2)

`ans = `*struct with fields:*
GainMargin: [0 Inf]
PhaseMargin: [-90 90]
DiskMargin: 2
LowerBound: 2
UpperBound: 2
Frequency: 0
WorstPerturbation: [2x2 ss]

The loop-at-a-time margins are excellent (infinite gain margin and 90° phase margin). Next examine the multiloop disk margins `MMo`

. These consider independent and concurrent gain (phase) variations in **both** feedback loops. This is a more realistic assessment because plant uncertainty typically affects both channels simultaneously.

MMo

`MMo = `*struct with fields:*
GainMargin: [0.6839 1.4621]
PhaseMargin: [-21.2607 21.2607]
DiskMargin: 0.3754
LowerBound: 0.3754
UpperBound: 0.3762
Frequency: 0
WorstPerturbation: [2x2 ss]

The multiloop gain and phase margins are much weaker than their loop-at-a-time counterparts. Stability is only guaranteed when the gain in each loop varies by a factor less than 1.46, or when the phase of each loop varies by less than 21°. Use `diskmarginplot`

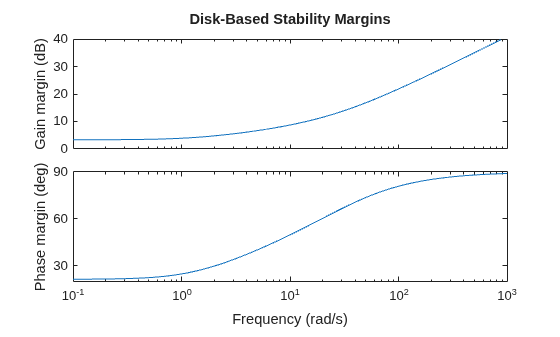

to visualize the gain and phase margins as a function of frequency.

diskmarginplot(Lo)

Typically, there is uncertainty in both the actuators (inputs) and sensors (outputs). Therefore, it is a good idea to compute the disk margins at the plant inputs as well as the outputs. Use `Li = C*P`

to compute the margins at the plant inputs. For this system, the margins are the same at the plant inputs and outputs.

Li = C*P; [DMi,MMi] = diskmargin(Li); MMi

`MMi = `*struct with fields:*
GainMargin: [0.6839 1.4621]
PhaseMargin: [-21.2607 21.2607]
DiskMargin: 0.3754
LowerBound: 0.3754
UpperBound: 0.3762
Frequency: 0
WorstPerturbation: [2x2 ss]

Finally, you can also compute the multiloop disk margins for gain or phase variations at both the inputs and outputs of the plant. This approach is the most thorough assessment of stability margins, because it this considers independent and concurrent gain or phase variations in all input and output channels. As expected, of all three measures, this gives the smallest gain and phase margins.

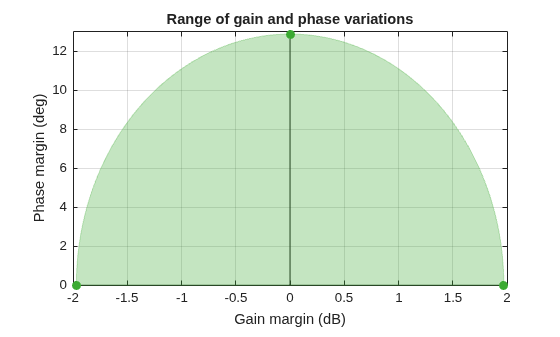

MMio = diskmargin(P,C); diskmarginplot(MMio.GainMargin)

Stability is only guaranteed when the gain varies by a less than 2 dB or when the phase varies by less than 13°. However, these variations take place at the inputs **and** the outputs of *P*, so the total change in I/O gain or phase is twice that.

### Sensitivity of Disk-Based Margins to Gain Increase and Decrease

By default, `diskmargin`

computes a symmetric gain margin, with `gmin = 1/gmax`

, and an associated phase margin. In some systems, however, loop stability may be more sensitive to increases or decreases in open-loop gain. Use the skew parameter `sigma`

to examine this sensitivity.

Compute the disk margin and associated disk-based gain and phase margins for a SISO transfer function, at three values of `sigma`

. Negative `sigma`

biases the computation toward gain decrease. Positive `sigma`

biases toward gain increase.

L = tf(25,[1 10 10 10]); DMdec = diskmargin(L,-2); DMbal = diskmargin(L,0); DMinc = diskmargin(L,2); DGMdec = DMdec.GainMargin

`DGMdec = `*1×2*
0.4013 1.3745

DGMbal = DMbal.GainMargin

`DGMbal = `*1×2*
0.6273 1.5942

DGMinc = DMinc.GainMargin

`DGMinc = `*1×2*
0.7717 1.7247

Put together, these results show that in the absence of phase variation, stability is maintained for relative gain variations between 0.4 and 1.72. To see how the phase margin depends on these gain variations, plot the stable ranges of gain and phase variations for each `diskmargin`

result.

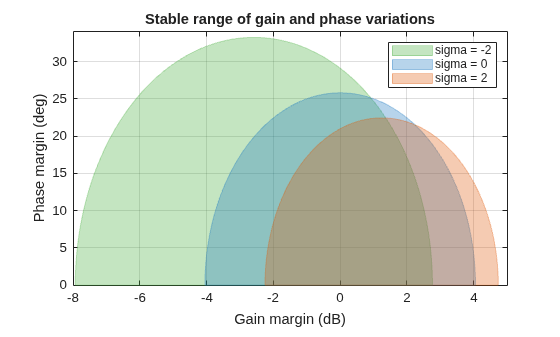

diskmarginplot([DGMdec;DGMbal;DGMinc]) legend('sigma = -2','sigma = 0','sigma = 2') title('Stable range of gain and phase variations')

This plot shows that the feedback loop can tolerate larger phase variations when the gain decreases. In other words, the loop stability is more sensitive to gain increase. Although `sigma`

= –2 yields a phase margin as large as 30 degrees, this large value assumes a small gain increase of less than 3 dB. However, the plot shows that when the gain increases by 4 dB, the phase margin drops to less than 15 degrees. By contrast, it remains greater than 30 degrees when the gain decreases by 4 dB.

Thus, varying the skew `sigma`

can give a fuller picture of sensitivity to gain and phase uncertainty. Unless you are mostly concerned with gain variations in one direction (increase or decrease), it is not recommended to draw conclusions from a single nonzero value of `sigma`

. Instead use the default `sigma`

= 0 to get unbiased estimates of gain and phase margins. When using nonzero values of `sigma`

, use both positive and negative values to compare relative sensitivity to gain increase and decrease.

## Input Arguments

`L`

— Open-loop response

dynamic system model | model array

Open-loop response, specified as a dynamic system model. `L`

can
be SISO or MIMO, as long as it has the same number of inputs and outputs.
`diskmargin`

computes the disk-based stability margins for the
negative-feedback closed-loop system `feedback(L,eye(N))`

.

To compute the disk margins of the positive feedback system
`feedback(L,eye(N),+1)`

, use
`diskmargin(-L)`

.

When you have a plant `P`

and a controller `C`

,
you can compute the disk margins for gain (or phase) variations at the plant inputs or
outputs, as in the following diagram.

To compute margins at the plant outputs, set

`L = P*C`

.To compute margins at the plant inputs, set

`L = C*P`

.

`L`

can be continuous time or discrete time. If
`L`

is a generalized state-space model (`genss`

or `uss`

) then `diskmargin`

uses the current or
nominal value of all control design blocks in `L`

.

If `L`

is a frequency-response data model (such as
`frd`

), then `diskmargin`

computes the margins
at each frequency represented in the model. The function returns the margins at the
frequency with the smallest disk margin.

If `L`

is a model array, then `diskmargin`

computes margins for each model in the array.

`P`

— Plant

dynamic system model

Plant, specified as a dynamic system model. `P`

can be SISO or
MIMO, as long as `P*C`

has the same number of inputs and outputs.
`diskmargin`

computes the disk-based stability margins for a
negative-feedback closed-loop system. To compute the disk margins of the system with
positive feedback, use `diskmargin(P,-C)`

.

`P`

can be continuous time or discrete time. If
`P`

is a generalized state-space model (`genss`

or `uss`

) then `diskmargin`

uses the current or
nominal value of all control design blocks in `P`

.

If `P`

is a frequency-response data model (such as
`frd`

), then `diskmargin`

computes the margins
at each frequency represented in the model. The function returns the margins at the
frequency with the smallest disk margin.

`C`

— Controller

dynamic system model

Controller, specified as a dynamic system model. `C`

can be SISO
or MIMO, as long as `P*C`

has the same number of inputs and outputs.
`diskmargin`

computes the disk-based stability margins for a
negative-feedback closed-loop system. To compute the disk margins of the system with
positive feedback, use `diskmargin(P,-C)`

.

`C`

can be continuous time or discrete time. If
`C`

is a generalized state-space model (`genss`

or `uss`

) then `diskmargin`

uses the current or
nominal value of all control design blocks in `C`

.

If `C`

is a frequency-response data model (such as
`frd`

), then `diskmargin`

computes the margins
at each frequency represented in the model. The function returns the margins at the
frequency with the smallest disk margin.

`sigma`

— Skew

0 (default) | real scalar

Skew of uncertainty region used to compute the stability margins, specified as a real scalar value. This parameter biases the uncertainty used to model gain and phase variations toward gain increase or gain decrease.

The default

`sigma`

= 0 uses a balanced model of gain variation in a range`[gmin,gmax]`

, with`gmin = 1/gmax`

.Positive

`sigma`

uses a model with more gain increase than decrease (`gmax > 1/gmin`

).Negative

`sigma`

uses a model with more gain decrease than increase (`gmin < 1/gmax`

).

Use the default `sigma`

= 0 to get unbiased estimates of gain and
phase margins. You can test relative sensitivity to gain increase and decrease by
comparing the margins obtained with both positive and negative
`sigma`

values. For an example, see Sensitivity of Disk-Based Margins to Gain Increase and Decrease. For more detailed
information about how the choice of `sigma`

affects the margin
computation, see Stability Analysis Using Disk Margins.

## Output Arguments

`DM`

— Disk margins for each feedback channel

structure | structure array

Disk margins for each feedback channel with all other loops closed, returned as a
structure for SISO feedback loops, or an *N*-by-1 structure array for a
MIMO loop with *N* feedback channels. The fields of
`DM(i)`

are:

Field | Value |
---|---|

`GainMargin` | Disk-based gain margins of the corresponding feedback channel, returned as
a vector of the form `[gmin,gmax]` . These values express in
absolute units the amount by which the loop gain in that channel can decrease or
increase while preserving stability. For example, if ```
DM(i).GainMargin =
[0.8,1.25]
``` then the gain of the
i^{th} loop can be multiplied by
any factor between 0.8 and 1.25 without causing instability. When
`sigma` = 0, `gmin = 1/gmax` . If the
open-loop gain can change sign without loss of stability,
`gmin` can be less than zero for large enough negative
`sigma` . If the nominal closed-loop system is unstable,
then `DM(i).GainMargin = [1 1]` . |

`PhaseMargin` | Disk-based phase margin of the corresponding feedback channel, returned as
a vector of the form `[-pm,pm]` in degrees. These values
express the amount by which the loop phase in that channel can decrease or
increase while preserving stability. If the closed-loop system is unstable, then
`DM(i).PhaseMargin = [0 0]` . |

`DiskMargin` | Maximum ɑ compatible with closed-loop stability for the
corresponding feedback channel. ɑ parameterizes the
uncertainty in the loop response (see Algorithms). If the
closed-loop system is unstable, then ```
DM(i).DiskMargin =
0
``` . |

`LowerBound` | Lower bound on disk margin. This value is the same as
`DiskMargin` . |

`UpperBound` | Upper bound on disk margin. This value represents an upper limit on the
actual disk margin of the system. In other words, the disk margin is guaranteed
to be no worse than `LowerBound` and no better than
`UpperBound` . |

`Frequency` | Frequency at which the weakest margin occurs for the corresponding loop
channel. This value is in rad/`TimeUnit` , where
`TimeUnit` is the `TimeUnit` property of
`L` . |

`WorstPerturbation` | Smallest gain and phase variation that drives the feedback loop
unstable, returned as a state-space ( This state-space model is a diagonal perturbation of the
form For more information on interpreting
When analyzing a linear approximation of a nonlinear system,
it can be useful to inject |

When `L = P*C`

is the open-loop response of a system comprising a
controller and plant with unit negative feedback in each channel,
`DM`

contains the stability margins for variations at the plant
outputs. To compute the stability margins for variations at the plant inputs, use
`L = C*P`

. To compute the stability margins for simultaneous,
independent variations at both the plant inputs and outputs, use ```
MMIO =
diskmargin(P,C)
```

.

When `L`

is a model array, `DM`

has additional
dimensions corresponding to the array dimensions of `L`

. For
instance, if `L`

is a 1-by-3 array of two-input, two-output models,
then `DM`

is a 2-by-3 structure array. `DM(j,k)`

contains the margins for the *j*^{th} feedback
channel of the *k*^{th} model in the
array.

`MM`

— Multiloop disk margins

structure

Multiloop disk margins, returned as a structure. The gain (or phase) margins
quantify how much gain variation (or phase variation) the system can tolerate in all
feedback channels at once while remaining stable. Thus, `MM`

is a
single structure regardless of the number of feedback channels in the system. (For SISO
systems, `MM`

= `DM`

.) The fields of
`MM`

are:

Field | Value |
---|---|

`GainMargin` | Multiloop disk-based gain margins, returned as a vector of the form
`[gmin,gmax]` . These values express in absolute units the
amount by which the loop gain can vary in all channels independently and
concurrently while preserving stability. For example, if ```
MM.GainMargin
= [0.8,1.25]
``` then the gain of all loops can be multiplied by any
factor between 0.8 and 1.25 without causing instability. When
`sigma` = 0, `gmin = 1/gmax` . |

`PhaseMargin` | Multiloop disk-based phase margin, returned as a vector of the form
`[-pm,pm]` in degrees. These values express the amount by
which the loop phase can vary in all channels independently and concurrently
while preserving stability. |

`DiskMargin` | Maximum ɑ compatible with closed-loop stability.
ɑ parameterizes the uncertainty in the loop response (see
Algorithms). |

`LowerBound` | Lower bound on disk margin. This value is the same as
`DiskMargin` . |

`UpperBound` | Upper bound on disk margin. This value represents an upper limit on the
actual disk margin of the system. In other words, the disk margin is guaranteed
to be no worse than `LowerBound` and no better than
`UpperBound` . |

`Frequency` | Frequency at which the weakest margin occurs. This value is in
rad/`TimeUnit` , where `TimeUnit` is the
`TimeUnit` property of `L` . |

`WorstPerturbation` | Smallest gain and phase variation that drives the feedback loop
unstable, returned as a state-space ( This state-space model is a diagonal perturbation of the
form For more information on interpreting
When analyzing a linear approximation of a nonlinear system, it
can be useful to inject |

When `L = P*C`

is the open-loop response of a system comprising a
controller and plant with unit negative feedback in each channel,
`MM`

contains the stability margins for variations at the plant
outputs. To compute the stability margins for variations at the plant inputs, use
`L = C*P`

. To compute the stability margins for simultaneous,
independent variations at both the plant inputs and outputs, use ```
MMIO =
diskmargin(P,C)
```

.

When `L`

is a model array, `MM`

is a structure
array with one entry for each model in `L`

.

`MMIO`

— Disk margins for independent variations in all input and output channels

structure

Disk margins for independent variations applied simultaneously at input and output
channels of the plant `P`

, returned as a structure having the same
fields as `MM`

.

For variations applied simultaneously at inputs and outputs, the
`WorstPerturbation`

field is itself a structure with fields
`Input`

and `Output`

. Each of these fields contains
a state-space model such that for ```
Fi(s) =
MMIO.WorstPerturbation.Input
```

and ```
Fo(s) =
MMIO.WorstPerturbation.Output
```

, the system of the following diagram is
marginally unstable, with a pole on the stability boundary at the frequency
`MMIO.Frequency`

.

These state-space models `Input`

and `Output`

are
diagonal perturbations of the form `F(s) = diag(f1(s),...,fN(s))`

. Each
`fj(s)`

is a real-parameter dynamic system that realizes the
worst-case complex gain and phase variation applied to each channel of the feedback
loop.

## Tips

`diskmargin`

assumes negative feedback. To compute the disk margins of a positive feedback system, use`diskmargin(-L)`

or`diskmargin(P,-C)`

.To compute disk margins for a system modeled in Simulink

^{®}, first linearize the model to obtain the open-loop response at a particular operating point. Then, use`diskmargin`

to compute stability margins for the linearized system. For more information, see Stability Margins of a Simulink Model.To compute classical gain and phase margins, use

`allmargin`

.You can visualize disk margins using

`diskmarginplot`

.

## Algorithms

`diskmargin`

computes gain and phase margins by applying a disk-based
uncertainty model to represent gain and phase variations, and then finding the largest such
disk for which the closed-loop system is stable.

### Gain and Phase Uncertainty Model

For SISO *L*, the uncertainty model for disk-margin analysis
incorporates a multiplicative complex uncertainty *F* into the loop
transfer function as follows:

$$F=\frac{1+\alpha \left[\left(1-\sigma \right)/2\right]\delta}{1-\alpha \left[\left(1+\sigma \right)/2\right]\delta}.$$

Here,

*δ*is a gain-bounded dynamic uncertainty, normalized so that it always varies within the unit disk (|*δ*| < 1).*α*sets the amount of gain and phase variation modeled by*F*. For fixed*σ*, the parameter*ɑ*controls the size of the disk. For*α*= 0, the multiplicative factor is 1, corresponding to the nominal*L*.*σ*, called the*skew*, biases the modeled uncertainty toward gain increase or gain decrease. (For details about the effect of skew on the uncertainty model, see Stability Analysis Using Disk Margins.)

For MIMO systems, the model allows the uncertainty to vary independently in each channel:

$${F}_{j}=\frac{1+\alpha \left[\left(1-\sigma \right)/2\right]{\delta}_{j}}{1-\alpha \left[\left(1+\sigma \right)/2\right]{\delta}_{j}}.$$

The model replaces the MIMO open-loop response *L* with
*L***F*, where

$$F=\left(\begin{array}{ccc}{F}_{1}& 0& 0\\ 0& \ddots & 0\\ 0& 0& {F}_{N}\end{array}\right).$$

### Disk-Margin Computation

For a given value of the skew `sigma`

, the *disk
margin* is the largest *ɑ* for which the closed-loop system
`feedback(L*F,1)`

(or `feedback(L*F,eye(N))`

for MIMO
systems) is stable for all values of *F*. To find this value,
`diskmargin`

solves a robust stability problem: Find the largest
*α* such that the closed-loop system is stable for all
*F* in the uncertainty disk Δ(*α*,*σ*)
described by

$$\Delta \left(\alpha ,\sigma \right)=\left\{F=\frac{1+\alpha \left[\left(1-\sigma \right)/2\right]\delta}{1-\alpha \left[\left(1+\sigma \right)/2\right]\delta}\text{\hspace{0.17em}}\text{\hspace{0.17em}}:\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left|\delta \right|<1\right\}.$$

In the SISO case, the robust stability analysis leads to

$${\alpha}_{max}=\frac{1}{{\Vert S+\left(\sigma -1\right)/2\Vert}_{\infty}},$$

where *S* is the sensitivity function (1 + *L*)^{–1}
.

In the MIMO case, the robust stability analysis leads to

$${\alpha}_{max}=\frac{1}{{\mu}_{\Delta}\left(S+\frac{\left(\sigma -1\right)I}{2}\right)}.$$

Here, *μ*_{Δ} is the structured singular value
(`mussv`

) for the diagonal structure

$$\Delta =\left(\begin{array}{ccc}{\delta}_{1}& 0& 0\\ 0& \ddots & 0\\ 0& 0& {\delta}_{N}\end{array}\right),$$

and *δ _{j}* is the normalized uncertainty for each

*F*.

_{j}For more details about the margin computation, see [2].

## References

[1] Blight, James D., R. Lane Dailey,
and Dagfinn Gangsaas. “Practical Control Law Design for Aircraft Using Multivariable
Techniques.” *International Journal of Control* 59, no. 1 (January 1994):
93–137. https://doi.org/10.1080/00207179408923071.

[2] Seiler, Peter, Andrew Packard, and
Pascal Gahinet. “An Introduction to Disk Margins [Lecture Notes].” *IEEE Control
Systems Magazine* 40, no. 5 (October 2020): 78–95.

## Version History

**Introduced in R2018b**

### R2020a: Disk-based gain-margin range can include negative gains

The `diskmargin`

command returns disk-based gain margins in the
`GainMargin`

field of its output structures `DM`

,
`MM`

, and `MMIO`

. These margins take the form
`[gmin,gmax]`

, meaning that the open-loop gain can be multiplied by any
factor in that range without loss of closed-loop stability. Beginning in R2020a, the lower
end of the range `gmin`

can be negative for some negative values of the
skew `sigma`

, if the closed-loop system remains stable even if the sign
of the open-loop gain changes. The skew controls the bias in the disk-based gain margin
toward gain decrease or increase (see Stability Analysis Using Disk Margins). Previously, the
gain-margin range was always positive.

## Comando MATLAB

Hai fatto clic su un collegamento che corrisponde a questo comando MATLAB:

Esegui il comando inserendolo nella finestra di comando MATLAB. I browser web non supportano i comandi MATLAB.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
