Metriche di impulso e transizione
Tempo di salita, tempo di discesa, velocità di variazione, superamento, sottoscorrimento, tempo di assestamento, larghezza di impulso, ciclo di lavoro
Calcola le metriche relative agli impulsi e alle transizioni. Misura tempo di salita, tempo di discesa, slew rate, overshoot, undershoot, tempo di assestamento, larghezza dell’impulso, periodo dell’impulso e duty cycle.
Funzioni
Argomenti
- Estimate State for Digital Clock
Estimate the high and low state levels for data from a digital clock.
- Extract Features of a Clock Signal
Determine how often and how sharply a bilevel signal turns on and off.
Esempi in primo piano

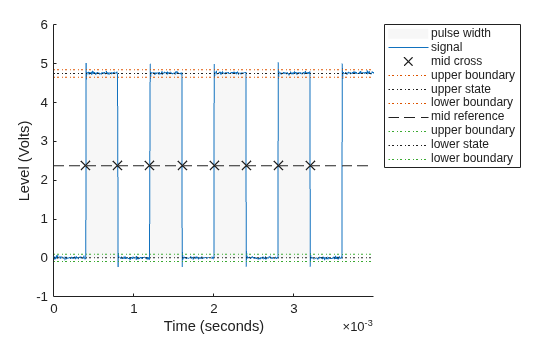

Measurement of Pulse and Transition Characteristics
Analyze pulses and transitions and compute metrics such as rise time, fall time, slew rate, overshoot, undershoot, pulse width, and duty cycle.
Slew Rate of Triangular Waveform
Use the slew rate as an estimate of the rising and falling slopes of a triangular waveform.
Duty Cycle of Rectangular Pulse Waveform
Create a rectangular pulse waveform and measure its ratio of pulse width to pulse period.
