slewrate

Slew rate of bilevel waveform

Syntax

S = slewrate(X)
S = slewrate(X,Fs)
S = slewrate(X,T)
[S,LT,UT] = slewrate(...)
[S,LT,UT,LL,UL] = slewrate(...)
S = slewrate(...,Name,Value)
slewrate(...)

Description

S = slewrate(X) returns the slew rate for all transitions found in the bilevel waveform, X. The slew rate is the slope of the line connecting the 10% and 90% reference levels. The sample instants of X are the indices of the vector. To determine the transitions, slewrate estimates the state levels of the input waveform by a histogram method. slewrate identifies all regions that cross the upper-state boundary of the low state and the lower-state boundary of the high state. The low-state and high-state boundaries are expressed as the state level plus or minus a multiple of the difference between the state levels. See State-Level Tolerances.

S = slewrate(X,Fs) specifies the sample rate, Fs, in hertz. The first time instant in X corresponds to t=0.

S = slewrate(X,T) specifies the sample instants in the vector, T. The length of T must equal the length of X.

[S,LT,UT] = slewrate(...) returns the time instants when the waveform crosses the lower-percent reference level, LT, and upper-percent reference level, UT. If you do not specify lower- and upper-percent reference levels, the levels default to 10% and 90%.

[S,LT,UT,LL,UL] = slewrate(...) returns the waveform values that correspond to the lower-reference levels, LL, and upper-reference levels, UL.

S = slewrate(...,Name,Value) returns the slew rate for all transitions with additional options specified by one or more Name,Value pair arguments.

slewrate(...) plots the bilevel waveform and darkens the regions of each transition where the slew rate is computed. The plot marks the lower- and upper-reference level crossings and associated reference levels. The plot indicates the state levels and associated lower and upper tolerances.

Input Arguments

X

Bilevel waveform as a real-valued column or row vector. If the input waveform does not have at least one transition, slewrate returns an empty matrix.

Fs

Sample rate in hertz.

T

Vector of sample instants. The length of T must equal the length of the bilevel waveform, X.

Name-Value Arguments

PercentReferenceLevels

Percent reference levels. See Percent Reference Levels for a definition.

Default: [10,90]

StateLevels

Low- and high-state levels. StateLevels is a 1-by-2 real-valued vector. The first element is the low-state level. The second element is the high-state level. If you do not specify low- and high-state levels, slewrate estimates the state levels from the input waveform using the histogram method.

Tolerance

Tolerance levels (lower and upper state boundaries) expressed as a percentage. See State-Level Tolerances.

Default: 2

Output Arguments

S

Slew rates as real-valued scalars. A positive slew rate indicates that the upper-percent reference level occurs later than the lower-percent reference level. A negative slew rate indicates that the upper-percent reference level occurs before the lower-percent reference level.

LT

Time instants when signal crosses the lower percent reference level. If you do not specify the lower percent reference levels with the 'PercentReferenceLevels' name-value pair, the lower percent reference level is 10%.

UT

Time instants when signal crosses the upper-percent reference level. If you do not specify the upper-percent reference levels with the 'PercentReferenceLevels' name-value pair, the upper-percent reference level is 90%.

LL

Waveform values at the lower-reference level.

UL

Waveform values at the upper-reference level.

Examples

collapse all

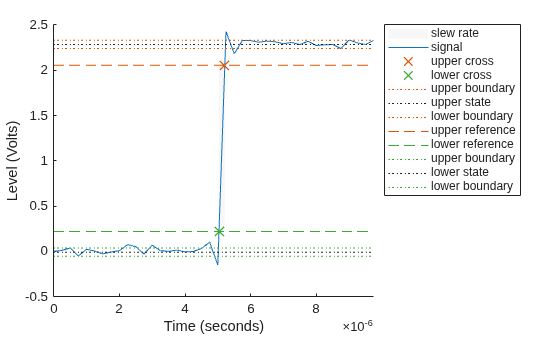

Use slewrate with no output arguments to plot the slew rate information for a step waveform sampled at 4 MHz.

Load the transitionex.mat file and compute the slew rate. Annotate the slew rate in a plot of the waveform.

load('transitionex.mat','x','t')

slewrate(x,t)

Figure Slew Rate Plot contains an axes object. The axes object contains 12 objects of type patch, line. These objects represent slew rate, signal, upper cross, lower cross, upper boundary, upper state, lower boundary, upper reference, lower reference, lower state.

ans = 1.0310e+07

Create a bilevel waveform with three transitions, two positive and one negative. The sample rate is 4 MHz. Obtain the slew rates for the three transitions.

load('transitionex.mat','x')
fs = 4e6;

y = [x;fliplr(x)];
t = (0:length(y)-1)/4e6;

S = slewrate(y,t)
S = 3×1
107 ×

    1.0310
   -0.9320
    1.0310

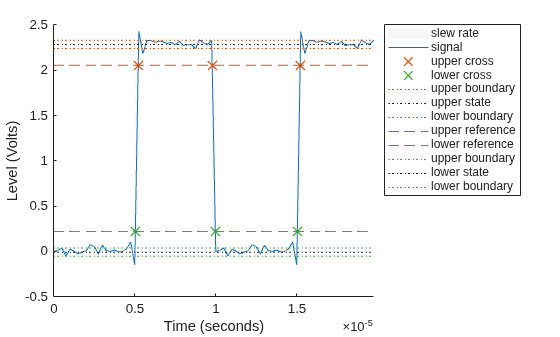

Annotate the result on a plot of the waveform.

slewrate(y,t);

Figure Slew Rate Plot contains an axes object. The axes object contains 12 objects of type patch, line. These objects represent slew rate, signal, upper cross, lower cross, upper boundary, upper state, lower boundary, upper reference, lower reference, lower state.

Return the lower- and upper-transition times for a three-transition waveform sampled at 4 MHz.

load('transitionex.mat','x')
fs = 4e6;

y = [x;fliplr(x)];
t = (0:length(y)-1)/fs;

[~,LT,UT] = slewrate(y,t)
LT = 3×1
10-4 ×

    0.0504
    0.0998
    0.1504

UT = 3×1
10-4 ×

    0.0521
    0.0978
    0.1521

Repeat using the sample rate instead of the time vector.

[~,LT,UT] = slewrate(y,fs)
LT = 3×1
10-4 ×

    0.0504
    0.0998
    0.1504

UT = 3×1
10-4 ×

    0.0521
    0.0978
    0.1521

Annotate the result on a plot of the waveform.

slewrate(y,fs);

Figure Slew Rate Plot contains an axes object. The axes object contains 12 objects of type patch, line. These objects represent slew rate, signal, upper cross, lower cross, upper boundary, upper state, lower boundary, upper reference, lower reference, lower state.

Return the waveform values corresponding to the lower- and upper-reference levels for a three-transition waveform sampled at 4 MHz. Compute these values for 10% and 90%, the default levels.

load('transitionex.mat','x')
fs = 4e6;

y = [x;fliplr(x)];
t = (0:length(y)-1)/fs;

[~,~,~,LL,UL] = slewrate(y,t)
LL = 0.2212
UL = 2.0564

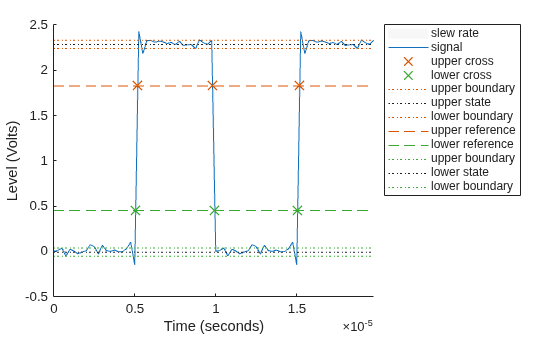

Repeat the calculation for 20% and 80%. Annotate the result on a plot of the waveform

slewrate(y,t,'PercentReferenceLevels',[20 80]);

Figure Slew Rate Plot contains an axes object. The axes object contains 12 objects of type patch, line. These objects represent slew rate, signal, upper cross, lower cross, upper boundary, upper state, lower boundary, upper reference, lower reference, lower state.

More About

collapse all

Percent Reference Levels

If S1 is the low state, S2 is the high state, and U is the upper-percent reference level. The waveform value corresponding to the upper-percent reference level is

S1+U100(S2S1).

If L is the lower-percent reference level, the waveform value corresponding to the lower percent reference level is

S1+L100(S2S1).

Slew Rate

The slew rate is the slope of a line connecting the upper- and lower-percent reference levels. Let tL denote the time instant when the waveform crosses the lower reference level and tU denote the time instant when the waveform crosses the upper percent reference level. Using the definitions for the upper and lower percent reference levels given in Percent Reference Levels, the slew rate is

S1+U100(S2S1){S1+L100(S2S1)}tUtL=UL100S2S1tUtL.

When tL occurs earlier than tU, the slew rate is positive. When tU occurs earlier than tL, the slew rate is negative.

State-Level Tolerances

Each state level can have associated lower- and upper-state boundaries. These state boundaries are defined as the state level plus or minus a scalar multiple of the difference between the high state and the low state. To provide a useful tolerance region, the scalar is typically a small number such as 2/100 or 3/100. In general, the $\alpha\%$ region for the low state is defined as

$$S_1\pm{\alpha\over{100}}(S_2-S_1),$$

where $S_1$ is the low-state level and $S_2$ is the high-state level. Replace the first term in the equation with $S_2$ to obtain the $\alpha\%$ tolerance region for the high state.

This figure illustrates lower and upper 5% state boundaries (tolerance regions) for a positive-polarity bilevel waveform. The thick dashed lines indicate the estimated state levels.

References

[1] IEEE® Standard on Transitions, Pulses, and Related Waveforms, IEEE Standard 181, 2003.

Introduced in R2012a
