signalDatastore
Description
Use a signalDatastore
object to manage a collection of in-memory
data or signal files, where each individual file fits in memory, but the entire collection
does not necessarily fit.
Creation
Syntax
Description
creates a signal datastore with in-memory input signals contained in
sds
= signalDatastore(data
)data
.
creates a signal datastore based on a collection of either MAT files or CSV files in
sds
= signalDatastore(location
)location
. If location
contains a mixture of
MAT files and CSV files, then sds
contains MAT files.
specifies additional properties using one or more name-value arguments.sds
= signalDatastore(___,Name,Value
)
Input Arguments
data
— In-memory input data
cell array of vectors | cell array of matrices | cell array of timetables | cell array of cell arrays
In-memory input data, specified as vectors, matrices, timetables, or cell arrays.
Each element of data
is a member that is output by the datastore
on each call to read
.
Example: {randn(100,1); randn(120,3); randn(135,2);
randn(100,1)}
location
— Files or folders to include in datastore
FileSet
object | path | DsFileSet
object
Files or folders to include in the datastore, specified as one of these values:
FileSet
object — Specifying the location as aFileSet
object leads to a faster construction time for datastores compared to specifying a path orDsFileSet
object. For more information, seematlab.io.datastore.FileSet
.DsFileSet
object — For more information, seematlab.io.datastore.DsFileSet
.File path — You can specify a single file path as a string scalar or character vector. You can specify multiple file paths as a string array or cell array of character vectors.
Files or folders can be local or remote:
Local files or folders — If the files are not in the current folder, then specify full or relative paths. Files within subfolders of a specified folder are not automatically included in the datastore. You can use the wildcard character (*) when specifying the local path. This character specifies that the datastore include all matching files or all files in the matching folders.
Remote files or folders — Specify full paths to remote files or folders as a uniform resource locator (URL) of the form
hdfs:///
. Internet URLs must include the protocol typepath_to_file
"http://"
or"https://"
. For more information, see Work with Remote Data.
When you specify a folder, the datastore includes only files with supported file
formats and ignores files with any other format. To specify a custom list of file extensions to
include in your datastore, see the FileExtensions
name-value argument.
Example: 'whale.mat'
Example: '../dir/data/signal.mat'
Data Types: char
| string
| cell
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: sds =
signalDatastore('C:\dir\signaldata','FileExtensions','.csv')
IncludeSubfolders
— Subfolder inclusion flag
false
or 0
(default) | true
or 1
Subfolder inclusion flag, specified as true
or
false
. Specify true
to include all files and
subfolders within each folder or false
to include only the files
within each folder.
Example: 'IncludeSubfolders',true
Data Types: logical
| double
FileExtensions
— Signal file extensions
character vector | cell array of character vectors | string scalar | string array
Signal file extensions, specified as a string scalar, string array, character vector, or cell array of character vectors.
If no read function is specified, 'FileExtensions'
can only
be set to .mat
to read MAT files, or to .csv
to read CSV files. If 'FileExtensions'
is omitted, it defaults
to .mat
if there are MAT files in the specified location,
otherwise 'FileExtensions'
defaults to .csv
if there are CSV files in the specified location.
If the specified location contains both MAT files and CSV files,
signalDatastore
defaults to reading the MAT files. If neither MAT
files nor CSV files are present, signalDatastore
errors out with the
default read
function. Specify a custom
read
using ReadFcn
function to read files of any other type.
When you do not specify a file extension, the signalDatastore
needs
to parse the files to decide the default extension to read. Specify an extension to
avoid the parsing time.
Example: 'FileExtensions','.csv'
Data Types: string
| char
| cell
In addition to these name-value arguments, you also can specify any of the properties
on this page as name-value arguments, except for the Files
property.
Properties
In-Memory Data
Members
— Member names
cell array
Member names, specified as a cell array. The length of the member names for the
input data should equal the length of the data
cell array. This
property applies only when the datastore contains in-memory data.
MemberNames
— Signal member data
["Member1"..."MemberN"]
(default) | string scalar | string array
Signal member data, specified as a string scalar or a string array. The length of
the member names for the input data should equal the length of the
data
cell array. This property applies only when the datastore
contains in-memory data.
File Data
Files
— Files included in datastore
cell array of strings | cell array of character vectors
Files included in the datastore, specified as a cell array of strings or character
vectors. Each character vector in the cell array represents the full path to a file.
The location
argument in the signalDatastore
defines Files
when the datastore is created. This property
applies only when the datastore contains file data.
Data Types: string
| char
| cell
ReadFcn
— Custom read function
read
(default) | function handle
Function that reads data, specified as a function handle. The function must take a
file name as input, and then it outputs the corresponding data. For example, if
customreader
is the specified function to read the data, then it
must have one of these
templates:
function data = customreader(filename) ... end
function [data,info] = customreader(filename) ... end
data
variable. The
info
variable must be a user-defined structure containing
user-defined information from the file. If you need extra arguments, you can include
them after the filename
argument. signalDatastore
appends to the info
structure a field containing the name of the
file.
Example: @customreader
Data Types: function_handle
AlternateFileSystemRoots
— Alternate file system root paths
string vector | cell array
Alternate file system root paths, specified as the name-value argument consisting of
"AlternateFileSystemRoots"
and a string vector or a cell array. Use
"AlternateFileSystemRoots"
when you create a datastore on a local
machine, but need to access and process the data on another machine (possibly of a different
operating system). Also, when processing data using the Parallel Computing Toolbox™ and the MATLAB®
Parallel Server™, and the data is stored on your local machines with a copy of the data available
on different platform cloud or cluster machines, you must use
"AlternateFileSystemRoots"
to associate the root paths.
To associate a set of root paths that are equivalent to one another, specify
"AlternateFileSystemRoots"
as a string vector. For example,["Z:\datasets","/mynetwork/datasets"]
To associate multiple sets of root paths that are equivalent for the datastore, specify
"AlternateFileSystemRoots"
as a cell array containing multiple rows where each row represents a set of equivalent root paths. Specify each row in the cell array as either a string vector or a cell array of character vectors. For example:Specify
"AlternateFileSystemRoots"
as a cell array of string vectors.{["Z:\datasets", "/mynetwork/datasets"];... ["Y:\datasets", "/mynetwork2/datasets","S:\datasets"]}
Alternatively, specify
"AlternateFileSystemRoots"
as a cell array of cell array of character vectors.{{'Z:\datasets','/mynetwork/datasets'};... {'Y:\datasets', '/mynetwork2/datasets','S:\datasets'}}
The value of "AlternateFileSystemRoots"
must satisfy these conditions:
Contains one or more rows, where each row specifies a set of equivalent root paths.
Each row specifies multiple root paths and each root path must contain at least two characters.
Root paths are unique and are not subfolders of one another.
Contains at least one root path entry that points to the location of the files.
For more information, see Set Up Datastore for Processing on Different Machines or Clusters.
Example: ["Z:\datasets","/mynetwork/datasets"]
Data Types: string
| cell
SignalVariableNames
— Names of variables in signal files
first variable name (default) | string scalar | string vector
Names of variables in signal files, specified as a string scalar or vector of unique names. Use this property when your files contain more than one variable and you want to specify the names of the variables that hold the signal data you want to read.
When the property value is a string scalar,
signalDatastore
returns data contained in the specified variable.When the property value is a string vector,
signalDatastore
returns a cell array with the data contained in the specified variables. In this case, you can use theReadOutputOrientation
property to specify the orientation of the output cell array as a column or a row.
If this property is not specified, signalDatastore
reads
the first variable in the variable list of each file.
Note
To determine the name of the first variable in a file,
signalDatastore
follows these steps:
For MAT files:
s = load(fileName); varNames = fieldnames(s); firstVar = s.(varNames{1});
For CSV files:
opts = detectImportOptions(fileName,'PreserveVariableNames',true); varNames = opts.VariableNames; firstVar = string(varNames{1});
This property applies only when the datastore contains file data and the default read function is used.
ReadOutputOrientation
— Output signal data cell array orientation
'column'
(default) | 'row'
Output signal data cell array orientation, specified as
'column'
or 'row'
. This property specifies how
to orient the output signal data cell array after a call to the read
function when SignalVariableNames
contains more than one signal
name. ReadOutputOrientation
has no effect when
SignalVariableNames
contains only one element and does not
apply if SignalVariableNames
has not been specified.
This property applies only when the datastore contains file data and the default read function is used.
Example: Output Cell Array Orientation

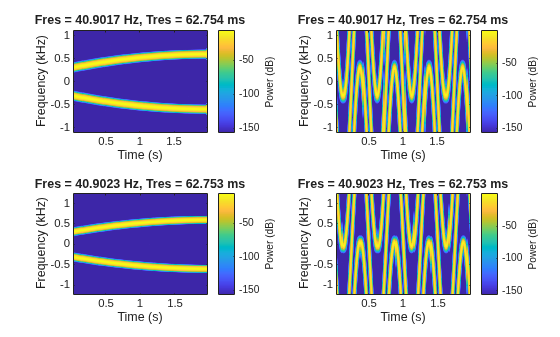

In the Read Multiple Variables from Files in Signal Datastore example,
data
has the default output orientation and is a 2-by-1 column
array:
{1×4941 double} {1×4941 double}
ReadOutputOrientation
as 'row'
,
then data
is a 1-by-2 row
array:{1×4941 double} {1×4941 double}
SampleRateVariableName
— Name of variable holding sample rate
string scalar
Name of the variable holding the sample rate, specified as a string scalar. This property applies only when the datastore contains file data.
SampleTimeVariableName
— Name of variable holding sample time value
string scalar
Name of the variable holding the sample time value, specified as a string scalar. This property applies only when the datastore contains file data.
TimeValuesVariableName
— Name of variable holding time values vector
string scalar
Name of the variable holding the time values vector, specified as a string scalar. This property applies only when the datastore contains file data.
Note
'SampleRateVariableName'
,
'SampleTimeVariableName'
, and
'TimeValuesVariableName'
are mutually exclusive. Use these
properties when your files contain a variable that holds the time information of the
signal data. If not specified, signalDatastore
assumes that signal data has
no time information. These properties are not valid if a custom read
function is specified.
In-Memory and File Data
SampleRate
— Sample rate values
positive scalar | positive vector
Sample rate values, specified as a positive real scalar or vector.
Set the value of
SampleRate
to a scalar to specify the same sample rate for all signals in thesignalDatastore
.Set the value of
SampleRate
to a vector to specify a different sample rate for each signal in thesignalDatastore
.
The number of elements in the vector must equal the number of elements
in the signalDatastore
.
SampleTime
— Sample time values
positive scalar | vector | duration
scalar | duration
vector
Sample time values, specified as a positive scalar, a vector, a duration
scalar, or a duration
vector.
Set the value of
SampleTime
to a scalar to specify the same sample time for all signals in thesignalDatastore
.Set the value of
SampleTime
to a vector to specify a different sample time for each signal in thesignalDatastore
.
The number of elements in the vector must equal the number of elements
in the signalDatastore
.
TimeValues
— Time values
vector | duration
vector | matrix | cell array
Time values, specified as a vector, a duration
vector, a matrix, or a cell array.
Set
TimeValues
to a numeric orduration
vector to specify the same time values for all signals in thesignalDatastore
. The vector must have the same length as all the signals in the set.Set
TimeValues
to a numeric orduration
matrix or cell array to specify that each signal of thesignalDatastore
has signals with the same time values, but the time values differ from signal to signal.If
TimeValues
is a matrix, then the number of columns equal the number of members of thesignalDatastore
. All signals in the datastore must have a length equal to the number of rows of the matrix.If
TimeValues
is a cell array, then the number of vectors equal the number of members of thesignalDatastore
. All signals in a member must have a length equal to the number of elements of the corresponding vector in the cell array.
ReadSize
— Maximum number of signal files returned by read
1
(default) | positive real scalar
Maximum number of signal files returned by read
, specified as
a positive real scalar. If you set the ReadSize
property to n, such that
n > 1, each time you call the read
function, the function reads:
The first variable of the first n files, if
sds
contains file data.The first n members, if
sds
contains in-memory data.
The output of read
is a cell array of signal data
when ReadSize
> 1.
OutputEnvironment
— Hardware resource for output data
"cpu"
(default) | "gpu"
Since R2024b
Hardware resource for output data, specified as one of these:
"cpu"
— Return read data on the CPU."gpu"
— Return read numeric data on the GPU asgpuArray
objects.
When you read each member of the signalDatastore
object with the
OutputEnvironment
property set to "gpu"
, the
read
function attempts moving the data from each member element into the GPU.
If the member element is numeric,
read
moves its data into the GPU using agpuArray
object.If the member element is not numeric,
read
keeps its data in the CPU.
Using a GPU requires a Parallel Computing Toolbox license and a supported GPU device. For information on supported devices, see GPU Computing Requirements (Parallel Computing Toolbox).
Data Types: char
| string
OutputDataType
— Data type of read output
"same"
(default) | "double"
| "single"
| string array | cell array of character vectors
Since R2024b
Data type of read output, specified as one of these:
"same"
— Do not cast data and return."double"
— Cast read data to double precision."single"
— Cast read data to single precision.String array or cell array of character vectors — Cast read data from each member element and return with the specified new data type.
You must create the
signalDatastore
object from file data to specifyOutputDataType
as a string array or cell array of character vectors.Specify
OutputDataType
as an array where each element is one of these:"same"
,"double"
, or"single"
.The number of elements in the array specified in
OutputDataType
must be 1, or must correspond with the number of variables specified inSignalVariableNames
.
When you read each member of the signalDatastore
object with the
OutputDataType
property set to "single"
or
"double"
, the read
function attempts casting all member elements of the object to single-precision or
double-precision numbers.
If all the member elements support conversion to the specified new data type,
read
converts and returns each element with the specified new data type.If any member element does not support conversion to the specified new data type,
read
errors out.
When you specify the OutputDataType
property with a string
array or cell array of character vectors, the read
function
attempts casting the data from each variable specified in
SignalVariableNames
depending on the number of elements in
OutputDataType
.
If
OutputDataType
has one element, theread
function casts all the variables specified inSignalVariableNames
to the data type specified inOutputDataType
if all the variables support conversion to the specified new data type.If
OutputDataType
has as many elements as variables specified inSignalVariableNames
, theread
function casts the ith variable inSignalVariableNames
to the ith data type specified inOutputDataType
if the ith variable supports conversion to the specified new data type.If any variable does not support conversion to the specified new data type,
read
errors out.
For more information about determining data casting support, see cast
.
Data Types: char
| string
Object Functions
read | Read next consecutive signal observation |
readall | Read all signals from datastore |
writeall | Write datastore to files |
preview | Read first signal observation from datastore for preview |
shuffle | Shuffle signals in signal datastore |
subset | Create datastore with subset of signals |
partition | Partition signal datastore and return partitioned portion |
numpartitions | Return estimate for reasonable number of partitions for parallel processing |
reset | Reset datastore to initial state |
progress | Determine how much data has been read |
hasdata | Determine if data is available to read |
transform | Transform datastore |
combine | Combine data from multiple datastores |
isPartitionable | Determine whether datastore is partitionable |
isShuffleable | Determine whether datastore is shuffleable |
Note
isPartitionable
and isShuffleable
return true
by default for signalDatastore
. You can test
if the output of combine
and
transform
are
partitionable or shuffleable using the two functions.
Examples
Signal Datastore with In-Memory Data
Create a signal datastore to iterate through the elements of an in-memory cell array of signal data. The data consists of a sinusoidally modulated linear chirp, a concave quadratic chirp, and a voltage controlled oscillator. The signals are sampled at 3000 Hz.
fs = 3000; t = 0:1/fs:3-1/fs; data = {chirp(t,300,t(end),800).*exp(2j*pi*10*cos(2*pi*2*t)); ... 2*chirp(t,200,t(end),1000,'quadratic',[],'concave'); ... vco(sin(2*pi*t),[0.1 0.4]*fs,fs)}; sds = signalDatastore(data,'SampleRate',fs);

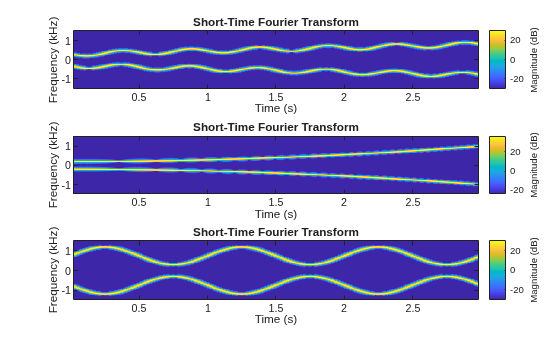

While the datastore has data, read each observation from the signal datastore and plot the short-time Fourier transform.
plotID = 1; while hasdata(sds) [dataOut,info] = read(sds); subplot(3,1,plotID) stft(dataOut,info.SampleRate) plotID = plotID + 1; end
Create Signal Datastore
The folder dataset
contains signal samples included with Signal Processing Toolbox™. Create a signal datastore that points to the folder and set the name of the sample rate variable.
folder = "dataset"; sds = signalDatastore(folder,SampleRateVariableName="fs");

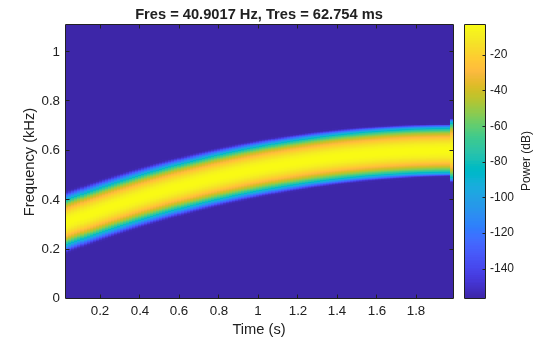

Read the first file in the datastore and plot the spectrogram.
[data,info] = read(sds);
pspectrum(data,info.SampleRate,"spectrogram")
Specify File Extension to Include in Signal Datastore
Specify the folder that contains signal samples included with Signal Processing Toolbox™. The signals are stored in .csv
, .dat
, and .mat
files.
folder = "healthdata";

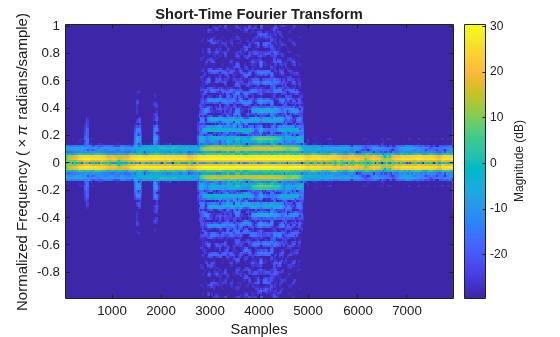

Create a signal datastore that points to the .csv
file in the specified folder. Plot the short-time Fourier transform of the signal.
sds = signalDatastore(folder, ... FileExtensions=".csv",SignalVariableNames=["tx" "x"]); data = read(sds); stft(data{2})
Read Multiple Files with Signal Datastore
Specify the names of four example files included with Signal Processing Toolbox™.
files = ["INR.mat","relatedsig.mat","spots_num.mat","voice.mat"];
Create a signalDatastore
object containing the specified files and set the ReadSize
property to 2
to read data from two files at a time. Each read
returns a cell array where the first cell contains the first variable of the first file read, and the second cell contains the first variable from the second file. While the datastore has data, display the names of the variables read in each read
.
sds = signalDatastore(files,ReadSize=2); while hasdata(sds) [data,info] = read(sds); fprintf("Variable Name:\t%s\n",info.SignalVariableNames) end
Variable Name: Date Variable Name: s1 Variable Name: year Variable Name: fs
Custom Read Data From Signal Datastore
Create a signal datastore that contains three signals included with Signal Processing Toolbox™.
The
strong.mat
file contains three variables:her
,him
andfs
.The
slogan.mat
file contains three variables:hotword
,phrase
andfs
.The
Ring.mat
file contains two variables:y
andFs
.
Each file contains multiple variables of different names. The scalar in each file represents a sample rate. Define a custom read function that reads all the variables in the file as a structure and returns the variable in dataOut
and information about the variables in infoOut
. The SampleRate
field of infoOut
contains the scalar contained in each file, and dataOut
contains the variables read from each file.
function [dataOut,infoOut] = MyCustomRead(filename) fText = importdata(filename); value = struct2cell(fText); dataOut = {}; for i = 1:length(value) if isscalar(value{i}) == 1 infoOut.SampleRate = value{i}; else dataOut{end+1} = value{i}; end end end
files = ["strong.mat","slogan.mat","Ring.mat"]; sds = signalDatastore(files,ReadFcn=@MyCustomRead);

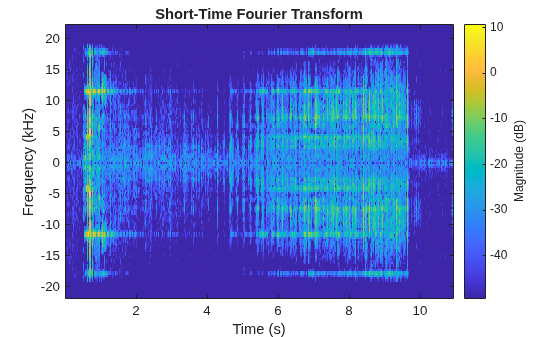

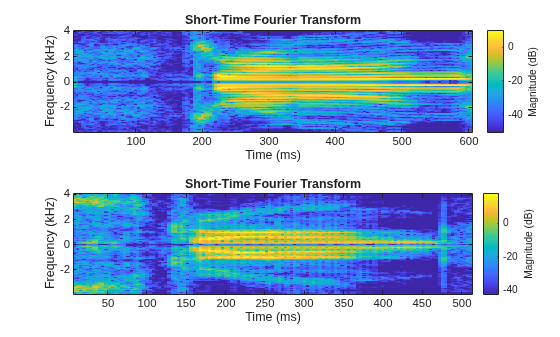

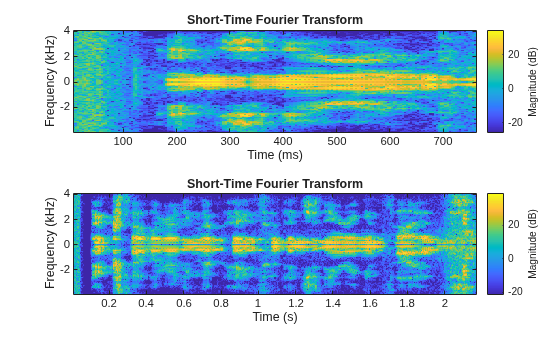

While the datastore has unread files, read from the datastore and compute the short-time Fourier transforms of the signals.
while hasdata(sds) [data,infoOut] = read(sds); fs = infoOut.SampleRate; figure for i = 1:length(data) if length(data)>1 subplot(2,1,i) end stft(data{i},fs) end end
Read Multiple Variables from Files in Signal Datastore
The dataset
folder contains example files included with Signal Processing Toolbox™. Each file contains two signals and a random sample rate fs
ranging from 3000 to 4000 Hz.
The first signal,
x1
, is a convex quadratic chirp.The second signal,
x2
, is a chirp with sinusoidally varying frequency content.
folder = "dataset";
Create a signal datastore that points to the specified folder, set the names of the signal variables and sample rate, and specify the output data type as single precision. While the datastore has data, read each observation and visualize the spectrogram of each signal.
sds = signalDatastore(folder,SignalVariableNames=["x1";"x2"], ... SampleRateVariableName="fs",OutputDataType="single"); tiledlayout flow while hasdata(sds) [data,info] = read(sds); nexttile pspectrum(data{1},info.SampleRate,"spectrogram",TwoSided=true) nexttile pspectrum(data{2},info.SampleRate,"spectrogram",TwoSided=true) end
Extended Capabilities
GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
The signalDatastore
function
supports GPU array input with these usage notes and limitations:
This object can generate GPU arrays, but does not run on a GPU. A
signalDatastore
object can return data on the GPU in agpuArray
object if you set the OutputEnvironment property to"gpu"
.
For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
Version History
Introduced in R2020aR2024b: Return single-precision data and gpuArray
objects
When you use read
or readall
, you can now
select the precision of the signalDatastore
output data and the hardware
that you want to use to return the output data. You must have Parallel Computing Toolbox to use gpuArray
objects.
Comando MATLAB
Hai fatto clic su un collegamento che corrisponde a questo comando MATLAB:
Esegui il comando inserendolo nella finestra di comando MATLAB. I browser web non supportano i comandi MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
