Examine Labeled Signal Set

Load into the MATLAB® Workspace the MAT file you created in the Label Signal Attributes, Regions of Interest, and Points example. Verify that the labeled signal set contains the definitions that you added using Signal Labeler.

load Whale_Songs

labelDefinitionsSummary(whalesongs)

ans=3×9 table
      LabelName        LabelType     LabelDataType     Categories     ValidationFunction    DefaultValue             Sublabels             Tag            Description
    ______________    ___________    _____________    ____________    __________________    ____________    ___________________________    ___    ____________________________

    "WhaleType"       "attribute"    "categorical"    {3×1 string}       {["N/A"   ]}       {0×0 double}    {0×0 double               }    ""     "Whale type"
    "MoanRegions"     "roi"          "logical"        {["N/A"   ]}       {0×0 double}       {0×0 double}    {0×0 double               }    ""     "Regions where moans occur"
    "TrillRegions"    "roi"          "logical"        {["N/A"   ]}       {0×0 double}       {0×0 double}    {1×1 signalLabelDefinition}    ""     "Regions where trills occur"

Verify that TrillPeaks is a sublabel of TrillRegions.

labelDefinitionsHierarchy(whalesongs)

ans =
    'WhaleType
       Sublabels: []
     MoanRegions
       Sublabels: []
     TrillRegions
       Sublabels: TrillPeaks
     '

Retrieve the second member of the set. Retrieve the names of the timetable variables.

song = getSignal(whalesongs,2);

summary(song)

song: 76579×1 timetable

Row Times:

    Time: duration

Variables:

    whale2: double

Statistics for applicable variables and row times:

              NumMissing        Min            Median             Max               Mean              Std

    Time          0           0 sec          9.5722 sec        19.144 sec        9.5722 sec        5.5266 sec
    whale2        0           -0.3733                 0            0.3791        8.1118e-05            0.0392

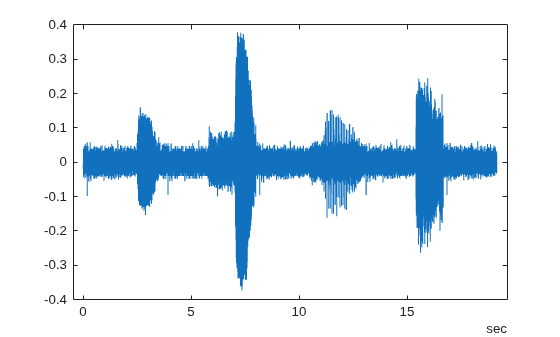

Plot the signal.

t = song.Time;
sng = song.whale2;

plot(t,sng)

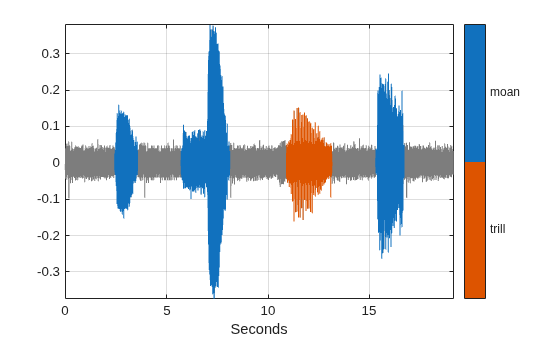

Visualize Labeled Regions

Use a signalMask object to display and identify the regions of interest that you labeled. For better display, change the label values from logical to categorical.

mvals = getLabelValues(whalesongs,2,'MoanRegions');
mvals.Value = categorical(repmat("moan",size(mvals,1),1));

tvals = getLabelValues(whalesongs,2,'TrillRegions');
tvals.Value = categorical(repmat("trill",size(tvals,1),1));

msk = signalMask([mvals;tvals],'SampleRate',1/seconds(t(2)-t(1)));

plotsigroi(msk,sng)

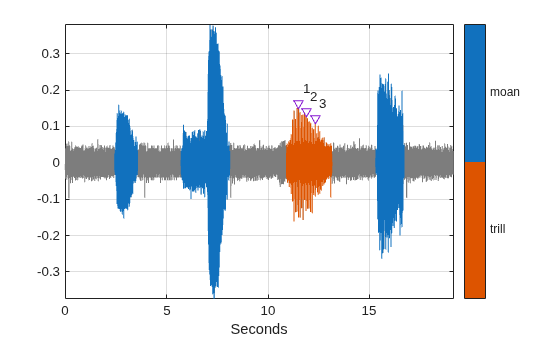

Visualize Labeled Points

Display and identify the trill peaks that you labeled.

pk = getLabelValues(whalesongs,2,{'TrillRegions','TrillPeaks'});

locs  = zeros(size(pk,1),1);
for kj = 1:length(locs)
    locs(kj) = find(seconds(t) == pk.Location(kj));
end

hold on
plot(seconds(t(locs)),sng(locs)+0.01,'v')
text(seconds(t(locs))+0.2,sng(locs)+0.05,int2str(cell2mat(pk.Value)))
hold off
