Discrete-Event Chart

Discrete event chart

  • Discrete-Event Chart block



The Discrete-Event Chart block is similar to a Stateflow® chart but is used for discrete events. The block requires a Stateflow license.

The distinguishing characteristic of the Discrete-Event Chart block is that it executes in an event-based rather than time-based fashion. The Discrete-Event Chart block provides these advantages for discrete-event modeling:

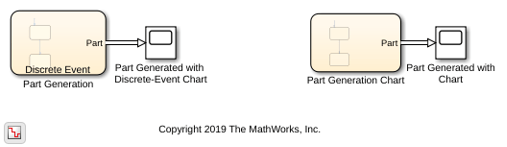

  • Precise timing — The time resolution for occurrence of events can be arbitrarily precise and is not limited by the sample time of the model.

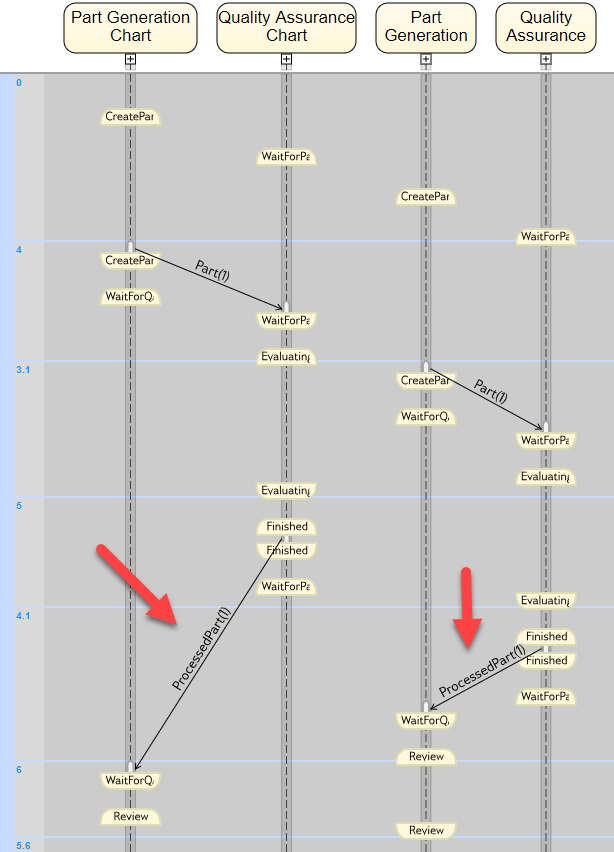

  • Trigger on arrival — A Discrete-Event Chart block executes immediately on message arrival. It does not wait for the next sample time hit.

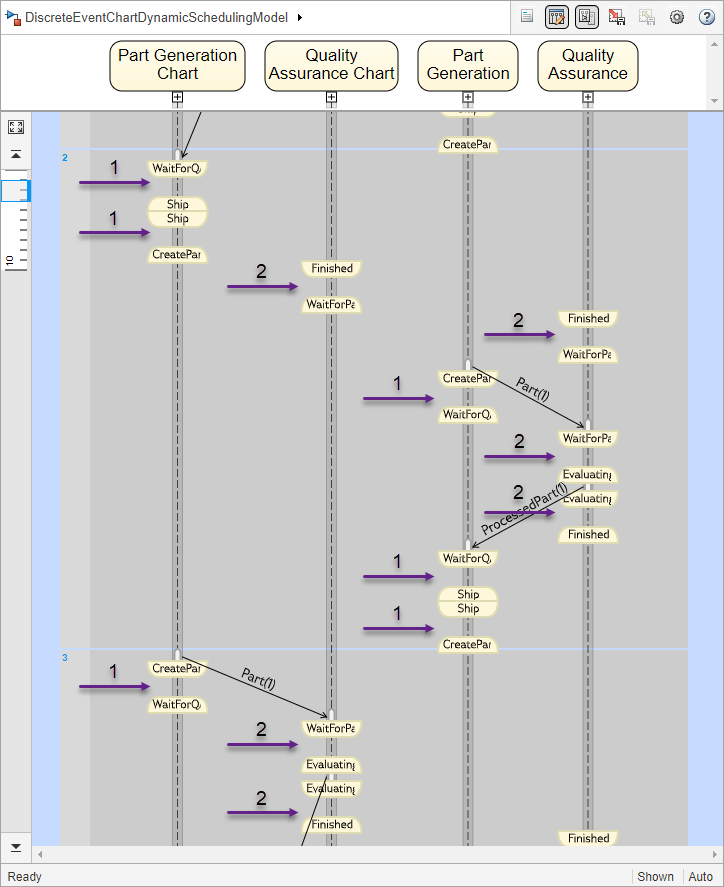

  • Variable execution order — A Discrete-Event Chart block does not have a fixed sorted execution order. The order of execution depends on the run-time conditions of the model.

  • Multiple executions per time step — A Discrete-Event Chart block can execute zero or multiple times in a single time step.

The Discrete Event Chart can be used in a similar fashion to the Stateflow Chart (Stateflow).

To access the chart properties, right-click the chart and select Properties. For more information about the block properties, see Create Custom Queuing Systems Using Discrete-Event Stateflow Charts.

For information about SimEvents® common design patterns with Discrete-Event Chart block, see SimEvents Common Design Patterns.


Version History

Introduced in R2016a
